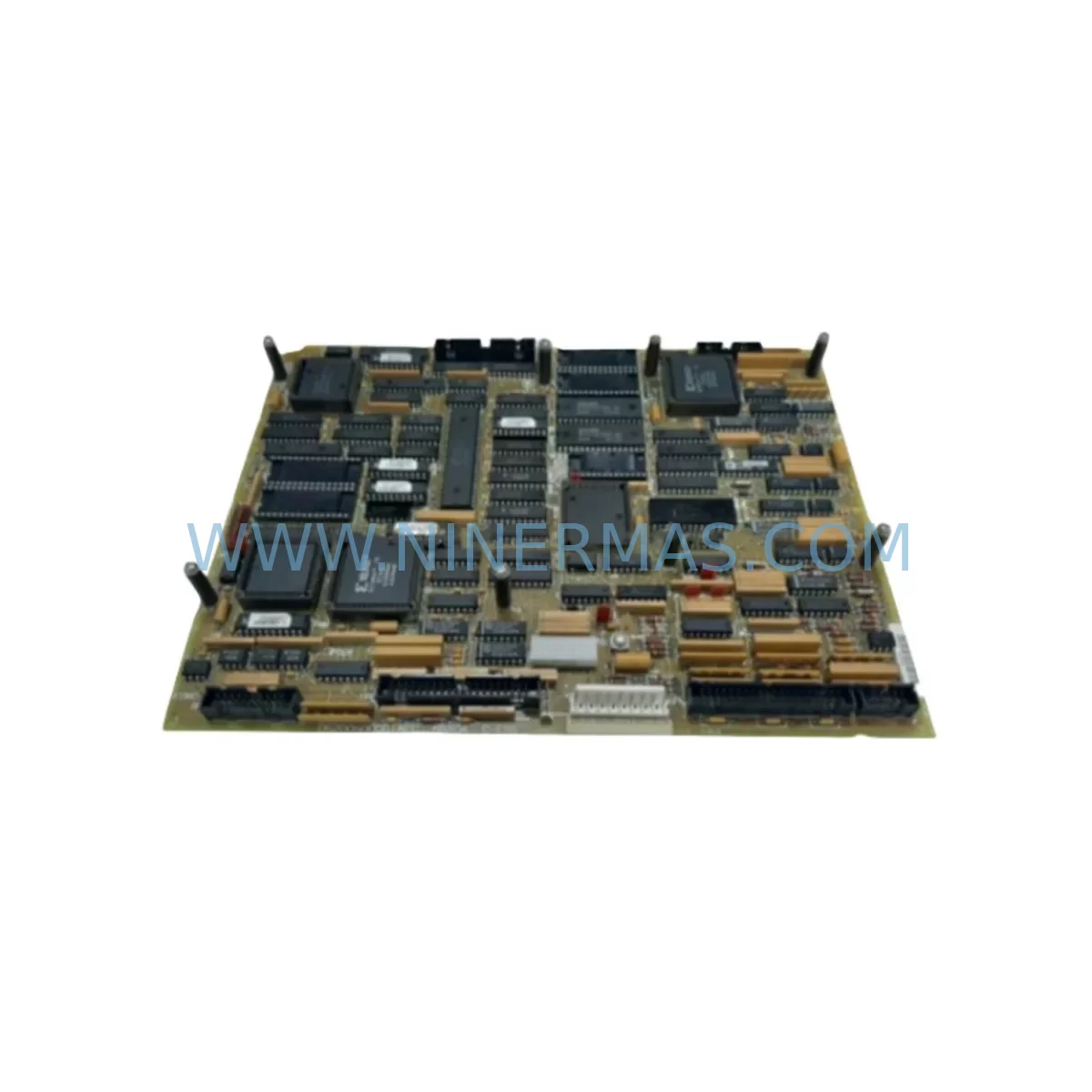

GE DS200SDCCG1AGD Retrofit-Compatible Drive Control Module

GE DS200SDCCG1AGD Retrofit-Compatible Drive Control Module: Legacy System Upgrade & Smooth Migration

The GE DS200SDCCG1AGD is a ruggedized drive control module engineered for demanding industrial environments and designed to serve as a direct retrofit replacement within GE’s Mark V, Mark VI, and EX2100 control platform ecosystems. Whether you are managing a planned upgrade of an aging drive control architecture or responding to an unplanned failure of a discontinued spare part, the DS200SDCCG1AGD provides a reliable, field-proven solution that minimizes engineering rework and reduces total downtime exposure.

This module is functionally compatible with the DS215SDCCG1AZZ01B, making it a preferred drop-in candidate for facilities that have been operating legacy GE drive systems beyond their original design lifecycle. As OEM support for many Mark V-era components has been discontinued, procurement teams and maintenance engineers increasingly rely on authorized aftermarket sources to maintain operational continuity without committing to a full platform overhaul.

The DS200SDCCG1AGD interfaces directly with the GE drive control backplane and is designed to occupy the same rack slot footprint as its predecessor modules. Before installation, engineers should verify the backplane connector pinout against the existing wiring harness, confirm that the module address DIP switch settings match the original configuration, and review the terminal block assignments for any site-specific signal routing that may have been applied during the original commissioning. Power supply capacity at the rack level — typically sourced from a DS200PCCAG1A or equivalent GE power supply module — should be confirmed to meet the current draw requirements of the replacement module, particularly in high-density I/O configurations.

In retrofit scenarios involving communication protocol migration, the DS200SDCCG1AGD supports integration with GE’s standard drive communication architecture. Sites transitioning from legacy serial-based control links to Ethernet-based supervisory networks should audit the existing DS200TCQAG1A communication interface modules and confirm that the HMI screens — whether running on a GE Cimplicity workstation or a third-party SCADA platform — have been updated to reflect any tag name or address changes introduced by the replacement module. Failure to synchronize HMI display logic with the new module’s output register map is one of the most common sources of post-retrofit commissioning delays.

For facilities managing I/O expansion as part of a broader control cabinet upgrade, the DS200SDCCG1AGD can be deployed alongside DS200IIBDG1A I/O interface boards and DS200DSPXG1A digital signal processing modules to extend the functional scope of the retrofit without requiring a full controller replacement. This modular approach is particularly valuable in applications where the existing IS200TBAAH1A terminal board assemblies and field wiring are to be retained, as it avoids the cost and schedule impact of rewiring the entire control cabinet.

Signal isolation requirements should also be reviewed during the retrofit planning phase. In mixed-signal environments where analog process inputs share a common ground reference with digital control outputs, the addition of a dedicated signal isolator — such as those used in conjunction with GE’s DS200TCDAG1A analog I/O modules — can prevent ground loop interference that would otherwise compromise measurement accuracy and drive response stability.

Programming compatibility is a critical checkpoint in any drive control module replacement. The DS200SDCCG1AGD retains compatibility with the original application logic stored in the Mark V or Mark VI controller, provided that the firmware revision of the replacement module is aligned with the version expected by the control system. Maintenance teams should retrieve the existing program backup from the DS200GDDAG1A or equivalent programming interface before removing the original module, and verify that the backup can be successfully restored to the replacement unit during bench testing prior to field installation.

Physical installation space should be confirmed before ordering. The DS200SDCCG1AGD occupies a standard GE VME-style rack slot and is compatible with the IS200TRLYH1B relay output terminal board when relay-based output functions are required. Rack mounting hardware, guide rails, and ejector handles should be inspected and replaced if worn, as improper seating of the module can result in intermittent backplane communication faults that are difficult to diagnose under live operating conditions.

All units supplied by NINERMAS are subject to pre-shipment functional testing, including power-on verification, communication link handshake confirmation, and visual inspection for component-level damage. Each DS200SDCCG1AGD is covered by a 12-month warranty from the date of shipment, with in-stock availability supporting urgent procurement requirements across global industrial sites.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the DS200SDCCG1AGD into an existing GE drive control system requires a structured pre-installation audit covering power distribution, signal routing, communication topology, and program integrity. The following planning checklist reflects the most common engineering checkpoints encountered during field retrofits of Mark V and Mark VI era drive control modules.

Power Supply Verification: Confirm that the rack-level power supply — typically a DS200PCCAG1A or DS200PCCBG1A — can sustain the combined current draw of all installed modules after the replacement. Overloaded power supplies are a leading cause of intermittent module faults in retrofitted control cabinets.

Terminal Block and Wiring Audit: Review the existing IS200TBAAH1A terminal board assemblies and confirm that field wiring labels match the updated I/O assignment documentation. Any site-specific wiring modifications made during the original installation must be captured in the as-built drawings before the retrofit proceeds.

Backplane and Rack Inspection: Inspect the VME backplane connector for pin damage, oxidation, or contamination. Confirm that the rack guide rails and ejector mechanisms are functional. A damaged backplane connector will prevent reliable communication between the DS200SDCCG1AGD and adjacent modules such as the DS200IIBDG1A I/O interface board or the DS200DSPXG1A signal processing module.

Module Address Configuration: Set the DIP switch address on the DS200SDCCG1AGD to match the original module’s address assignment. Incorrect addressing will cause the controller to fail to recognize the replacement module during startup, resulting in a system fault that may be misdiagnosed as a hardware failure.

Program Backup and Restore: Retrieve the current application program from the controller using the DS200GDDAG1A programming interface or equivalent toolset. Verify that the backup is complete and restorable before removing the original module. After installing the DS200SDCCG1AGD, restore the program and confirm that all function blocks, PID loops, and interlock logic execute correctly during a controlled test sequence.

HMI Screen Validation: Update all HMI display pages — whether hosted on a GE Cimplicity platform or a third-party SCADA system — to reflect any register address or tag name changes introduced by the replacement module. Pay particular attention to analog trend displays and alarm setpoint configurations that reference drive output parameters monitored by the DS200TCDAG1A analog I/O module.

Communication Link Testing: Verify the integrity of the communication link between the DS200SDCCG1AGD and the supervisory control network. If the site uses a DS200TCQAG1A communication interface module, confirm that the baud rate, parity, and station address settings are consistent with the network configuration documented in the original commissioning records.

Signal Isolation Review: In environments with high electromagnetic interference — common in variable frequency drive (VFD) applications — confirm that signal isolators are installed on all analog input channels that share a common ground reference with power circuits. This is particularly important when the DS200SDCCG1AGD is installed in a cabinet that also houses a DS200TCDAG1A or similar analog signal conditioning module.

Relay Output Verification: If the application uses relay-based discrete outputs, confirm that the IS200TRLYH1B relay output terminal board is correctly seated and that all relay coil assignments match the updated I/O documentation. Test each relay output individually before returning the system to automatic control mode.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive control module replacement requires a combination of advance preparation, parallel testing, and a clearly defined rollback procedure. The following practices are recommended for sites where continuous process operation is a priority.

Pre-Staging and Bench Testing: Configure and test the DS200SDCCG1AGD on a bench test rig before the scheduled maintenance window. Verify power-on behavior, communication handshake, and program restore functionality in a controlled environment. This eliminates the most common sources of installation delay and allows the maintenance team to identify any firmware compatibility issues before the module is installed in the live system.

Scheduled Maintenance Window Planning: Coordinate the replacement with the site’s planned maintenance schedule to avoid unplanned production interruptions. Prepare a detailed step-by-step installation procedure, including estimated time for each task, and assign clear responsibilities to each member of the maintenance team. Ensure that a spare DS200SDCCG1AGD is available on-site in case the primary replacement unit requires additional configuration time.

Program Logic Protection: Before removing the original module, verify that the current application program has been backed up to at least two independent storage locations. Confirm that the backup includes all user-defined function blocks, alarm configurations, and communication parameter settings. Do not proceed with the physical replacement until the backup has been verified as complete and restorable.

Controlled Restart Sequence: After installing the DS200SDCCG1AGD and restoring the application program, perform a controlled restart sequence that brings the drive system online in manual mode before switching to automatic control. Monitor all process variables and alarm states during the initial startup period and confirm that the system response matches the expected behavior documented in the commissioning baseline.

Post-Installation Monitoring: Maintain enhanced monitoring of the drive system for a minimum of 24 hours following the retrofit. Log all alarm events, communication faults, and process deviations during this period and compare them against the pre-retrofit baseline. Any anomalies should be investigated and resolved before the system is returned to full automatic operation.

Retrofit Support FAQ

Q1: Is the DS200SDCCG1AGD a direct replacement for the DS215SDCCG1AZZ01B?
The DS200SDCCG1AGD is functionally compatible with the DS215SDCCG1AZZ01B and is the recommended replacement for sites where the original module has failed or is no longer available from the OEM. A firmware version check and DIP switch address verification are required before installation to confirm full compatibility with the specific control system configuration at your site.

Q2: What commissioning steps are required after installing the DS200SDCCG1AGD?
After physical installation, the following commissioning steps are required: restore the application program from a verified backup, confirm module address recognition by the controller, validate HMI tag assignments and display logic, test all discrete and analog I/O channels, verify communication link integrity with the supervisory network, and perform a controlled restart sequence in manual mode before returning to automatic operation.

Q3: Does NINERMAS perform pre-shipment testing on the DS200SDCCG1AGD?
Yes. All DS200SDCCG1AGD units supplied by NINERMAS are subject to pre-shipment functional testing, including power-on verification, communication link handshake confirmation, and visual inspection for component-level damage. Units that do not pass testing are not shipped. Each unit is covered by a 12-month warranty from the date of shipment.

Q4: What is the lead time and stock availability for the DS200SDCCG1AGD?
NINERMAS maintains in-stock inventory of the DS200SDCCG1AGD to support urgent procurement requirements. Standard lead time for in-stock units is 3–5 business days for international shipments. For large-quantity orders or long-term spare parts program commitments, please contact our sales team to discuss dedicated stock allocation and priority fulfillment arrangements.
