Siemens 6SC6512-0AA02 Service-Ready Spare Part: Minimizing Downtime Risk in Industrial Drive Systems

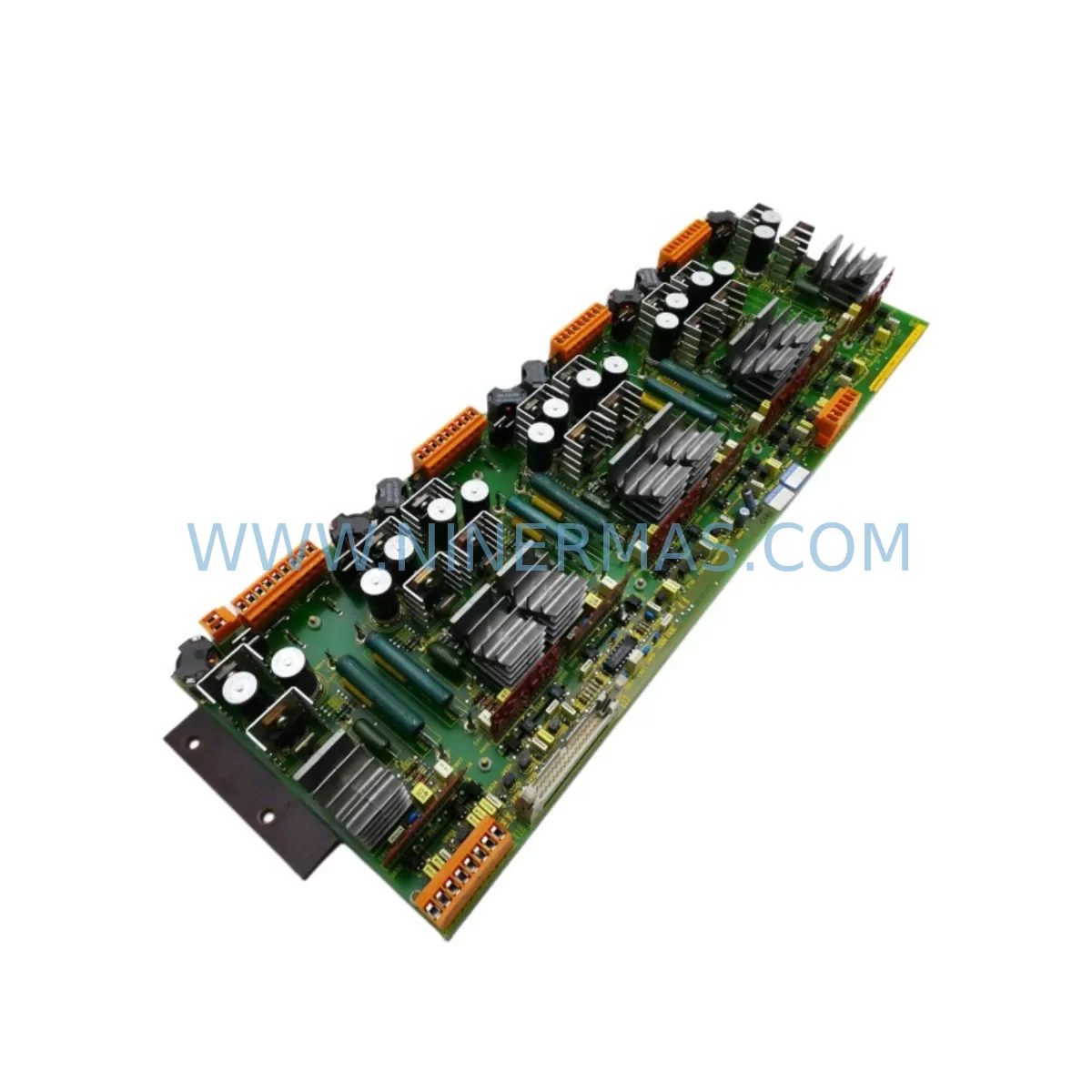

The Siemens 6SC6512-0AA02 is a ruggedized drive control module designed for demanding industrial automation environments. As a critical component within the SIMOVERT drive series, this module governs core control functions including speed regulation, torque management, and fault diagnostics. When this unit fails or degrades, the consequences extend beyond a single axis — entire production lines, conveyor systems, and process-critical machinery can come to a halt. At NINERMAS, we stock the 6SC6512-0AA02 as a service-ready spare, pre-inspected and tested before shipment, backed by a 12-month warranty to support your maintenance and procurement strategy.

For maintenance engineers managing aging SIMOVERT installations, the 6SC6512-0AA02 represents one of the highest-priority items on any spare parts list. Its role in closed-loop drive control means that degradation — whether from thermal cycling, capacitor aging, or firmware corruption — often manifests as intermittent faults before catastrophic failure. Proactive replacement during scheduled downtime is far preferable to emergency sourcing during an unplanned outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SC6512-0AA02 in isolation is rarely sufficient for a complete drive system restoration. Experienced maintenance engineers know that a failed control module is often a symptom of broader electrical stress within the control cabinet. When servicing this module, it is best practice to simultaneously inspect and — where necessary — replace adjacent components that share the same power rail or signal path.

Start with the DC bus capacitor bank and power supply module (such as the Siemens 6SC6600-series PSU or equivalent), as voltage ripple from a degraded power supply is a leading cause of control module failure. Next, inspect the gate driver board and IGBT module within the inverter section — these components are thermally and electrically coupled to the control module and should be evaluated together. The 6SC6508 or 6SC6510 interface board, which handles analog and digital I/O signal conditioning between the control module and the PLC, should also be checked for contact oxidation and signal integrity.

On the communication side, verify the integrity of the PROFIBUS DP communication module or USS protocol interface card if your system uses serial drive communication. A faulty communication module can cause the replacement control module to appear defective during commissioning. Similarly, inspect the terminal block assemblies and shielded signal cables connecting the drive to the motor encoder — damaged shielding introduces noise that can destabilize the speed control loop.

For systems integrated with a Siemens S5 or S7 PLC, confirm that the analog output module (e.g., 6ES7 series AO card) is delivering clean setpoint signals. A drifting analog output will cause erratic speed behavior even after a successful control module replacement. If your installation includes a Siemens OP or TP series HMI panel, verify that drive parameter sets are backed up before replacement, as some configurations store drive parameters locally on the HMI.

Finally, check the motor protection relay, line reactor, and EMC filter upstream of the drive. These components protect the drive from grid-side disturbances and their condition directly affects the service life of the replacement module. A comprehensive inspection of these interconnected components — rather than a simple module swap — is what separates a durable repair from a repeat failure.

Site Replacement Workflow

The 6SC6512-0AA02 is a direct replacement for earlier revisions within the 6SC6512 family. Before installation, confirm the hardware revision compatibility with your existing chassis by checking the order suffix and firmware version documented on the existing module’s nameplate. In most SIMOVERT installations, the replacement procedure involves: (1) isolating and locking out the drive cabinet, (2) discharging the DC bus capacitors (minimum 5-minute wait after power-off), (3) documenting all parameter settings via the existing HMI or handheld programmer, (4) removing the failed module by releasing the front-panel locking tabs, (5) seating the replacement module and securing the connector, and (6) restoring parameters and performing a no-load test run before reconnecting the motor load.

This workflow minimizes total downtime to under two hours for a prepared maintenance team. Having the 6SC6512-0AA02 in your on-site spare parts inventory — rather than sourcing it reactively — is the single most effective way to reduce mean time to repair (MTTR) for drive-related stoppages. NINERMAS supports long-term supply agreements for customers managing large fleets of SIMOVERT drives, ensuring consistent access to this and related modules even as OEM availability declines for legacy series.

Spare Parts Support FAQ

Q1: Is the 6SC6512-0AA02 compatible with all SIMOVERT P and SIMOVERT A chassis variants?
The 6SC6512-0AA02 is designed for specific chassis configurations within the SIMOVERT 6SC65xx series. Compatibility depends on the drive’s power rating, firmware version, and hardware revision. We recommend providing your full drive nameplate data — including the complete order number and firmware revision — when placing an order, so our technical team can confirm compatibility before shipment.

Q2: What testing is performed before the module is shipped?
Every 6SC6512-0AA02 unit shipped by NINERMAS undergoes a pre-shipment functional test covering power-on self-test, I/O signal verification, and communication interface check. Units that do not pass all test criteria are not dispatched. A test report is available upon request for customers with quality assurance requirements.

Q3: How should I manage spare parts inventory for aging SIMOVERT installations?
For installations with five or more SIMOVERT drives, we recommend maintaining at least one 6SC6512-0AA02 control module on-site as a critical spare. For larger fleets or systems in continuous 24/7 operation, a minimum of two units is advisable. NINERMAS offers reserved stock agreements that guarantee unit availability for up to 12 months, protecting your operation against supply chain disruptions for legacy components.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated environmental parameters. Warranty claims are processed within 5 business days, with replacement units dispatched upon confirmation of the defect.
