GE DS200DMCBG1AJE Service-Ready Spare Part for Industrial Maintenance

GE DS200DMCBG1AJE Service-Ready Spare Part for Industrial Maintenance

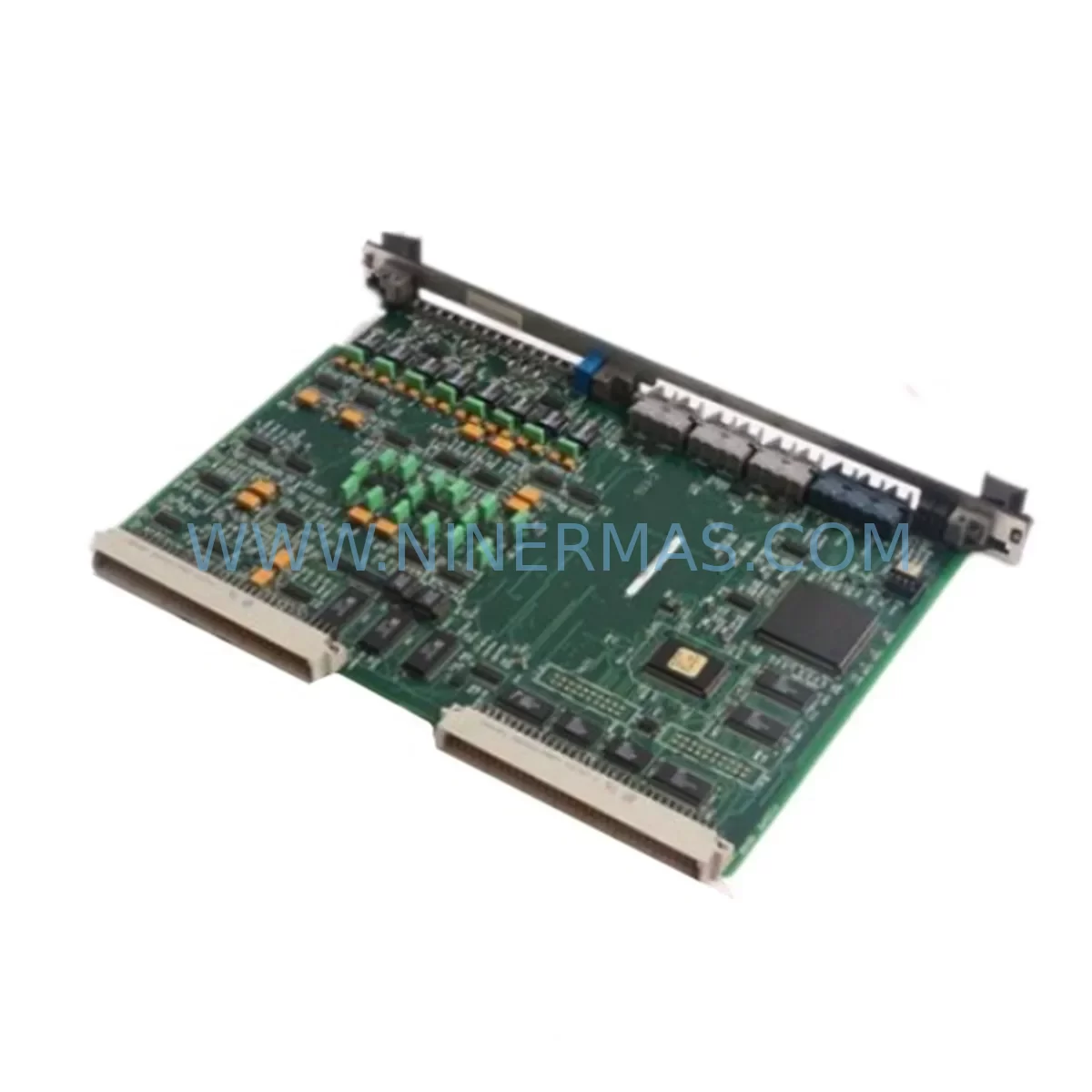

The GE DS200DMCBG1AJE is an original IOS Duplicate Processor Card designed for the GE Mark V Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As a direct-replacement service spare, this card is sourced, inspected, and dispatched to support rapid downtime recovery and long-term system continuity. Whether you are managing a scheduled annual overhaul or responding to an unplanned trip event, having a verified DS200DMCBG1AJE on your critical spare shelf is a fundamental risk-reduction strategy.

The Mark V platform relies on a triple-redundant architecture — , , and — with the IOS (I/O Processor) card serving as the communication backbone between the I/O racks and the main processor boards. A failure or degradation of the DS200DMCBG1AJE can result in loss of I/O communication, spurious trips, or inability to restart the turbine unit. Maintenance engineers familiar with Mark V diagnostics will recognize the card’s role in the IONET communication loop and understand why a pre-tested replacement unit is essential in any turbine control cabinet spare kit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DS200DMCBG1AJE is flagged during a Mark V diagnostic cycle or identified as a fault source during a turbine trip investigation, the replacement process should be treated as part of a broader control cabinet audit. Experienced maintenance engineers know that a single card failure rarely occurs in isolation — adjacent components in the same I/O rack or communication loop are often subject to the same thermal cycling, voltage transients, and aging stresses.

During the same maintenance window, it is strongly recommended to inspect and verify the condition of the following components:

• DS200TCQAG1BHF (TCQA I/O Terminal Board) — directly interfaces with the DS200DMCBG1AJE in the IOS rack; connector wear and pin oxidation are common failure precursors.
• DS200SDCCG1AFB (Speed Detector Card) — shares the same backplane power rail; verify supply voltage stability after processor card replacement.
• DS200IOCAG1B (I/O Controller Card) — inspect for firmware version compatibility when swapping the IOS processor card to avoid IONET communication mismatches.
• DS200TCDAG1AHD (Analog I/O Terminal Board) — check all analog signal wiring terminations and confirm signal integrity on 4–20 mA loops after card swap.
• DS200EXPSG1AEB (Expander Power Supply Card) — measure output voltages (+5V, ±15V) to confirm the replacement card receives clean, in-spec power.
• Mark V Backplane Ribbon Cables — inspect for cracking, pin damage, or intermittent contact, particularly on the IONET data bus connectors.
• DS200TCCAG1BHD (Turbine Control Processor Card) — confirm that the main processor recognizes the replacement IOS card and that no persistent fault codes remain after restart.
• 24VDC Panel Power Supply (e.g., DS200PCCAG1A) — validate that the cabinet power supply is within tolerance; undervoltage conditions accelerate processor card degradation.
• Mark V HMI Workstation (CIMPLICITY / GE Toolbox) — after card replacement, use GE Toolbox software to perform a full I/O checkout and verify all point assignments are correctly mapped.
• Terminal Block Assemblies and Fuse Holders — inspect field wiring terminations on associated I/O terminal boards; loose connections can cause recurring faults that are misdiagnosed as processor card failures.

Procurement engineers sourcing the DS200DMCBG1AJE for annual maintenance kits or emergency stock should consider establishing a blanket purchase agreement to ensure priority allocation. Given that GE Mark V systems are increasingly in the legacy and end-of-life phase, original spare availability is tightening. Securing verified stock from a reliable industrial spare parts supplier with documented testing procedures and a 12-month warranty is a critical procurement risk-control measure.

Site Replacement Workflow

Replacing the DS200DMCBG1AJE on a live Mark V system requires careful sequencing to minimize downtime and avoid introducing new faults. The following workflow reflects best practices for field replacement in a turbine control environment:

1. Pre-Replacement Verification: Confirm the fault is isolated to the DS200DMCBG1AJE using GE Toolbox diagnostics. Document all active fault codes and I/O status before powering down the card rack.
2. ESD Precautions: Ground yourself and the replacement card using an ESD wrist strap before handling. The DS200DMCBG1AJE contains sensitive CMOS components that are vulnerable to electrostatic discharge.
3. Card Extraction: With the rack powered down (or in hot-swap mode if the system supports it), carefully extract the faulty card using the ejector levers. Avoid flexing the backplane connector.
4. Visual Inspection of Slot: Inspect the backplane connector pins and the card slot for debris, corrosion, or bent pins before inserting the replacement unit.
5. Replacement Card Installation: Insert the DS200DMCBG1AJE firmly and evenly into the slot until the ejector levers click into the locked position. Confirm the card is fully seated.
6. Power-Up and Diagnostics: Restore power to the rack and monitor the card’s LED status indicators. Use GE Toolbox to confirm the card is recognized, firmware is compatible, and all I/O points are communicating correctly.
7. Functional Test: Perform a full I/O checkout and simulate key process signals to verify correct response before returning the turbine to service.
8. Documentation: Record the replacement in the maintenance log, including the old card serial number, new card serial number, date, and technician name. Retain the faulty card for failure analysis if required.

This structured approach reduces the risk of repeat failures, ensures system compatibility, and supports audit trail requirements for regulated power generation facilities.

Spare Parts Support FAQ

Q1: Is the DS200DMCBG1AJE compatible with all Mark V turbine control configurations?
The DS200DMCBG1AJE is designed for the GE Mark V IOS rack and is compatible with standard TCCA, TCCB, and TCCC redundant processor configurations. Compatibility should always be verified against your specific Mark V system revision and firmware version using GE Toolbox before installation. If you are unsure, our technical team can assist with compatibility confirmation based on your system’s serial number and configuration documentation.

Q2: What testing is performed before the DS200DMCBG1AJE is shipped?
Every DS200DMCBG1AJE unit is inspected for physical condition, connector integrity, and component-level anomalies prior to dispatch. Functional testing is performed where test bench infrastructure supports the Mark V card type. Each unit is shipped in anti-static ESD packaging with a 12-month warranty from the date of shipment, providing assurance for both emergency replacements and planned maintenance stock.

Q3: Can I source the DS200DMCBG1AJE as part of a long-term spare parts agreement?
Yes. Given the legacy status of the GE Mark V platform, we strongly recommend establishing a long-term supply agreement for critical cards including the DS200DMCBG1AJE and associated IOS rack components. Blanket purchase orders and reserved stock arrangements are available to ensure priority access for scheduled outages and emergency callouts. Contact our team to discuss volume pricing and lead time guarantees.

Q4: What should I do if the replacement DS200DMCBG1AJE does not resolve the fault after installation?
If the fault persists after installing a verified replacement card, the issue may lie with the backplane connector, the IONET communication cable, the adjacent TCQA terminal board, or the main processor card (DS200TCCAG1BHD). We recommend performing a systematic isolation test using GE Toolbox to identify whether the fault is card-level, rack-level, or system-level. Our technical support team is available to assist with fault diagnosis and to identify additional spare components that may be required.
