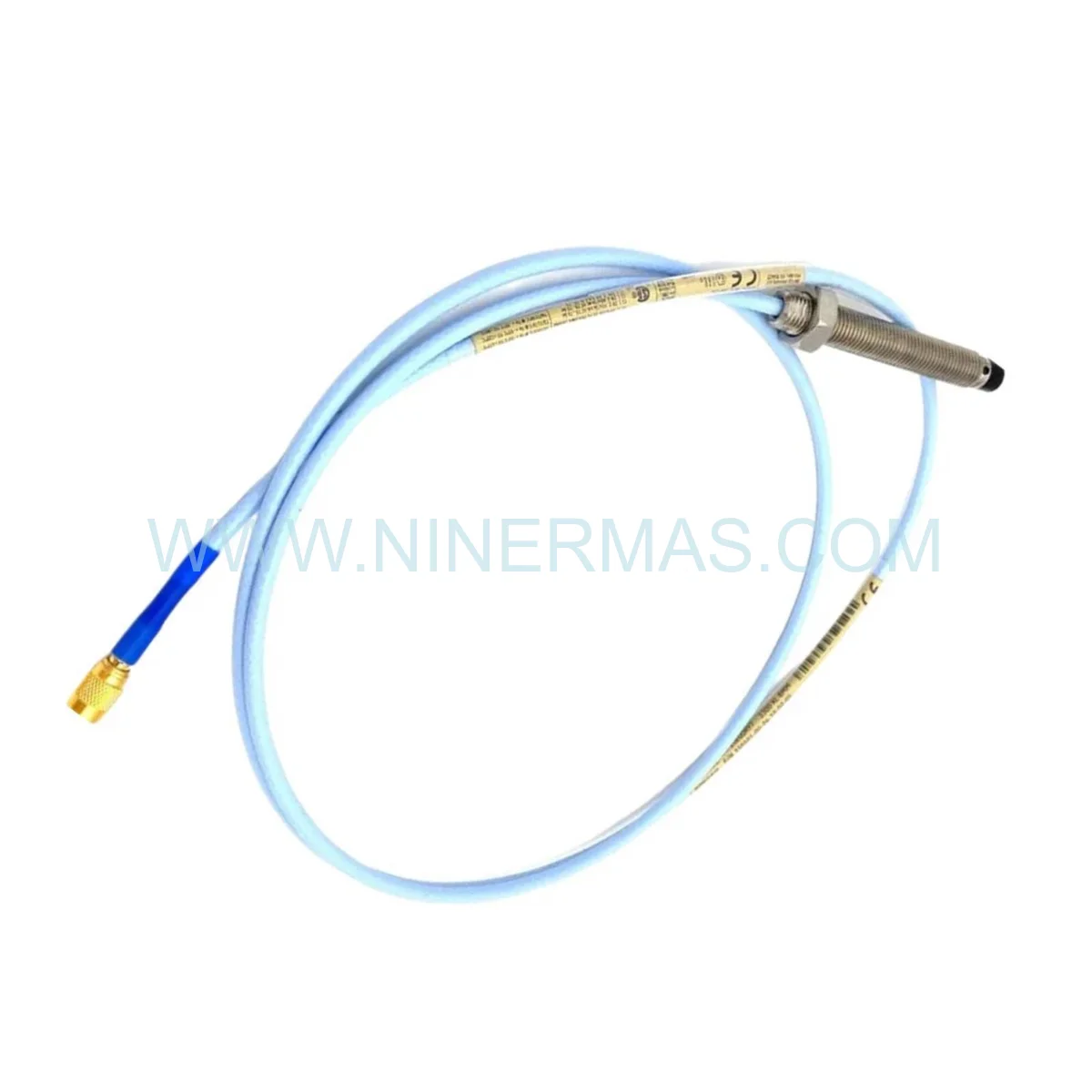

Bently Nevada 330141-08-50-01-00-00 | 3300 XL 8mm Proximity Probe — New & Original

Bently Nevada 330141-08-50-01-00-00 | Reliable Automation Component for Mission-Critical Machinery

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing rotating equipment assets, the Bently Nevada 330141-08-50-01-00-00 stands as a cornerstone of system availability in continuous-process industries. This 8 mm eddy current proximity transducer probe is purpose-built for non-contact shaft displacement measurement, delivering the real-time vibration data that underpins predictive maintenance strategies and prevents unplanned shutdowns. Its integration into turbine control architectures, compressor protection loops, and pump monitoring networks directly elevates operational excellence by providing sub-millisecond response to mechanical anomalies — a capability that defines mission-critical automation components.

Deploying the Bently Nevada 330141-08-50-01-00-00 in harsh industrial environments demands attention to installation discipline. The probe’s 316L stainless steel housing and IP67-rated hermetic seal ensure sustained performance in high-humidity, chemically aggressive, and high-vibration zones. Technicians should verify the recommended installation gap of 1.0 mm (40 mils) from the target surface prior to commissioning, and confirm that the target material is ferrous to guarantee eddy current coupling efficiency. Proper torque on the M12 — 1.5 metric thread prevents micro-movement that could introduce signal noise into the I/O modules downstream.

For reliability-focused maintenance programs, stocking the 330141-08-50-01-00-00 as a certified spare is not optional — it is a risk mitigation imperative. With legacy and end-of-life (EOL) Bently Nevada components increasingly difficult to source, securing verified original inventory ensures that system integration remains seamless and that process optimization targets are never compromised by a single sensor failure.

Key Operational Features

High-Precision Non-Contact Sensing: ±1% linearity across the full 0-2.0 mm (0-80 mils) sensing range for accurate shaft displacement data.
Redundancy-Ready Architecture: Fully compatible with dual-channel and redundant 3300 XL proximitor configurations, supporting high availability system designs.
Seamless System Integration: Interfaces directly with Bently Nevada 3300 XL proximitor housings and third-party DCS, PLC, and SCADA platforms via standard analog outputs.
Extended Frequency Response: 0-10 kHz ( 3 dB) bandwidth captures high-speed rotor dynamics and sub-synchronous instabilities critical to turbine control applications.
Wide Thermal Tolerance: Rated 40°C to +105°C, sustaining calibration integrity from cryogenic service to high-temperature process environments.
Solid-State Durability: No moving parts, no wear mechanisms — engineered for continuous 24/7 operation in the most demanding automation components ecosystems.

Maintenance & Performance Benchmarks

The 330141-08-50-01-00-00 is architected to adapt across industrial network scales — from standalone machinery protection panels to enterprise-wide condition monitoring platforms. In small-scale installations, the probe connects directly to a single 3300 XL proximitor, feeding vibration data to a local monitor or safety relay. In large distributed architectures, multiple probes feed into networked I/O modules aggregated by a DCS historian, enabling fleet-wide process optimization analytics.

Benchmark performance data confirms that this probe maintains signal stability within ±0.5% over 12-month continuous service intervals without recalibration — a critical metric for facilities targeting ISO 10816 compliance. Its eddy current technology eliminates contact wear, reducing mean time between maintenance (MTBM) to near-zero for the sensing element itself. When paired with Bently Nevada’s System 1 software, the 330141-08-50-01-00-00 contributes to a fully integrated predictive maintenance ecosystem that drives measurable reductions in unplanned downtime.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 330141-08-50-01-00-00 unit dispatched from our facility ships in original Bently Nevada factory packaging, preserving calibration integrity and ensuring traceability from manufacturer to installation point. For in-stock orders, same-day dispatch is available upon order confirmation before the daily cut-off — a critical advantage when production lines cannot afford extended lead times.

Our global supply network is specifically structured to support EOL and legacy Bently Nevada modules that have been discontinued from standard distribution channels. Whether you are managing a retrofit project, an emergency replacement, or building a strategic spare parts inventory, our sourcing team maintains verified stock of mission-critical automation components across multiple international warehouses. Worldwide express logistics partnerships ensure delivery to major industrial hubs within 3-7 business days, with expedited options available for urgent operational requirements.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the 330141-08-50-01-00-00?
Mount the probe in a rigid bracket aligned perpendicular to the shaft surface. Set the initial gap to 1.0 mm (40 mils) using a non-ferrous feeler gauge. Torque the locknut to the manufacturer’s specification (typically 20-25 Nm) to prevent axial drift. Verify output voltage at the proximitor terminal before energizing the protection system.

Q2: Which firmware versions and proximitor models are compatible with this probe?
The 330141-08-50-01-00-00 is compatible with all 3300 XL proximitor housings (330180 series) and is backward-compatible with earlier 3300 series monitors. No firmware dependency exists at the probe level; compatibility is governed by the proximitor and monitor configuration. Consult the Bently Nevada TDM documentation for specific monitor firmware requirements.

Q3: Can this probe be used with non-ferrous shaft materials such as titanium or Inconel?
Eddy current probes in the 3300 XL series are calibrated for ferrous steel targets. Non-ferrous or exotic alloy shafts require a material correction factor to be applied during system calibration. Contact our engineering support team for application-specific guidance and correction factor data sheets.

Q4: How does the warranty claim process work?
All units carry a 1-year warranty covering manufacturing defects and material failures under normal operating conditions. To initiate a claim, submit your purchase order number, installation date, and a brief fault description to our support team. Replacement units are dispatched within 48 hours of claim approval to minimize operational disruption.

Q5: Is calibration certification included with each unit?
Yes. Each 330141-08-50-01-00-00 ships with factory calibration documentation confirming compliance with Bently Nevada’s published scale factor and linearity specifications. Certificates of conformance are available upon request for quality management system (QMS) requirements.

Q6: What are the storage requirements for spare units?
Store in original packaging in a dry environment between 20°C and +70°C with relative humidity below 85% non-condensing. Avoid proximity to strong magnetic fields or electrostatic discharge sources. Inspect the probe tip and cable connector for contamination before installation after extended storage periods.
