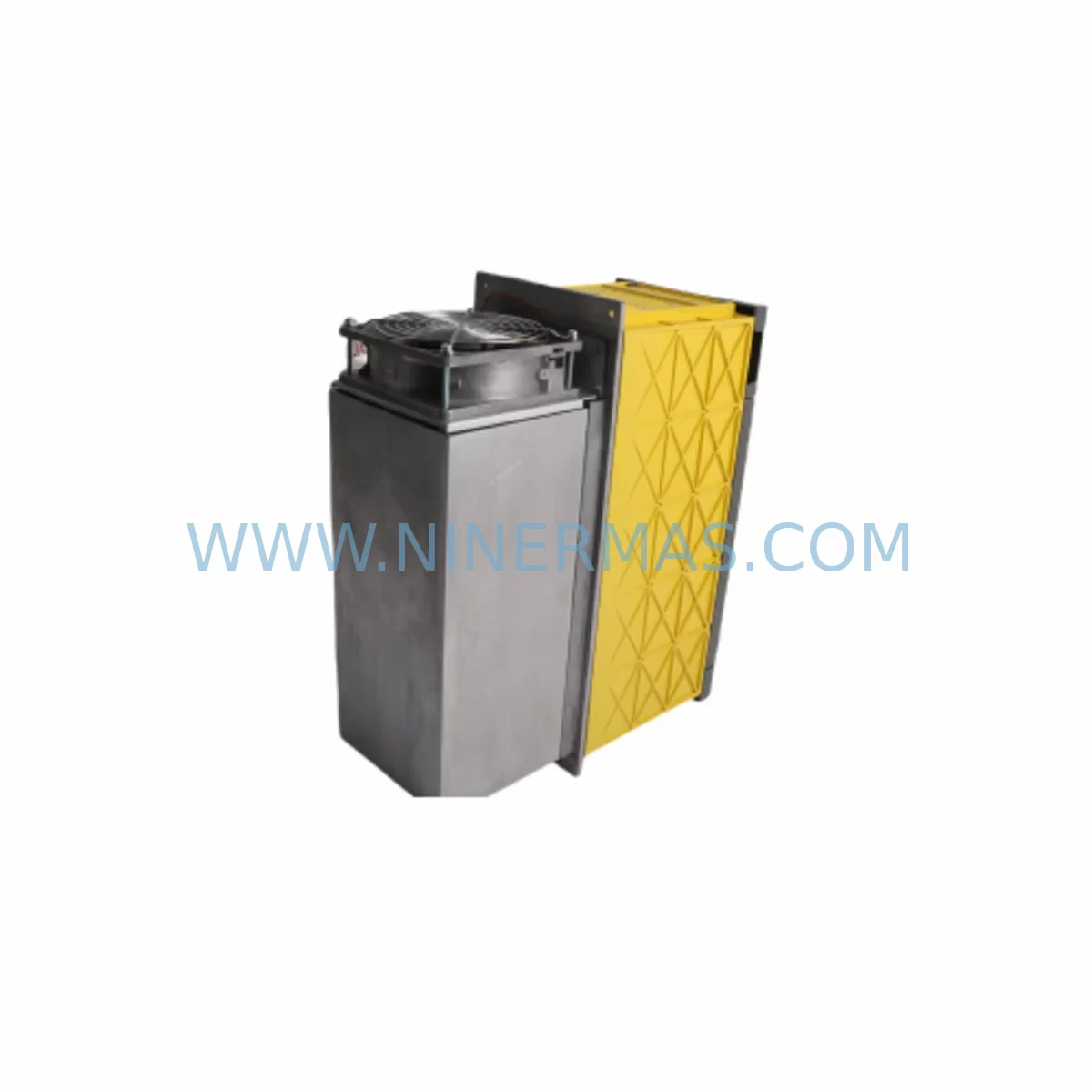

Fanuc A06B-6102-H230-H520 Servo Drive Spare Part

Fanuc A06B-6102-H230-H520 Servo Drive Spare Part: Minimising Downtime with Service-Ready Replacement

The Fanuc A06B-6102-H230-H520 is an original αi series servo drive amplifier designed for high-precision axis control in CNC machining centres, robotic cells, and automated production lines. As a direct service-ready spare part, this unit supports maintenance engineers and procurement teams in executing rapid replacements that restore full axis functionality without extended downtime. Whether you are managing a scheduled annual overhaul, responding to an unplanned axis fault, or building a strategic spare parts inventory for legacy Fanuc systems, the A06B-6102-H230-H520 delivers the original performance specifications your system demands.

Fanuc’s αi series servo amplifiers are widely deployed across automotive body shops, aerospace component machining, semiconductor equipment, and precision mould manufacturing. The A06B-6102-H230-H520 variant supports dual-axis or combined axis configurations depending on the H230/H520 suffix designation, making it a versatile stocking unit for facilities operating multiple Fanuc-controlled machines. Procurement engineers managing multi-machine plants benefit from holding at least one unit on the shelf, as lead times for new Fanuc servo amplifiers from authorised channels can extend to 8–16 weeks for certain configurations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a servo axis fault is traced to the A06B-6102-H230-H520, experienced maintenance engineers know that the amplifier rarely fails in isolation. A thorough fault isolation routine should extend to the surrounding electrical environment before the replacement unit is powered up. Begin by inspecting the Fanuc PSM (Power Supply Module) — typically an A06B-6110 or A06B-6087 series unit — which provides the DC bus voltage to the servo amplifiers. A degraded PSM can cause repeated amplifier faults even after a new drive is installed.

Next, verify the FSSB fibre optic cables connecting the CNC control unit to the amplifier backplane. Cracked or contaminated fibre connectors are a common source of intermittent axis alarms on αi series systems. While the cabinet is open, inspect the Fanuc αi series backplane for signs of heat damage, loose connector seating, or corrosion on the bus connectors. If the machine uses a Fanuc Series 30i or 31i CNC controller, confirm that the axis parameter settings (servo gain, current loop, and position loop parameters) are backed up before the swap, as these will need to be restored or re-tuned after replacement.

For machines with multiple controlled axes, it is good practice to simultaneously inspect the adjacent servo amplifier modules — such as the A06B-6102-H211 or A06B-6102-H222 — for early signs of capacitor bulging or fan bearing wear. Replacing a single failed amplifier while leaving ageing adjacent units in service increases the probability of a second unplanned stoppage within the same maintenance cycle.

On the I/O and signal side, check the Fanuc I/O Module (A03B series) for any alarm outputs that may have been masked by the servo fault. Inspect 24 VDC control power supplies feeding the I/O rack and verify that terminal block connections on the Fanuc A20B series PCB are tight and free of oxidation. If the machine includes a Fanuc βi series spindle amplifier, confirm that the spindle drive is not contributing to DC bus instability that could stress the servo amplifiers.

For facilities running legacy Fanuc systems beyond their standard product lifecycle, maintaining a curated spare parts kit that includes the A06B-6102-H230-H520, a spare PSM, FSSB fibre patch cables, and a set of Fanuc servo motor feedback cables (A66L series) provides a robust first-response inventory that covers the majority of axis-down scenarios without waiting for international shipment.

Site Replacement Workflow

Step 1 — Fault Confirmation: Confirm the servo alarm code on the CNC operator panel. On Fanuc 0i/30i systems, SV alarms 401, 417, and 430 are commonly associated with amplifier hardware faults. Document the alarm history before powering down.

Step 2 — Safe Isolation: Isolate the machine at the main breaker and follow LOTO (Lockout/Tagout) procedures. Allow the DC bus capacitors in the PSM and servo amplifiers to discharge fully (minimum 5 minutes after power-off) before opening the control cabinet.

Step 3 — Module Removal: Disconnect the FSSB fibre optic cables, motor power cables (U/V/W), and feedback encoder cables from the A06B-6102-H230-H520. Note the cable routing and label connectors before removal to ensure correct reinstallation.

Step 4 — Replacement Installation: Seat the new A06B-6102-H230-H520 into the backplane slot. Reconnect all cables in reverse order. Verify that the FSSB fibre connectors are fully seated and that the motor power cable phase sequence matches the original configuration.

Step 5 — Parameter Restore and Test: Power up the CNC and restore servo parameters from backup. Perform a low-speed jog test on the affected axis before returning the machine to full production speed. Monitor DC bus voltage and amplifier temperature during the initial run-in period.

This structured workflow reduces mean time to repair (MTTR) and ensures that the replacement unit is not exposed to pre-existing electrical faults that could damage the new amplifier.

Spare Parts Support FAQ

Q1: Is the A06B-6102-H230-H520 compatible with both Fanuc 0i and 30i series CNC controllers?
Yes. The αi series servo amplifiers are designed for use across a broad range of Fanuc CNC platforms including the 0i-MD, 0i-TD, 16i, 18i, 21i, 30i, 31i, and 32i series, provided the axis parameter configuration and FSSB slot assignment are correctly set. Always verify the specific axis configuration parameters in the CNC parameter backup before installation.

Q2: How is the unit tested before shipment?
Each A06B-6102-H230-H520 unit undergoes functional verification prior to dispatch, including DC bus integrity check, FSSB communication test, and visual inspection for component condition. A test report is available upon request. Units are packed in anti-static protective packaging to prevent transit damage.

Q3: What is the long-term supply availability for this part?
NINERMAS maintains a dedicated inventory of Fanuc αi series spare parts to support customers operating legacy CNC systems beyond the standard Fanuc product lifecycle. We source original units through authorised and verified supply channels and can provide long-term supply agreements for facilities requiring guaranteed stock availability over a 12–36 month horizon.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, electrical overstress, or use outside the specified operating parameters. In the event of a warranty claim, NINERMAS provides a replacement unit or repair service with priority turnaround to minimise your production downtime.
