FANUC 2007-T364 Retrofit Teach Pendant Cable for Legacy Systems

FANUC 2007-T364 Retrofit Teach Pendant Cable for Legacy Systems

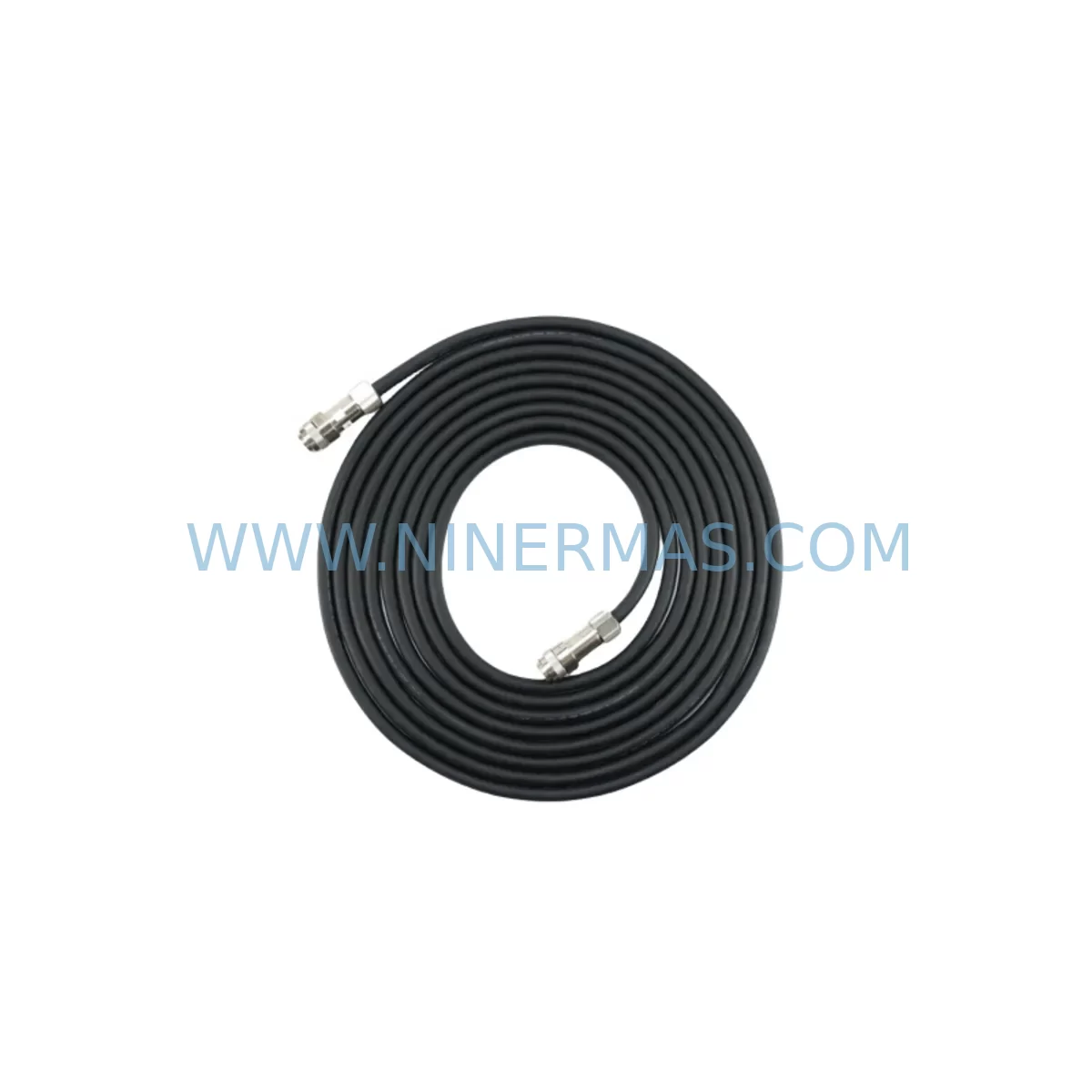

The FANUC 2007-T364 teach pendant cable — also referenced under the full part number A660-2007-T364 — is a critical interconnect component for FANUC robot controllers deployed across automotive, electronics, and heavy manufacturing lines. As production facilities face the end-of-life status of legacy FANUC R-J3iC, R-30iA, and R-30iA Mate controllers, maintaining a reliable supply of this cable is essential for sustaining uptime, avoiding unplanned shutdowns, and extending the operational life of existing robot cells without committing to a full system replacement.

NINERMAS COMPANY LIMITED maintains verified stock of the FANUC 2007-T364 cable, pre-shipment tested and covered by a 12-month warranty. Each unit is inspected for connector integrity, shielding continuity, and jacket condition before dispatch, ensuring that field engineers receive a component ready for immediate installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When a FANUC robot cell enters a retrofit or upgrade cycle, the teach pendant cable is frequently overlooked until a fault occurs mid-project. In practice, any cable that has been routed through a cable track or festoon system for more than five years should be treated as a consumable and replaced proactively during the planned maintenance window.

A typical R-30iA controller cabinet retrofit involves reviewing the power supply module — such as the A16B-3200-0491 main board power section — alongside the teach pendant cable to ensure the control voltage rail is stable before commissioning the new cable. If the cabinet is being upgraded from an R-J3iC platform, engineers should also audit the A20B-8101-0421 CPU board and confirm that the iPendant firmware version is compatible with the replacement cable’s connector revision.

For cells where the robot is being re-tasked to a new production line, the A05B-2518-C202 iPendant teach pendant itself may also require replacement or recalibration. In these scenarios, ordering the 2007-T364 cable together with the pendant reduces the number of separate commissioning steps and ensures the entire operator interface chain is renewed simultaneously.

I/O expansion is another common driver of teach pendant cable replacement. When a PROFIBUS or EtherNet/IP communication module — such as the A20B-2004-0750 I/O link board — is added to an existing R-30iA rack, the additional wiring inside the cabinet can stress existing cable routing. Inspecting and replacing the teach pendant cable at this stage prevents intermittent faults that are difficult to diagnose once the new I/O modules are live.

In multi-robot cells where a single operator console is shared across several controllers, the A05B-2255-C102 operator panel cable and the 2007-T364 teach pendant cable are often replaced together to standardize the cable age across the cell. This approach simplifies future maintenance scheduling and reduces the risk of a single aged cable causing a cell-wide stoppage.

For facilities migrating from DeviceNet to EtherNet/IP, the A06B-6114-H105 servo amplifier and associated signal cables are typically updated in the same project phase. Confirming that the teach pendant cable is in good condition before the protocol migration begins ensures that the operator can safely jog the robot and verify axis positions during the network cutover without relying on a cable that may be at end of life.

Where HMI panels — such as those running on an A02B-0319-B500 CNC/HMI interface — are being refreshed as part of a broader control cabinet upgrade, the teach pendant cable should be inspected as part of the HMI screen re-mapping exercise. Any change to the operator interface layout that requires the robot to be jogged to new reference positions puts additional mechanical stress on the cable, making pre-replacement the lower-risk option.

Signal isolators installed between the teach pendant circuit and the safety relay chain should also be verified during the retrofit. If the existing isolator is rated for the original cable’s capacitance specification, confirm that the replacement 2007-T364 cable meets the same electrical parameters to avoid nuisance E-stop trips after installation.

Downtime Control During System Migration

Minimizing downtime during a teach pendant cable replacement requires preparation before the maintenance window opens. The following approach has been validated across multiple FANUC robot cell upgrades:

• Pre-stage the replacement cable at the robot base before the shift ends. Confirm connector orientation and cable length against the existing routing path.
• Back up the robot program to a USB memory stick using the FANUC controller’s file backup function. Store the backup off-controller before disconnecting the teach pendant.
• Label all terminal connections at the controller cabinet cable entry point. Photograph the existing cable routing through the cable track before removal.
• Verify E-stop chain continuity with a multimeter before powering the controller back on. A single open circuit in the safety chain will prevent the controller from entering AUTO mode.
• Perform a controlled jog test in T1 mode (≤250 mm/s) across all six axes before returning the cell to production. Confirm that the teach pendant display updates correctly and that no communication fault alarms are present.
• Document the cable replacement in the cell maintenance log, including the part number, serial number, installation date, and technician name. This record supports the 12-month warranty claim process if required.

With adequate preparation, a FANUC 2007-T364 cable swap can typically be completed within a single 30–60 minute planned maintenance window, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the FANUC 2007-T364 a direct replacement for the original cable on R-30iA controllers?
A: Yes. The 2007-T364 is a direct drop-in replacement for the original teach pendant cable on R-30iA and R-30iA Mate controllers. No parameter changes or software modifications are required. Confirm the connector revision on your specific controller variant before installation, as early and late production R-30iA cabinets may use slightly different cable entry brackets.

Q2: What pre-shipment testing does NINERMAS perform on the 2007-T364 cable?
A: Each cable undergoes connector integrity inspection, shielding continuity verification, and jacket condition assessment before dispatch. Units that do not pass all checks are quarantined and not shipped. A test record is available on request for quality-critical applications.

Q3: Can the 2007-T364 cable be used with an R-J3iC controller being upgraded to an R-30iA platform?
A: The 2007-T364 is designed for the R-30iA platform. If you are migrating from an R-J3iC controller, the teach pendant cable must be replaced as part of the upgrade — the R-J3iC uses a different cable assembly. Contact our technical team with your controller serial number to confirm the correct cable specification for your migration path.

Q4: What is the warranty coverage and how do I make a claim?
A: All FANUC 2007-T364 cables supplied by NINERMAS are covered by a 12-month warranty from the shipment date. In the event of a defect, contact sale@ninermas.com with your order number, installation date, and a description of the fault. We will arrange a replacement or credit within our standard warranty resolution process.
