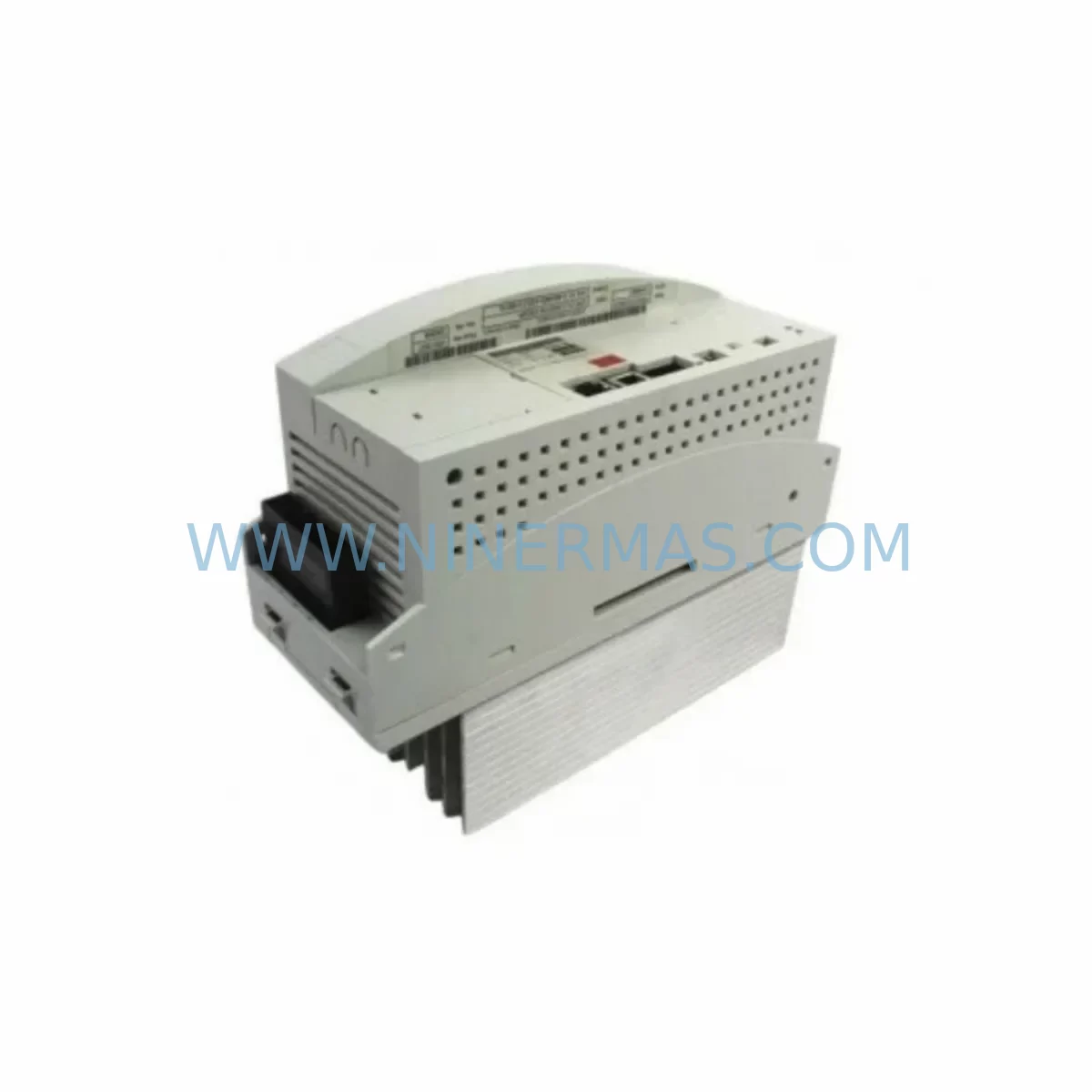

The KUKA KRC4 27V Power Module 00-169-213 is a ruggedized, retrofit-compatible DC power supply unit engineered for the KUKA KRC4 robot controller platform. As industrial facilities face increasing pressure to extend the operational life of legacy robotic cells — particularly those built around the KRC4 controller generation — this module provides a direct, validated replacement path without requiring full controller replacement or reprogramming. NINERMAS maintains verified stock of this module with a 12-month warranty, supporting maintenance teams that cannot afford unplanned downtime on active production lines.

The 00-169-213 module delivers a stable 27V DC rail to the KRC4 controller cabinet, powering the internal logic bus, safety relay circuits, and drive enable signals. Its ruggedized design tolerates the thermal cycling, vibration, and EMI conditions typical of automotive body shop, foundry, and heavy fabrication environments. When the original module fails or shows signs of degraded output — evidenced by E1 fault codes, intermittent drive enable loss, or controller brownout events — this replacement unit restores full controller functionality without requiring firmware changes or hardware reconfiguration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the KRC4 27V power module is rarely an isolated task. In most retrofit scenarios, maintenance engineers are simultaneously managing a broader system health review of the robot controller cabinet. Before pulling the failed module, it is essential to document the current state of the KRC4 X11 safety interface connector wiring, the KRC4 KPS 600 primary power supply input voltage, and the status of the KRC4 KSP 600 servo drive modules that depend on the 27V logic rail for their enable signals.

In cells where the KRC4 controller communicates over PROFINET IO or EtherCAT to a Siemens S7-300 or S7-1500 PLC, the power module replacement window should be coordinated with the PLC operator to place the robot in a safe, program-halted state. The KUKA smartPAD teach pendant should be disconnected from the X19 port before cabinet work begins to prevent accidental program execution during the swap. After reinstalling the 00-169-213 module, reconnect the smartPAD and verify that the KUKA WorkVisual project loads without hardware mismatch warnings.

For facilities running mixed-generation robot fleets — for example, cells that include both KRC4 and older KRC2 controllers — the 27V power architecture differs significantly between generations. The KRC2 platform uses a different PSU form factor and voltage rail structure, so parts are not interchangeable. If the retrofit scope includes migrating a KRC2 cell to KRC4 hardware, the KUKA KRC4 cabinet assembly, including the backplane, the KRC4 CCU (Cabinet Control Unit), and the associated KRC4 RDC (Resolver Digital Converter) board, must all be sourced as a coordinated set to ensure signal integrity across the new power domain.

When the KRC4 controller is installed in a compact or smallsize cabinet variant, engineers must verify that the physical envelope of the 00-169-213 module matches the installed bay dimensions. The KRC4 compact variant uses a reduced-depth cabinet that may require confirmation of module depth clearance before installation. Additionally, if the cell includes a KUKA KR C4 external axis module (EAX) for a servo positioner or track system, the 27V rail feeds the EAX logic board as well — confirming stable output under full load (robot axes plus external axis) is a mandatory commissioning step.

Signal isolation between the robot controller and field devices is another consideration during the retrofit window. If the cell uses Phoenix Contact or Weidmüller signal isolators on the digital I/O interface between the KRC4 X13/X14 I/O terminals and the process PLC, this is an appropriate time to inspect isolator condition and replace any units showing drift. Similarly, if the programming interface relies on a KUKA programming cable (USB-to-KRC4 service port) for WorkVisual deployment, verify cable continuity before the commissioning session to avoid delays.

Downtime Control During System Migration

Minimizing production downtime during a KRC4 power module replacement requires preparation before the maintenance window opens. The most effective approach is to pre-stage the replacement 00-169-213 module at the cell, with all required tools, torque specifications, and the WorkVisual project backup already loaded on the engineering laptop. NINERMAS ships modules with pre-shipment output verification, so bench testing on arrival is optional — but confirming the output voltage with a calibrated multimeter before cabinet installation eliminates the risk of discovering a transit-damaged unit after the robot is already offline.

Before powering down the KRC4 controller, perform a full WorkVisual project archive and save the current robot program to an external USB drive via the smartPAD file manager. This protects the motion program, tool data, base data, and load data from any risk of corruption during the power interruption. If the cell is running a safety-rated configuration using the KUKA SafeOperation or KUKA.SafeRangeMonitoring option package, document the active safe zone parameters before shutdown — these are stored in the CCU and are not affected by PSU replacement, but having a printed record accelerates post-maintenance verification.

The physical swap of the 00-169-213 module typically takes 15–30 minutes for a technician familiar with the KRC4 cabinet layout. The primary time risk is in the post-installation commissioning sequence: restoring power, confirming the E-stop chain, verifying drive enable signals on all KSP servo axes, and running a slow-speed test cycle before returning the cell to production speed. Allocating a 2-hour maintenance window for the full procedure — including documentation and sign-off — is a conservative but realistic target for a single-robot cell. For multi-robot cells sharing a common safety zone, coordinate the outage with the cell controller PLC to ensure all robots are in a safe state before and after the swap.

Retrofit Support FAQ

Q1: Is the 00-169-213 a direct drop-in replacement for all KRC4 cabinet variants?
The 00-169-213 is compatible with the standard KRC4 cabinet. For KRC4 compact and KRC4 smallsize variants, please confirm the cabinet revision number with NINERMAS before ordering. Our technical team will cross-reference the module suffix and cabinet BOM to confirm fitment. Contact: sale@ninermas.com.

Q2: Does replacing the 27V power module require re-loading the robot program or reconfiguring the controller?
No software re-parameterization is required. The KRC4 program, tool data, and safety configuration are stored on the CCU and are not affected by PSU replacement. After reinstalling the module and restoring power, the controller boots normally and the existing WorkVisual project loads without modification. A functional test cycle at reduced speed is recommended before returning to production.

Q3: What pre-shipment testing does NINERMAS perform on the 00-169-213 module?
Each unit is tested for output voltage accuracy, load regulation under rated current, and output ripple before dispatch. Test results are available on request. All modules ship with a 12-month warranty from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of the KRC4 27V 00-169-213 module to support urgent maintenance requirements. Standard orders ship within 1–3 business days. For bulk orders or long-term spare parts agreements covering multiple KRC4 cells, contact our sales team to discuss stocking arrangements and volume pricing. sale@ninermas.com | +0086 187 5021 5667.
