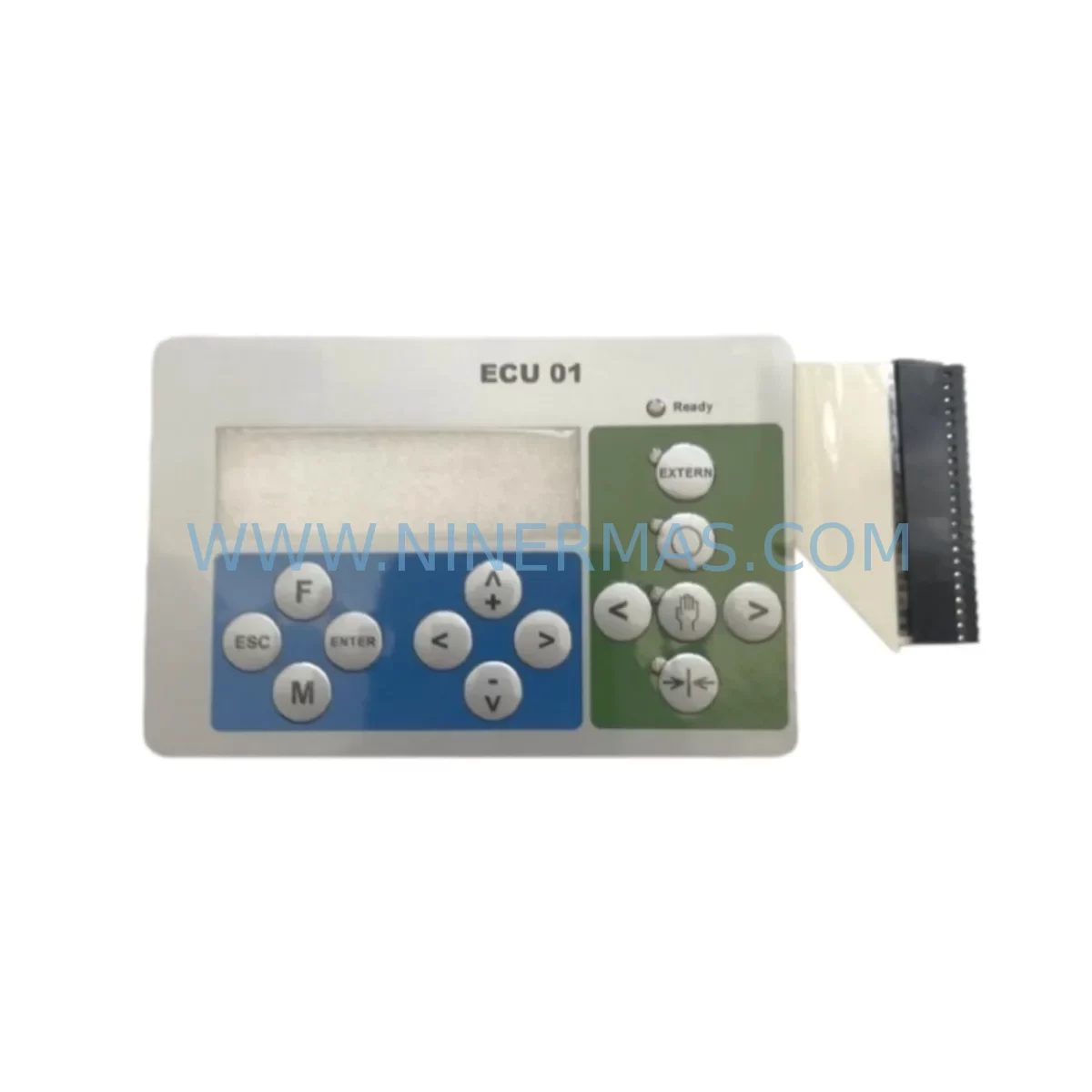

EMG ECU01.5 Retrofit-Compatible Control Unit for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

The EMG ECU01.5 is a ruggedized control unit engineered for demanding industrial environments where reliability, continuity, and backward compatibility are non-negotiable. As legacy automation systems approach end-of-life and OEM support for discontinued control hardware becomes increasingly scarce, the ECU01.5 serves as a proven retrofit solution for engineers and maintenance teams tasked with modernizing existing control cabinets without triggering full-system overhauls.

Designed to operate across extreme temperature ranges, high-vibration environments, and electrically noisy industrial floors, the ECU01.5 is a direct candidate for replacement in applications previously served by older-generation ruggedized controllers. Its compact form factor and standardized terminal layout make it compatible with a wide range of existing DIN-rail enclosures and control panel configurations, significantly reducing the mechanical rework required during a retrofit project.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ECU01.5 retrofit begins well before the unit arrives on-site. Engineers should conduct a full audit of the existing control cabinet, documenting every connected component: power supply modules, I/O expansion modules, communication gateways, signal isolators, and any HMI panels currently linked to the outgoing controller. In many legacy installations, the control unit interfaces with a combination of discrete I/O modules handling digital inputs and outputs, analog signal conditioning cards, and dedicated communication modules managing fieldbus or serial protocol links to upstream SCADA systems.

When replacing an older ruggedized controller with the ECU01.5, the first critical checkpoint is power capacity. The existing 24 VDC or 120/240 VAC power supply module must be verified to deliver sufficient current for the ECU01.5’s rated consumption, plus any downstream I/O modules and communication cards drawing from the same rail. If the legacy PSU is undersized or aging, this is the ideal moment to replace it with a modern, appropriately rated unit — a step that also reduces the risk of nuisance trips during the commissioning phase.

Terminal wiring is the next area of focus. Legacy systems often use older wire gauges and non-standard ferrule types. Before connecting the ECU01.5, technicians should inspect each terminal block, confirm conductor cross-sections are within the unit’s accepted range, and re-terminate any conductors showing signs of oxidation or insulation degradation. Where the original installation used a dedicated programming cable — such as a serial-to-USB adapter or a proprietary EMG programming interface — confirm that the same cable type is compatible with the ECU01.5’s programming port before attempting a program upload.

For systems that include modular I/O racks, the ECU01.5’s integration requires careful attention to module addressing. In rack-based architectures, each I/O module — whether a digital input card, analog output module, or thermocouple input card — is assigned a slot address that the controller uses to map process variables. After installing the ECU01.5, the engineer must verify that the module address table in the replacement unit’s configuration matches the original layout exactly, or update the control program accordingly to reflect any changes. Failure to align module addresses is one of the most common causes of unexpected behavior during post-retrofit commissioning.

Communication link integrity is equally important. If the legacy system used an RS-485 multi-drop network to connect remote I/O stations, operator panels, or variable frequency drives, the ECU01.5’s serial port configuration — baud rate, parity, stop bits, and termination resistor settings — must be matched precisely to the existing network parameters. In installations where a protocol migration is also planned (for example, transitioning from a proprietary serial protocol to Modbus RTU or Profibus DP), this retrofit provides a natural opportunity to introduce a protocol converter or communication gateway module, bridging the ECU01.5 to the wider plant network without requiring changes to field devices.

HMI screen bindings deserve particular attention in any ECU retrofit. Operator interface panels linked to the outgoing controller via a dedicated HMI communication driver will need their tag databases reviewed and, in many cases, updated to reflect the ECU01.5’s variable naming conventions or memory address structure. Where the HMI project file is available, this update can be performed offline before the physical swap, minimizing the time operators spend without a functional display during the cutover window.

Downtime Control During System Migration

Minimizing production downtime during a control unit replacement is a primary concern for any plant maintenance team. The ECU01.5 retrofit process is designed to support a structured, low-risk cutover strategy. The recommended approach begins with a complete backup of the existing control program — including all function blocks, data tables, PID tuning parameters, and communication configuration files — stored on a laptop or portable programming device before the outgoing unit is powered down.

Where process conditions allow, a parallel testing phase is strongly recommended. The ECU01.5 can be pre-configured and program-loaded on the bench, with I/O simulation used to verify logic execution before the unit is installed in the live cabinet. This approach allows the engineering team to identify and resolve any program compatibility issues — such as differences in instruction set support or timer resolution between the old and new platforms — without impacting the running process.

During the physical swap, the sequence of operations matters. Power down the cabinet in the correct order: first isolate field devices, then de-energize the I/O modules, and finally remove power from the control unit itself. Install the ECU01.5, reconnect terminals following the documented wiring schedule, restore power in reverse order, and perform a controlled program upload. Before returning the system to automatic operation, conduct a point-by-point I/O check to confirm that every field signal — limit switches, pressure transmitters, solenoid valve outputs, motor starter feedbacks — is correctly read and driven by the new unit.

For installations where even brief interruptions are costly, a hot-standby or staged cutover approach may be appropriate. In these cases, the ECU01.5 can be installed in a shadow configuration alongside the existing controller, with outputs held in manual override until the engineering team is satisfied that the replacement unit is operating correctly. This strategy is particularly valuable in continuous process industries where a cold restart of the production line carries significant economic consequences.

All units supplied by NINERMAS are subject to pre-shipment functional testing, ensuring that the ECU01.5 arrives on-site in verified working condition. Combined with the 12-month warranty covering manufacturing defects and functional failures, this testing protocol reduces the risk of receiving a non-functional unit and discovering the fault only after the legacy controller has already been removed from service.

Retrofit Support FAQ

Q: Is the EMG ECU01.5 a direct drop-in replacement for the ECU01.3 or ECU01.4?
A: The ECU01.5 is designed as a functional successor within the EMG ECU series. While the terminal layout and mounting dimensions are largely consistent across the ECU01.x family, engineers should verify the specific I/O count, communication port configuration, and power input range against the unit being replaced. Minor wiring adaptations may be required depending on the exact variant in service.

Q: Can the original control program be uploaded to the ECU01.5 without modification?
A: In most cases, programs developed for earlier ECU series units can be uploaded with minimal changes. However, differences in firmware version, instruction library support, or memory organization may require adjustments to specific function blocks or data table structures. NINERMAS recommends a bench test of the program on the ECU01.5 prior to live installation.

Q: What should I check regarding terminal wiring before installing the ECU01.5?
A: Confirm that existing conductor cross-sections are within the ECU01.5’s accepted range, inspect ferrules and terminal blocks for corrosion or damage, and verify that the wiring schedule matches the ECU01.5’s terminal assignment. Pay particular attention to power supply connections, communication port wiring, and any shielded cables used for analog signal circuits.

Q: Does NINERMAS provide stock availability and warranty support for the ECU01.5?
A: Yes. NINERMAS maintains inventory of the EMG ECU01.5 to support urgent retrofit and emergency replacement requirements. All units are covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing is performed on every unit. For stock confirmation, lead time, and technical support, contact NINERMAS directly.
