Emerson PR6423/014-121 CON031 Service-Ready Spare Part

Emerson PR6423/014-121 CON031 Service-Ready Spare Part for Industrial Maintenance

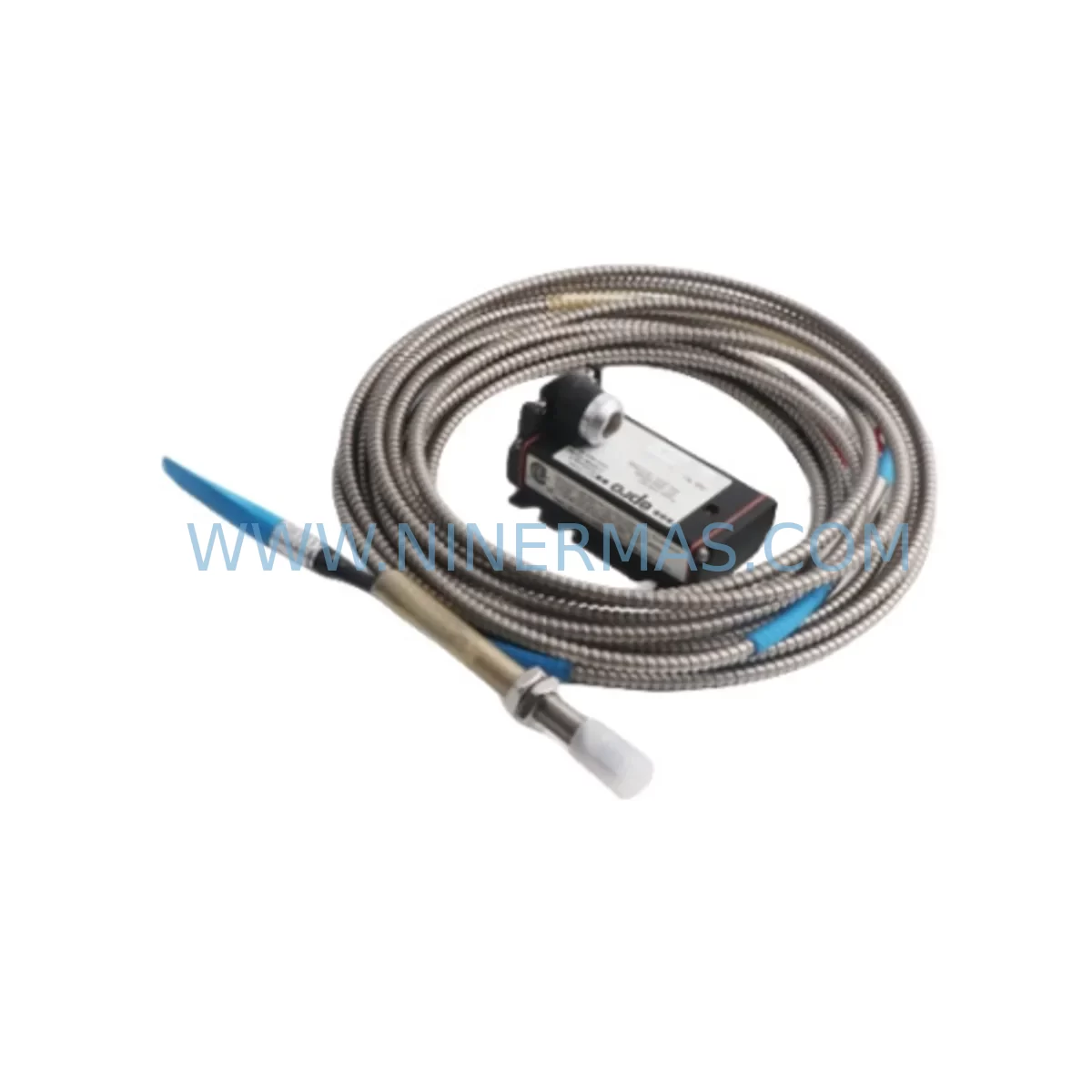

The Emerson EPRO PR6423/014-121 CON031 is an original safety-grade eddy current sensor module engineered for continuous machinery protection and vibration monitoring in critical industrial environments. Designed as a direct replacement spare part for the PR6423 series, this module supports radial vibration, axial displacement, and proximity measurement in rotating machinery applications including turbines, compressors, pumps, and large motors. Sourced as an original Emerson EPRO component, the PR6423/014-121 CON031 is pre-tested prior to shipment and backed by a 12-month warranty, making it a reliable choice for maintenance engineers managing planned shutdowns, emergency replacements, and long-term spare parts inventory programs.

For maintenance and procurement engineers operating within Bently Nevada-compatible or Emerson EPRO-based machinery protection systems, the PR6423/014-121 CON031 represents a critical line-replaceable unit (LRU). Its eddy current sensing principle provides non-contact, high-resolution displacement measurement without mechanical wear, ensuring long service intervals and minimal drift in safety-critical monitoring loops. When this module is flagged for replacement during a scheduled outage or emergency fault isolation, restoring system integrity quickly is paramount — and having a verified, tested spare on hand is the single most effective strategy to minimize mean time to repair (MTTR).

Procurement teams sourcing the PR6423/014-121 CON031 should note that this module is part of a broader Emerson EPRO sensor ecosystem. Long-term supply availability, lead-time risk, and compatibility verification are key procurement considerations, particularly for legacy DCS and turbine control systems where the PR6423 series remains the installed standard. NINERMAS maintains stock of this module and related components to support both emergency call-off orders and annual maintenance contracts, with consistent availability and documented test records for each unit shipped.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PR6423/014-121 CON031 during a planned or emergency maintenance window, a thorough inspection of the surrounding measurement chain and control cabinet infrastructure is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full vibration monitoring loop.

Begin by verifying the PR6423 series probe cable and extension cable (typically the PR9268 or equivalent extension), as cable degradation, connector corrosion, or shield continuity loss are common root causes of sensor drift and false trips. The CON031 signal conditioner itself should be bench-tested or replaced as a matched pair with the probe module where possible, since conditioner aging can introduce offset errors that mask true machinery condition. Check the 24 VDC power supply rail feeding the sensor loop — power supply ripple or voltage sag under load can cause erratic output from eddy current systems; consider replacing aging Emerson or Phoenix Contact 24V DIN rail power supplies if the cabinet has been in service for more than five years.

Inspect all terminal blocks and wiring connections in the sensor signal circuit, particularly at the marshalling cabinet interface. Loose or oxidized terminals on Weidmüller or Phoenix Contact terminal strips are a frequent source of intermittent faults in vibration monitoring loops. If the system feeds into a Bently Nevada 3500 series rack or an Emerson EPRO rack-based protection system, verify the rack backplane connectors and I/O module seating — a poorly seated 3500/42M or 3500/45 monitor module can produce false alarms that are misattributed to the sensor itself.

For systems integrated into a DeltaV DCS or Ovation control system, confirm that the analog input card receiving the 4–20 mA signal from the CON031 conditioner is calibrated and within specification. Signal isolators — such as Pepperl+Fuchs or MTL signal isolators — installed between the sensor conditioner and the DCS I/O card should be inspected for loop resistance compliance and isolation integrity. Where HART-enabled transmitters share the same marshalling panel, verify that HART filter modules are not introducing impedance that affects the eddy current signal path.

Finally, review the overspeed protection relay and any safety relay modules (such as Pilz PNOZ or Schmersal series) that act on vibration trip signals from the PR6423 loop. A sensor replacement is the right moment to confirm that the safety relay response time, trip setpoints, and bypass key-switch status are all correctly configured and documented in the maintenance record.

Site Replacement Workflow

Replacing the Emerson EPRO PR6423/014-121 CON031 on-site follows a structured sequence to minimize downtime and ensure measurement continuity. Before beginning, confirm that the replacement module’s part number and revision suffix match the installed unit — the /014-121 suffix designates the cable length and connector configuration, and substituting an incompatible variant will require recalibration of the gap voltage and sensitivity settings.

Step 1 — Isolation and permit: Obtain a work permit and isolate the sensor loop at the marshalling cabinet. Do not de-energize the entire protection rack unless required; most PR6423 installations support hot-swap of the conditioner module with the machinery at rest.

Step 2 — Gap voltage verification: Before removing the probe, record the existing gap voltage (typically –10 VDC ±0.5 V for a correctly gapped PR6423 probe). This baseline is required to re-gap the replacement probe to the same mechanical clearance.

Step 3 — Probe and cable removal: Disconnect the extension cable at the conditioner input. Remove the probe from the bearing housing bracket, noting the exact thread engagement depth for reinstallation reference.

Step 4 — Conditioner module swap: Remove the CON031 conditioner from its housing. Install the replacement PR6423/014-121 CON031 unit. Reconnect the extension cable and verify connector seating and locking.

Step 5 — Gap and calibration check: Re-energize the loop and measure the gap voltage at the conditioner output. Adjust probe position to achieve the target gap voltage. Verify the output signal (mA or voltage) against the DCS or protection rack display.

Step 6 — Functional test and documentation: Confirm alarm and trip setpoints are active and correctly annunciated. Update the maintenance record with the replacement date, new module serial number, gap voltage reading, and technician sign-off. Return the bypass to normal operating mode.

This workflow is compatible with legacy PR6423 installations and does not require firmware updates or rack reconfiguration, making it one of the lowest-risk sensor replacements in the Emerson EPRO product family.

Spare Parts Support FAQ

Q1: Is the PR6423/014-121 CON031 a direct drop-in replacement for older PR6423 variants?
In most cases, yes — the PR6423 series maintains backward mechanical and electrical compatibility across its revision history. However, the cable length suffix (/014) and connector code (121) must match the installed probe and extension cable. If you are replacing a unit with a different suffix, contact our technical team to confirm compatibility before installation. NINERMAS provides pre-shipment compatibility verification as part of our standard order process.

Q2: What pre-shipment testing is performed on each unit?
Every PR6423/014-121 CON031 unit shipped by NINERMAS undergoes functional verification including gap voltage output check, sensitivity linearity spot-check, and connector integrity inspection. Test records are available upon request and accompany each unit in the shipment documentation package. This ensures that the module is confirmed operational before it reaches your site, reducing the risk of a failed replacement during a critical maintenance window.

Q3: Can NINERMAS support long-term supply agreements for the PR6423/014-121 CON031?
Yes. NINERMAS specializes in long-term spare parts programs for industrial automation components, including Emerson EPRO sensor modules. We support annual blanket orders, consignment stock arrangements, and multi-year supply commitments for critical spare parts. For plants operating multiple PR6423-based protection loops, a dedicated spare parts agreement ensures guaranteed availability and priority lead times, eliminating the procurement risk associated with spot-market sourcing of legacy components.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and any discrepancy between the shipped unit and its documented specifications. Warranty claims are processed with priority turnaround — NINERMAS will ship a replacement unit upon receipt of the failed module and confirmation of the fault condition. The warranty period begins from the date of shipment and applies to all PR6423/014-121 CON031 units supplied by NINERMAS, regardless of order volume.
