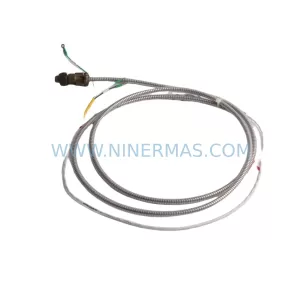

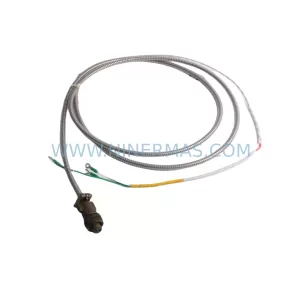

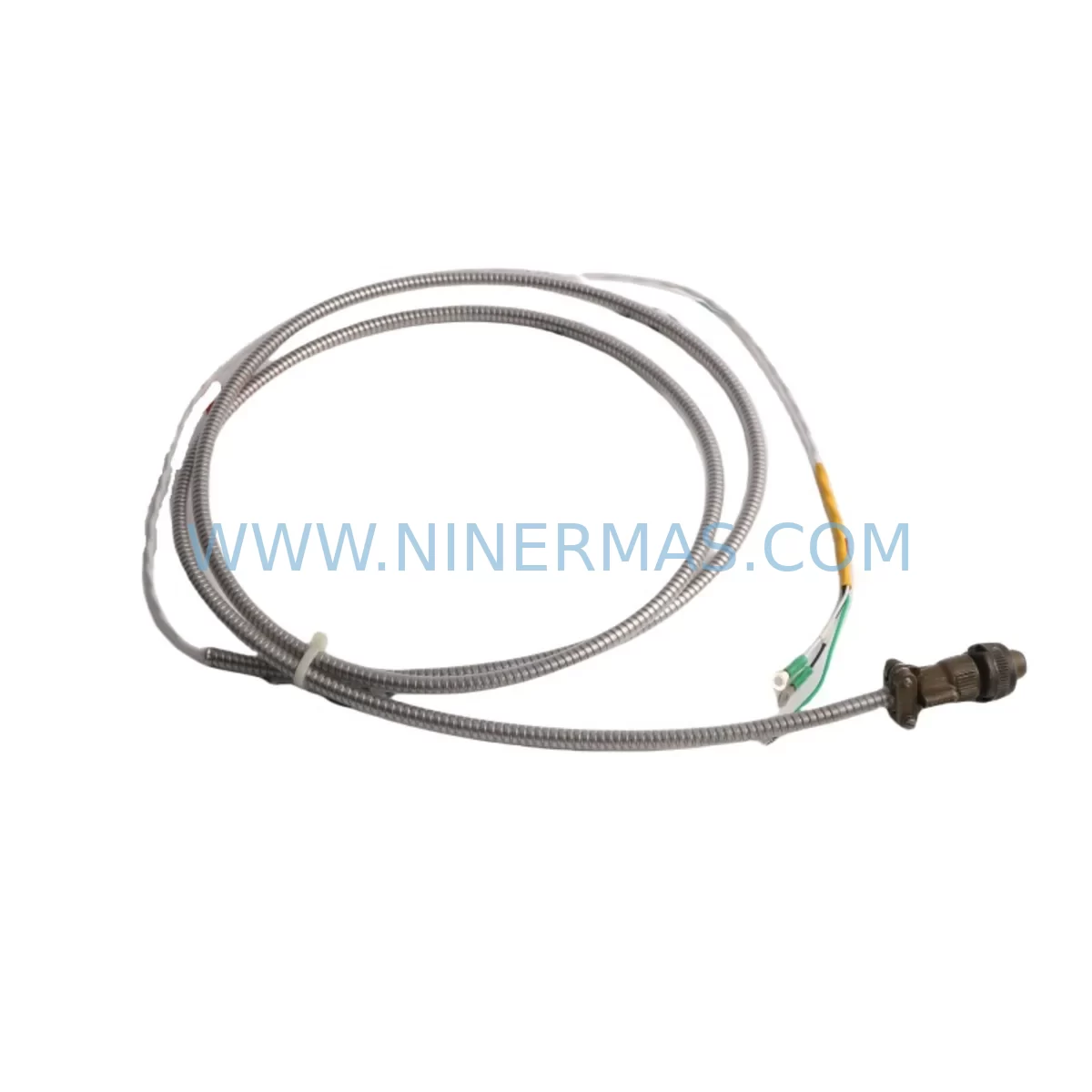

The Bently Nevada 84661-08 is a ruggedized proximity probe cable module engineered for continuous-duty vibration monitoring in demanding industrial environments. As a critical interface component within Bently Nevada’s 3300 Series machinery protection systems, the 84661-08 transmits eddy-current displacement signals from proximity probes to monitor shaft radial vibration, axial position, and differential expansion on rotating machinery including steam turbines, gas compressors, centrifugal pumps, and large induction motors.

For maintenance engineers managing aging turbomachinery protection systems, signal integrity at the probe-to-monitor interface is non-negotiable. A degraded or failed cable module introduces measurement error, nuisance trips, or — more critically — missed alarm thresholds that allow machinery damage to progress undetected. Stocking the 84661-08 as a verified original spare eliminates the diagnostic ambiguity that comes with substituting non-OEM cables and ensures your 3300 Series monitors receive clean, calibrated signals within the specified –18 Vdc driver voltage range.

Procurement engineers sourcing replacement cable modules for long-running plant assets face a common challenge: the original part may be discontinued, grey-market alternatives may lack traceability, and lead times from regional distributors can extend planned outages by days. NINERMAS maintains verified stock of the 84661-08 with full functional testing prior to dispatch, supporting both emergency breakdown orders and scheduled annual overhaul kits. Every unit ships with a 12-month warranty covering manufacturing defects and electrical performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 84661-08 in the field is rarely an isolated task. Vibration monitoring cable failures typically surface during routine point inspections or following a nuisance trip event, and the root cause is often environmental: connector corrosion from steam ingress, mechanical fatigue at the conduit entry point, or insulation breakdown caused by sustained high-ambient temperatures near bearing housings.

When scheduling a cable module replacement, maintenance engineers should simultaneously verify the condition of the associated Bently Nevada 3300 XL 8mm proximity probe (typically a 330780 or 330730 series tip) and its extension cable. A worn probe tip or cracked extension cable jacket will reintroduce signal noise even after the 84661-08 is replaced. The Bently Nevada 3300 RAM proximitor / oscillator-demodulator mounted in the field junction box should also be checked for output voltage stability — a drifting –18 Vdc supply is a common co-failure mode that is easily overlooked when the cable module is blamed for the fault.

Inside the control cabinet, confirm that the corresponding Bently Nevada 3500/42M Proximitor / Seismic Monitor channel is reading within its configured gap voltage window after the new cable is installed and the probe gap is reset. If the system uses a 3500/20 Rack Interface Module for Modbus or Ethernet communications, verify that the channel data is updating correctly in the DCS historian before returning the machine to service.

For plants running mixed-generation protection systems, it is also worth auditing the 3500 Series I/O module terminal assignments and the associated relay output wiring to the 3500/32 4-Channel Relay Module. Intermittent cable faults can cause spurious relay state changes that are logged as process alarms rather than instrumentation faults, leading to misdiagnosis at the DCS level. Checking the 3500/05 Power Supply Module output voltages during the same maintenance window adds minimal time and eliminates a common source of repeat call-outs.

Procurement teams building annual spare parts kits for turbomachinery protection panels should consider holding at least one 84661-08 per monitored shaft, alongside matched extension cables, a spare proximitor, and a set of Bently Nevada 3500 Series terminal board connectors. For older installations still running 3300 Series rack-mounted monitors, sourcing verified original cable modules is increasingly time-sensitive as OEM distribution channels thin out — maintaining a local buffer stock of 2–3 units per critical train is a low-cost insurance policy against extended unplanned outages.

Site Replacement Workflow

1. Pre-replacement verification: Before removing the existing 84661-08, record the current gap voltage reading at the monitor channel (typically displayed on the 3500/42M front panel or via System 1 software). This baseline confirms whether the cable module is the primary fault source or a contributing factor alongside probe wear or proximitor drift.

2. Safe isolation: Coordinate with the control room to inhibit the vibration channel alarm and trip outputs via the 3500/20 Rack Interface Module or local bypass switch before disconnecting the cable. Failure to inhibit the channel may trigger a spurious machinery trip during the swap.

3. Cable removal and inspection: Disconnect the BNC or MIL-spec connector at the proximitor and the probe end. Inspect the conduit run for moisture ingress, mechanical damage, or heat discoloration. If the conduit shows damage, replace it concurrently — a new cable module routed through a compromised conduit will fail prematurely.

4. Installation and gap calibration: Route and connect the new 84661-08 following the original cable path. Re-establish the probe gap per the Bently Nevada installation drawing for the specific probe and target material combination (gap voltage typically –10 Vdc ± 0.5 Vdc for standard steel targets). Use a calibrated digital voltmeter at the proximitor output — do not rely solely on the monitor display during initial setup.

5. Functional verification: Remove the channel inhibit and confirm that the monitor reads within the expected gap voltage window, that vibration amplitude readings are stable at normal machine speed, and that no alarms are active. Log the as-left gap voltage in the maintenance management system for future reference.

6. Documentation: Update the equipment history record with the replaced part number, installation date, and as-left calibration data. This record supports warranty claims and provides the baseline for the next scheduled inspection interval.

Spare Parts Support FAQ

Q1: Is the 84661-08 compatible with both 3300 Series and 3500 Series Bently Nevada systems?
The 84661-08 is designed for the 3300 Series platform. Compatibility with 3500 Series channels depends on the specific monitor module and channel configuration. Always verify the target monitor’s input specification and the probe system’s overall scale factor before installing in a 3500 Series rack. When in doubt, contact NINERMAS with your monitor model and channel configuration for a compatibility confirmation before ordering.

Q2: How does NINERMAS verify the condition of the 84661-08 before shipment?
Every 84661-08 unit undergoes electrical continuity testing, insulation resistance verification, and connector integrity inspection prior to dispatch. Units that do not meet original specification are not shipped. A test report is available upon request for critical applications. All units are covered by a 12-month warranty from the date of shipment.

Q3: What is the recommended spare parts holding strategy for the 84661-08 in a multi-train plant?
For plants with two or more monitored rotating machines, we recommend holding a minimum of one 84661-08 per monitored shaft as a working spare, plus one additional unit as a buffer against concurrent failures during peak production periods. For critical single-train assets where an unplanned outage carries high production loss, a holding of two to three units is advisable. NINERMAS supports blanket order arrangements for customers requiring guaranteed long-term supply.

Q4: Can the 84661-08 be used to extend the service life of an older 3300 Series installation that is no longer supported by the OEM?
Yes. One of the primary use cases for sourcing the 84661-08 through specialist distributors like NINERMAS is extending the operational life of legacy 3300 Series protection systems where OEM support has been discontinued. Replacing worn cable modules with verified original-specification parts maintains measurement accuracy and system reliability without requiring a full platform migration. NINERMAS maintains stock specifically to support long-term maintenance of legacy Bently Nevada installations.
