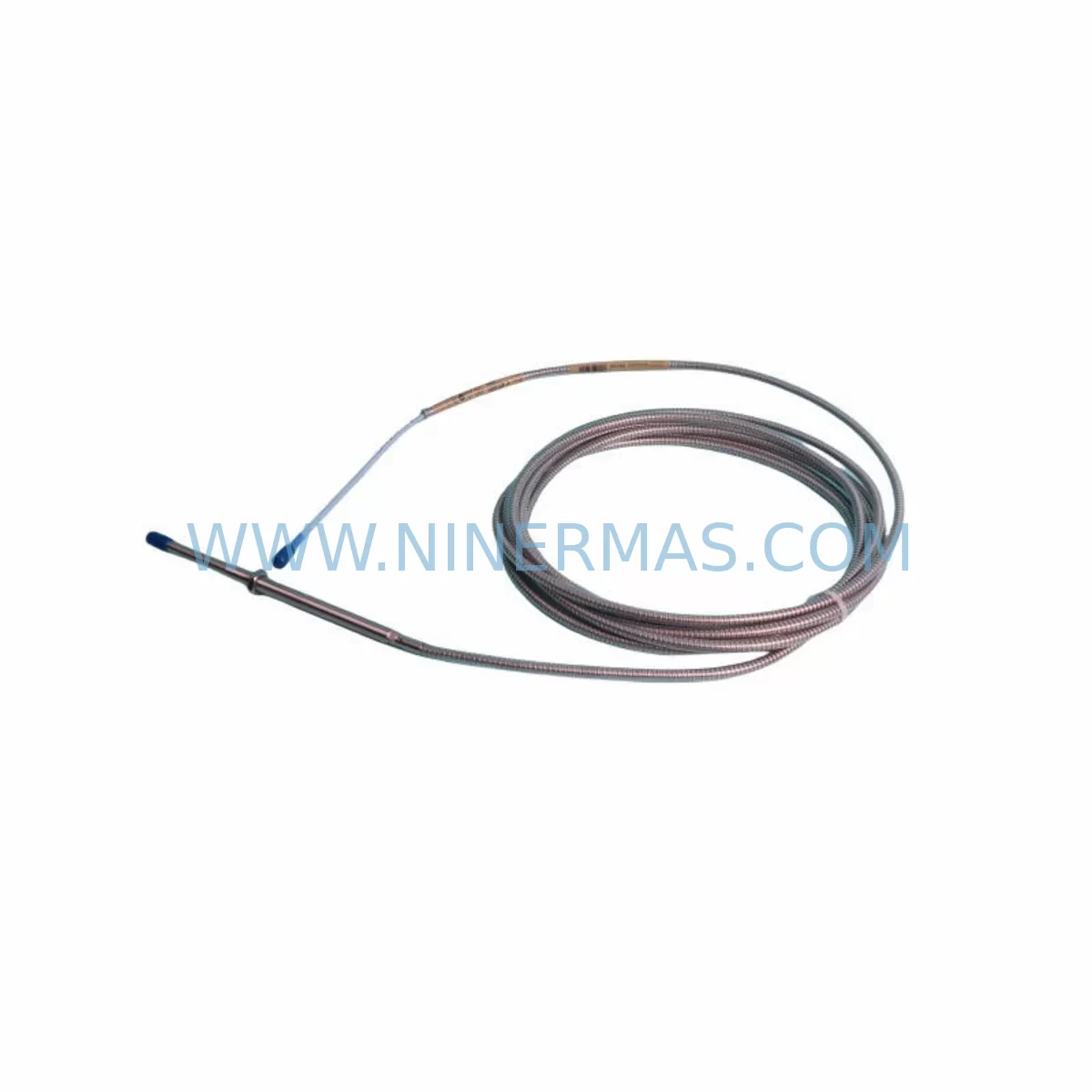

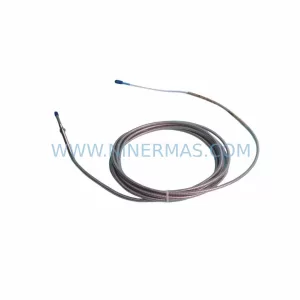

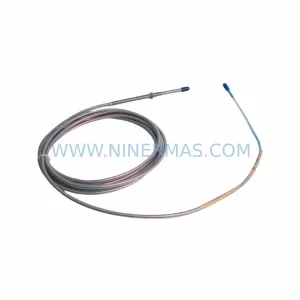

Bently Nevada 330104-02-07-90-02-00 Retrofit-Compatible Proximity Transducer

Bently Nevada 330104-02-07-90-02-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

The Bently Nevada 330104-02-07-90-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring platform. As original equipment manufacturers phase out legacy components and end-of-life notices become more common across rotating machinery protection systems, the 330104-02-07-90-02-00 remains one of the most sought-after retrofit-compatible replacements for plants operating aging turbomachinery, compressors, and pump trains. NINERMAS maintains verified stock of this transducer to support unplanned outage recovery, planned turnaround upgrades, and long-term spare parts lifecycle management.

Whether your facility is migrating from an obsolete 3300 Series rack to a current 3500 Series monitoring system, or simply replacing a failed transducer in an existing 3300 XL installation, the 330104-02-07-90-02-00 provides a direct mechanical and electrical fit. Its 8 mm probe tip diameter, standard Bently Nevada extension cable interface, and -24 VDC bias voltage output make it fully compatible with existing field wiring, junction boxes, and barrier terminal strips without requiring panel rewiring or signal conditioning changes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-02-07-90-02-00 into a legacy or transitional automation environment requires careful pre-installation planning. In most 3300 XL installations, the transducer is paired with a Bently Nevada 330130 extension cable and a 330180 proximitor/oscillator driver, which converts the raw eddy-current signal into a usable -24 VDC proportional output. Before ordering, engineers should confirm that the existing proximitor driver is still functional and that its output range matches the monitor card’s input specification. If the 330180 proximitor is also degraded or discontinued, it is advisable to source both components simultaneously to avoid a second outage.

In control cabinets where the 3300 XL monitor rack is installed alongside a Bently Nevada 3500/22M transient data interface or a 3500/42M proximity monitor, the 330104-02-07-90-02-00 can serve both the legacy and upgraded monitoring channels during a phased migration. This is particularly valuable in facilities that are transitioning from the 3300 XL platform to the 3500 Series without a full cutover, allowing one shaft position or radial vibration channel to be validated on the new monitor while the remaining channels continue operating on the legacy rack.

For plants using a Rockwell Automation ControlLogix or CompactLogix PLC as the primary control platform, the analog output from the 330104-02-07-90-02-00 proximitor chain feeds directly into standard 1756-IF16 or 1769-IF4 analog input modules. No additional signal isolators are required if the existing field wiring is intact and the cable shield grounding follows Bently Nevada’s single-point grounding recommendation. However, if the installation involves long cable runs exceeding 30 meters or passes through electrically noisy environments near variable frequency drives or high-voltage switchgear, the addition of a galvanic signal isolator between the proximitor output and the PLC analog input card is strongly recommended to prevent ground loop interference.

When the retrofit involves a DCS platform such as a Honeywell Experion PKS or Emerson DeltaV, the 4–20 mA equivalent output from the proximitor driver can be wired directly to the DCS analog input termination assembly. Confirm that the DCS historian tag scaling matches the transducer’s sensitivity of 200 mV/mil (7.87 V/mm) and that the alarm setpoints in the DCS faceplate reflect the new transducer’s linear range. If the HMI graphic displays a shaft centerline plot or a Bode plot sourced from the 3300 XL monitor, coordinate with the control system engineer to verify that the display scaling and engineering unit conversion remain accurate after the transducer swap.

In installations where the 330104-02-07-90-02-00 is being used to restore a failed channel in a redundant monitoring configuration, the replacement transducer must be gapped and calibrated before the monitor channel is returned to service. Use a Bently Nevada TK-3 calibration kit or equivalent gap-setting tool to set the probe-to-target gap within the specified linear range. Record the DC gap voltage at the proximitor output terminal and confirm it falls within the monitor’s acceptance window before re-enabling the channel alarm outputs. This step is critical in API 670-compliant installations where the machinery protection system must be fully functional before the machine is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement or system migration is a primary concern for maintenance teams operating continuous process equipment. The 330104-02-07-90-02-00 is designed to support rapid field replacement with no special tooling beyond a standard probe wrench and a digital voltmeter. In most installations, the physical transducer swap can be completed within 30 to 60 minutes, provided the replacement unit is pre-staged, the extension cable is pre-tested for continuity, and the proximitor driver is confirmed operational before the machine is shut down.

To protect the existing program logic in the PLC or DCS during the transducer replacement, it is advisable to place the affected monitoring channel in bypass mode before disconnecting the field wiring. This prevents nuisance trips or false alarms from propagating through the safety instrumented system or the emergency shutdown logic during the brief period when the transducer signal is absent. In Bently Nevada 3500 Series monitors, the bypass function is accessible through the System 1 software interface or directly via the monitor’s front-panel keypad. In legacy 3300 XL installations, consult the rack configuration documentation to confirm the bypass procedure for the specific monitor card type.

After the new 330104-02-07-90-02-00 is installed and gapped, perform a functional verification by observing the DC gap voltage at the proximitor output, confirming the vibration channel reads near zero with the machine at rest, and verifying that the monitor’s OK relay is energized before releasing the bypass. If the installation is part of a broader control cabinet upgrade that also involves replacing a Bently Nevada 3300/16 power supply module or reconfiguring the rack backplane, schedule these activities in sequence to avoid multiple simultaneous failure modes during the commissioning phase. Document the as-left gap voltage, the proximitor serial number, and the installation date in the plant’s maintenance management system to support future predictive maintenance planning and spare parts lifecycle tracking.

Retrofit Support FAQ

Q: Is the 330104-02-07-90-02-00 a direct drop-in replacement for other 330104 suffix variants?
A: The 330104-02-07-90-02-00 is mechanically and electrically compatible with other 330104 series variants sharing the same probe tip diameter and cable configuration. However, suffix digits encode specific cable length, temperature rating, and connector type. Always verify the full part number against your existing installation drawing before ordering to confirm dimensional and electrical compatibility.

Q: Can this transducer be used with a Bently Nevada 3500 Series monitor after migration from a 3300 XL rack?
A: Yes. The 330104-02-07-90-02-00, when paired with a compatible 330180 proximitor driver, produces a standard -24 VDC proportional output that is accepted by 3500/42M proximity monitor input cards. Confirm the monitor’s input configuration and sensitivity setting match the transducer’s 200 mV/mil output before enabling the channel.

Q: What pre-shipment testing does NINERMAS perform on this unit?
A: Each 330104-02-07-90-02-00 unit shipped by NINERMAS undergoes functional output verification, DC bias voltage confirmation, and physical inspection for probe tip condition and connector integrity. Units are shipped with a test report and are covered by a 12-month warranty from the date of shipment.

Q: What is the typical lead time and inventory availability?
A: NINERMAS maintains stock inventory of the 330104-02-07-90-02-00 to support urgent outage recovery and planned maintenance schedules. Standard orders are processed within 1–2 business days. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and expedited shipping options.
