Emerson PR6426/010-030 CON021/916-160 Retrofit Eddy Current

Emerson PR6426/010-030 CON021/916-160 Retrofit-Compatible Eddy Current Monitor for Legacy Systems

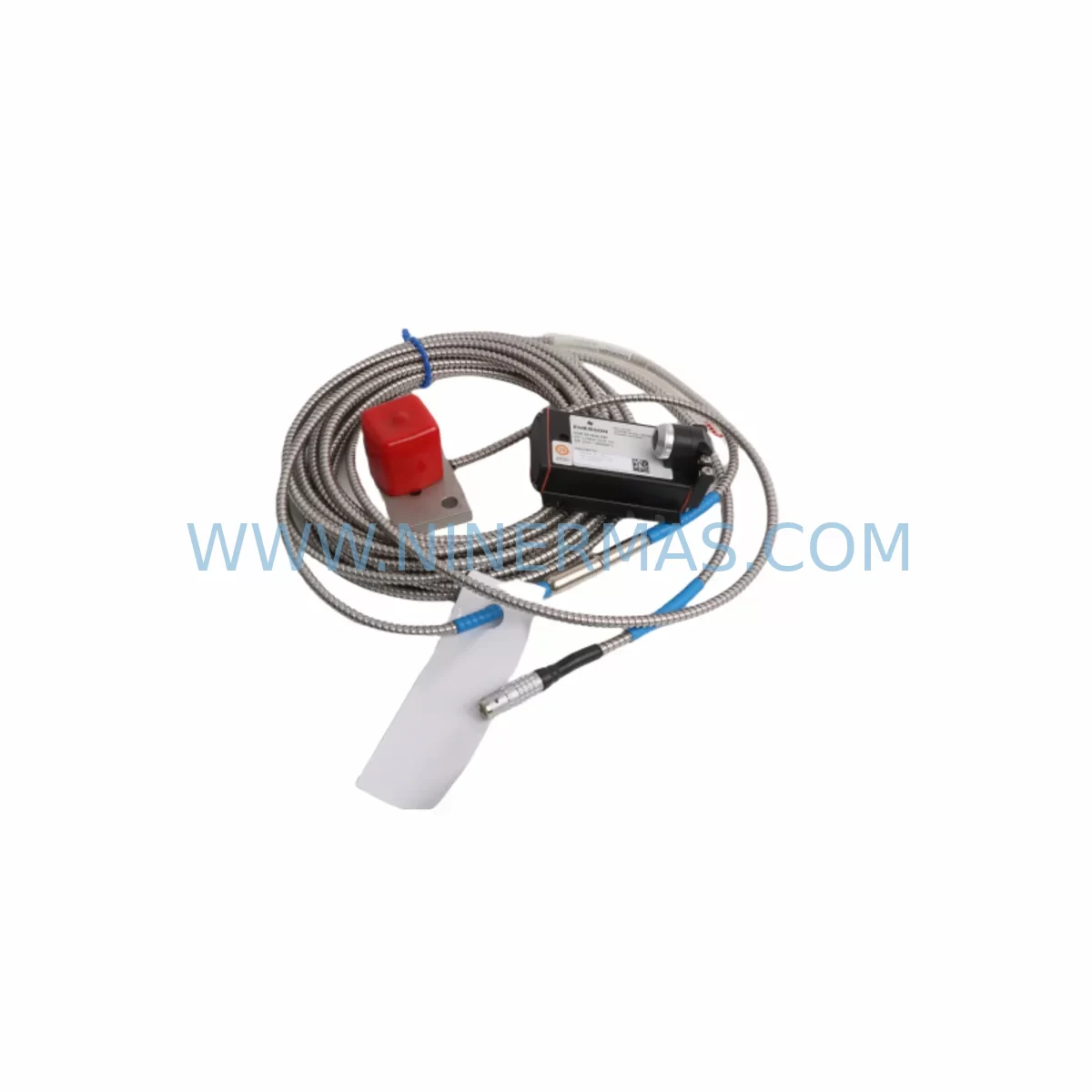

The Emerson EPRO PR6426/010-030 eddy current proximity probe, paired with the CON021/916-160 signal conditioning module, represents one of the most widely deployed shaft displacement and vibration monitoring solutions in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy industrial sectors. As original equipment manufacturers phase out legacy instrumentation lines, plant engineers and reliability teams face the critical challenge of sourcing verified replacement assemblies that maintain full signal compatibility with existing EPRO monitoring racks, DCS inputs, and safety shutdown systems.

NINERMAS COMPANY LIMITED maintains verified stock of the PR6426/010-030 + CON021/916-160 assembly, pre-shipment tested and supplied with a 12-month warranty. Each unit undergoes functional verification of gap voltage output, sensitivity coefficient (8 mV/µm nominal), frequency response, and cable continuity before dispatch. This ensures that field installation teams can proceed directly to commissioning without additional bench testing delays.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the PR6426/010-030 probe and CON021/916-160 conditioner within an operating plant requires a structured approach that accounts for the full signal chain from the shaft target to the monitoring rack output. Before initiating any replacement, engineers should confirm the existing probe mounting thread (M8 standard), the target material (typically low-alloy steel or stainless), and the installed gap distance — typically 1.0 mm to 1.5 mm for most rotating shaft applications.

Within the same EPRO monitoring rack, the CON021/916-160 conditioner interfaces directly with adjacent modules including the MMS 6110 dual-channel shaft displacement monitor card and the MMS 6120 shaft absolute vibration module. Where the existing rack also houses MMS 6823 speed and phase reference modules or MMS 6350 temperature monitoring cards, the replacement of the eddy current channel should be coordinated to avoid disrupting adjacent channel power rails during the swap.

For plants running older EPRO MMS 3000 series racks, the migration path to MMS 6000 architecture may involve replacing not only the probe and conditioner but also the rack backplane interface cards. In such cases, the CON021/916-160 conditioner’s analog output must be re-terminated to match the new rack’s input impedance and scaling. Engineers should also verify that the existing PR6426 probe cable routing does not pass through high-EMI zones without adequate shielding, as cable-induced noise can corrupt the gap voltage signal and trigger false alarms on the MMS 6110 displacement channel.

Where the plant’s DCS or safety instrumented system (SIS) receives the 4–20 mA output from the EPRO rack, the replacement commissioning plan must include a loop check from the conditioner output terminal through the marshalling cabinet to the DCS input card. Any changes to the conditioner module address or rack slot position should be reflected in the DCS tag database and the associated HMI faceplate configuration. Plants using Bently Nevada 3500 series monitors in parallel with EPRO racks for cross-validation should also verify that alarm setpoints remain synchronized after the replacement.

For I/O extension requirements during the retrofit, the CON021/916-160 conditioner supports connection to EPRO signal junction boxes and field terminal assemblies. Where the original installation used a PR6426/010 short-body probe with a separate extension cable, the replacement assembly must maintain the same total cable length to preserve the system’s calibrated sensitivity. Signal isolators — such as those used between the EPRO rack output and the DCS analog input card — should be verified for input range compatibility with the conditioner’s output voltage swing.

Programming compatibility is another key consideration. PLC or DCS logic blocks that reference the shaft displacement channel should be reviewed to confirm that engineering unit scaling, alarm deadbands, and trip setpoints remain valid after the replacement. Where the original conditioner was configured for a specific gap range, the replacement CON021/916-160 should be set to the same range using the module’s internal DIP switches or jumper configuration before installation.

Downtime Control During System Migration

Minimizing unplanned downtime during the replacement of the PR6426/010-030 + CON021/916-160 assembly is achievable through careful pre-outage preparation. The recommended approach is to complete all bench verification of the replacement assembly — including gap voltage output, sensitivity check, and conditioner output calibration — before the scheduled maintenance window begins. This allows the field team to execute the physical swap, re-termination, and gap setting within a single shift, reducing the risk of extended outages.

Where the machine cannot be taken offline for an extended period, a hot-swap strategy may be feasible if the EPRO rack supports channel-level isolation. In this scenario, the affected channel is placed in bypass mode within the SIS or DCS logic, the probe and conditioner are replaced, the gap is set and verified, and the channel is then reinstated before the bypass is removed. This approach requires coordination between the instrumentation team, the control room operator, and the safety authority to ensure that the bypass period is formally documented and that the machine remains within safe operating limits throughout.

Original program logic — including PLC ladder diagrams, DCS function blocks, and SIS cause-and-effect matrices — should be backed up before any hardware change. Where the replacement involves a rack slot change or a conditioner address reassignment, the associated software configuration must be updated and validated before the channel is returned to service. HMI trend displays and historian tags referencing the shaft displacement channel should also be verified to confirm that data continuity is maintained across the replacement event.

NINERMAS supplies the PR6426/010-030 + CON021/916-160 assembly with full test documentation, including gap voltage output records and sensitivity verification data, to support the commissioning team’s acceptance testing and maintenance records.

Retrofit Support FAQ

Q1: Is the PR6426/010-030 a direct replacement for earlier PR6426 probe variants?
Yes. The PR6426/010-030 maintains the same M8 probe body, sensitivity coefficient (8 mV/µm), and cable connector interface as earlier PR6426 variants. The /010 and /030 suffixes denote the probe body length and total cable assembly length respectively. Confirm the installed cable length before ordering to ensure the replacement assembly matches the existing system calibration.

Q2: Does the CON021/916-160 require any rack reconfiguration during installation?
No rack backplane modification is required for a like-for-like replacement of the CON021/916-160 in an existing EPRO MMS 6000 rack. The module occupies a standard rack slot and uses the same power rail and signal bus connections as the original. If the module is being installed in a different slot position, update the rack configuration software and verify the channel address assignment before returning the system to service.

Q3: What commissioning checks are required after replacing the probe and conditioner?
After physical installation, verify the probe gap voltage at the nominal installed gap distance using a calibrated voltmeter or the EPRO calibration tool. Confirm the conditioner output signal at the rack terminal and at the DCS input card. Check alarm and trip setpoints against the machine’s vibration acceptance criteria. Perform a loop check from the field junction box to the DCS historian tag to confirm signal continuity and scaling.

Q4: What warranty and supply terms does NINERMAS offer for this assembly?
NINERMAS supplies the PR6426/010-030 + CON021/916-160 assembly with a 12-month warranty covering manufacturing defects and functional performance. Each unit is pre-shipment tested with documented output records. Long-term supply programs are available for plants requiring scheduled spare parts replenishment across multi-year maintenance cycles. Contact our team for volume pricing and lead time confirmation.
