Bently Nevada 330180-X1-05 Retrofit-Compatible Proximitor for Legacy Systems

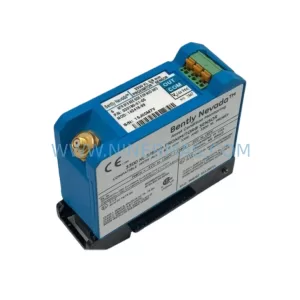

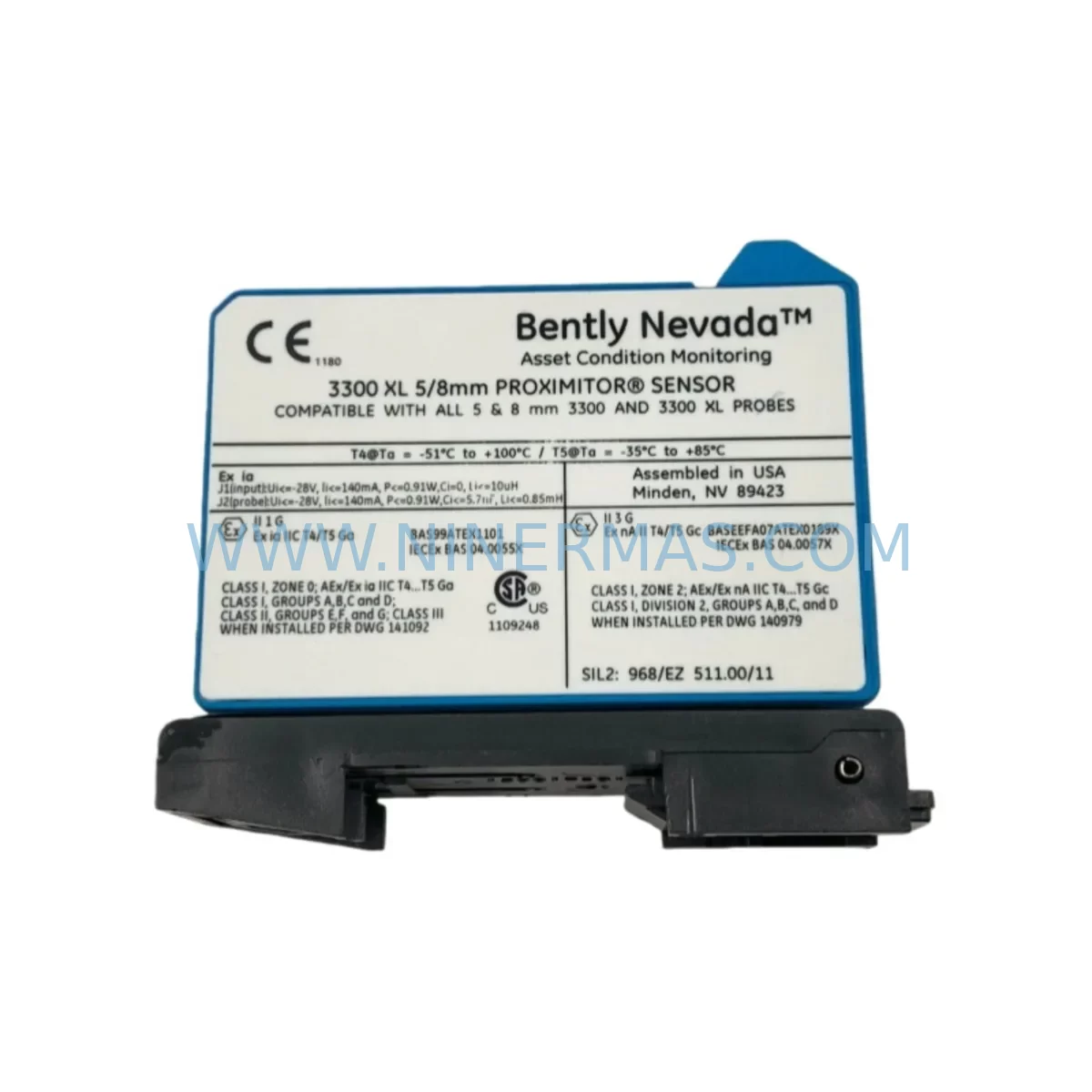

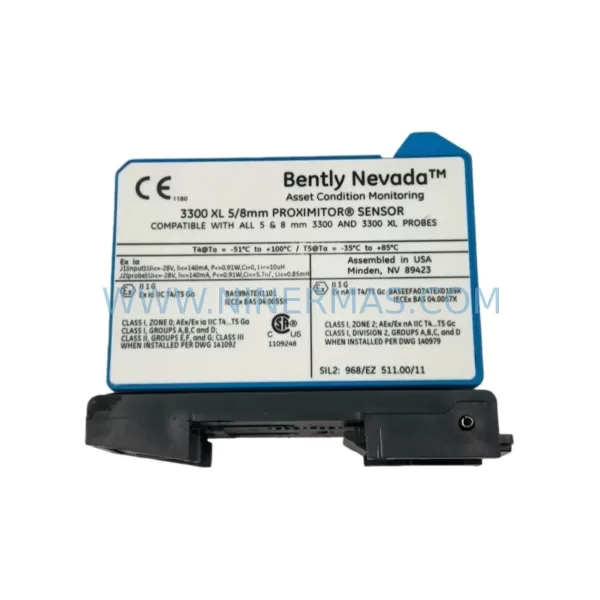

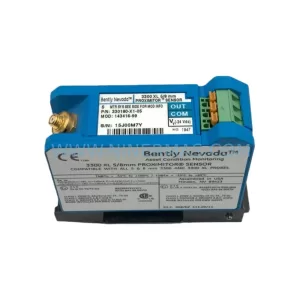

Bently Nevada 330180-X1-05 MOD:163339-01 Retrofit-Compatible Proximitor for Legacy Systems

The Bently Nevada 330180-X1-05 MOD:163339-01 is a high-reliability proximity transducer system module designed for seamless integration into existing 3300 Series vibration monitoring architectures. As legacy Bently Nevada installations age and original components reach end-of-life, this module serves as a proven retrofit-compatible replacement that preserves signal integrity, maintains rack compatibility, and eliminates the need for full system overhauls. Whether your facility is managing a planned upgrade or responding to an unplanned failure of a discontinued component, the 330180-X1-05 delivers the performance and dimensional compliance required for a controlled, low-risk migration.

In industrial environments where continuous machinery protection is non-negotiable — including turbines, compressors, pumps, and rotating equipment on critical production lines — the ability to replace a failed or obsolete Proximitor module without reengineering the entire monitoring loop is essential. The 330180-X1-05 is engineered to meet this requirement, offering compatibility with the 3300 Series rack infrastructure and supporting the eddy-current sensing principles that plant engineers and reliability teams have relied upon for decades.

Before committing to a retrofit installation, engineers should verify several key parameters. Power supply capacity within the existing control cabinet must be confirmed to support the module’s operating voltage range, typically –24 VDC for standard 3300 Series configurations. Terminal wiring at the field junction box should be inspected for conductor gauge compliance and shield grounding continuity, as improper grounding can introduce noise into the vibration signal chain. Backplane slot addressing must be validated against the existing rack configuration — particularly in multi-channel monitoring setups where the 3300/16 or 3300/20 rack may have fixed slot assignments tied to the system’s overall channel map.

Program compatibility is another critical checkpoint. If the plant’s condition monitoring system — such as a System 1 Evolution platform or a third-party DCS integration — has hardcoded channel scaling or alert setpoint logic referencing the original module’s output characteristics, these parameters must be reviewed and adjusted prior to commissioning the replacement. HMI display configurations tied to the original channel assignments should also be audited to ensure alarm visualization remains accurate after the swap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330180-X1-05 into an operating plant environment requires a structured approach that accounts for the interdependencies between the Proximitor module and the broader monitoring ecosystem. In a typical 3300 Series installation, the Proximitor interfaces with a 3300/55 dual-channel monitor or a 3300/46M four-channel monitor housed within the same rack. These monitors receive the conditioned proximity signal and compare it against configured alert and danger setpoints. When replacing the Proximitor, it is essential to confirm that the replacement module’s sensitivity (mV/mil or mV/mm) matches the original specification to avoid false alarms or missed fault detection.

The 3300 Series rack itself — whether a 3300/05 five-slot or a 3300/10 ten-slot chassis — must be inspected for backplane connector integrity before the new module is seated. Corroded or damaged backplane pins are a common source of intermittent signal faults that can be misattributed to the replacement module. In parallel, the field-side probe and extension cable assembly — typically a 330101 or 330130 series probe paired with a 330180 Proximitor — should be inspected for cable damage, connector corrosion, and proper gap setting at the target shaft surface.

For facilities integrating the 3300 Series into a broader DCS or safety instrumented system, communication link continuity must be maintained throughout the replacement process. If the monitoring rack communicates via a 3500/92 communication gateway or a Modbus interface module, the replacement procedure should include a verification step to confirm that the channel data is correctly mapped and transmitted after the new module is installed. Signal isolators or barriers installed between the Proximitor output and the DCS analog input card should also be checked for correct range configuration.

In control cabinets where space is constrained, the physical dimensions of the 330180-X1-05 should be confirmed against the available slot clearance, particularly in retrofitted enclosures where additional terminal blocks, cable management trays, or supplementary I/O modules may have reduced the original installation envelope. Adequate ventilation around the module must also be maintained to prevent thermal derating in high-ambient-temperature environments.

Downtime Control During System Migration

Minimizing unplanned downtime during a Proximitor replacement is achievable through disciplined pre-staging and a clearly defined hot-swap or cold-swap procedure. Where the process permits a brief controlled shutdown, the preferred approach is to de-energize the affected monitoring channel, document the existing gap voltage reading and OK relay status, remove the failed module, seat the 330180-X1-05 replacement, and restore power before verifying the gap voltage and signal output against the original baseline.

For critical machinery where even a brief monitoring gap is unacceptable, a parallel monitoring arrangement using a portable vibration analyzer can provide temporary coverage during the swap window. This approach allows the plant to maintain protection on the monitored shaft while the permanent monitoring channel is restored. Once the replacement module is installed and the gap voltage is confirmed within the acceptable window (typically –10 VDC ± 1 VDC for a standard 5 mm gap), the channel can be returned to service and the portable analyzer removed.

Preserving the original program logic in the associated condition monitoring software is equally important. Before beginning the physical replacement, a backup of the System 1 or equivalent platform database should be taken to protect setpoint configurations, trend history, and alarm logic. This backup also serves as the reference for post-installation verification, confirming that the replacement module is producing signal values consistent with the historical baseline for the monitored machine.

Retrofit Support FAQ

Q: Is the 330180-X1-05 MOD:163339-01 a direct replacement for other 330180 variants?
A: Yes. The 330180-X1-05 MOD:163339-01 is designed as a retrofit-compatible replacement for discontinued 330180 series Proximitor modules used in Bently Nevada 3300 Series monitoring systems. Minor wiring and gap recalibration may be required depending on the specific variant being replaced.

Q: What commissioning steps are required after installation?
A: After seating the module, verify the gap voltage at the probe tip, confirm the OK relay output is active, check the signal output level against the expected mV/mil sensitivity, and validate channel data in the connected monitoring or DCS platform. A full functional test under normal operating conditions is recommended before returning the machine to service.

Q: Is pre-shipment testing performed on this module?
A: Yes. Every 330180-X1-05 unit is functionally tested prior to shipment to verify output signal integrity, OK relay operation, and power consumption within specification. A 12-month warranty is included from the date of shipment.

Q: What is the typical lead time and stock availability?
A: Units are maintained in inventory for immediate dispatch. Standard lead time is 1–3 business days for in-stock units. Contact our team to confirm current availability and arrange expedited shipment for urgent replacement requirements.
