Emerson EPRO PR6423/007-010 CON021 Retrofit Eddy Current Sensor

Emerson EPRO PR6423/007-010 CON021 Retrofit Eddy Current Sensor: Legacy System Compatibility & Smooth Upgrade

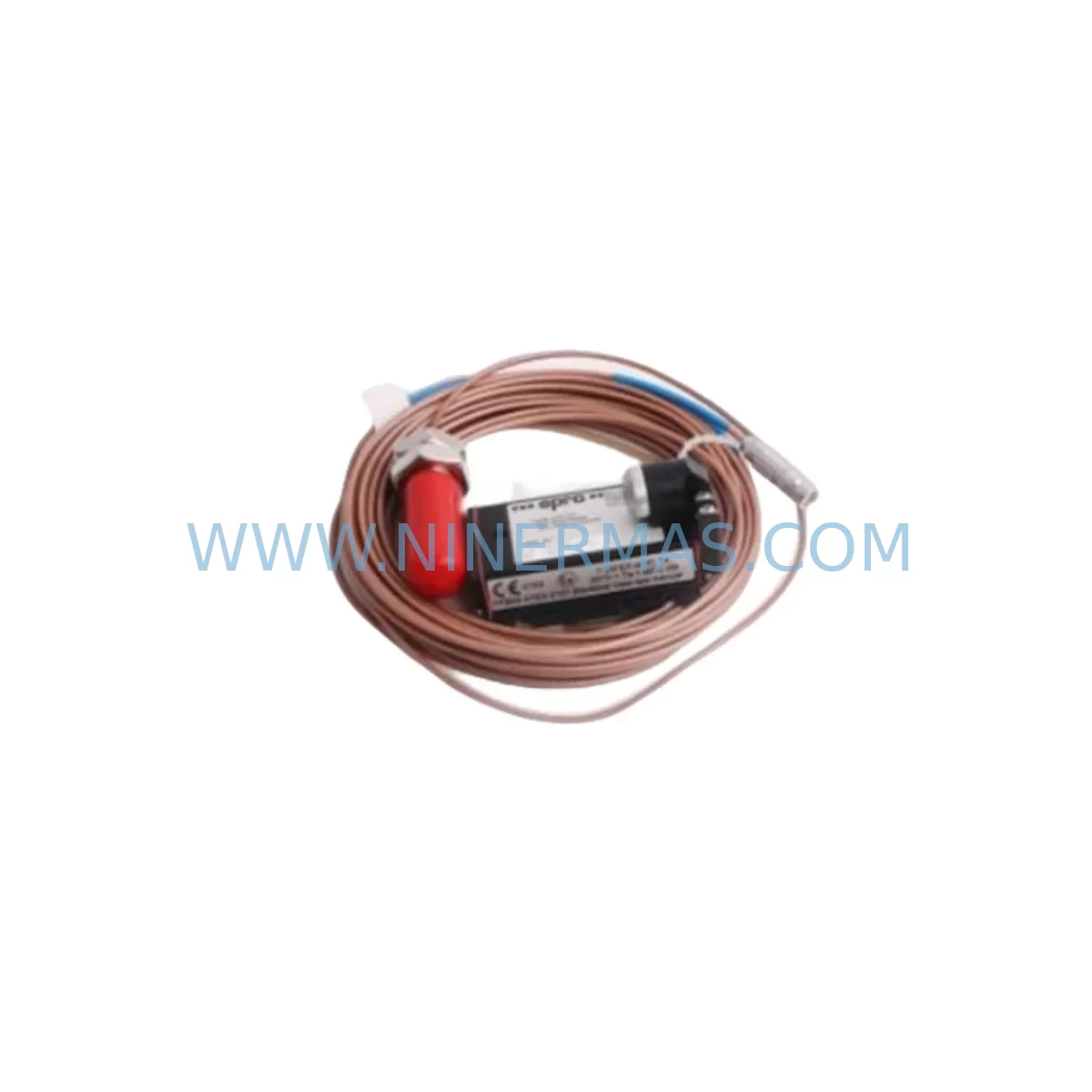

The Emerson EPRO PR6423/007-010 CON021 is a precision eddy current proximity sensor designed for continuous shaft displacement, vibration, and position monitoring in rotating machinery. As a retrofit-compatible replacement for legacy EPRO sensor systems, this unit enables maintenance engineers and automation integrators to restore or upgrade existing monitoring infrastructure without requiring full system redesign. Whether you are managing a planned outage, responding to an unplanned sensor failure, or executing a phased control system modernization, the PR6423/007-010 CON021 delivers the dimensional accuracy, signal linearity, and connector compatibility required for seamless field installation.

The PR6423 series operates within the EPRO eddy current measurement chain, which typically comprises three interdependent components: the sensor probe, the extension cable, and the signal conditioning monitor. In a standard retrofit scenario, the PR6423/007-010 CON021 sensor is paired with a compatible PR6426 extension cable and a CON021 or CON011 signal conditioner module. Engineers replacing a failed or end-of-life sensor must verify that the replacement probe matches the original gap range, sensitivity coefficient (typically 7.87 V/mm or 200 mV/mil), and cable length to maintain calibration integrity across the full measurement chain. Mismatched sensitivity values between the probe and conditioner will produce offset readings that can trigger false alarms or mask genuine shaft excursions.

In legacy turbine control panels and compressor monitoring racks, the PR6423/007-010 CON021 is commonly installed alongside PR9268 signal conditioners, MMS 6350 dual-channel vibration monitors, and TDI 016 terminal boards. When retrofitting these assemblies, technicians should document the existing terminal wiring layout before disconnection, paying particular attention to the shield grounding scheme and the signal return path. Improper shield termination is one of the most frequent sources of noise injection in eddy current measurement loops, particularly in environments with variable-frequency drives or high-current motor feeders running in adjacent cable trays.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the PR6423/007-010 CON021 into an existing machinery protection system begins well before the maintenance window opens. The first step is a full audit of the measurement chain: confirm the model numbers of the installed PR6426 extension cable, the CON021 signal conditioner, and the monitor card — typically a MMS 6350 or MMS 6110 dual-channel vibration and position monitor housed in a MMS 19″ rack. If the existing conditioner is a CON011 variant rather than CON021, sensitivity and output range differences must be reconciled before the new probe is commissioned; in some cases, replacing the conditioner alongside the probe is the lower-risk path.

Power supply capacity is a critical pre-check. The −24 VDC rail feeding the EPRO measurement chain must be verified under load. In aging control cabinets where multiple PR6423 probes share a common PR9268 power supply module, adding a replacement sensor without checking the aggregate current draw can push the supply into current-limiting territory, causing all channels to read low simultaneously — a fault mode that is easily misdiagnosed as a shaft problem rather than a power issue.

Terminal wiring documentation is equally important. Before disconnecting the existing probe, photograph or sketch the terminal block layout, noting which terminals carry the signal conductor, the shield, and the return. In installations that use TDI 016 terminal distribution interface boards, the shield grounding point is often at the TDI rather than at the conditioner, and this arrangement must be preserved in the replacement wiring. Failure to maintain the original shield topology is the single most common cause of elevated noise floors after a probe swap.

For sites running a Bently Nevada 3500 series or similar third-party machinery protection system alongside EPRO hardware, the PR6423/007-010 CON021 can serve as a cross-compatible replacement provided the monitor’s input card is configured for the correct sensitivity and gap voltage range. Always verify the monitor’s transducer type setting in the rack configuration software before energising the replacement probe.

Where the retrofit is part of a broader control system upgrade — for example, migrating from a legacy relay-based shutdown logic to a modern Safety PLC or SIL-rated safety controller — the analogue output of the PR6423/007-010 CON021 feeds directly into the new system’s analogue input (AI) module without signal conversion. This makes the sensor an ideal bridge component during phased migrations, allowing the machinery protection layer to remain operational while the control and logic layers are upgraded in parallel.

Downtime Control During System Migration

Minimising unplanned downtime during a sensor retrofit requires a structured pre-outage preparation protocol. For the PR6423/007-010 CON021, the recommended approach is to pre-configure and bench-test the complete replacement measurement chain — probe, extension cable, and conditioner — before the maintenance window begins. Using a calibration target of known conductivity and surface finish, verify that the output voltage at the nominal 1.0 mm gap matches the conditioner’s calibration certificate within ±0.1 V. This eliminates the most time-consuming on-site troubleshooting step: chasing a sensitivity mismatch after the machine is already shut down.

During the outage, the physical swap of the PR6423/007-010 CON021 typically takes 15–30 minutes for an experienced technician, assuming the probe boss is accessible and the extension cable routing is unchanged. The critical path items are gap setting and signal verification. After installation, set the air gap to the nominal value specified in the original machine documentation (commonly 1.0–1.5 mm for most turbine and compressor applications), then confirm the DC output voltage at the conditioner output terminal before reconnecting to the monitor card. This two-step verification — gap then voltage — prevents the monitor from latching a danger alarm the moment the channel is re-enabled.

To protect the original program logic in the associated PLC or DCS, place the affected measurement channel in bypass mode before disconnecting the old probe. Most MMS 6350 and MMS 6110 monitors support a hardware bypass via a front-panel keyswitch or a software inhibit command from the MMS Configuration Tool. Restoring the channel from bypass only after the new probe has been verified at the correct gap and output level ensures that the control system never sees a spurious trip signal during the swap.

For sites with redundant measurement channels — common in API 670-compliant installations — the retrofit can be executed on a live machine by taking one channel out of service at a time, provided the voting logic (typically 1-out-of-2 or 2-out-of-3) remains satisfied throughout. This approach eliminates the need for a full machine shutdown and is the preferred strategy for critical rotating equipment where production continuity is paramount.

Retrofit Support FAQ

Q1: Is the PR6423/007-010 CON021 a direct drop-in replacement for the PR6423/007-010 CON011?
The probe body and mounting dimensions are identical, but the CON021 and CON011 connectors differ in pin configuration and sensitivity calibration. If your existing extension cable terminates in a CON011 connector, you will need to replace the extension cable with a PR6426 CON021-terminated variant, or use a CON021-to-CON011 adapter. We recommend replacing both the probe and the extension cable simultaneously to ensure a fully matched measurement chain. All units ship with a functional test certificate confirming sensitivity at the nominal gap.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the air gap to the nominal value in your machine documentation. Measure the DC output voltage at the conditioner output terminal and compare it to the calibration curve on the test certificate. Confirm the reading is within the linear range (typically −10 V ±1 V at 1.0 mm gap for a −24 VDC supply). Re-enable the monitor channel and verify that the displayed gap value matches the physical measurement. Log the as-found and as-left gap values in your maintenance record. No special programming or HMI screen updates are required, as the sensor output is a standard analogue signal.

Q3: Can this sensor be used with non-EPRO monitors such as Bently Nevada 3500 or Metrix ST5484E?
Yes, provided the monitor’s input card is configured for the correct sensitivity (7.87 V/mm / 200 mV/mil) and the supply voltage is set to −24 VDC. The PR6423/007-010 CON021 produces a standard EPRO-compatible analogue output that is accepted by most API 670-compliant monitor platforms. Verify the transducer type setting in the monitor’s configuration software before energising the channel. Contact our technical team if you require a compatibility confirmation for a specific monitor model.

Q4: What is the warranty coverage and what does the pre-shipment test include?
All PR6423/007-010 CON021 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. Pre-shipment testing includes sensitivity verification at the nominal gap, insulation resistance check, and connector integrity inspection. Units are shipped with a test certificate and are available from stock for immediate dispatch. For critical spares programs requiring long-term inventory commitment or consignment stock arrangements, please contact our sales team directly.
