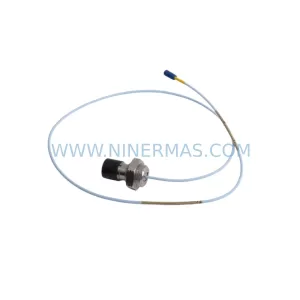

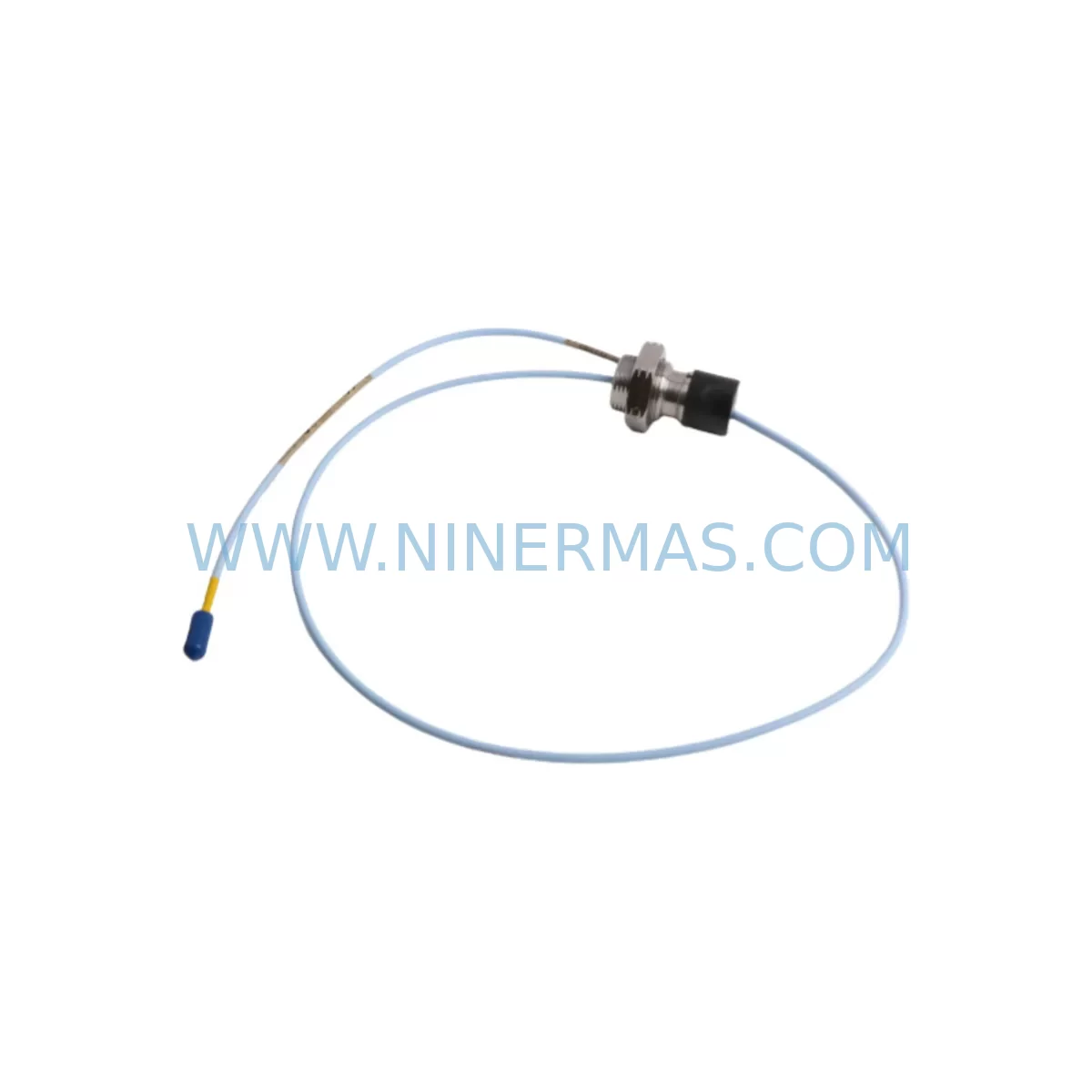

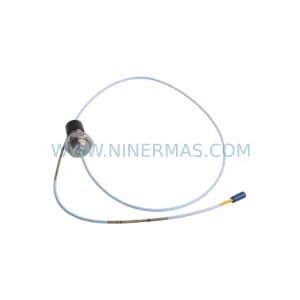

Bently Nevada 330851-02-000-030-10-00-00 Proximity Probe

Bently Nevada 330851-02-000-030-10-00-00 Proximity Probe: Retrofit-Compatible Upgrade for Legacy Vibration Monitoring Systems

The Bently Nevada 330851-02-000-030-10-00-00 is a 3300 XL Series eddy-current proximity probe engineered for continuous shaft vibration, axial position, and differential expansion measurement in rotating machinery. Designed to replace discontinued or end-of-life proximity probes in legacy turbomachinery protection systems, this unit maintains full signal compatibility with existing 3300 XL Proximitor sensor assemblies and integrates directly into installed 3500 Series rack-based monitoring platforms without requiring panel redesign or cable rerouting.

For maintenance engineers managing aging turbine protection panels, compressor monitoring cabinets, or pump condition monitoring systems, the 330851-02-000-030-10-00-00 represents a direct drop-in replacement path that eliminates the need for full system overhaul. Its 10 mm probe tip diameter, standard 5-metre integral cable, and -24 VDC bias voltage output are consistent with the 3300 XL platform specification, ensuring backward compatibility with installed Proximitor signal conditioners such as the 330180-51-00.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating turbomachinery protection system requires careful pre-outage planning to avoid unplanned downtime and to protect existing program logic and alarm setpoints. Before scheduling the replacement of the 330851-02-000-030-10-00-00, maintenance teams should audit the full probe-to-monitor signal chain, beginning at the probe tip and working back through the extension cable, Proximitor sensor, and into the 3500 rack I/O module.

In most 3500 Series installations, the proximity probe connects via an extension cable — typically a 330130-080-00-00 or equivalent 3300 XL armoured extension — to a 330180-51-00 Proximitor sensor mounted on or near the machine casing. The Proximitor converts the raw eddy-current signal into a calibrated voltage output that feeds the 3500/42M Proximitor/Seismic Monitor module in the protection rack. Engineers should confirm that the existing Proximitor is within calibration and that the driver gap voltage at the installed probe tip falls within the linear range (typically -10 VDC to -18 VDC for a 10 mm probe) before finalising the replacement probe selection.

Within the 3500 rack, the 3500/42M channel configuration stores gap, direct, and 1X/2X vector alarm setpoints. These values are retained in the rack’s non-volatile memory and do not require re-entry after a probe swap, provided the replacement probe is of the same model and sensitivity. However, if the site is simultaneously upgrading from a 3300/16 Dual Vibration Monitor to a 3500/42M, the alarm setpoints and OK relay logic must be re-mapped in the 3500 Rack Configuration Software before the system is returned to service.

Power supply integrity is a critical pre-check. The 3500/15 Power Supply Module must be verified to supply stable -24 VDC to the Proximitor circuit under full rack load. A degraded power supply can cause intermittent OK relay dropout that mimics a faulty probe, leading to unnecessary replacements. Similarly, the 3500/32 4-Channel Relay Module output wiring should be inspected to confirm that trip relay contacts are correctly mapped to the DCS or safety PLC input cards.

For sites integrating proximity data into a plant historian or condition monitoring platform, the 3500/22M Transient Data Interface module provides high-speed waveform capture that is essential for diagnosing rotor instability during commissioning after a probe replacement. The 3500/25 Key Phasor Module should also be verified to confirm that the once-per-revolution reference signal is correctly phased for 1X vector measurements on the replacement probe channel.

Interconnect cabling between the junction box and the 3500 rack should be inspected for insulation degradation, particularly the 330878-50-00 Interconnect Cable used in outdoor or high-temperature installations. Corroded terminals or damaged cable screens can introduce noise that affects the gap voltage reading and triggers nuisance alarms after the new probe is installed. All terminal connections should be torqued to specification and continuity-verified before the system is energised.

Where the original probe was installed in a tight bearing housing or confined compressor casing, installation space must be confirmed before the replacement unit is ordered. The 330851-02-000-030-10-00-00 uses a standard M10 × 1.0 thread and is compatible with most existing probe holders, but the integral cable routing must be planned to avoid contact with hot surfaces or rotating components. A pre-installation dimensional check using the probe datasheet drawing is recommended for first-time replacements on unfamiliar machine types.

Downtime Control During System Migration

Minimising planned outage duration during a proximity probe replacement requires a structured pre-outage preparation protocol. All replacement components — including the 330851-02-000-030-10-00-00 probe, extension cable, and any consumable terminal hardware — should be staged and pre-tested at the workshop before the machine is taken offline. Pre-shipment functional testing of the replacement probe against a calibrated target confirms that the gap voltage curve is within specification and eliminates the risk of installing a defective unit during a time-critical outage window.

The existing probe gap voltage and OK relay status should be recorded immediately before shutdown to provide a baseline for post-installation verification. After the replacement probe is installed and the gap is set to the target value (typically 1.0 mm for a -12 VDC gap voltage on a 10 mm probe), the Proximitor output should be measured at the rack terminal block before the 3500/42M channel is re-enabled. This two-point verification — at the Proximitor output and at the rack input — isolates any wiring fault introduced during the replacement before the machine is restarted.

For sites operating under a safety instrumented system, the SIS bypass procedure must be activated before the probe channel is taken out of service and deactivated only after the replacement channel has been verified as healthy. The 3500 rack’s channel inhibit function allows individual channels to be bypassed without affecting adjacent channels, preserving the protection coverage of the remaining probes during the replacement window. This approach is particularly important on machines with 2oo3 voting logic, where a single channel in bypass reduces the voting redundancy and increases the risk of a spurious trip if a second channel develops a fault during the outage.

Detailed documentation of the replacement — including the outgoing probe serial number, gap voltage before removal, replacement probe serial number, installed gap voltage, and post-installation alarm verification results — should be recorded in the site maintenance management system to support future audits and warranty claims.

Retrofit Support FAQ

Q1: Is the 330851-02-000-030-10-00-00 a direct replacement for other 3300 XL 10 mm probes?
Yes. The 330851-02-000-030-10-00-00 is dimensionally and electrically compatible with other 3300 XL Series 10 mm proximity probes of the same cable length. The probe tip thread, sensitivity (200 mV/mil nominal), and bias voltage output are consistent with the 3300 XL platform specification. Confirm the cable length suffix matches the installed extension cable to ensure the combined probe-plus-extension length falls within the Proximitor’s linear range.

Q2: What pre-shipment testing is performed on this unit?
Each 330851-02-000-030-10-00-00 unit undergoes functional gap voltage testing against a calibrated steel target before shipment. The test confirms that the probe output falls within the published sensitivity curve across the full linear range. A test report is available on request. The unit is covered by a 12-month warranty from the date of shipment.

Q3: Can this probe be used with a 3500/42M monitor without reconfiguring the rack?
In most cases, yes. If the replacement probe is the same model as the original, the 3500/42M channel configuration — including gap, direct, and vector alarm setpoints — does not need to be modified. If the probe model or sensitivity has changed, the channel must be recalibrated using the 3500 Rack Configuration Software and the new probe’s sensitivity value. Always verify the OK relay status and alarm setpoints after installation before returning the machine to service.

Q4: What is the lead time and stock availability?
The 330851-02-000-030-10-00-00 is maintained in service-ready inventory for immediate dispatch. Standard lead time for in-stock units is 3–5 business days for international shipments. For sites requiring reserved inventory agreements or long-term supply contracts to support multi-year maintenance programmes, contact our procurement team to discuss dedicated stock allocation and priority dispatch arrangements.
