Emerson KJ3221X1-EA1 12P2534X022 Spare Part for DeltaV S-Series

Emerson KJ3221X1-EA1 12P2534X022 Spare Part for DeltaV S-Series: Spare Replacement & Downtime Risk Control

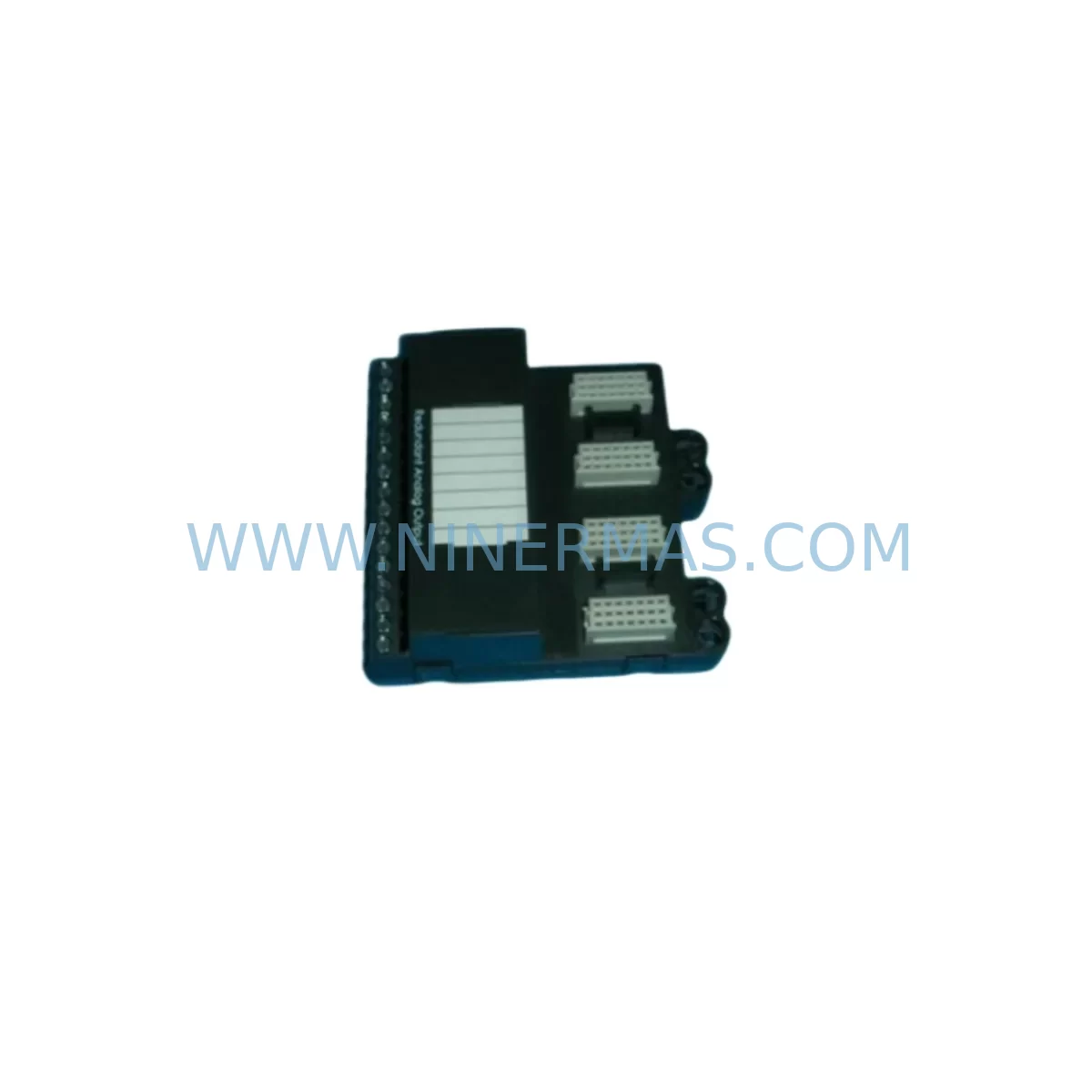

The Emerson KJ3221X1-EA1 12P2534X022 is a service-ready I/O terminal block assembly designed for the DeltaV S-Series distributed control system platform. Sourced as an original spare, this component supports rapid field replacement in process automation environments where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled annual shutdown, responding to an emergency fault, or building a proactive spare parts inventory for a critical control cabinet, the KJ3221X1-EA1 12P2534X022 delivers the compatibility and reliability that maintenance and procurement engineers demand.

This assembly interfaces directly with DeltaV S-Series I/O subsystems, providing the terminal connectivity layer between field wiring and the controller backplane. Its role in signal routing makes it a high-priority spare in any DeltaV-based facility. Degraded terminal contacts, loose wiring terminations, or physical damage to the block can cause intermittent signal loss, false process readings, or complete I/O channel failure — all of which can trigger unplanned shutdowns in continuous process industries including oil and gas, chemical, pharmaceutical, and power generation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KJ3221X1-EA1 12P2534X022 terminal block assembly in a DeltaV S-Series cabinet, a thorough maintenance engineer will not stop at the terminal block alone. The surrounding electrical environment must be evaluated to prevent repeat failures and ensure the restored I/O channel performs reliably over the next maintenance cycle.

Begin by inspecting the DeltaV S-Series I/O carrier (such as the KJ3221X1-BA1 or equivalent carrier module) for bent pins, oxidized contacts, or mechanical damage that could compromise the new terminal block’s seating. A faulty carrier will cause premature failure of any replacement assembly installed into it.

Next, verify the DeltaV I/O module seated above the terminal block — commonly an AI, AO, DI, or DO card such as the KJ3002X1-BA1 analog input module or KJ3221X1-BB1 series — is functioning correctly. Signal errors that appear to originate from wiring terminations are frequently caused by degraded I/O module channel electronics rather than the terminal block itself.

The DeltaV controller power supply feeding the I/O subsystem should also be checked. Emerson’s KJ4001X1-BA1 power supply module and associated redundant power supply units are common failure points in aging DeltaV cabinets. Voltage sag or ripple on the 24 VDC bus can cause intermittent I/O faults that mimic terminal block wiring issues.

Field wiring connected to the terminal block should be inspected for insulation degradation, loose ferrules, and correct torque on screw terminals. In hazardous area installations, verify that Zener barrier or galvanic isolator units — such as the MTL or P+F series signal isolators commonly paired with DeltaV I/O — remain within calibration and show no signs of thermal stress.

For cabinets with high I/O density, also inspect the DeltaV backplane and I/O bus connectors. Backplane connector wear is a known long-term reliability concern in S-Series installations that have been in service for more than ten years. Emerson’s KJ3221X1-CA1 series backplane assemblies should be part of any comprehensive long-life extension plan.

Communication health between the I/O subsystem and the DeltaV controller should be verified via the DeltaV Diagnostics tool. If the replacement terminal block resolves the hardware fault but communication errors persist, inspect the DeltaV CIOC or EIOC controller interface and associated Ethernet or FOUNDATION Fieldbus segment wiring. Fuse holders and DIN rail-mounted terminal fuses protecting individual I/O channels are also frequently overlooked during reactive maintenance — a blown fuse on an adjacent channel can mask the root cause of the original fault.

Finally, for facilities managing legacy DeltaV S-Series systems approaching end-of-support, consider stocking the KJ3221X1-EA1 12P2534X022 alongside related terminal block variants and I/O module spares as part of a structured obsolescence management program. Long-term supply availability for original Emerson DeltaV S-Series components is a procurement risk that should be addressed proactively rather than reactively.

Site Replacement Workflow

Replacing the KJ3221X1-EA1 12P2534X022 in a live DeltaV S-Series installation follows a structured sequence to minimize process disruption and ensure system integrity after restoration.

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the terminal block assembly using DeltaV Diagnostics. Document all field wiring termination assignments before disconnecting any wires. Photograph the wiring layout if the terminal block does not use a marshalling connector system.

Step 2 — Safe Isolation: Place the affected I/O channel or module into manual mode at the DeltaV workstation. Notify the control room operator. For safety-instrumented loops, follow the site Management of Change (MOC) and bypass procedures before proceeding.

Step 3 — Physical Replacement: Remove the existing terminal block by releasing the carrier locking mechanism. Inspect the carrier and backplane connector for damage. Install the new KJ3221X1-EA1 12P2534X022, ensuring full seating and correct locking engagement. Reconnect field wiring in the documented sequence, verifying torque on all screw terminals.

Step 4 — Functional Verification: Restore the I/O channel from manual mode. Verify signal readings at the DeltaV workstation match expected field values. Perform a loop check on all channels served by the replaced terminal block before returning the system to automatic control.

Step 5 — Documentation: Update the site maintenance log, spare parts inventory record, and equipment history file. Record the replacement date, technician name, and the serial number of the removed component for traceability.

This workflow applies equally to planned annual maintenance shutdowns and emergency reactive replacements. Having a pre-tested KJ3221X1-EA1 12P2534X022 on the shelf reduces the critical path of an unplanned outage from days to hours.

Spare Parts Support FAQ

Q1: Is the KJ3221X1-EA1 12P2534X022 compatible with all DeltaV S-Series I/O carriers?
The KJ3221X1-EA1 12P2534X022 is designed for use with the DeltaV S-Series I/O subsystem platform. Compatibility depends on the specific carrier module and I/O card installed in your cabinet. We recommend confirming the carrier part number and I/O module type before ordering. Our technical team can assist with compatibility verification based on your system configuration.

Q2: What pre-shipment testing is performed on this spare part?
Every KJ3221X1-EA1 12P2534X022 unit is inspected and functionally tested prior to shipment. Testing covers terminal contact integrity, mechanical assembly condition, and connector seating. Units that do not pass inspection are not shipped. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term inventory for DeltaV S-Series spare parts?
For facilities operating DeltaV S-Series systems beyond their original design life, we recommend maintaining a minimum stock of two to three terminal block assemblies per control cabinet, alongside critical I/O modules and power supply spares. Spare parts should be stored in anti-static packaging in a climate-controlled environment. Periodic inspection of stored spares every 12 to 24 months is advisable to detect any storage-related degradation before the parts are needed in an emergency.

Q4: Can you support long-term or repeat supply of the KJ3221X1-EA1 12P2534X022?
Yes. We maintain ongoing sourcing relationships to support repeat procurement of DeltaV S-Series spare parts including the KJ3221X1-EA1 12P2534X022. For facilities with annual maintenance schedules or multi-site procurement programs, we can discuss framework supply arrangements to ensure consistent availability and pricing. Contact us to discuss your long-term spare parts requirements.
