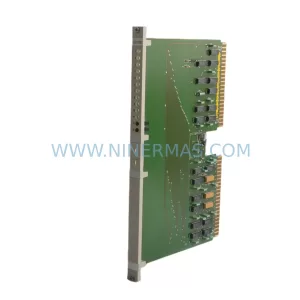

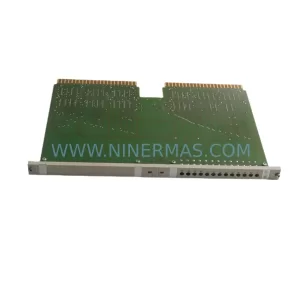

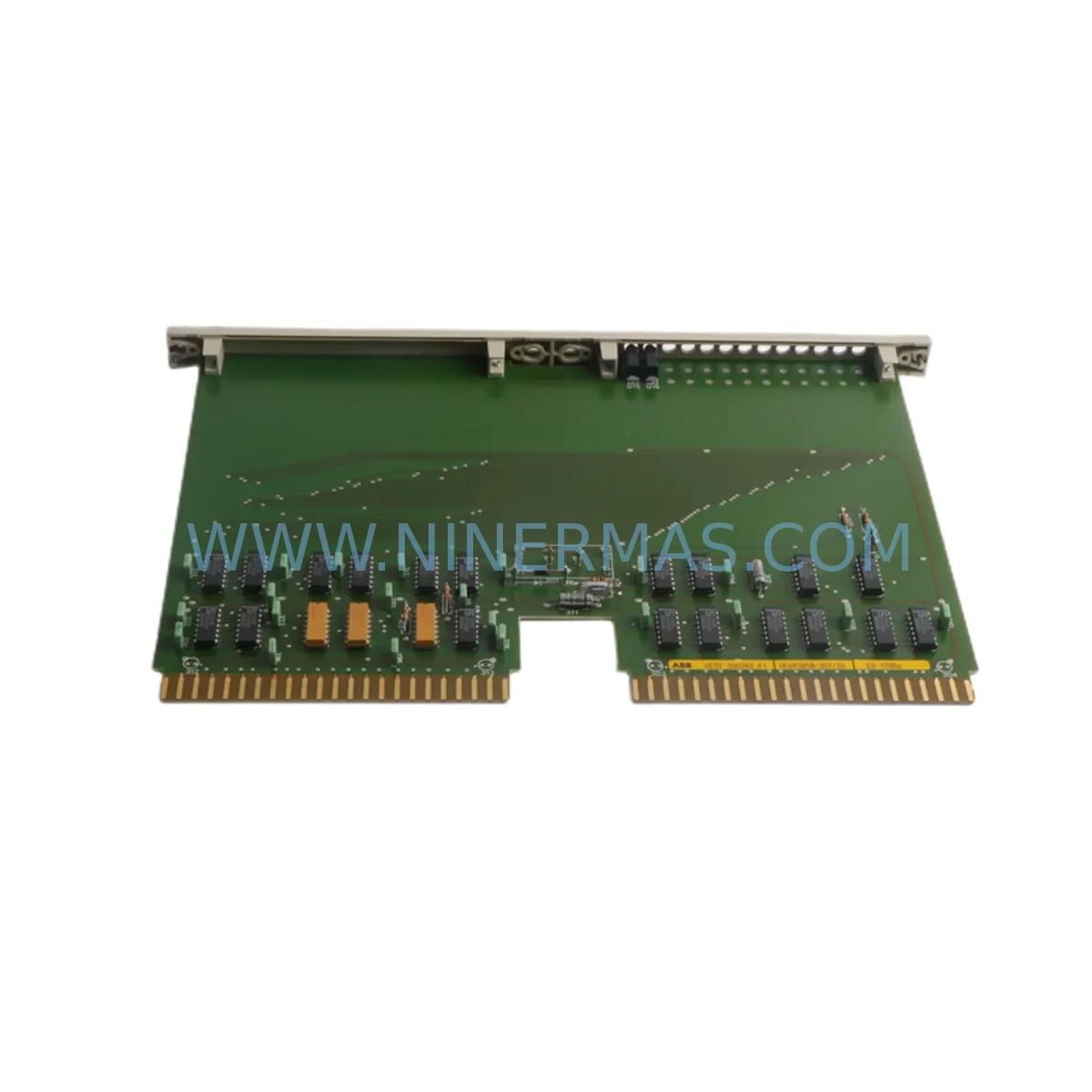

ABB HEDT300340R1 ED1780A Service-Ready Spare Part

ABB HEDT300340R1 ED1780A Service-Ready Spare Part for Industrial Maintenance

The ABB HEDT300340R1 ED1780A is a service-ready spare part designed for industrial maintenance applications within the ABB Advant OCS / MOD 300 control system series. For maintenance engineers managing aging distributed control systems (DCS), unplanned downtime caused by a failed or degraded module can cascade into costly production losses. Stocking a verified replacement unit of the HEDT300340R1 ED1780A is a proven strategy to minimize mean time to repair (MTTR) and keep critical processes running without extended interruption.

This module plays a central role in the Advant OCS architecture, interfacing with the system backplane and participating in the real-time communication and I/O coordination that the MOD 300 platform depends on. Whether you are performing a scheduled annual overhaul, responding to an alarm-triggered fault isolation, or executing an emergency swap during a production stoppage, having a pre-tested HEDT300340R1 ED1780A on your spare parts shelf is the difference between a two-hour recovery and a two-day shutdown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules a replacement of the HEDT300340R1 ED1780A, the scope of inspection should extend beyond the module itself. A thorough site assessment of the surrounding control cabinet components is essential to prevent repeat failures and ensure system stability after the swap.

Begin by inspecting the ABB MOD 300 system power supply modules — typically the DSQC series or equivalent rack-mount PSUs — for output voltage drift, capacitor aging, or thermal stress indicators. A degraded power supply is frequently the root cause of downstream module failures and should be replaced or load-tested before the new HEDT300340R1 ED1780A is commissioned. Alongside the power supply, verify the condition of the backplane bus connectors and rack chassis; oxidized or mechanically stressed backplane contacts can cause intermittent communication faults that mimic module failure.

Next, audit the I/O termination assemblies and field wiring terminal blocks connected to the affected control loop. Loose terminations, corroded screw terminals, or undersized conductors introduce noise and signal integrity issues that can stress the replacement module from day one. If the system uses signal isolators or signal conditioners between field instruments and the DCS I/O cards, inspect these for drift or saturation — units from the ABB RISH or equivalent industrial isolator families should be checked with a calibrator before sign-off.

For systems that rely on ABB communication modules such as the DSMB or DSCS series for PROFIBUS, Modbus, or proprietary Advant fieldbus connectivity, confirm that firmware versions are compatible with the replacement module and that network diagnostics show no CRC errors or timeout events. Communication faults that were previously masked by a failing module may surface after replacement and require separate attention.

Relay output cards and digital output modules in the same cabinet should be exercised through a forced I/O test to confirm coil integrity and contact resistance. Aging relay modules — particularly those with high cycle counts in pump or valve control applications — are prime candidates for proactive replacement during the same maintenance window. Similarly, inspect any fuse holders and circuit protection assemblies on the 24 VDC distribution rail; blown or weakened fuses are a common finding during post-fault cabinet inspections.

If the control system includes an ABB Operator Interface Terminal (OIT) or legacy HMI panel connected to the MOD 300 network, verify that the HMI communication link is restored and that all process displays are updating correctly after the module swap. For older installations, the DSPC series processor modules and associated memory boards should be included in the annual inspection checklist, as these are long-lead items that benefit from advance stocking. Finally, review the battery-backed RAM modules and real-time clock components within the processor rack — these are often overlooked until a power interruption causes configuration loss.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s part number against the rack label and system documentation. Cross-reference HEDT300340R1 ED1780A against the ABB Advant OCS hardware catalog to validate slot position, firmware revision compatibility, and any site-specific configuration parameters stored in the module.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected control cabinet section. For hot-swap capable racks, consult the MOD 300 hardware manual to confirm whether the slot supports live insertion. If not, coordinate a controlled process hold before extraction.

Step 3 — Module Extraction and Inspection: Remove the HEDT300340R1 ED1780A using the module extraction handle. Inspect the backplane connector pins for damage or contamination. Clean the slot with approved electronics-grade contact cleaner if oxidation is present.

Step 4 — Replacement Installation: Insert the service-ready HEDT300340R1 ED1780A into the designated rack slot. Ensure the module is fully seated and the front panel locking mechanism is engaged. Restore power and observe the module’s status LEDs for normal initialization sequence.

Step 5 — System Verification: From the engineering workstation or HMI, confirm that the module appears online in the system topology view. Execute a forced I/O test on all channels associated with the replaced module. Verify that process values are within expected ranges and that no new alarms are active.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the old module’s serial number, failure mode, replacement date, and technician sign-off. Update the spare parts inventory to trigger a replenishment order for the next HEDT300340R1 ED1780A unit.

Spare Parts Support FAQ

Q1: Is the HEDT300340R1 ED1780A tested before shipment?
Yes. Every unit supplied by NINERMAS undergoes functional verification and visual inspection prior to packaging. A test report is available upon request. The module ships with a 12-month warranty covering defects in materials and workmanship from the date of delivery.

Q2: Can this module replace older ED-series revisions in the MOD 300 rack?
The HEDT300340R1 ED1780A is designed for direct form-fit-function replacement within compatible ABB Advant OCS / MOD 300 rack positions. For cross-revision compatibility, we recommend verifying the hardware revision matrix in the ABB MOD 300 hardware manual or contacting our technical team with your system’s rack configuration details before ordering.

Q3: What is your long-term supply commitment for this part?
NINERMAS maintains ongoing sourcing relationships for legacy ABB Advant OCS and MOD 300 components. We support blanket purchase orders and scheduled delivery programs for customers managing multi-site DCS fleets or long-term maintenance contracts. Contact our sales team to discuss volume pricing and reserved stock arrangements.

Q4: How should we manage spare parts inventory for aging MOD 300 systems?
For systems beyond their original support lifecycle, we recommend maintaining a minimum of one cold-standby unit of critical modules such as the HEDT300340R1 ED1780A, along with associated processor modules, power supplies, and communication cards. A structured spare parts audit every 12–24 months — aligned with your annual shutdown schedule — helps identify gaps before an unplanned failure forces an emergency procurement under time pressure.
