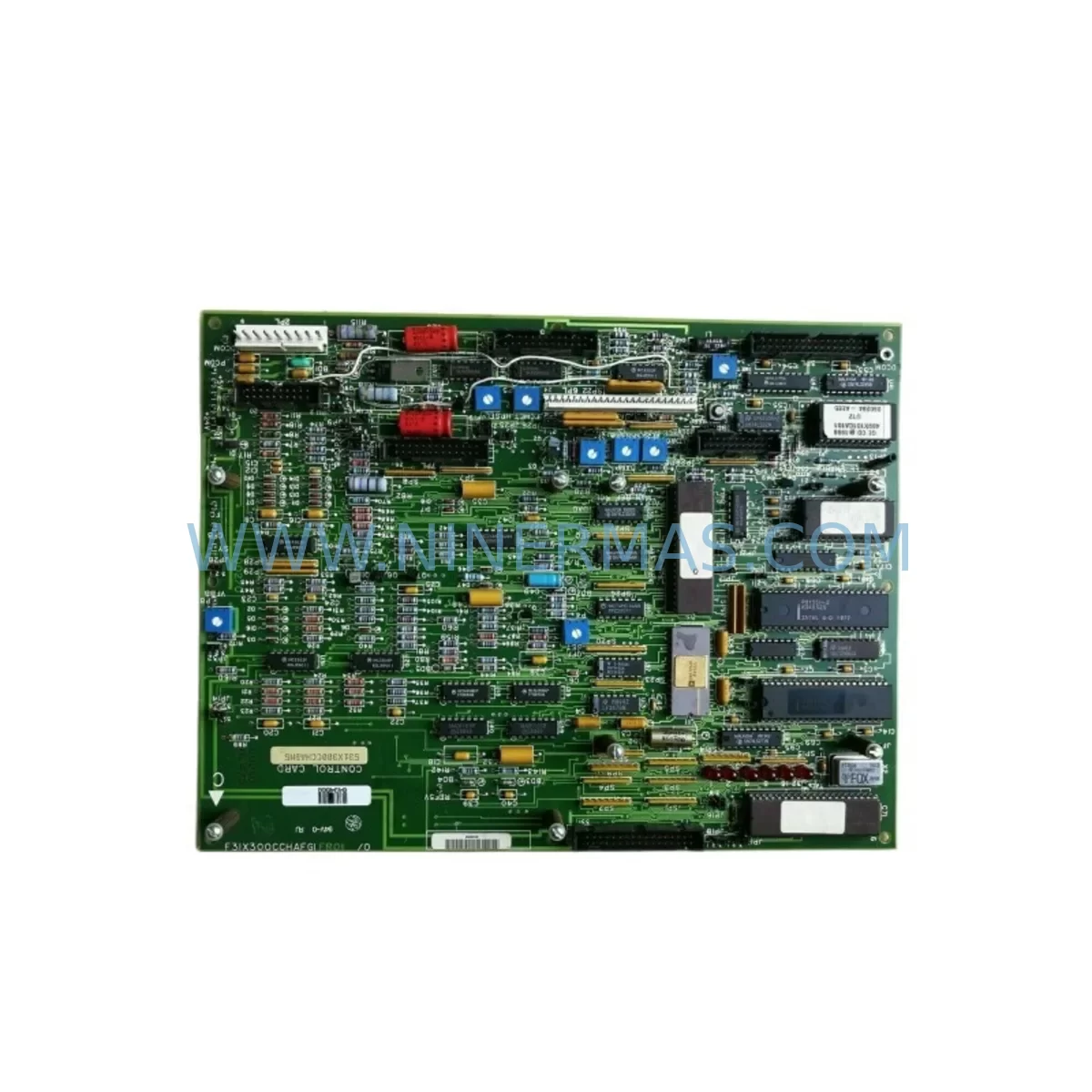

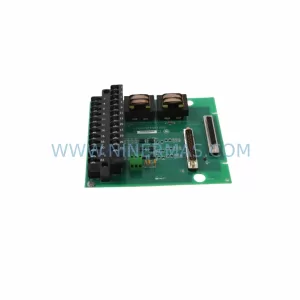

The GE IS200SPROH1ADD is a protective relay output module designed for the GE Mark VI Turbine Control System — one of the most widely deployed control platforms in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As original equipment manufacturers phase out legacy hardware and discontinue support for older Mark VI components, plant engineers and procurement teams face increasing pressure to source reliable, tested replacements that can be integrated without triggering full system overhauls.

NINERMAS maintains verified stock of the IS200SPROH1ADD, fully tested prior to shipment and backed by a 12-month warranty. Whether you are managing a planned outage, responding to an unplanned trip, or executing a phased control system modernization, this module is available for immediate dispatch to minimize your plant’s exposure to extended downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS200SPROH1ADD within an operating Mark VI control system requires a structured approach that accounts for the full scope of interdependencies within the control cabinet and across the plant control network. The SPRO module interfaces directly with the protective relay logic executed by the UCSC controller card, which coordinates trip signals, alarm outputs, and interlock sequences for the turbine protection system. Before removing the existing module, engineers should export the current ToolboxST configuration and verify that relay output assignments — including trip relay, alarm relay, and auxiliary contact outputs — are fully documented.

Terminal block wiring is a critical checkpoint. The IS200SPROH1ADD connects to field wiring via a dedicated terminal board, typically a IS200TPROH1B or equivalent TPRO-series terminal board mounted in the same I/O enclosure. Confirm that the terminal board revision is compatible with the ADD hardware revision before proceeding. Mismatch between module and terminal board revisions is a common source of commissioning delays in Mark VI retrofit projects.

Power supply integrity must also be verified prior to module swap. The Mark VI I/O racks are typically powered by redundant IS200EPBAG1A or similar EPBA-series power supply modules. Confirm that the rack power budget accommodates the IS200SPROH1ADD’s draw, particularly in high-density I/O configurations where multiple modules share a common backplane power rail. A degraded or undersized power supply can cause intermittent relay output faults that are difficult to distinguish from module failures during initial commissioning.

For plants executing a broader Mark VI modernization — migrating from older IS200-series I/O to the newer IS420-series or transitioning toward a Mark VIe architecture — the IS200SPROH1ADD serves as a stable interim solution that preserves existing wiring infrastructure and application logic while the broader migration is planned and budgeted. In these scenarios, the module is often deployed alongside updated VCMI communication interface cards and revised IONET network topology to support expanded diagnostic visibility without requiring changes to the protective relay wiring or field instrument connections.

I/O expansion projects that add new protective functions — such as integrating additional vibration monitoring channels via IS200VTURH1B turbine protection modules, or extending generator protection coverage through supplementary relay output modules — should be planned in coordination with the IS200SPROH1ADD replacement to avoid multiple outage windows. Consolidating module replacements and I/O additions into a single planned maintenance window is the most effective strategy for minimizing total plant downtime.

HMI screen updates are frequently overlooked during relay module replacements. If the existing Cimplicity HMI or third-party SCADA system displays relay status points sourced from the SPRO module, verify that point names, alarm priorities, and display logic remain consistent after the module swap. Changes to relay output assignments in ToolboxST that are not reflected in the HMI configuration can result in masked alarms or incorrect status indications during post-commissioning operation.

Communication link integrity between the Mark VI controller and the plant DCS or historian should be validated after module replacement. In plants using Modbus TCP or OPC DA/UA gateways to bridge Mark VI data to a broader plant information network, confirm that relay status tags are correctly mapped and that the gateway configuration does not require updates following the module change. This is particularly relevant in facilities where the IS200SPROH1ADD replacement is part of a larger effort to migrate from legacy serial communication protocols to Ethernet-based plant networks.

Downtime Control During System Migration

Minimizing downtime during IS200SPROH1ADD replacement begins with pre-outage preparation. A complete backup of the ToolboxST project — including all controller configurations, I/O assignments, relay output logic, and alarm setpoints — should be archived before any hardware is disturbed. This backup serves as both a recovery baseline and a reference document for post-replacement verification testing.

Where plant operating procedures permit, the IS200SPROH1ADD replacement can be executed during a scheduled turbine inspection outage, aligning the control system work with mechanical maintenance to avoid a dedicated electrical outage. In facilities with redundant Mark VI controller configurations (TMR — Triple Modular Redundant), it may be possible to replace the module in a single redundant leg while the remaining legs maintain turbine protection coverage, subject to site-specific safety procedures and OEM guidance.

Post-replacement commissioning should follow a structured sequence: rack power verification, module recognition in ToolboxST, relay output continuity testing at the terminal board, functional trip testing against the protection logic, and final HMI alarm verification. Each step should be documented and signed off before the turbine is returned to service. NINERMAS provides pre-shipment functional test records for the IS200SPROH1ADD upon request, which can be used to support site acceptance testing and reduce the scope of on-site verification required during the outage window.

For plants with tight outage windows, having a pre-tested, pre-configured spare IS200SPROH1ADD on-site before the outage begins is the single most effective measure for controlling downtime risk. NINERMAS maintains inventory of the IS200SPROH1ADD and can support expedited shipment to meet planned outage schedules.

Retrofit Support FAQ

Q1: Is the IS200SPROH1ADD a direct replacement for earlier SPRO hardware revisions such as IS200SPROH1A or IS200SPROH1ABB?
In most Mark VI installations, the IS200SPROH1ADD is backward-compatible with earlier SPRO hardware revisions at the slot and terminal board level. However, firmware revision differences between hardware variants can affect relay output timing and diagnostic behavior. NINERMAS recommends confirming the installed ToolboxST firmware version and consulting the GE Mark VI hardware compatibility matrix before finalizing the replacement order.

Q2: What wiring changes are required when replacing the IS200SPROH1ADD?
In a like-for-like hardware revision replacement, no wiring changes are typically required at the terminal board. The existing field wiring connected to the TPRO-series terminal board remains in place. If the replacement involves a different hardware revision or a different terminal board type, a wiring review against the as-built I/O drawings is mandatory before energizing the replacement module.

Q3: Does NINERMAS provide pre-shipment testing for the IS200SPROH1ADD?
Yes. All IS200SPROH1ADD units shipped by NINERMAS are functionally tested prior to dispatch. Test records are available upon request and can be provided as part of the shipment documentation to support site acceptance testing and quality control requirements.

Q4: What warranty coverage applies to the IS200SPROH1ADD supplied by NINERMAS?
NINERMAS provides a 12-month warranty from the date of shipment on all IS200SPROH1ADD units. The warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by NINERMAS’s technical team, and replacement units can be dispatched on an expedited basis to minimize plant downtime in the event of a warranty-related failure.
