Emerson KJ3102X1-BE1 12P2703X022 Retrofit I/O for Legacy Systems

Emerson KJ3102X1-BE1 12P2703X022 Retrofit-Compatible I/O Module for Legacy DeltaV Systems

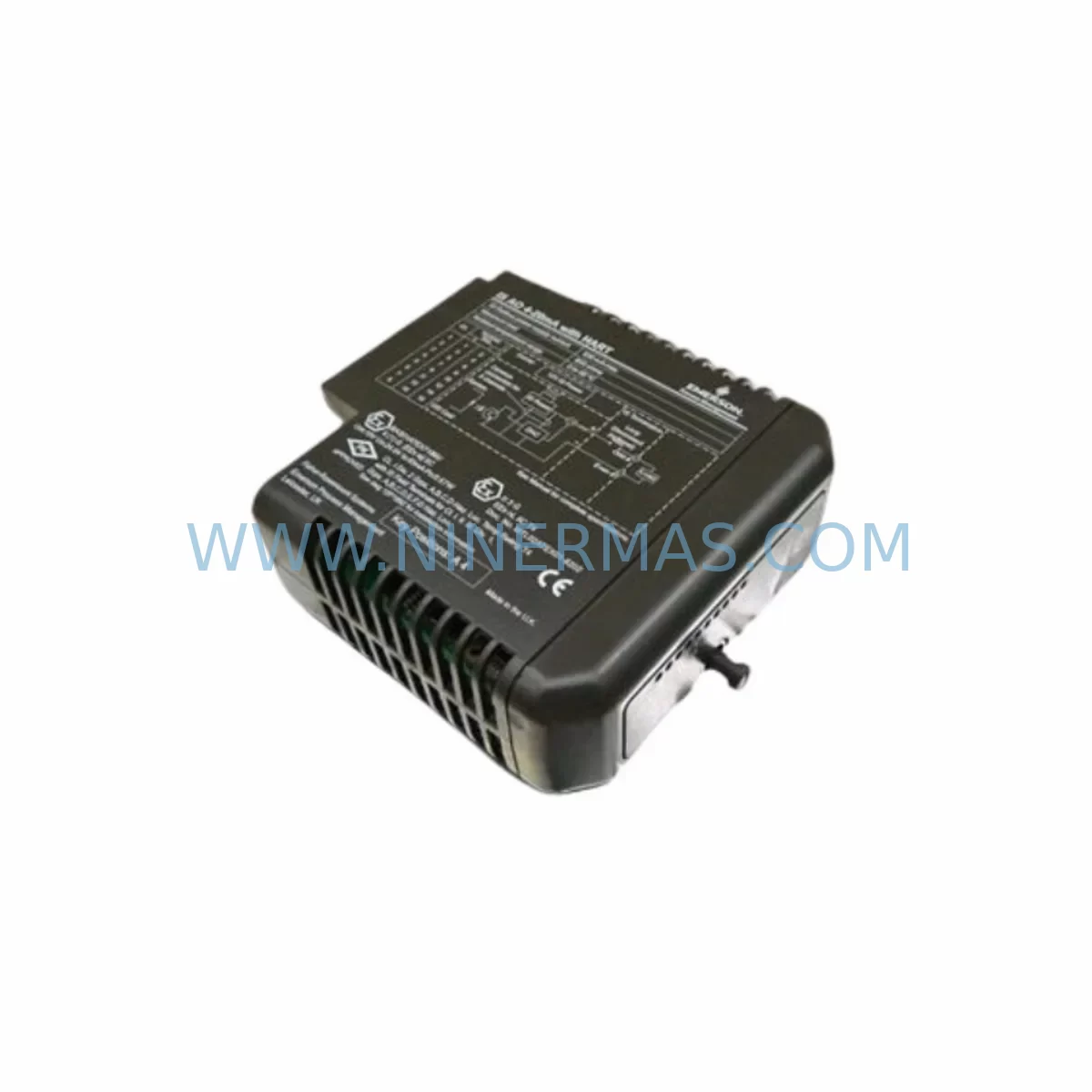

The Emerson KJ3102X1-BE1 12P2703X022 is a DeltaV Series I/O module engineered for seamless integration into existing process control architectures. As legacy DeltaV systems approach end-of-life and original spare parts become increasingly scarce, this module serves as a direct retrofit-compatible replacement, enabling plant engineers to extend the operational lifespan of their automation infrastructure without committing to a full platform migration. Whether you are managing a brownfield refinery, a chemical processing facility, or a power generation plant, the KJ3102X1-BE1 12P2703X022 provides a reliable, cost-effective path to system continuity.

NINERMAS maintains verified in-stock inventory of the KJ3102X1-BE1 12P2703X022, with each unit subject to pre-shipment functional testing and backed by a 12-month warranty. Our supply chain is specifically structured to support urgent MRO (Maintenance, Repair & Operations) requirements, minimizing procurement lead times for critical spare parts that are no longer available through standard OEM channels.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3102X1-BE1 12P2703X022 into a legacy DeltaV environment begins well before the module arrives on site. A structured retrofit plan reduces risk, shortens commissioning time, and protects the integrity of the existing control program.

Power Budget Verification: Before installing any additional I/O module, engineers must audit the available power headroom on the installed DeltaV power supply — typically a KJ4001X1-BA1 or KJ4001X1-BB1 power supply module. Each I/O module draws current from the backplane bus, and exceeding the rated capacity of the power supply can cause intermittent faults or system-wide shutdowns. Calculate the aggregate load of all installed modules, including the replacement KJ3102X1-BE1, and confirm that the power supply’s rated output provides at least a 20% margin above the calculated load.

Backplane and Carrier Slot Confirmation: The KJ3102X1-BE1 12P2703X022 installs into a standard DeltaV I/O carrier, such as the KJ3101X1-BA1 8-slot carrier or the KJ3101X1-BB1 16-slot carrier. Confirm that an available slot exists in the target carrier and that the carrier’s firmware is compatible with the replacement module. If the existing carrier is at full capacity, a carrier expansion or the addition of a new carrier assembly may be required, which in turn affects the overall cabinet layout and cable management plan.

Terminal Wiring and Marshalling: Field wiring connected to the legacy module should be documented before removal. Photograph or sketch the existing terminal block connections, noting wire color, signal type (AI, AO, DI, DO), and engineering unit range. When installing the KJ3102X1-BE1, reuse the existing marshalling cabinet wiring where the terminal block pinout is identical. For applications where the field wiring connects through a KJ3102X1-BA1 or similar terminal block assembly, verify that the replacement module’s terminal block is mechanically and electrically compatible.

Module Address and Tag Configuration: In DeltaV Explorer, the replacement module must be assigned the same node address and I/O channel tags as the module it replaces. Failure to replicate the original tag structure will cause the DeltaV controller — whether a KJ2003X1-BA1 MD-Plus Controller or a KJ2003X1-BB1 MD Controller — to report I/O communication faults and may trigger process alarms or safety interlocks. Export the existing module configuration from DeltaV Explorer before removal and use it as the reference template for the replacement module’s commissioning.

HMI Faceplate and Alarm Verification: After the replacement module is online, verify that all associated HMI faceplates in DeltaV Operate or DeltaV Live display correct process values and that alarm setpoints are intact. Pay particular attention to any custom graphics or trend displays that reference specific I/O channel tags, as tag renaming during the replacement process can silently break HMI data links without generating a controller fault.

Communication Link Integrity: For DeltaV systems that include a KJ3232X1-BA1 PROVOX Migration Interface or a KJ3224X1-BA1 HART Multiplexer, confirm that the communication link between the I/O subsystem and the controller remains intact after the module swap. Run a full I/O diagnostic scan from DeltaV Diagnostics to confirm that all channels report healthy status before returning the loop to automatic control.

Signal Isolation Considerations: In applications where field signals are subject to ground loops or electrical noise — common in older plants with mixed instrumentation generations — consider installing a signal isolator or loop conditioner in series with critical analog inputs. This is particularly relevant when the KJ3102X1-BE1 is replacing a module in a loop that also interfaces with legacy PROVOX or RS3 instrumentation through a protocol migration gateway.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team undertaking a DeltaV I/O module replacement. The KJ3102X1-BE1 12P2703X022 is designed to support hot-swap replacement in DeltaV systems that have been configured for redundant I/O operation. However, in non-redundant configurations, the replacement procedure requires a controlled shutdown of the affected I/O loop.

To protect the original control program logic, export a full DeltaV database backup before beginning any hardware work. This backup preserves all module configurations, control module assignments, alarm parameters, and historian tag mappings. If the replacement module requires a firmware download, ensure that the DeltaV workstation running DeltaV Engineering is connected to the controller network and that the firmware version matches the system’s baseline revision.

For processes that cannot tolerate a complete loop shutdown, consider placing the affected control module in manual mode and holding the output at the last known good value before removing the legacy module. This approach maintains field device position (valve open/closed, pump on/off) during the brief period when the I/O channel is offline, reducing the risk of process upsets or safety system activations.

Once the KJ3102X1-BE1 is installed and the module is recognized by the DeltaV controller, perform a channel-by-channel verification: confirm that each analog input reads the correct process value within the expected engineering unit range, that each digital input reflects the correct field device state, and that each output channel responds correctly to a manual output test from DeltaV Operate. Only after all channels pass this verification should the control module be returned to automatic mode.

NINERMAS supports urgent retrofit projects with expedited shipping options and pre-shipment functional testing. Each KJ3102X1-BE1 12P2703X022 unit is tested under simulated operating conditions before dispatch, and a test report is available upon request. Our technical team can also provide wiring diagrams and configuration guidance to support your commissioning team during the installation window.

Retrofit Support FAQ

Q1: Is the KJ3102X1-BE1 12P2703X022 a direct replacement for the original Emerson part number?
A: Yes. The KJ3102X1-BE1 12P2703X022 is the original Emerson DeltaV part number. NINERMAS supplies genuine Emerson hardware sourced through authorized distribution and MRO channels. Each unit is verified against the original part specification before shipment. If you are replacing a module with a different revision suffix, contact our technical team to confirm cross-compatibility before ordering.

Q2: What pre-shipment testing is performed on each unit?
A: Every KJ3102X1-BE1 12P2703X022 unit undergoes a functional burn-in test that simulates normal operating conditions, including I/O channel response, backplane communication, and power consumption verification. A test report documenting the results is available upon request and can be included with the shipment documentation for your maintenance records.

Q3: Can this module be installed without taking the entire DeltaV system offline?
A: In DeltaV systems configured for redundant I/O, the KJ3102X1-BE1 supports hot-swap replacement without a full system shutdown. In non-redundant configurations, the affected I/O loop must be placed in manual mode and the loop isolated before the module is removed. Your DeltaV system documentation will specify whether your I/O subsystem is configured for redundant or simplex operation. NINERMAS can provide installation guidance tailored to your specific system configuration.

Q4: What is the warranty coverage and what does it include?
A: All KJ3102X1-BE1 12P2703X022 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Dead-on-arrival (DOA) units are replaced within 7 business days of confirmed fault diagnosis. The warranty does not cover damage resulting from incorrect installation, overvoltage, or unauthorized modification. For warranty claims, contact sale@ninermas.com with your order reference and a description of the fault.
