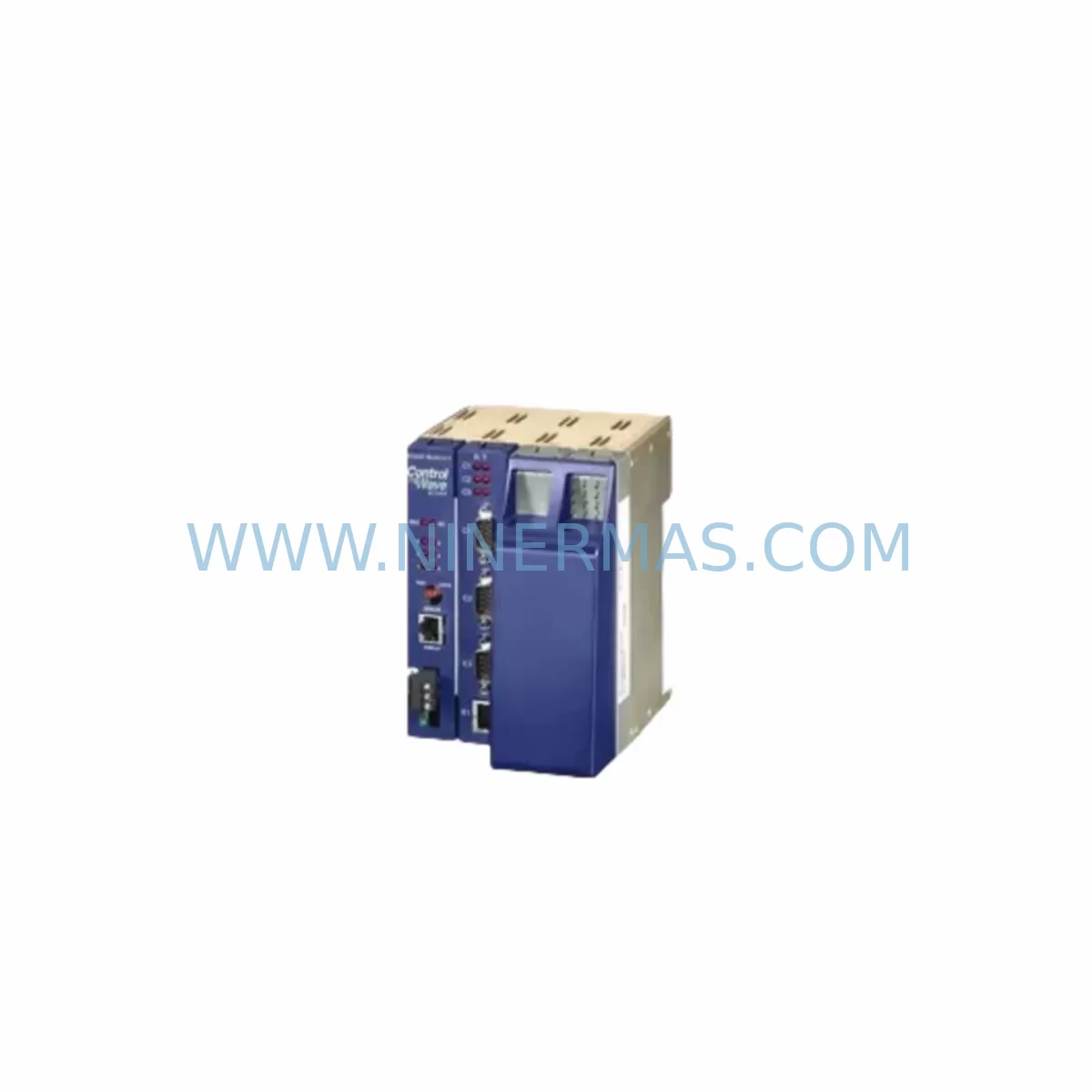

Honeywell 51403393-100 Retrofit-Compatible TDC Module

Honeywell 51403393-100 51305559-100 Retrofit-Compatible TDC Module for Legacy System Upgrades

The Honeywell 51403393-100 (paired assembly 51305559-100) is a process controller module engineered for the TDC 3000 Distributed Control System platform — one of the most widely deployed DCS architectures in refining, petrochemical, and continuous-process manufacturing. As Honeywell progressively phases out TDC 3000 hardware support, facilities running legacy control cabinets face mounting pressure to source verified spare parts or execute a structured migration to Experion PKS or a compatible successor platform. NINERMAS maintains in-stock inventory of the 51403393-100 and 51305559-100 to support both immediate spare-part replacement and phased retrofit programs, backed by a 12-month warranty on every unit shipped.

Whether your plant is replacing a failed module on an emergency basis or executing a planned control system modernization, the 51403393-100 is a direct-fit candidate for existing TDC 3000 backplane slots. Before installation, engineers should verify power rail compatibility on the local power supply — typically the Honeywell MC-PDPY03 or equivalent 24 VDC distribution module — and confirm that the backplane address switches are set to match the original module’s node assignment. Incorrect node addressing is one of the most common causes of communication failure during module swap-out and must be validated against the existing system configuration database before the unit is energized.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 51403393-100 into an operating TDC 3000 system begins well before the physical module arrives on site. The first step is a full audit of the existing control cabinet: document the current backplane layout, identify which slots are occupied by AM (Application Modules), HPM (High-Performance Process Managers), or NIM (Network Interface Modules), and confirm that the target slot’s backplane connector pins are undamaged. The Honeywell 51198685-100 extender cable is frequently used during this audit phase to allow safe inspection without full module removal.

Power budget verification is critical. The local power supply — often a Honeywell 51401288-100 or MC-PDPY03 variant — must have sufficient headroom to support the replacement module without tripping the cabinet’s overcurrent protection. If the existing PSU is already near capacity due to added I/O expansions or communication modules such as the Honeywell 51304485-100 UCN tap, a supplemental power supply may be required before the swap proceeds.

Terminal wiring on field I/O marshalling panels connected to the controller must be documented and tagged before any module is removed. In many legacy TDC 3000 installations, the field termination assemblies (FTAs) — such as the Honeywell 51196887-100 or 51304453-100 series — are wired directly to the I/O link and will remain in place during the controller module swap. Confirming that FTA wiring is intact and that signal isolators on critical loops are functioning prevents nuisance trips during the changeover window.

For sites migrating from TDC 3000 toward Experion PKS, the 51403393-100 can serve as a bridge module during a phased migration: keeping legacy UCN segments operational while new Experion C300 controllers are commissioned in parallel. This approach allows engineering teams to migrate control strategies loop-by-loop, validate HMI faceplates on the Experion Station, and retire TDC 3000 hardware in a controlled sequence rather than a single high-risk cutover. Programming cables such as the Honeywell MC-TPPR02 are typically required for CL program extraction and re-compilation during this phase.

Downtime Control During System Migration

Minimizing unplanned downtime during a TDC 3000 module replacement requires a structured pre-outage checklist. Before the maintenance window opens, the control team should place all affected loops in manual mode at the operator console, confirm that the Universal Station or GUS display reflects manual status for each loop, and notify the field operators of the expected changeover duration. A shadow backup of the CL program database should be taken from the AM or HPM immediately before the module is pulled — even if a recent backup already exists — to capture any runtime parameter changes made since the last scheduled backup.

Physical removal of the 51403393-100 should follow Honeywell’s ESD handling procedures. The replacement unit should be inspected for shipping damage, firmware revision label verified against the system’s required revision level, and backplane address switches pre-set on the bench before insertion. Once seated, the module’s status LEDs provide the first indication of successful initialization: a steady RUN LED with no FAULT indication confirms that the module has joined the UCN and is executing its CL program. Loop-by-loop transfer from manual to automatic should be performed with a field operator present at each control element to catch any unexpected valve or actuator response.

For sites where a cold standby spare is not feasible, NINERMAS offers advance-exchange arrangements: a tested replacement unit is shipped before the failed module is returned, reducing the gap between fault detection and restored automatic control to the transit time of the replacement unit. All units are function-tested prior to dispatch and shipped with a test report. The 12-month warranty covers both the 51403393-100 and the paired 51305559-100 assembly.

Retrofit Support FAQ

Q1: Is the 51403393-100 a direct replacement for the 51305559-100, or are both required?
The 51305559-100 is the paired assembly board that works in conjunction with the 51403393-100 main module. In most TDC 3000 configurations, both boards are installed together as a matched set. NINERMAS supplies both SKUs individually and as a verified matched pair. If only one board has failed, confirm with your system integrator whether a single-board replacement is sufficient for your specific backplane revision before ordering.

Q2: Do I need to re-download the CL program after replacing the module?
Yes. The 51403393-100 does not retain the CL program in non-volatile memory across a cold swap. After physical installation and UCN initialization, the control program must be downloaded from the AM or from a backup tape/file using the Honeywell Engineer’s Console or equivalent programming interface. Ensure your backup is current and that the program revision matches the process requirements before transferring loops to automatic.

Q3: What pre-shipment testing does NINERMAS perform on the 51403393-100?
Every unit undergoes functional power-on testing, backplane interface verification, and visual inspection for component damage or corrosion before dispatch. A test report is included with each shipment. Units that do not pass functional testing are not shipped. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q4: How quickly can NINERMAS ship the 51403393-100 for an emergency breakdown?
In-stock units are typically dispatched within 24–48 hours of order confirmation. Express freight options are available for critical breakdown situations. Contact NINERMAS directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock status and arrange expedited shipment.
