Honeywell 51199932-200 Retrofit Control Module TDC 3000

Honeywell 51199932-200 Retrofit Control Module TDC 3000: Legacy-Compatible Upgrade for Industrial Automation Systems

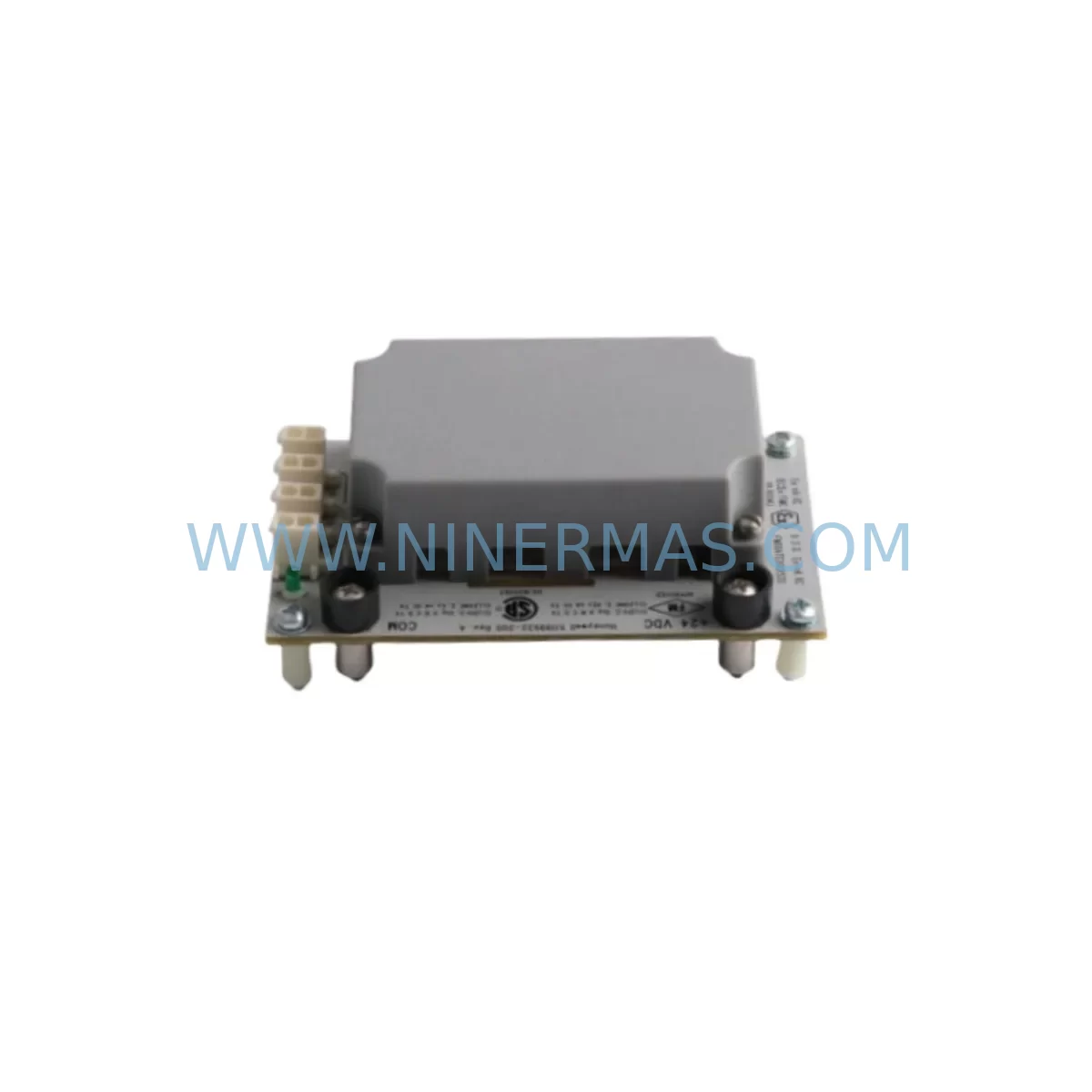

The Honeywell 51199932-200 (also referenced as 51199932-200-RP) is a retrofit-compatible control module designed for integration into Honeywell TDC 3000 Distributed Control System (DCS) platforms. As legacy TDC 3000 installations continue to operate across refining, petrochemical, power generation, and continuous process industries, the availability of verified replacement modules is critical to maintaining system uptime and avoiding costly full-system migrations. This module supports direct slot-compatible installation within existing TDC 3000 cabinets and backplanes, enabling engineers to restore or extend system functionality without redesigning the control architecture.

Each unit supplied by NINERMAS undergoes pre-shipment functional testing to verify signal integrity, communication handshake, and module addressing prior to dispatch. A 12-month warranty is included with every shipment, covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained to support urgent retrofit and emergency replacement requirements with short lead times.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life 51199932-200 module within an active TDC 3000 system requires careful pre-installation planning to avoid unplanned shutdowns and configuration loss. Engineers should begin by documenting the existing rack layout, including the slot position of the module being replaced, the backplane type (standard TDC 3000 Universal Station or High-Performance Process Manager backplane), and the wiring termination scheme at the associated field termination assembly.

Power supply capacity is a critical verification step. TDC 3000 cabinets typically use dedicated Honeywell power supply modules — confirm that the existing power supply, such as units in the 51190076-100 or 51190076-200 family, can support the additional load if the replacement module draws different current than the original. In aging installations, power supply modules themselves are often candidates for simultaneous replacement to prevent secondary failures after the primary module swap.

Terminal wiring and field signal connections should be mapped against the original I/O assignment documentation. If the original wiring records are incomplete, a field survey of the termination panel is recommended before disconnecting any signals. For analog I/O channels, verify 4–20 mA loop integrity and confirm that signal isolators — such as those used in conjunction with Honeywell HLAI or LLAI modules — remain correctly configured after the swap.

Module addressing within the TDC 3000 architecture must be confirmed using the system’s configuration database. The replacement 51199932-200 must be assigned the same module address as the unit it replaces to ensure that the Honeywell Universal Control Network (UCN) or Local Control Network (LCN) recognizes it without requiring a full database reload. In systems running Honeywell’s Application Module (AM) or Process Manager (PM) controllers, verify that the control strategy referencing this module’s I/O points remains intact after the swap.

HMI screen assignments and operator display tags linked to the replaced module should be reviewed in the Honeywell GUS (Global User Station) or US (Universal Station) environment. Tag database consistency between the physical module address and the HMI display configuration is essential to avoid alarm suppression or false readings after restart. If the installation includes a Honeywell History Module (HM) for data archiving, confirm that trend tags associated with the replaced module resume logging correctly after commissioning.

For systems that include communication gateways — such as Honeywell Data Hiway interfaces or third-party Modbus/OPC bridges connecting TDC 3000 to newer SCADA platforms — verify that the communication link remains stable after the module replacement. In mixed-generation environments where TDC 3000 coexists with Experion PKS nodes, the replacement module must not disrupt the LCN/UCN segment timing or cause address conflicts with adjacent modules such as the Honeywell 51304485-100 or similar network interface cards.

I/O expansion requirements should also be assessed during the retrofit planning phase. If the replacement is part of a broader upgrade that adds new measurement points, consider whether additional Honeywell HLAI, LLAI, or DO modules need to be installed in adjacent rack slots. Confirm that the backplane has available slots and that the rack’s power budget accommodates the expanded I/O count. Cable routing and installation space within the control cabinet should be verified before ordering additional modules to avoid on-site delays.

Downtime Control During System Migration

Minimizing downtime during a TDC 3000 module replacement requires a structured hot-swap or controlled-shutdown procedure depending on the criticality of the process loop controlled by the 51199932-200. For non-critical loops, a planned maintenance window with process in manual mode is the standard approach. For critical loops — such as those controlling reactor temperature, compressor surge, or boiler drum level — a temporary bypass or manual control handoff must be arranged with the operations team before the module is removed.

Before powering down the affected rack slot, export the current control strategy configuration from the Honeywell Engineering Workstation (EWS) or equivalent configuration tool. This backup ensures that the program logic, PID tuning parameters, alarm setpoints, and interlock conditions can be restored exactly if the replacement module requires a fresh load. In TDC 3000 systems, the Application Module retains the control database, but verifying the backup against the live configuration before the swap reduces the risk of discrepancies caused by undocumented field changes.

After installing the replacement 51199932-200, power up the rack and allow the module to complete its self-diagnostic cycle before re-enabling control outputs. Monitor the UCN/LCN status display on the Universal Station to confirm that the module appears online with the correct address and no fault codes. Gradually transfer control loops from manual back to automatic, verifying each loop’s process variable, setpoint, and output response before moving to the next. This staged recommissioning approach limits exposure to simultaneous loop disturbances and allows the operations team to intervene if any loop behaves unexpectedly after the swap.

Field calibration verification is recommended after recommissioning, particularly for analog input channels where sensor drift or wiring disturbance during the swap may have introduced offset errors. Confirm that all digital output channels are responding correctly to control commands before returning the system to full automatic operation. Document the completed replacement in the plant’s maintenance management system, including the new module serial number, installation date, and any configuration changes made during the retrofit.

Retrofit Support FAQ

Q1: Is the 51199932-200-RP a direct replacement for the 51199932-200?
Yes. The -RP suffix designates a repaired or remanufactured unit that meets the same functional specification as the original 51199932-200. Both part numbers are interchangeable within TDC 3000 rack installations, provided the module address and I/O configuration are correctly set during commissioning.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, verify the module address assignment, confirm UCN/LCN network recognition on the Universal Station, check I/O channel mapping against the original configuration, and validate HMI tag assignments. For analog channels, perform a loop check to confirm signal accuracy. Restore control loops to automatic mode sequentially and monitor for alarm or fault conditions during the first operating cycle.

Q3: Does NINERMAS provide pre-shipment testing for this module?
Yes. Every 51199932-200 unit is functionally tested before shipment to verify communication, signal processing, and module self-diagnostics. A 12-month warranty is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of the 51199932-200 to support urgent retrofit and emergency replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact our team to confirm current stock levels and expedited shipping options for time-critical plant maintenance situations.
