Emerson KJ3221X1-BA1 12P2531X122 Retrofit-Compatible I/O for Legacy Systems

Emerson KJ3221X1-BA1 12P2531X122 Retrofit-Compatible I/O Module for Legacy DeltaV Systems

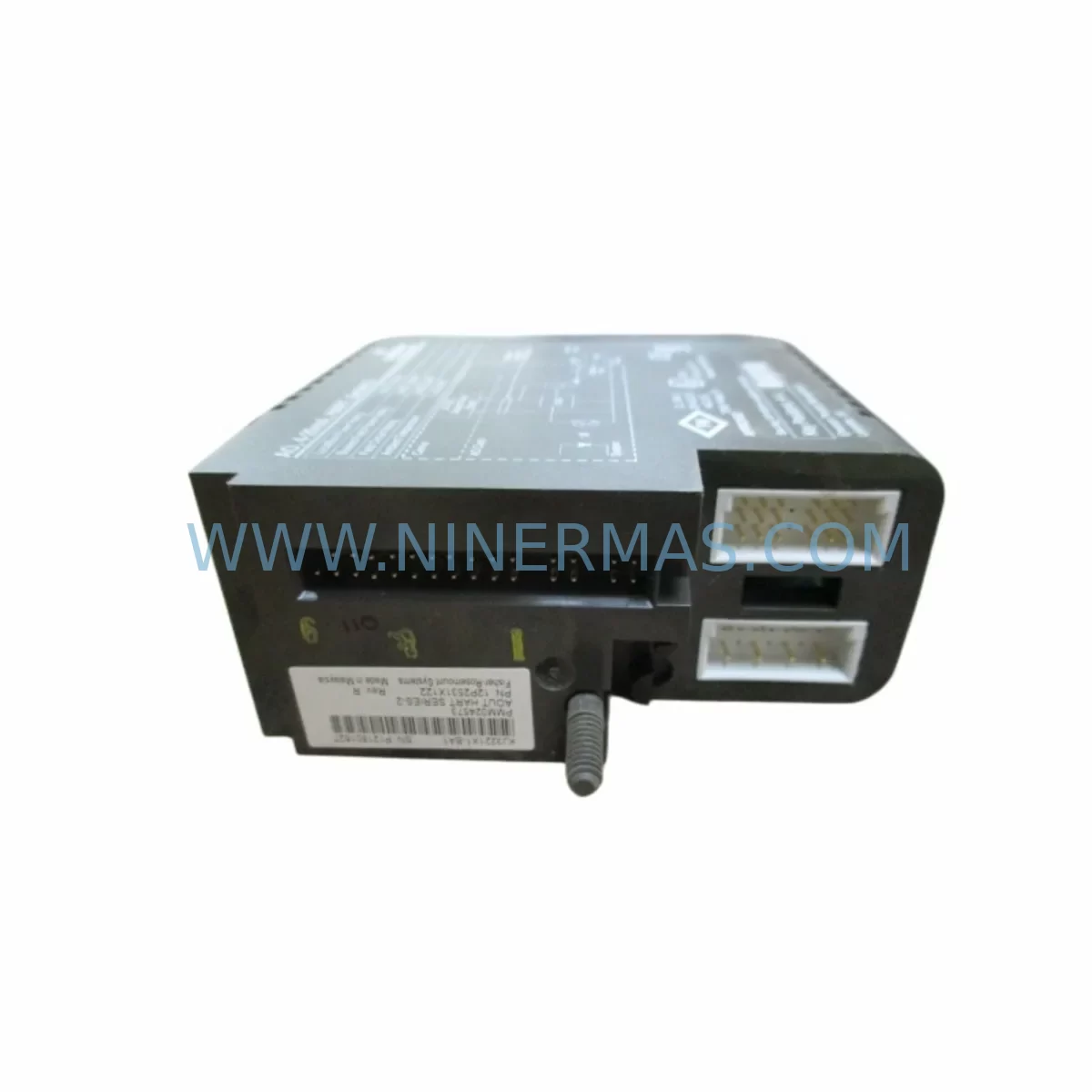

The Emerson KJ3221X1-BA1 12P2531X122 is a DeltaV Series analog input/output module engineered for seamless integration into existing control architectures. As industrial facilities face increasing pressure to extend the operational life of legacy automation platforms while maintaining process reliability, this module serves as a proven retrofit solution for aging DeltaV KJ-Series control systems. Whether you are replacing a failed card in a running production line, upgrading a control cabinet to meet current safety standards, or migrating from an end-of-life I/O subsystem, the KJ3221X1-BA1 provides the compatibility, signal integrity, and form factor required for a low-risk, minimum-downtime transition.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3221X1-BA1 12P2531X122 into a legacy control environment begins well before the module arrives on site. Engineers responsible for the retrofit must first audit the existing DeltaV system configuration, confirming the carrier type, available backplane slots, and current I/O assignment map. In many aging installations, the original KJ3221X1-BA1 may share a rack with other KJ-Series modules such as the KJ3002X1-BA1 analog output card or the KJ2201X1-HA1 digital input module, and any slot reassignment will require corresponding updates in the DeltaV control database.

Power budget verification is a critical pre-installation step. The DeltaV CIOC (Controller I/O Card) and associated power supply — commonly the KJ4001X1-BA1 power conditioner — must have sufficient headroom to support the additional module load. Facilities running near the rated capacity of their existing PS6 or PS8 power supply units should conduct a full load calculation before proceeding. Overlooking this step is one of the most common causes of unexpected shutdowns during retrofit commissioning.

Terminal wiring adaptation is equally important. The marshalling cabinet layout must be reviewed to confirm that existing field cables — particularly multi-pair shielded cables carrying 4–20 mA signals — can be re-terminated to the new module’s screw terminals without introducing ground loops or signal degradation. In systems where the original wiring was routed through a DeltaV CHARM I/O card or a third-party signal isolator, the retrofit plan must account for the removal or bypass of those intermediate components.

For facilities migrating from older PROVOX or RS3 platforms to DeltaV, the KJ3221X1-BA1 is frequently deployed as part of a phased migration strategy. In these projects, the module works alongside DeltaV S-Series controllers and DeltaV MD-Series controllers, with the I/O subsystem expanded incrementally to avoid a full cutover. Communication protocol migration — particularly from proprietary serial links to HART or FOUNDATION Fieldbus — requires careful mapping of existing instrument tags to new DeltaV module addresses, and the DeltaV Operate HMI graphics must be updated to reflect the new I/O structure before the system goes live.

Where space constraints exist in the control cabinet, engineers should verify the physical dimensions of the KJ-Series carrier against the available DIN rail or panel mounting space. In compact cabinets, the addition of a DeltaV WIOC (Wireless I/O Card) or a remote I/O node may be a more practical solution than expanding the local rack. Regardless of the installation approach, all module addresses must be confirmed in the DeltaV Explorer configuration tool, and a full I/O checkout — including loop calibration and signal range verification — should be completed before returning the system to automatic control.

Downtime Control During System Migration

Minimizing production downtime during a DeltaV I/O retrofit is achievable with disciplined pre-planning. The recommended approach is to perform all configuration changes — including module address assignment, I/O tag updates, and DeltaV control module downloads — in a staging environment or on a mirrored offline database before the physical swap takes place. This allows the control team to validate program logic, confirm alarm setpoints, and verify HMI display accuracy without touching the live system.

On the day of the physical replacement, the process should be placed in manual control at the DeltaV Operate workstation, with all affected loops held at their last output value. The failed or obsolete module is then removed from the carrier, the replacement KJ3221X1-BA1 12P2531X122 is inserted, and the system is allowed to complete its automatic module recognition sequence. In most DeltaV installations, the controller will detect the new module within seconds and begin downloading the pre-configured I/O parameters automatically, provided the module address and carrier slot assignment match the offline configuration exactly.

Field wiring should be re-terminated and verified with a loop calibrator before the loops are returned to automatic. Any HART device descriptors associated with the replaced module should be re-commissioned using the DeltaV HART Pass-Through utility to ensure that instrument diagnostics and device variables are correctly mapped. Once all loops have been verified, the system can be returned to automatic control, and a post-commissioning functional test should be documented to confirm that the retrofit has been completed successfully and that no unintended changes to the control logic have occurred.

For facilities with strict change management requirements, the entire retrofit process — from pre-installation audit to post-commissioning sign-off — should be documented in a formal Management of Change (MOC) record. This protects the facility in the event of a future audit and provides a clear reference for the next maintenance cycle.

Retrofit Support FAQ

Q1: Is the KJ3221X1-BA1 12P2531X122 a direct drop-in replacement for the original KJ3221X1-BA1?
A: In most cases, yes. The 12P2531X122 suffix denotes the manufacturing revision of the KJ3221X1-BA1 assembly. Before installation, confirm that the firmware revision of the replacement module is compatible with your DeltaV system version. If your DeltaV controller is running an older firmware release, a firmware update may be required to ensure full compatibility. Contact our technical team for a pre-shipment compatibility check.

Q2: What wiring changes are required when replacing the module in an existing marshalling cabinet?
A: In a like-for-like replacement where the carrier and slot assignment remain unchanged, no wiring modifications are typically required. However, if the replacement involves a carrier change or a slot reassignment, field wiring must be re-terminated to the new terminal positions, and the I/O tag addresses in the DeltaV database must be updated accordingly. Always verify terminal polarity and shield grounding before powering the new module.

Q3: Can this module be used in a system that is being migrated from an older Emerson PROVOX or Fisher PROVOX platform?
A: Yes. The KJ3221X1-BA1 is a standard DeltaV KJ-Series module and is fully compatible with DeltaV migration projects originating from PROVOX, RS3, or third-party DCS platforms. The migration will require I/O tag remapping, control module reconfiguration, and HMI graphic updates, but the module itself is hardware-compatible with the DeltaV KJ carrier system used in all standard migration architectures.

Q4: What does the 12-month warranty cover, and what is the lead time for stock orders?
A: Our 12-month warranty covers manufacturing defects and functional failure under normal operating and storage conditions. Each unit undergoes functional testing prior to shipment. For in-stock units, standard lead time is 3–7 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact us at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and delivery schedule.
