Emerson KJ3003X1-EA1 Retrofit-Compatible Serial Interface for Legacy Systems

Emerson KJ3003X1-EA1 Retrofit-Compatible Serial Interface for Legacy Systems

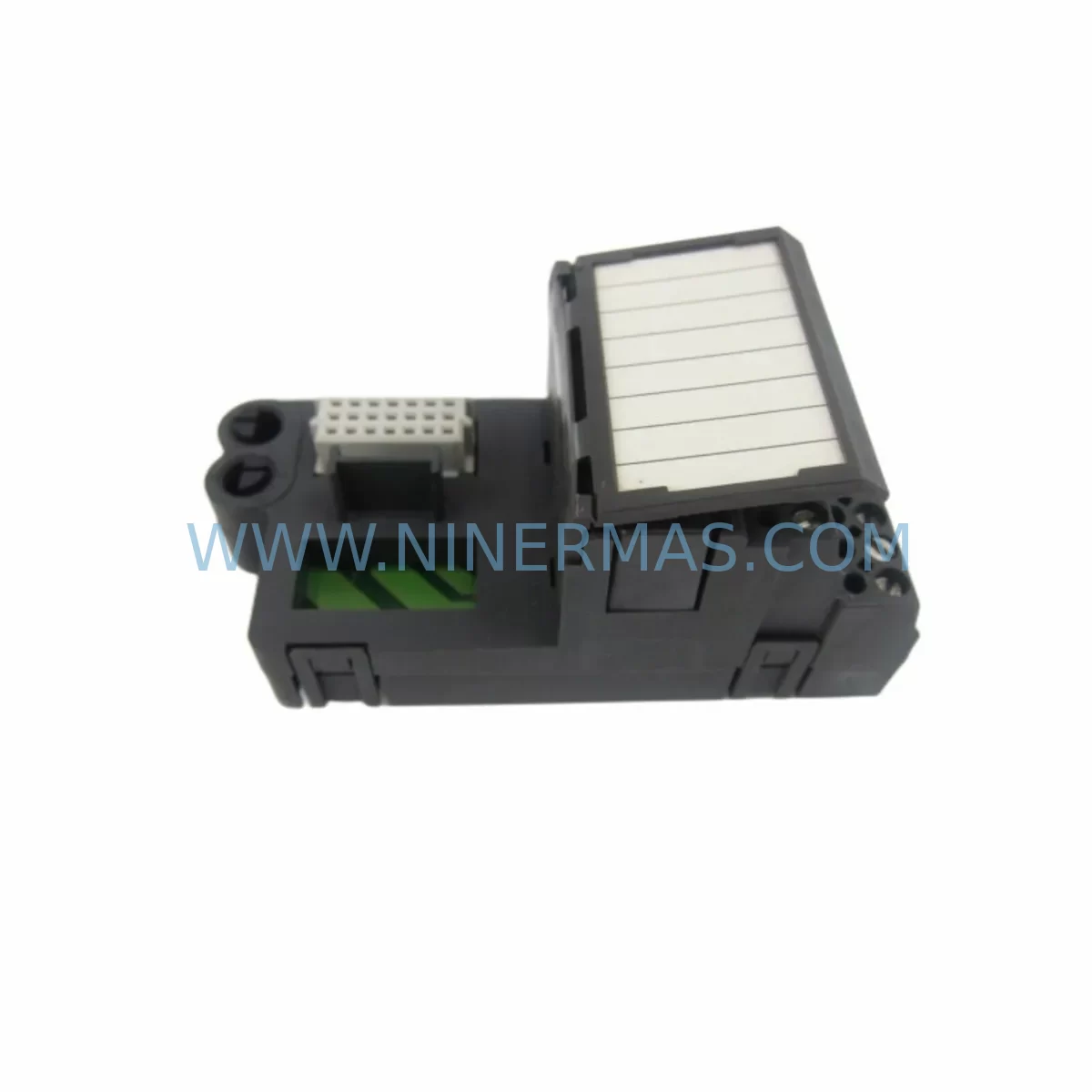

The Emerson KJ3003X1-EA1 is a DeltaV Serial Interface Module designed to support RS-232 and RS-485 serial communication within the Emerson DeltaV distributed control system architecture. As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the KJ3003X1-EA1 has become a critical component in retrofit projects, discontinued-model replacements, and control system life extension programs across the oil and gas, chemical processing, power generation, and pharmaceutical industries.

For facilities operating aging DeltaV S-series or M-series controller platforms, the KJ3003X1-EA1 provides a direct-fit serial communication path between the DeltaV controller network and third-party field devices, legacy analyzers, flow computers, and remote terminal units that rely on serial protocols. Its compatibility with existing DeltaV carrier hardware and backplane architecture makes it a preferred choice for engineers seeking to extend system life without committing to a full platform migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3003X1-EA1 into an existing control system begins well before the module arrives on site. Engineers responsible for retrofit planning must first audit the current carrier and backplane configuration to confirm available slot positions. In many aging DeltaV installations, the KJ3001X1-BA1 8-wide carrier or the KJ3002X1-BA1 2-wide carrier will already be present in the control cabinet, and the KJ3003X1-EA1 can be inserted directly into any available I/O slot without structural modification.

Terminal wiring is a critical checkpoint. The serial interface module connects to field devices through a dedicated terminal block. Before disconnecting any existing wiring, technicians should document the current RS-232 or RS-485 terminal assignments, including TX, RX, RTS, CTS, and signal ground connections. Where the legacy device uses a 9-pin D-sub connector, an appropriate terminal adapter or marshalling panel may be required to maintain clean signal routing within the control cabinet.

Power capacity on the carrier must also be verified. While the KJ3003X1-EA1 draws power from the DeltaV backplane, the total module load across the carrier should be reviewed against the capacity of the installed KJ3204X1-BA1 power supply or equivalent. Overloaded carriers are a common source of intermittent faults in aging systems and should be corrected before the new module is commissioned.

For facilities where the DeltaV controller itself is approaching end-of-life, the retrofit may also involve upgrading from an older MD Plus Controller (KJ2003X1-BA1) to a current-generation MD Controller (VE3005) or MQ Controller. In these cases, the KJ3003X1-EA1 remains compatible across controller generations, provided the DeltaV software version is updated to match the new controller firmware baseline.

Communication protocol migration is another area requiring careful planning. Many legacy serial devices connected through the KJ3003X1-EA1 use Modbus RTU at fixed baud rates. When upgrading surrounding infrastructure — for example, replacing an aging PROVOX DCS gateway or a third-party flow computer — engineers must confirm that the new device’s serial parameters (baud rate, parity, stop bits, and device address) are correctly configured in the DeltaV serial device driver before the system is returned to service.

HMI screen updates are frequently overlooked during serial interface retrofits. If the KJ3003X1-EA1 is being used to restore communication with a field device that was previously offline, the associated DeltaV DeltaV Operate graphics may need to be updated to reflect restored data points. Coordinate with the control system engineer to verify that all affected faceplates, trends, and alarm configurations are reviewed before the system is handed back to operations.

Where I/O expansion is part of the retrofit scope, the KJ3003X1-EA1 can coexist in the same carrier with analog input modules such as the KJ3221X1-BA1 AI module, discrete output modules, and HART interface modules, allowing a single carrier upgrade to address multiple modernization objectives simultaneously. Signal isolators should be considered for any serial loop that spans long cable runs or crosses electrical noise boundaries within the plant.

Finally, programming cable access should be confirmed before the maintenance window begins. DeltaV configuration changes require a live connection between the engineering workstation and the DeltaV controller network. Ensure that the DeltaV engineering workstation is accessible, the DeltaV Explorer software is at the correct version, and a backup of the current controller database has been completed and verified before any module swap is initiated.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any facility undertaking a serial interface module replacement on a live DeltaV system. The KJ3003X1-EA1 supports hot-swap installation in DeltaV systems configured for redundant or non-critical serial paths, but for single-path serial connections to critical field devices, a planned maintenance window is strongly recommended.

Before the maintenance window opens, the existing module’s configuration should be exported from DeltaV Explorer and saved to a secure backup location. This export captures the module’s assigned slot address, serial device driver parameters, and any associated control module references. If the replacement module is being installed in the same physical slot, the DeltaV system will automatically recognize the new hardware and restore the previous configuration without requiring a full download, significantly reducing commissioning time.

To protect original program logic during the swap, place the affected control modules in manual mode before removing the existing serial interface module. This prevents the controller from generating spurious alarms or executing incorrect output commands based on stale or missing serial data during the transition period. Once the KJ3003X1-EA1 is seated and the DeltaV system has confirmed module recognition, the serial device driver should be restarted and communication verified before returning control modules to automatic mode.

Field continuity can be further protected by pre-staging the replacement KJ3003X1-EA1 on a bench test setup where the serial device driver parameters are pre-loaded and verified against the target field device before the module is transported to the control room. This approach — sometimes called pre-commissioning or factory acceptance testing at the module level — can reduce on-site commissioning time to under 30 minutes for straightforward replacements, keeping the maintenance window tight and the impact on production minimal.

All replacement KJ3003X1-EA1 modules supplied by NINERMAS are subject to outgoing functional testing prior to shipment, covering power-up behavior, backplane communication, and serial port integrity. This testing reduces the risk of receiving a non-functional module and supports the goal of completing the replacement within a single planned maintenance window.

Retrofit Support FAQ

Q1: Is the KJ3003X1-EA1 a direct replacement for older DeltaV serial interface modules?
Yes. The KJ3003X1-EA1 is designed to fit standard DeltaV I/O carriers and is compatible with the same backplane slot assignments used by earlier DeltaV serial interface variants. In most cases, the replacement can be completed without carrier modification. Confirm the carrier model and available slot position before ordering.

Q2: What wiring changes are required when replacing the serial interface module?
If the replacement module is installed in the same carrier slot as the original, existing terminal block wiring can typically be retained without modification. If the module is being relocated to a different slot or carrier, terminal wiring must be re-routed to match the new physical position. Always verify RS-232 or RS-485 signal polarity and ground connections after installation.

Q3: How is the KJ3003X1-EA1 commissioned in DeltaV after installation?
After physical installation, open DeltaV Explorer on the engineering workstation and navigate to the controller’s I/O tree. The new module should appear automatically in the assigned slot. Assign the appropriate serial device driver, configure baud rate, parity, and device address parameters to match the connected field device, and perform a communication test before returning the system to automatic control.

Q4: What warranty and stock availability does NINERMAS offer for the KJ3003X1-EA1?
NINERMAS maintains inventory of the KJ3003X1-EA1 and offers a 12-month warranty on all supplied units. Each module undergoes functional testing prior to shipment. For urgent requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock and lead time.

—
