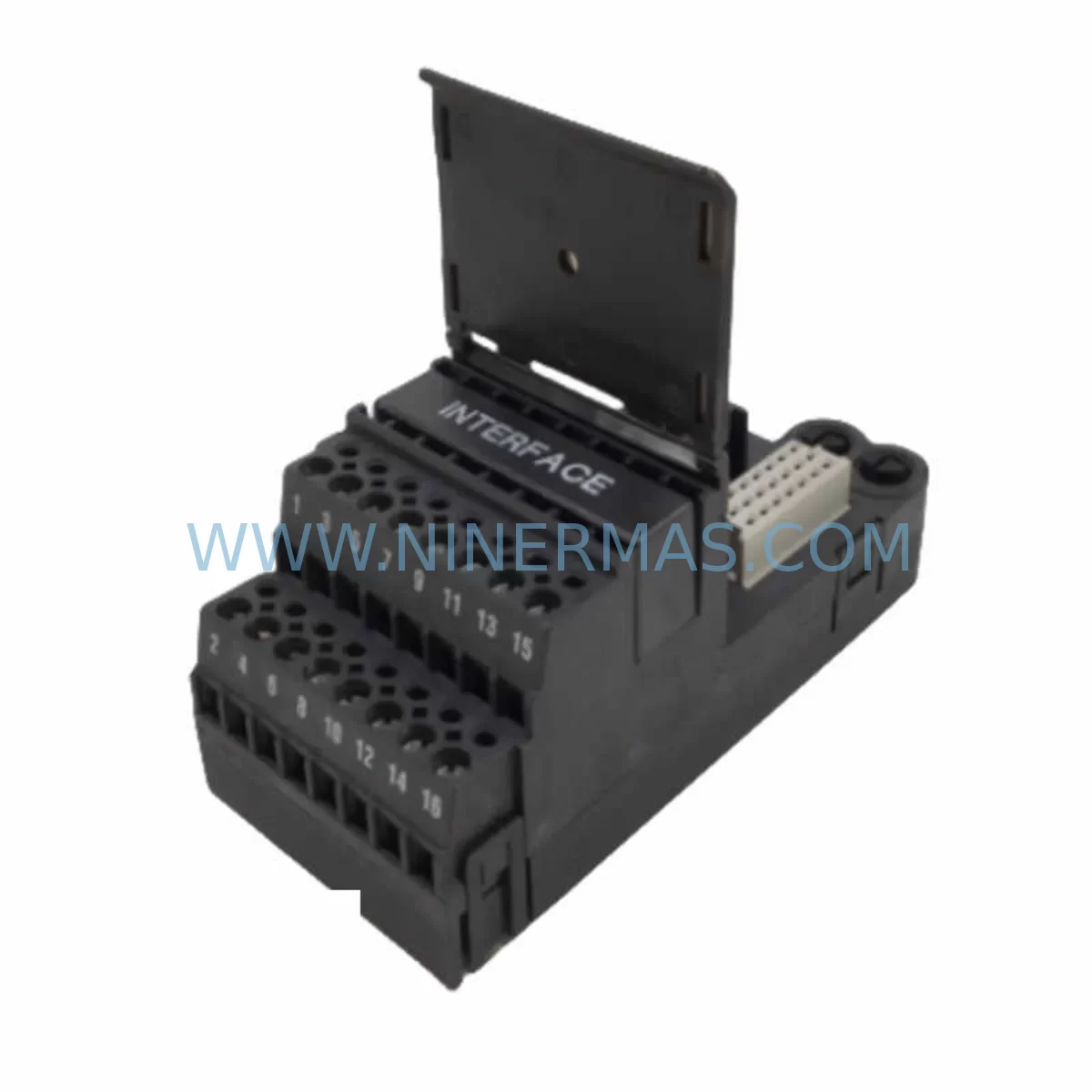

Emerson KJ3003X1-EA1 12P0921X032 Service-Ready Spare Part

Emerson KJ3003X1-EA1 12P0921X032 Service-Ready Spare Part: Spare Parts Replacement & Downtime Risk Control

The Emerson KJ3003X1-EA1 12P0921X032 is a ruggedized DC power supply module engineered for continuous operation in harsh industrial environments. Designed for use within Emerson’s DeltaV distributed control system architecture, this module delivers stable, conditioned power to field I/O subsystems, controller backplanes, and communication infrastructure in processing plants, refineries, chemical facilities, and power generation sites. When a power supply module fails or degrades, the downstream impact is immediate — I/O cards lose power, controller nodes drop offline, and production halts. Maintaining a service-ready KJ3003X1-EA1 12P0921X032 in your critical spare inventory is the single most effective measure to compress mean-time-to-repair (MTTR) and protect uptime.

At NINERMAS, every KJ3003X1-EA1 12P0921X032 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and shipped with a 12-month warranty. We support long-term spare parts programs for maintenance engineers and procurement teams managing aging DeltaV installations across multi-site operations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A power supply module failure in a DeltaV cabinet rarely occurs in isolation. When the KJ3003X1-EA1 12P0921X032 is replaced during a corrective or preventive maintenance event, experienced maintenance engineers treat the intervention as an opportunity to audit the entire power distribution and control circuit. The following components are routinely inspected or replaced in the same maintenance window:

The KJ2005X1 DeltaV power conditioner and associated KJ3001X1 power supply units share the same DC bus and should be checked for output stability and ripple. Upstream, the 24 VDC DIN-rail power supply feeding the cabinet — often a Phoenix Contact QUINT or Siemens SITOP unit — should be load-tested to confirm it can sustain full I/O card draw after the module swap. Fuse blocks and terminal strip assemblies (such as Weidmüller or Phoenix Contact WDU series) on the power distribution rail should be inspected for oxidation, loose terminations, and correct fuse ratings.

On the I/O side, KJ3242X1 analog input cards and KJ3222X1 analog output cards drawing power from the replaced module should be verified for correct channel operation post-restoration. Any KJ4001X1 HART interface module in the same carrier should be confirmed online. If the cabinet includes a KJ3001X1-BA1 redundant power supply configuration, the redundancy switchover logic should be tested before returning the system to automatic control.

Communication infrastructure within the same enclosure — including DeltaV CIOC (Controller I/O Card) modules and Ethernet switch modules — should be confirmed online and fault-free. Signal isolators and galvanic isolation barriers on 4–20 mA loops connected to the affected I/O cards should be checked for correct output. Where relay output modules such as the KJ3232X1 discrete output card are present, contact integrity and coil voltage should be verified. Finally, the DeltaV workstation or HMI should be used to confirm all I/O tags return to healthy status and no latent alarms remain after the power supply replacement is complete.

Site Replacement Workflow

Replacing the KJ3003X1-EA1 12P0921X032 in a live DeltaV environment follows a structured sequence to minimize downtime and avoid cascading faults. Before removal, the maintenance engineer should confirm the redundant power path (if configured) is active and carrying load, then isolate the failed module from the DC bus using the cabinet’s power distribution disconnect. The replacement module should be visually inspected for shipping damage and connector pin integrity before insertion.

The KJ3003X1-EA1 is a direct form-fit-function replacement for earlier KJ3003 variants, allowing substitution without backplane modification or firmware changes in most DeltaV revisions. After seating the module, output voltage should be measured at the carrier test points before re-enabling downstream I/O cards. DeltaV diagnostics should be used to confirm the module is recognized and reporting healthy status. The entire replacement sequence — from isolation to I/O restoration — can typically be completed in under 45 minutes with a pre-staged spare, compared to 4–8 hours or more when waiting for emergency procurement.

For sites operating legacy DeltaV S-series or early M-series installations, the KJ3003X1-EA1 12P0921X032 provides a compatible upgrade path that extends system life without requiring controller migration. Procurement teams managing multi-site spare parts programs are encouraged to maintain at least one unit per DeltaV cabinet cluster as a minimum stock position.

Spare Parts Support FAQ

Q1: Is the KJ3003X1-EA1 12P0921X032 compatible with both S-series and M-series DeltaV controllers?
Yes. The KJ3003X1-EA1 is designed for the DeltaV KJ-series carrier and backplane architecture, which is shared across S-series and M-series controller generations. It is a direct replacement in existing carrier slots without hardware modification. We recommend confirming your DeltaV system revision with your maintenance documentation before installation.

Q2: What pre-shipment testing is performed on each unit?
Every KJ3003X1-EA1 12P0921X032 unit shipped by NINERMAS undergoes functional output voltage verification and visual inspection for connector and board integrity. Units that do not meet specification are quarantined. A 12-month warranty covers all shipped units against functional failure under normal operating conditions.

Q3: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. We support scheduled delivery programs and blanket PO arrangements for maintenance teams managing annual inspection cycles or multi-site spare parts inventories. Contact our sales team at sale@ninermas.com to discuss volume pricing, lead time commitments, and consignment stock options.

Q4: What is the recommended spare parts holding strategy for the KJ3003X1-EA1?
For critical process applications, we recommend holding a minimum of one unit per DeltaV power supply position in your cabinet inventory. Sites with redundant power configurations should hold one spare per redundant pair. Annual review of spare parts consumption and system age is advised, with proactive replacement of modules exceeding 8–10 years of continuous service.
