Emerson KJ3002X1-BF1 12P1732X082 Service-Ready Spare Part

Emerson KJ3002X1-BF1 12P1732X082 Service-Ready Spare Part for Industrial Maintenance

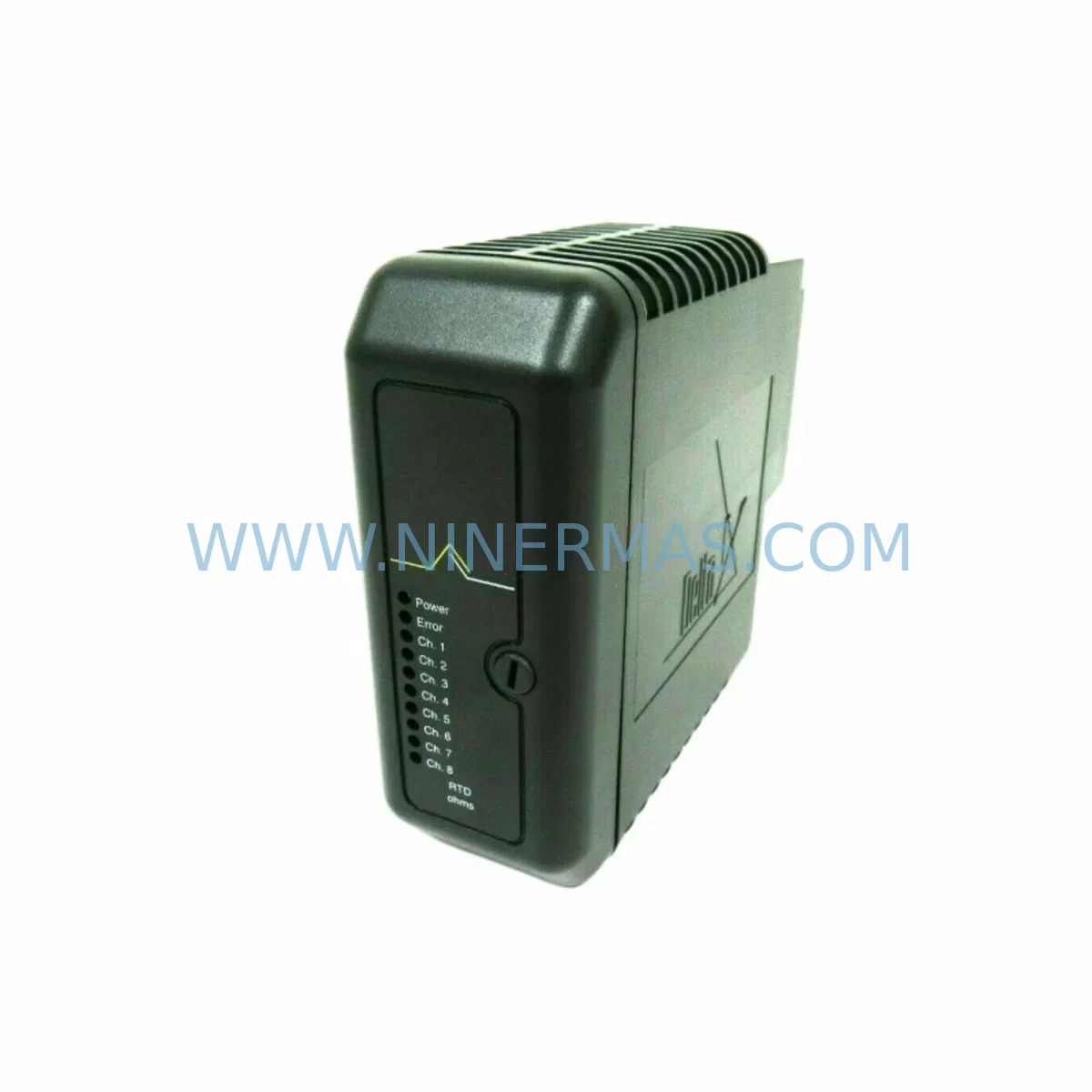

The Emerson KJ3002X1-BF1 12P1732X082 is a ruggedized RTD (Resistance Temperature Detector) input module designed for deployment within Emerson’s DeltaV S-series distributed control system architecture. Engineered to operate reliably in harsh industrial environments — including high-vibration, high-humidity, and thermally demanding process areas — this module serves as a critical measurement interface between field-mounted RTD sensors and the DeltaV controller network. For maintenance engineers managing continuous process operations, having a verified, service-ready spare of the KJ3002X1-BF1 12P1732X082 on hand is a fundamental element of any credible downtime prevention strategy.

In refinery, chemical, power generation, and pharmaceutical facilities where DeltaV-based control systems govern critical loops, an RTD input module failure can trigger immediate process upsets, safety system responses, or unplanned shutdowns. The KJ3002X1-BF1 12P1732X082 supports multi-channel RTD signal acquisition with high-resolution analog-to-digital conversion, providing accurate temperature data to the DeltaV controller for PID regulation, alarm management, and historian logging. Its ruggedized design — referenced by the 12P1732X082 assembly designation — reflects Emerson’s engineering standard for modules intended for installation in field-mounted or environmentally exposed enclosures rather than climate-controlled control rooms.

Procurement engineers sourcing replacement modules for aging DeltaV installations should note that the KJ3002X1-BF1 12P1732X082 is fully compatible with the standard DeltaV S-series I/O subsystem, including the KJ3001X1-series controller carriers and associated marshalling hardware. Compatibility verification against the installed DeltaV system version and I/O subsystem revision is recommended prior to installation to ensure seamless integration without firmware conflicts or channel mapping issues.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KJ3002X1-BF1 12P1732X082 during a scheduled or emergency maintenance event, experienced DeltaV maintenance engineers treat the module swap as an opportunity to inspect the broader I/O subsystem health. The RTD input module does not operate in isolation — its performance depends on the integrity of several interconnected components within the same control cabinet or marshalling enclosure.

Begin by inspecting the DeltaV I/O carrier or baseplate (such as the KJ3001X1-series carrier) for signs of corrosion, bent connector pins, or thermal stress damage. A degraded carrier can cause intermittent channel faults even after a new module is installed. Next, verify the condition of the field junction box wiring and RTD signal cables — shielded twisted-pair cables running from field-mounted RTD sensors to the marshalling cabinet are common sources of signal noise, ground loops, and open-circuit faults that mimic module failures.

The DeltaV I/O power supply module feeding the S-series I/O subsystem should be checked for output voltage stability and ripple. An aging or undersized power supply can cause erratic module behavior across multiple I/O cards simultaneously. If the facility operates redundant power supply configurations, verify that the redundancy switchover function is operational. Similarly, inspect the system power distribution terminal blocks and fuse holders within the cabinet — blown fuses or loose terminal connections are frequently overlooked root causes of apparent module failures.

For DeltaV systems with HART-enabled I/O or Foundation Fieldbus segments in the same cabinet, confirm that communication module health indicators (such as the KJ3243X1-series HART multiplexer or equivalent fieldbus interface modules) are showing normal status. A communication fault on a shared segment can affect diagnostic data quality even when the RTD input module itself is functioning correctly.

Maintenance planners should also schedule inspection of DeltaV controller modules (such as the MD Plus or MD Controller) that process data from the KJ3002X1-BF1 12P1732X082 channels. Controller firmware version alignment with the I/O subsystem is essential — mismatched firmware revisions can cause channel recognition failures after module replacement. Additionally, review the DeltaV workstation and historian server connections to ensure that temperature trend data resumes correctly after the module is brought back online.

For facilities managing older DeltaV installations approaching end-of-support milestones, procurement engineers should consider establishing a strategic spare parts inventory that includes not only the KJ3002X1-BF1 12P1732X082 RTD input module but also companion components such as analog output modules, discrete I/O modules, and controller carrier assemblies. Proactive inventory management significantly reduces mean time to repair (MTTR) during unplanned outages and supports long-term system life extension without requiring full DCS migration.

Site Replacement Workflow

Replacing the Emerson KJ3002X1-BF1 12P1732X082 in a live DeltaV environment follows a structured procedure to minimize process disruption and ensure correct module commissioning:

Step 1 — Pre-Replacement Verification: Confirm the replacement module’s part number (KJ3002X1-BF1) and assembly revision (12P1732X082) match the installed unit. Cross-reference the DeltaV system’s I/O assignment database to identify which process tags and control loops are served by the affected module. Notify the control room operator and initiate appropriate process holds or manual overrides for affected loops.

Step 2 — Safe Removal: In DeltaV S-series architecture, I/O modules are designed for hot-swap replacement without requiring a full system shutdown, provided the carrier remains powered and the module slot is properly decommissioned in the DeltaV Explorer configuration tool prior to physical removal. Follow site-specific lockout/tagout (LOTO) procedures for any field wiring disconnection required at the marshalling terminal blocks.

Step 3 — Module Installation and Commissioning: Insert the replacement KJ3002X1-BF1 12P1732X082 into the carrier slot. The DeltaV system should automatically recognize the module and download the pre-configured channel assignments. Verify that all RTD channels return to active status in the DeltaV Diagnostics view and that process variable readings are within expected engineering unit ranges.

Step 4 — Post-Replacement Validation: Perform a loop check on each RTD channel served by the replacement module. Compare live readings against reference instruments or thermowell-mounted calibration sources. Document the replacement in the site’s maintenance management system (CMMS) and update the spare parts inventory record. Return the removed module to a qualified repair facility or retain as a secondary spare pending functional testing.

This structured approach ensures that the KJ3002X1-BF1 12P1732X082 replacement is completed with full traceability, minimal process impact, and verified system integrity — consistent with best practices for DCS maintenance in regulated and safety-critical industrial environments.

Spare Parts Support FAQ

Q1: Is the KJ3002X1-BF1 12P1732X082 compatible with all DeltaV S-series I/O subsystem revisions?
The KJ3002X1-BF1 12P1732X082 is designed for the Emerson DeltaV S-series I/O architecture. Compatibility with specific DeltaV system software versions and controller firmware revisions should be verified against Emerson’s I/O compatibility matrix prior to installation. Our technical team can assist with compatibility confirmation based on your installed DeltaV system version and site configuration details.

Q2: What does the 12-month warranty cover for this spare part?
All KJ3002X1-BF1 12P1732X082 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing and is shipped in anti-static, protective packaging to ensure it arrives in service-ready condition. Warranty claims are supported by our technical team with replacement or repair options.

Q3: How should the KJ3002X1-BF1 12P1732X082 be stored as a long-term spare?
For long-term spare storage, the module should be kept in its original anti-static packaging in a climate-controlled environment with temperature between 0°C and 70°C and relative humidity below 95% non-condensing. Avoid storage near strong electromagnetic fields or corrosive atmospheres. Periodic inspection of stored modules — at least annually — is recommended to verify packaging integrity and confirm the module remains in service-ready condition.

Q4: Can NINERMAS support long-term or repeat supply of the KJ3002X1-BF1 12P1732X082?
Yes. NINERMAS maintains ongoing sourcing relationships for Emerson DeltaV KJ-series spare parts, including the KJ3002X1-BF1 12P1732X082. We support both single-unit emergency orders and bulk procurement for annual maintenance contracts or strategic spare parts programs. Contact our team to discuss volume pricing, lead time commitments, and long-term supply agreements tailored to your facility’s maintenance planning cycle.
