Emerson KJ3001X1-CA1 Retrofit-Compatible Controller for DeltaV

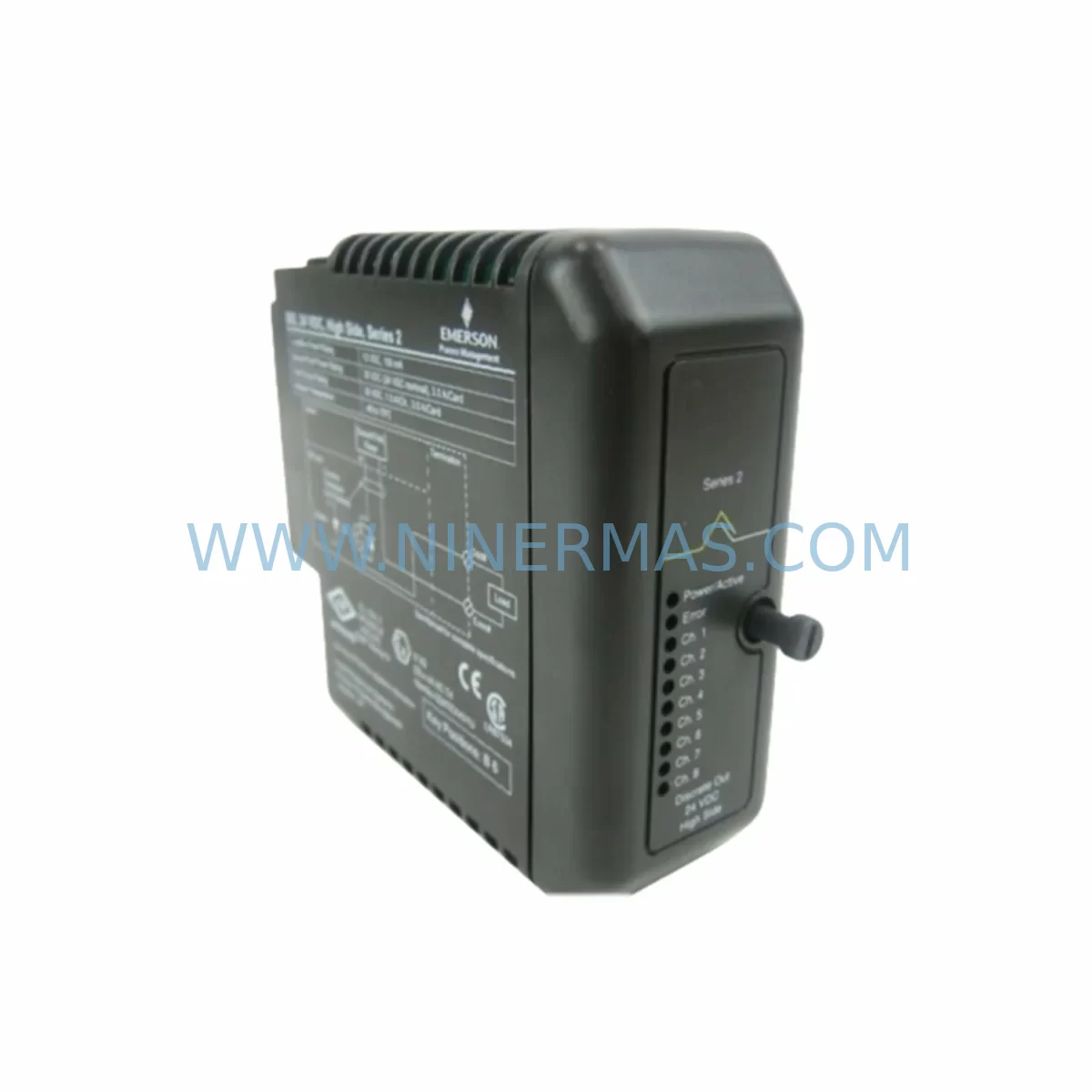

Emerson KJ3001X1-CA1 Retrofit-Compatible Controller for DeltaV Legacy Systems

When a DeltaV DCS installation reaches end-of-life or a critical controller module fails, the pressure to restore production without compromising process integrity is immense. The Emerson KJ3001X1-CA1 is a DeltaV series controller module engineered for seamless retrofit into existing DeltaV architectures — enabling maintenance and automation engineers to replace aging or discontinued hardware without redesigning the control strategy, rewriting function blocks, or reconfiguring the entire I/O subsystem.

At NINERMAS, we supply the KJ3001X1-CA1 as a service-ready, pre-tested unit backed by a 12-month warranty, with long-term inventory commitment to support both emergency replacements and planned annual maintenance cycles. Whether you are managing a single-site DeltaV system or coordinating a multi-plant upgrade program, this module provides the compatibility and reliability your operations demand.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful KJ3001X1-CA1 retrofit begins well before the module arrives on site. Maintenance engineers should audit the full DeltaV node to confirm that the carrier chassis, backplane connectors, and power distribution are in serviceable condition. The KJ3002X1 and KJ3003X1 power supply modules that feed the controller carrier should be inspected for output voltage stability and capacitor aging — a degraded PSU is a common root cause of controller faults that are misdiagnosed as controller failures.

On the I/O side, the KJ3221X1-BA1 and KJ3222X1-BA1 series I/O interface modules connected to the controller node should be verified for firmware compatibility with the replacement controller revision. If the site runs HART-enabled field instruments, confirm that the KJ3243X1-BA1 HART I/O cards are correctly addressed and that HART pass-through is enabled in the DeltaV configuration database before the cutover.

For sites using FOUNDATION Fieldbus segments, the KJ3211X1-BA1 H1 interface card assignments must be preserved in the DeltaV Explorer node configuration. Any fieldbus segment that loses its H1 card assignment during a controller swap will require a full re-commissioning of the segment — a time-consuming process that can be avoided with careful pre-migration documentation.

Communication infrastructure also deserves attention. The DeltaV control network switch — typically a managed industrial Ethernet switch supporting the DeltaV control network VLAN — should be verified for port assignments and link status before and after the swap. If the site uses a KJ3001X1-CA2 redundant controller pair, the redundancy synchronization cable and the redundancy module firmware version must match the replacement unit to ensure seamless failover.

HMI workstations running DeltaV Operate should be checked for active alarms and historian connections. After the controller replacement, a DeltaV Explorer download to the new module is required, followed by a module restart and verification of all I/O channel assignments. Procurement engineers planning a broader DeltaV upgrade should also consider stocking the KJ3001X1-BA1 variant and associated KJ3002X1 PSU modules as part of a comprehensive critical-spares inventory to cover multi-node installations.

Downtime Control During System Migration

Minimizing downtime during a KJ3001X1-CA1 replacement requires a structured pre-outage preparation protocol. Before taking the controller offline, export the full DeltaV module database from DeltaV Explorer and store a verified backup on a secure engineering workstation. Capture all I/O channel assignments, HART device tags, Fieldbus segment configurations, and alarm setpoints in a pre-migration checklist.

During the physical swap, follow DeltaV hot-swap procedures where the system architecture supports it. For non-redundant controller nodes, coordinate with operations to place the affected process loops in manual mode at the DeltaV Operate HMI before removing the module. This protects the process from uncontrolled output changes during the transition and allows field operators to maintain manual control of critical valves and drives.

After seating the replacement KJ3001X1-CA1 in the carrier, perform a DeltaV Explorer download to the module and verify that all I/O modules report healthy status in the DeltaV diagnostics view. Confirm that HART device descriptors are recognized and that Fieldbus segment H1 links are active before returning loops to automatic control. A phased loop-by-loop return to auto — starting with non-critical utility loops — reduces the risk of process upsets during the final commissioning phase.

For sites with redundant controller pairs, verify that the standby controller achieves synchronization with the primary before declaring the migration complete. Document the as-found and as-left configuration states for the maintenance record, and update the site’s critical-spares register to reflect the replacement unit’s serial number and installation date.

Retrofit Support FAQ

Q1: Is the KJ3001X1-CA1 a direct drop-in replacement for the original Emerson DeltaV controller without hardware modification?
Yes. The KJ3001X1-CA1 is designed to seat directly into the standard DeltaV carrier chassis without any hardware adapter or wiring modification. After physical installation, a DeltaV Explorer configuration download is required to restore the module’s node assignment and I/O configuration. No changes to field wiring or terminal blocks are necessary.

Q2: How do you verify compatibility between the replacement KJ3001X1-CA1 and the existing DeltaV system firmware version?
Compatibility is confirmed by matching the DeltaV system version running on the engineering workstation with the firmware revision supported by the replacement module. NINERMAS provides the module revision details prior to shipment. If your DeltaV system is running an older version, our technical team can advise on the appropriate module revision to ensure full compatibility before the unit is dispatched.

Q3: What pre-shipment testing does NINERMAS perform on the KJ3001X1-CA1 before dispatch?
Every KJ3001X1-CA1 unit undergoes a full functional test and burn-in cycle at our facility before shipment. This includes power-on verification, communication link testing, and I/O interface checks. Units that pass all test criteria are sealed and shipped with a test report. The 12-month warranty covers any functional defects identified after installation under normal operating conditions.

Q4: Can NINERMAS support long-term supply of the KJ3001X1-CA1 for multi-site DeltaV installations?
Yes. NINERMAS maintains dedicated inventory of the KJ3001X1-CA1 and related DeltaV spare parts to support long-term procurement programs. We work with maintenance and procurement engineers to establish scheduled supply agreements, ensuring that critical spare modules are available for planned annual shutdowns, emergency replacements, and multi-plant upgrade rollouts without lead-time risk.
