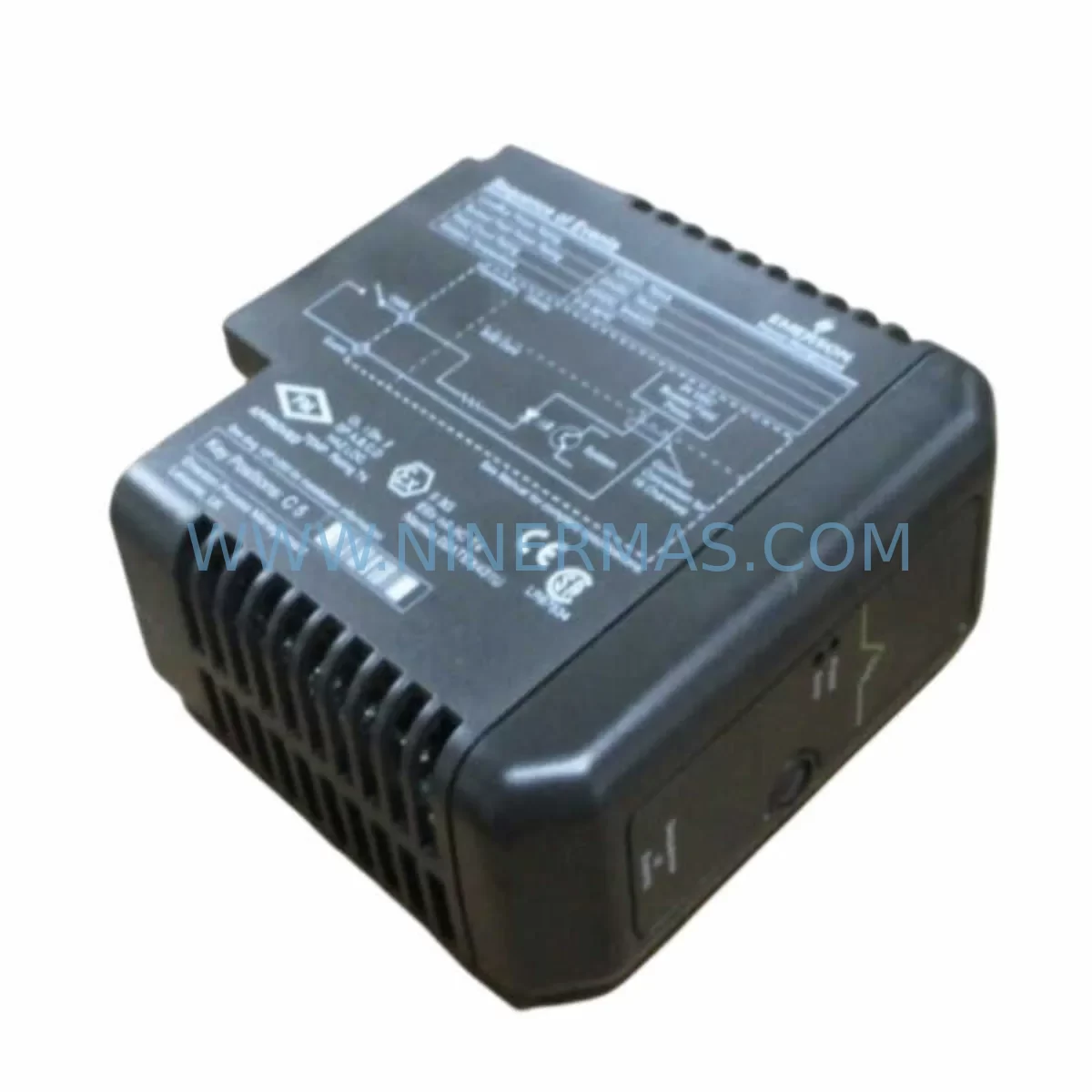

The Emerson KJ3008X1-BA1 (12P2293X052) is a DeltaV Series Sequence of Events (SOE) module engineered for safety-critical industrial control environments. Designed to capture and timestamp discrete input events with millisecond-level resolution, this module plays a pivotal role in post-incident analysis, safety interlock verification, and continuous process monitoring across high-demand industrial sites. Whether deployed in petrochemical complexes, power generation facilities, or heavy manufacturing plants, the KJ3008X1-BA1 delivers the event-logging precision and operational resilience that safety engineers and control system integrators depend on.

In critical control cabinets where uptime is non-negotiable, the KJ3008X1-BA1 integrates seamlessly within the DeltaV distributed control architecture. Its robust signal acquisition capability ensures that even under high electromagnetic interference (EMI), voltage transients, or ground loop conditions common in heavy industrial environments, event timestamps remain accurate and sequence integrity is preserved. This directly reduces the risk of misdiagnosed trips, unverified interlock activations, and unplanned shutdowns caused by ambiguous event ordering.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered DeltaV control cabinet, the KJ3008X1-BA1 SOE module does not operate in isolation — it functions as part of a coordinated safety and control architecture. Reliable event sequencing depends on stable power delivery, clean signal conditioning, and robust communication infrastructure throughout the cabinet.

Power integrity is foundational. The Emerson KJ4001X1-BA1 Power Supply Module provides regulated DC power to the I/O subsystem, and any instability in this supply can introduce timestamp jitter or missed events in the SOE log. Pairing the KJ3008X1-BA1 with a verified, tested power supply module eliminates this risk. Similarly, the Emerson KJ2201X1-HA1 Controller Carrier must maintain stable backplane communication to ensure SOE data is reliably transferred to the DeltaV controller without packet loss or latency spikes.

On the signal input side, field wiring connected to the SOE module’s discrete inputs is often exposed to surge events from motor starts, valve actuations, or lightning-induced transients. Incorporating Emerson CSLS00 surge protection terminal blocks or equivalent DIN-rail surge arrestors upstream of the KJ3008X1-BA1 inputs significantly reduces the risk of input channel damage or false event triggering. In environments with heavy dust, moisture, or corrosive atmospheres — such as offshore platforms or chemical processing units — the Emerson KJ1501X1-BA2 Analog Input Module and associated marshalling components should be housed in IP54 or higher-rated enclosures to maintain signal fidelity across all I/O types.

For safety instrumented systems (SIS) integrated with DeltaV, the Emerson DeltaV SIS Logic Solver relies on accurate SOE data to validate interlock response times and confirm that safety functions executed within the required SIL-rated time window. The KJ3008X1-BA1 provides the timestamped evidence needed for SIL verification audits and functional safety assessments under IEC 61511. Complementary modules such as the Emerson KJ3222X1-BA1 Digital Output Module handle the actuator command side of the safety loop, while the SOE module captures the initiating event on the input side — together forming a complete, auditable safety response chain.

Communication reliability is equally critical. The Emerson KJ3001X1-BA1 DeltaV I/O Interface Module manages data routing between I/O subsystems and the controller network. Any communication fault at this layer can delay SOE data upload and compromise post-trip analysis. Maintaining a tested spare of this interface module alongside the KJ3008X1-BA1 is a recommended best practice for critical sites with zero-tolerance for extended diagnostic delays.

Critical Industrial Safety Applications

The Emerson KJ3008X1-BA1 is deployed across a wide range of safety-critical industries where event sequence accuracy directly impacts both operational safety and regulatory compliance.

Petrochemical and Refining: In crude distillation units, hydrocracker reactors, and LNG terminals, the SOE module captures the precise sequence of pressure switch activations, emergency shutdown valve (ESDV) closures, and high-temperature trip signals. This data is essential for root cause analysis following a process upset and for demonstrating compliance with IEC 61511 functional safety requirements during HAZOP reviews and safety audits.

Power Generation: Thermal power plants and combined-cycle gas turbine (CCGT) facilities use the KJ3008X1-BA1 to log turbine trip sequences, generator protection relay activations, and boiler safety interlock events. Millisecond-resolution timestamps allow protection engineers to distinguish between initiating causes and consequential trips — a distinction that can prevent weeks of unnecessary equipment inspection.

Mining and Mineral Processing: In conveyor drive control systems, crusher protection circuits, and ventilation safety interlocks, the SOE module provides reliable event capture even in environments with severe vibration, heavy dust loading, and frequent voltage sags from large motor starts. Its industrial-grade EMI tolerance ensures event integrity is maintained without false triggers.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the KJ3008X1-BA1 to monitor pump protection interlocks, chlorination system safety trips, and overflow alarm sequences. Accurate SOE logging supports regulatory reporting and helps operators identify recurring fault patterns before they escalate to service interruptions.

Metallurgy and Steel Production: In electric arc furnace (EAF) control systems and continuous casting lines, the module captures high-speed discrete events from cooling water flow switches, electrode position sensors, and emergency stop circuits — enabling rapid fault isolation and minimizing costly production delays.
