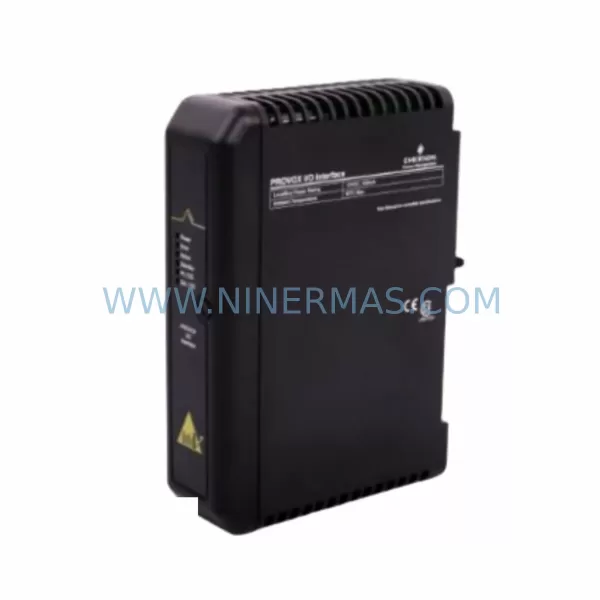

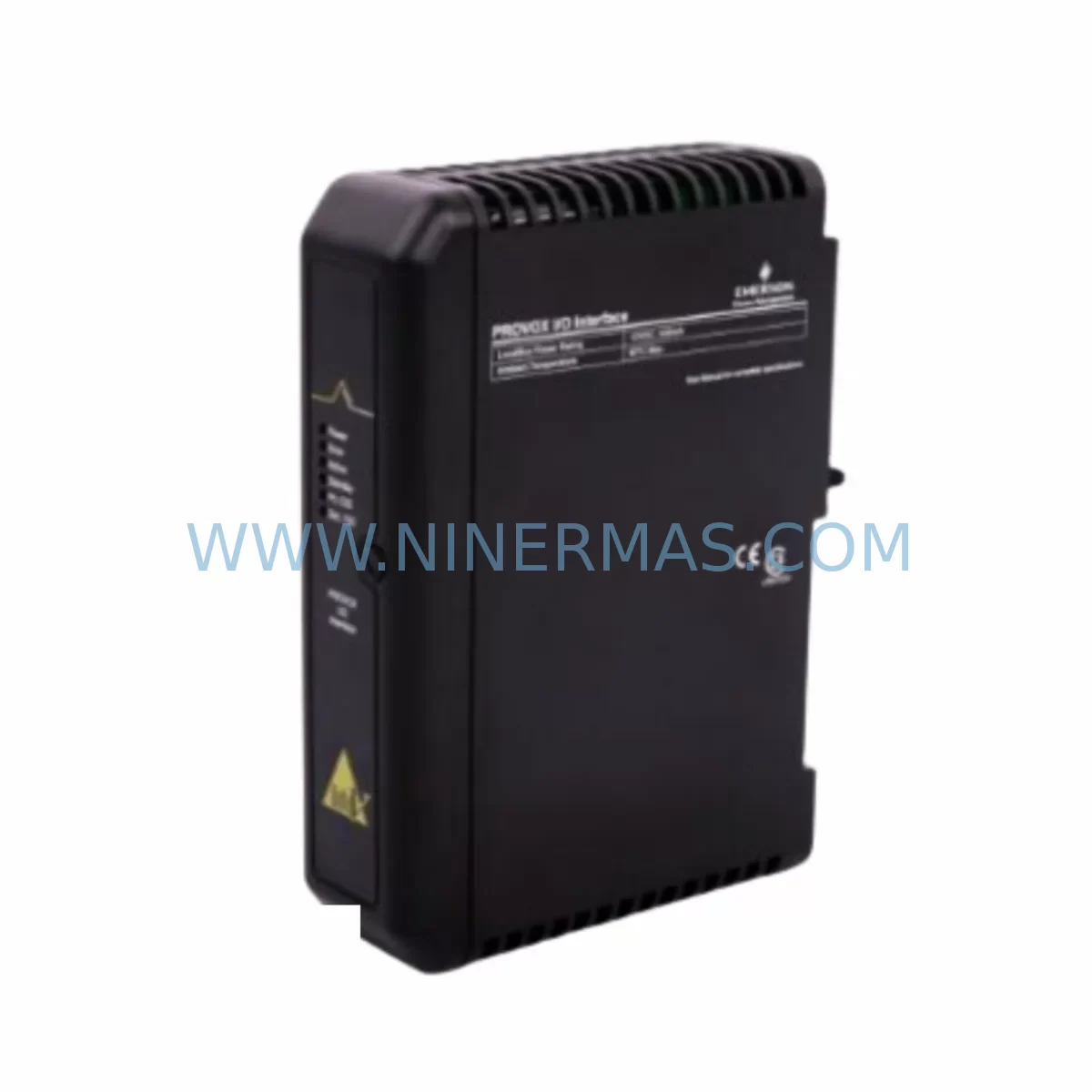

Emerson KJ2101X1-BA 12P2690X012 Safety-Reliable I/O Interface

Emerson KJ2101X1-BA 12P2690X012 Safety-Reliable I/O Interface for Critical Control Sites

The Emerson KJ2101X1-BA 12P2690X012 is a high-integrity I/O Interface Module engineered for deployment within Emerson DeltaV distributed control system architectures. Designed to meet the demanding requirements of continuous production environments, this module delivers stable, low-latency signal transmission between field instruments and the DeltaV controller network — a function that is foundational to safe, uninterrupted plant operation.

In critical industrial facilities — including petrochemical complexes, power generation stations, mineral processing plants, and water treatment infrastructure — the integrity of every I/O signal path directly determines whether a safety interlock responds correctly, whether a control loop maintains setpoint, and whether operators receive accurate real-time data. The KJ2101X1-BA 12P2690X012 is purpose-built to sustain this integrity even under adverse conditions: high electromagnetic interference from variable frequency drives and large motor starters, voltage transients from switching power supplies, mechanical vibration from rotating equipment, and ambient temperature fluctuations common to outdoor or poorly climate-controlled control rooms.

NINERMAS maintains verified stock of this module with full pre-shipment functional testing and a 12-month warranty, supporting both planned maintenance programs and emergency replacement scenarios where minimizing mean time to repair is operationally critical.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A DeltaV control cabinet operating in a continuous process plant is only as reliable as its weakest I/O path. The KJ2101X1-BA 12P2690X012 addresses one of the most common sources of unplanned shutdowns: degraded or failed I/O interface modules that cause signal dropout, erratic loop behavior, or loss of safety interlock confirmation.

In practice, this module operates alongside a range of complementary DeltaV components. The Emerson KJ1501X1-BA power supply module provides the regulated 24 VDC rail that the I/O subsystem depends on; any instability in this supply propagates directly into signal quality, making a healthy power module a prerequisite for reliable I/O performance. The Emerson KJ2005X1-BA controller card manages the scan cycle and data highway communication — when the I/O interface module is functioning correctly, the controller receives clean, timestamped process values without retries or communication errors.

On the field side, the KJ2101X1-BA 12P2690X012 interfaces with Emerson DeltaV CHARM I/O modules and traditional marshalled wiring panels, supporting both legacy and modern field device architectures. In safety-instrumented system (SIS) applications, it works in conjunction with Emerson DeltaV SIS logic solvers and SIS I/O cards to ensure that safety function demand signals are transmitted without latency or distortion — a requirement under IEC 61511 for SIL-rated loops.

For installations subject to high surge risk — such as those near large transformer banks, outdoor substations, or facilities with frequent lightning exposure — pairing this module with Emerson DeltaV surge protection terminal blocks and Phoenix Contact or MTL field barrier assemblies significantly reduces the risk of transient-induced module failure. Similarly, in high-vibration environments such as compressor stations or offshore platforms, ensuring that the DeltaV carrier and I/O bus connectors are correctly seated and periodically inspected prevents intermittent contact faults that can mimic I/O module failures.

Communication integrity between the I/O subsystem and the DeltaV workstation network is maintained through the Emerson DeltaV redundant controller network switches and DeltaV application stations. When the I/O interface module is operating correctly, alarm floods caused by spurious signal transitions are eliminated, reducing operator cognitive load during critical process upsets and improving the reliability of alarm-based safety responses.

Maintaining a structured spare parts inventory that includes the KJ2101X1-BA 12P2690X012 alongside related modules — such as the Emerson KJ3002X1-BA analog input card, KJ4001X1-BA discrete output module, and KJ2201X1-BA redundant I/O interface — ensures that maintenance teams can execute hot-swap replacements within a single shift window, avoiding the multi-day lead times that can result from relying solely on OEM emergency supply channels.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In crude distillation units, hydrotreaters, and catalytic crackers, the DeltaV I/O interface module supports continuous monitoring of temperature, pressure, and flow transmitters that feed into emergency shutdown (ESD) logic. A failed I/O module in this context can cause a spurious trip — shutting down a unit unnecessarily — or, more critically, mask a genuine process deviation. The KJ2101X1-BA 12P2690X012 provides the signal fidelity required to distinguish real process events from instrumentation noise.

Power Generation: Boiler management systems, turbine control panels, and generator protection relays in thermal and combined-cycle power plants rely on DeltaV I/O infrastructure to coordinate fuel, air, and cooling control loops. The module’s tolerance for electrical noise from large generators and bus bars makes it well-suited to these high-interference environments.

Mining and Mineral Processing: Conveyor interlocks, crusher control systems, and flotation cell automation in mining operations subject control hardware to continuous vibration, dust ingress, and wide temperature swings. The KJ2101X1-BA 12P2690X012, housed within a properly sealed control enclosure, maintains reliable I/O communication under these conditions, supporting safe conveyor sequencing and motor protection logic.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use DeltaV systems to manage dosing pumps, filtration sequences, and effluent monitoring. The I/O interface module ensures that chemical dosing control loops receive accurate feedback signals, preventing both under-dosing (a public health risk) and over-dosing (a chemical safety hazard).

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference. DeltaV I/O modules deployed in these environments must maintain signal integrity despite high-frequency noise from thyristor drives and induction heating systems. The KJ2101X1-BA 12P2690X012 is a proven replacement component in these demanding metallurgical control applications.

Port and Marine Automation: Crane control systems, mooring winch automation, and cargo handling equipment in port terminals and on vessels require control hardware that can withstand salt-laden air, humidity, and mechanical shock. The module supports reliable I/O communication in these corrosive and mechanically demanding environments when installed within appropriately rated enclosures.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Emerson KJ2101X1-BA 12P2690X012?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning queries. Warranty claims are processed directly through NINERMAS without requiring OEM involvement.

Q2: How is the module tested before shipment?
Each KJ2101X1-BA 12P2690X012 unit undergoes pre-shipment functional verification to confirm correct power-up behavior, I/O bus communication, and signal channel integrity. Units that do not pass functional checks are not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module a direct drop-in replacement for the original Emerson DeltaV I/O interface?
Yes. The KJ2101X1-BA 12P2690X012 is an original Emerson component and is fully compatible with existing DeltaV I/O carrier assemblies and bus architectures. No firmware changes, reconfiguration, or additional hardware adapters are required for standard replacement installations. Compatibility with specific DeltaV system versions should be confirmed against the installed controller firmware revision.

Q4: Can NINERMAS support long-term spare parts supply for this module?
Yes. NINERMAS specializes in long-term spare parts programs for industrial control systems, including legacy and current-generation Emerson DeltaV hardware. We maintain ongoing stock of the KJ2101X1-BA 12P2690X012 and related DeltaV I/O components to support planned maintenance schedules, insurance spare inventories, and emergency replacement requirements. Contact our team to discuss volume pricing, reserved stock arrangements, and multi-year supply agreements.
