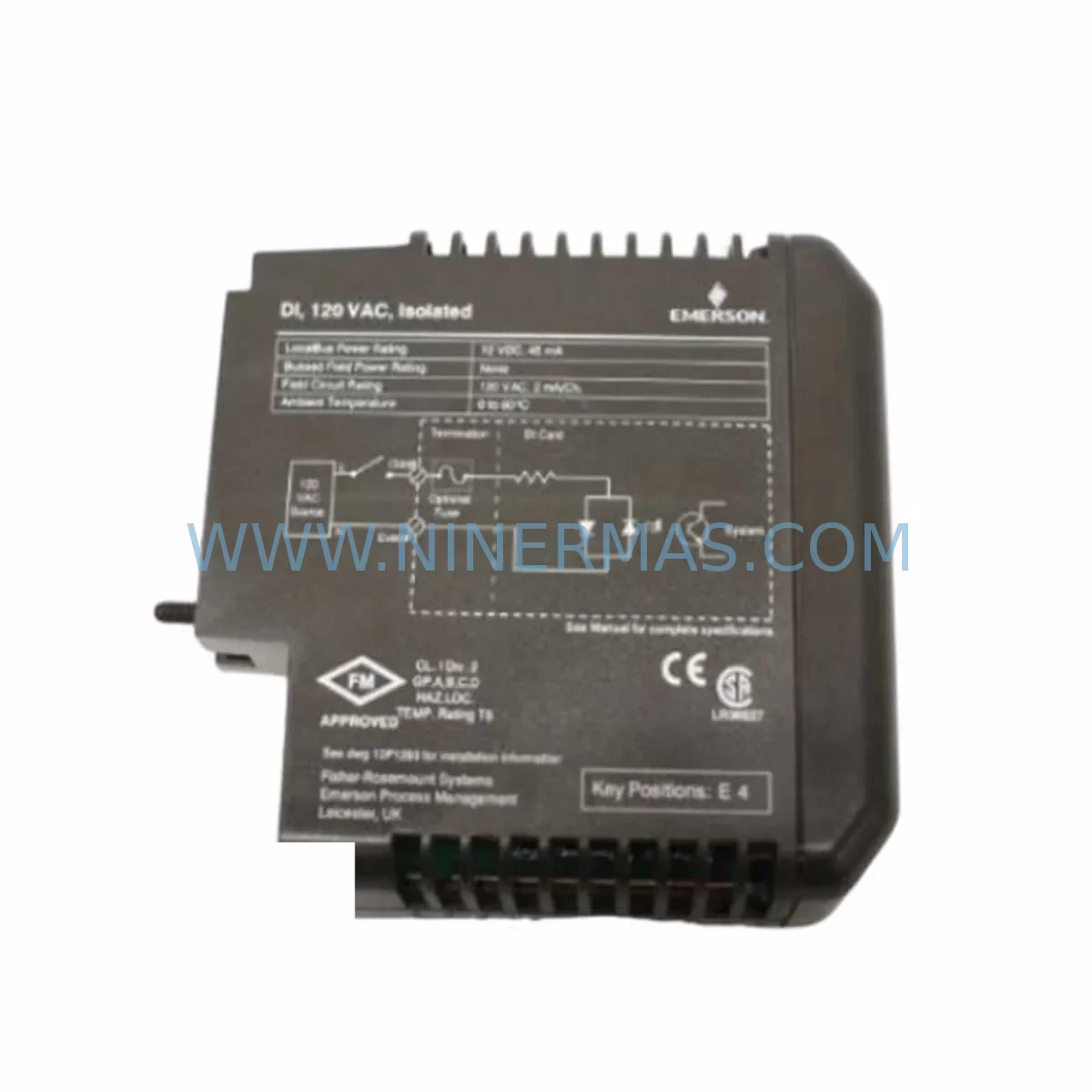

The Emerson KJ3001X1-BC1 (also referenced as 12P0551X132 and VE4001S3T1B1) is a ruggedized input module engineered for the Emerson DeltaV distributed control system platform. Designed to operate reliably in harsh industrial environments — including high-vibration, high-humidity, and wide-temperature-range process facilities — this module serves as a critical field I/O interface between field instrumentation and the DeltaV controller subsystem. For maintenance engineers managing aging DCS infrastructure, securing a verified, pre-tested replacement unit of the KJ3001X1-BC1 is essential to minimizing unplanned downtime and sustaining continuous process operation.

Whether you are executing a planned annual turnaround, responding to an unscheduled fault isolation event, or building a strategic spare parts inventory for a long-lifecycle DeltaV installation, the KJ3001X1-BC1 represents a high-priority line item. Its role in signal acquisition from field transmitters, thermocouples, RTDs, and discrete sensors makes it a single point of failure risk if not covered by on-hand stock. Procurement engineers are advised to treat this module as a Tier-1 critical spare, particularly in facilities where DeltaV systems have been in service for more than seven years and original OEM supply channels may be constrained.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DeltaV KJ3001X1-BC1 input module is flagged for replacement during a fault isolation routine or scheduled inspection, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A comprehensive site assessment should accompany any I/O module swap to prevent repeat failures and ensure system integrity is fully restored.

Begin by inspecting the KJ3001X1-BA1 or KJ3001X1-BB1 carrier assembly — the I/O carrier that seats the KJ3001X1-BC1 — for signs of corrosion, bent connector pins, or cracked housing. A damaged carrier will cause recurring module faults even after a new module is installed. Similarly, the KJ2005X1 DeltaV controller card or its equivalent in the same cabinet should be verified for firmware compatibility with the replacement module, particularly if the installed DeltaV system version predates the module’s manufacturing batch.

Field wiring terminations at the DeltaV marshalling cabinet should be inspected for loose terminals, oxidized connections, or incorrect shielding practices. In high-noise environments, signal integrity issues are frequently misdiagnosed as module failures. Check the 24 VDC field power supply — such as the Emerson KJ4001X1 or equivalent redundant power module — for output voltage stability and ripple, as undervoltage conditions can cause intermittent I/O module resets that mimic hardware faults.

For facilities running multi-drop HART instrumentation through the KJ3001X1-BC1, verify that the HART multiplexer or HART pass-through configuration in DeltaV Control Studio is correctly mapped after module replacement. Incorrect HART device tag assignments post-swap are a common source of post-maintenance alarms. Additionally, inspect adjacent KJ3002X1 or KJ3003X1 output modules in the same I/O subsystem — shared backplane power distribution means a failing output module can introduce noise or voltage sag that degrades input module performance.

Procurement engineers building a comprehensive spare parts kit around the KJ3001X1-BC1 should also consider stocking the KJ1501X1 DeltaV power supply module, terminal block assemblies compatible with the DeltaV marshalling system, signal isolators for 4–20 mA loops in high-interference zones, and DeltaV I/O subsystem fuses. For facilities with redundant DeltaV controllers, the KJ2005X1 redundancy module and associated fiber optic communication cables for the DeltaV control network should be included in the annual spare parts review cycle.

Site Replacement Workflow

Replacing the Emerson KJ3001X1-BC1 in a live DeltaV environment requires a structured approach to avoid process upsets and ensure a clean handover. The following workflow reflects best practices for field replacement in operating facilities:

Step 1 — Pre-Replacement Verification: Confirm the replacement KJ3001X1-BC1 part number, hardware revision, and firmware version match or are backward-compatible with the installed DeltaV system version. Cross-reference the 12P0551X132 and VE4001S3T1B1 alternate part numbers against your site’s approved spare parts list to confirm interchangeability.

Step 2 — Process Isolation: Coordinate with the control room to place affected loops in manual mode or bypass. For safety-instrumented loops, follow the site’s Management of Change (MOC) and Safety Instrumented System (SIS) bypass procedures before removing the module.

Step 3 — Module Extraction: Power down the I/O carrier if the module is not hot-swappable in the installed configuration. Remove the KJ3001X1-BC1 by releasing the module latch and sliding it clear of the carrier. Inspect the carrier connector for damage before inserting the replacement unit.

Step 4 — Replacement and Commissioning: Seat the new KJ3001X1-BC1 firmly into the carrier. Power up and observe the DeltaV diagnostic display for module health status. Verify all channel assignments, HART device communications, and alarm limits in DeltaV Operate before returning loops to automatic control.

Step 5 — Post-Replacement Documentation: Record the replaced module’s serial number, installation date, and firmware version in the site’s maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of the consumed unit, maintaining minimum stock levels for critical I/O modules.

Spare Parts Support FAQ

Q1: Is the KJ3001X1-BC1 compatible with all DeltaV system versions?
The KJ3001X1-BC1 is designed for the Emerson DeltaV S-Series I/O platform. Compatibility with specific DeltaV software versions depends on the hardware revision of the module. We recommend confirming the hardware revision (HR) against your site’s DeltaV system version before ordering. Our technical team can assist with compatibility verification based on your installed DeltaV version and controller generation.

Q2: What pre-shipment testing is performed on the KJ3001X1-BC1?
Every KJ3001X1-BC1 unit dispatched from our facility undergoes functional verification testing prior to shipment. This includes power-on self-test, channel continuity checks, and communication interface validation. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term or blanket purchase orders for the KJ3001X1-BC1?
Yes. We support long-term supply agreements and blanket purchase order programs for critical DeltaV spare parts including the KJ3001X1-BC1. This is particularly valuable for facilities managing extended lifecycle DeltaV installations where OEM availability is uncertain. Contact our procurement team to discuss volume pricing, reserved stock programs, and fixed lead-time commitments.

Q4: What is the return and warranty claim process if a unit fails in service?
Units that fail within the 12-month warranty period are eligible for replacement or credit, subject to inspection. To initiate a warranty claim, contact our support team with the unit serial number, installation date, failure description, and site conditions. We aim to process warranty claims and dispatch replacement units within 5 business days of claim approval to minimize your facility’s exposure to extended downtime.
