EMERSON KJ2005X1-SQ1 12P6383X022 Retrofit-Compatible I/O for Legacy Systems

EMERSON KJ2005X1-SQ1 12P6383X022 Retrofit-Compatible I/O Module for Legacy DeltaV Systems

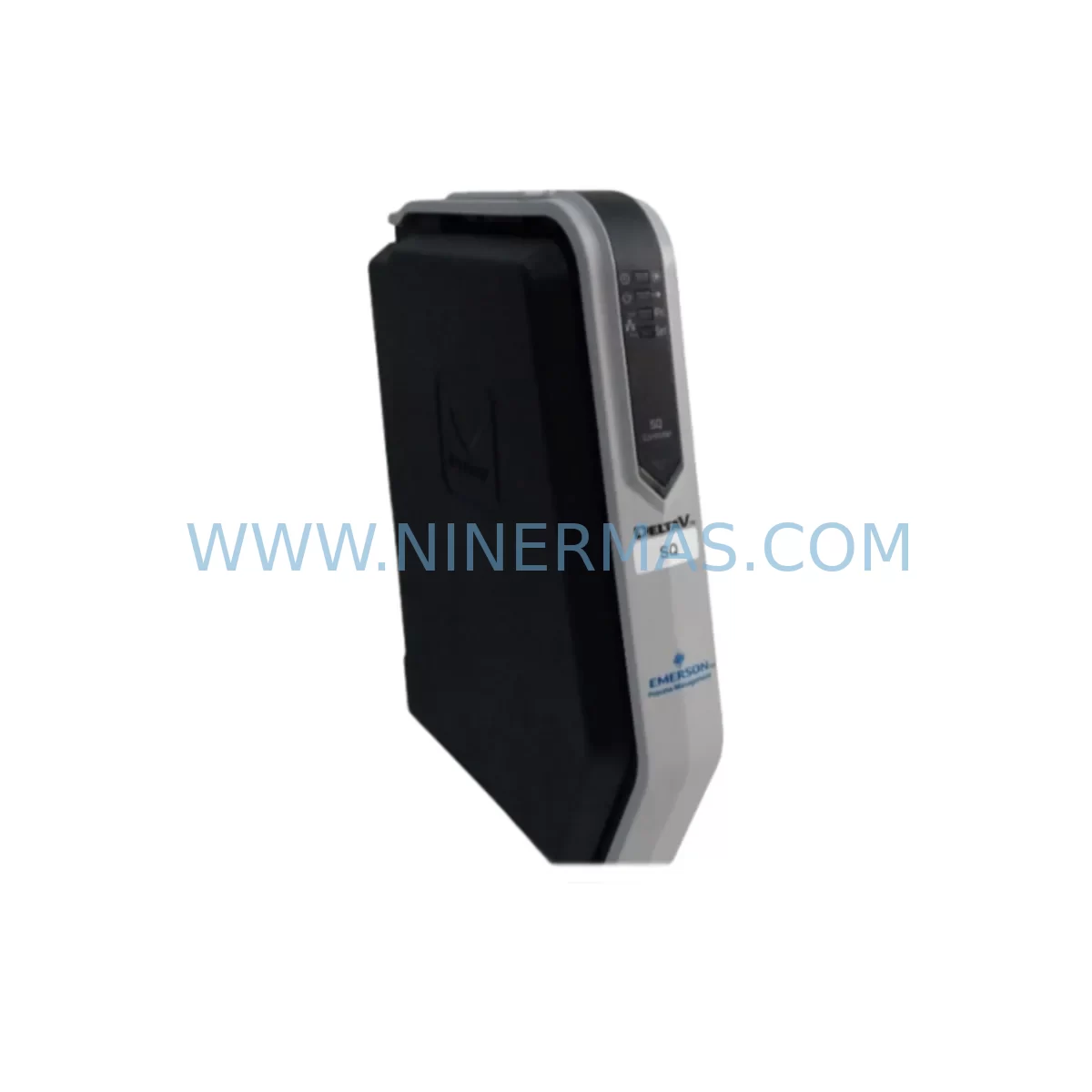

The EMERSON KJ2005X1-SQ1 (part number 12P6383X022) is a DeltaV S-Series I/O module engineered for seamless integration into existing automation architectures. As industrial facilities face the growing challenge of maintaining aging distributed control systems, this module serves as a proven retrofit solution — enabling engineers to extend the operational life of legacy DeltaV platforms without committing to a full system overhaul. Whether you are replacing a failed card in a running production line, upgrading a control cabinet to meet new safety standards, or migrating from an earlier DeltaV M-Series configuration, the KJ2005X1-SQ1 delivers the compatibility, reliability, and field-proven performance that modernization projects demand.

Sourced directly from authorized channels and subject to full functional testing prior to shipment, every unit supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty and is backed by in-stock inventory for rapid deployment. Our team supports customers across petrochemical, pharmaceutical, power generation, food and beverage, and discrete manufacturing sectors — industries where unplanned downtime is measured in significant financial and operational cost.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ2005X1-SQ1 into a legacy DeltaV environment begins well before the module arrives on site. Engineers should start by auditing the existing control cabinet layout to confirm available carrier slots on the DeltaV S-Series carrier assembly. In many retrofit scenarios, the original carrier — such as the KJ3001X1-BA1 eight-slot carrier — remains serviceable and can accept the replacement module without structural modification, significantly reducing installation time and cost.

Terminal block wiring is a critical checkpoint. Field wiring connected to the legacy I/O card must be carefully documented, including signal type (AI, AO, DI, DO), wire gauge, shielding configuration, and loop power requirements. When migrating from an M-Series card to the S-Series KJ2005X1-SQ1, terminal pinout differences must be reconciled — in some cases, a marshalling cabinet rewire or the use of a signal conditioning module is required to maintain loop integrity without disturbing field instruments.

Power budget verification is equally important. The DeltaV power supply module — commonly the KJ4001X1-BA1 or its equivalent — must have sufficient headroom to support the additional I/O load introduced by the replacement card. Facilities running near the power supply’s rated capacity should consider upgrading to a higher-capacity unit or redistributing I/O across multiple carriers before proceeding.

For systems incorporating FOUNDATION Fieldbus or HART-enabled field devices, communication link integrity must be confirmed after module replacement. The DeltaV CIOC (Controller I/O Card) and associated fieldbus segment wiring should be inspected for termination resistance, segment loading, and device addressing conflicts. In parallel, the DeltaV workstation running DeltaV Operate or DeltaV Diagnostics should be used to verify that all I/O channel assignments in the control strategy reflect the new module’s physical address.

HMI screen validation is a step that is frequently underestimated in retrofit projects. After the KJ2005X1-SQ1 is installed and commissioned, operators should walk through all affected DeltaV Operate faceplates and trend displays to confirm that signal tags are resolving correctly and that alarm limits remain intact. Any discrepancy between the physical I/O assignment and the HMI tag database must be corrected in DeltaV Explorer before returning the loop to automatic control.

For facilities managing I/O expansion alongside the replacement, the KJ2005X1-SQ1 can be deployed in conjunction with additional S-Series I/O modules — such as analog input cards, discrete output modules, or HART multiplexer interfaces — to incrementally expand the control system’s I/O capacity without requiring a new controller chassis. This approach is particularly effective in brownfield projects where installation space inside the control cabinet is constrained and a full DeltaV controller upgrade is not yet justified.

Programming cable access is another practical consideration. Technicians performing on-site commissioning will require a DeltaV-compatible programming interface and a laptop running the appropriate DeltaV version to download updated control strategies, verify module diagnostics, and confirm channel-level signal quality. Ensuring that the correct software version is available before the maintenance window begins is essential to keeping the commissioning timeline on schedule.

Downtime Control During System Migration

Minimizing production interruption during a DeltaV I/O module replacement requires a structured approach to change management. The first priority is preserving the existing control strategy. Before any hardware is removed, a full backup of the DeltaV database — including all control modules, phase logic, and alarm configurations — should be exported and stored on a secure workstation. This backup serves as the recovery baseline if commissioning encounters unexpected issues.

Where the process permits, a hot-swap replacement using DeltaV’s online download capability can eliminate the need for a full controller shutdown. The KJ2005X1-SQ1 supports online insertion in compatible carrier configurations, allowing the replacement module to be installed while adjacent I/O channels remain in service. Engineers should confirm hot-swap eligibility for the specific carrier and controller revision in use before attempting this procedure.

For loops that cannot tolerate any interruption — such as critical safety instrumented functions or continuous process control loops — a pre-tested spare module strategy is recommended. NINERMAS maintains in-stock inventory of the KJ2005X1-SQ1 and related DeltaV S-Series components, enabling same-day or next-day dispatch to minimize the gap between failure detection and hardware replacement. Each unit undergoes functional testing prior to shipment, reducing the risk of commissioning delays caused by a defective replacement part.

Field technicians should also prepare a rollback plan: if the replacement module fails to commission within the planned maintenance window, the original card (if still functional) or a pre-configured spare should be available for immediate reinstallation. Documenting the original module’s address settings, jumper configurations, and terminal wiring before removal is a simple step that can save hours of troubleshooting under time pressure.

Finally, post-commissioning verification should include a full I/O channel scan, a review of DeltaV Diagnostics for any active faults or communication errors, and a sign-off from the process engineer confirming that all affected control loops have returned to normal operation. This structured close-out process ensures that the retrofit is fully documented and that the system is returned to service with confidence.

Retrofit Support FAQ

Q1: Is the KJ2005X1-SQ1 12P6383X022 a direct drop-in replacement for my existing DeltaV S-Series I/O card?
In most S-Series carrier configurations, the KJ2005X1-SQ1 is a direct replacement. However, customers should verify the carrier slot type, module address assignment, and terminal block wiring compatibility before installation. NINERMAS technical support can assist with pre-installation compatibility checks based on your existing system documentation.

Q2: What pre-shipment testing does NINERMAS perform on the KJ2005X1-SQ1?
Every unit is functionally tested prior to dispatch to verify I/O channel integrity, communication link status, and power consumption within specification. Units are shipped with test documentation available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How do I confirm wiring compatibility when replacing a legacy M-Series card with the KJ2005X1-SQ1?
Compare the terminal block pinout of the legacy card against the KJ2005X1-SQ1 wiring diagram. Pay particular attention to signal polarity, loop power configuration, and shield grounding. In cases where pinout differences exist, a signal conditioning module or marshalling terminal adapter may be required. NINERMAS can provide wiring guidance based on your specific legacy card model.

Q4: What is the lead time and inventory availability for the KJ2005X1-SQ1 12P6383X022?
NINERMAS maintains in-stock inventory of the KJ2005X1-SQ1 for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and shipping timelines.
