EMERSON KJ2005X1-MQ1 12P6381X032 Retrofit I/O Module for Legacy Systems

EMERSON KJ2005X1-MQ1 12P6381X032 Retrofit-Compatible I/O Module for Legacy DeltaV Systems

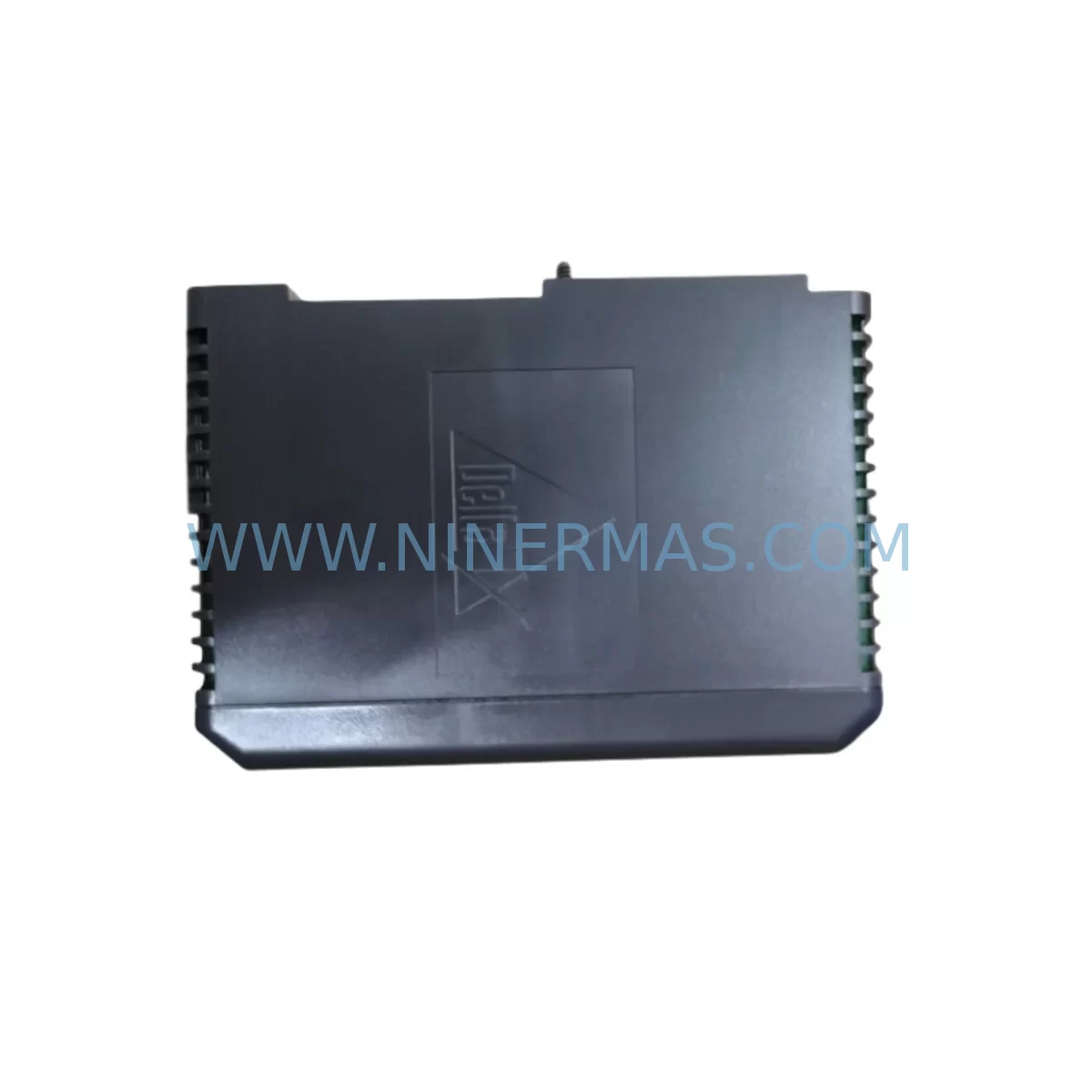

The EMERSON KJ2005X1-MQ1 12P6381X032 is a retrofit-compatible I/O module engineered for seamless integration into legacy DeltaV distributed control system architectures. As original equipment manufacturers discontinue support for aging control hardware, facilities running first- and second-generation DeltaV platforms face increasing pressure to source reliable replacement modules that maintain signal integrity, backplane compatibility, and program continuity without requiring full system overhauls. This module addresses that need directly — providing a verified drop-in replacement path for engineers managing brownfield automation upgrades, spare parts lifecycle extension, and control cabinet modernization projects.

Whether your facility is replacing a failed module in an active production line, building a strategic spare parts inventory for a DeltaV-based control system, or executing a phased migration from legacy I/O infrastructure to a more current platform, the KJ2005X1-MQ1 12P6381X032 delivers the compatibility, reliability, and documentation support required for confident deployment. Each unit is pre-shipment tested and backed by a 12-month warranty, ensuring that your retrofit project proceeds with minimal risk and maximum uptime assurance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ2005X1-MQ1 12P6381X032 into a legacy DeltaV environment requires systematic pre-installation planning. Engineers should begin by auditing the existing control cabinet layout to confirm available carrier slots, power supply headroom, and physical clearance. The DeltaV Power Supply — typically a PS2 or PS6 series unit — must be verified to support the additional load introduced by the replacement module, particularly in high-density I/O cabinets where multiple KJ-series modules share a common power rail.

Terminal block wiring is a critical checkpoint. Existing field cables connected to the legacy module’s marshalling panel must be mapped against the replacement unit’s terminal assignments. In many brownfield installations, the KJ2005X1-MQ1 12P6381X032 is used alongside the KJ3002X1-BA1 CHARM I/O module and KJ1501X1-BG4 controller interface, which share the same backplane architecture. Confirming that the replacement module’s slot address does not conflict with adjacent modules — particularly when the system includes KJ4001X1-BA1 redundancy modules — prevents address collision errors during commissioning.

For facilities migrating from older DeltaV versions to current releases, the module must be recognized by the DeltaV Explorer configuration database. In most cases, the KJ2005X1-MQ1 12P6381X032 is auto-detected upon insertion, but engineers should verify that the DeltaV system software version supports the module’s firmware revision. Where HART-enabled field instruments are connected, the HART Multiplexer or AMS Device Manager integration should be re-validated after the swap to ensure that device diagnostics and calibration data remain accessible.

Control cabinets undergoing broader modernization — for example, those transitioning from legacy serial communication links to PROFIBUS DP or FOUNDATION Fieldbus H1 segments — may also require a DeltaV PROFIBUS Interface Module or FF H1 Card alongside the KJ2005X1-MQ1 12P6381X032. Signal isolators, particularly for long cable runs or electrically noisy environments, should be reviewed as part of the retrofit scope. Programming cables such as the KFCS2 or equivalent DeltaV workstation interface should be on-hand during commissioning to support live diagnostics and control strategy verification.

Where the retrofit involves expanding I/O capacity — for example, adding new measurement points to an existing loop — the KJ2005X1-MQ1 12P6381X032 can be deployed in conjunction with additional KJ-series analog or discrete I/O modules to extend the system’s channel count without replacing the host controller. This approach preserves the existing DeltaV control strategy, minimizes re-engineering effort, and reduces the risk of introducing logic errors during the upgrade.

Downtime Control During System Migration

Minimizing production downtime during a DeltaV module replacement is a primary concern for operations and maintenance teams. The KJ2005X1-MQ1 12P6381X032 supports hot-swap capability within the DeltaV architecture, subject to system configuration and redundancy settings. Before initiating the swap, engineers should confirm that the affected control loops are placed in manual mode or that appropriate bypass interlocks are engaged to prevent uncontrolled process responses during the module transition.

Preserving the original control strategy is straightforward in most DeltaV environments. The control module database resides on the DeltaV controller — typically an MD or MD Plus controller — rather than on the I/O module itself, meaning that the replacement of the KJ2005X1-MQ1 12P6381X032 does not require a full control strategy re-download in standard configurations. However, engineers should perform a pre-swap backup of the DeltaV configuration database using DeltaV Explorer to protect against unexpected configuration loss.

Field control continuity during the swap can be maintained by coordinating with the DCS operator to monitor affected loops from the DeltaV Operate HMI. Tag alarms associated with the replaced module should be suppressed during the maintenance window to prevent alarm floods that could distract operators from other active process conditions. After module insertion and system recognition, a structured loop check — verifying signal values against field instrument readings — confirms that the replacement is functioning correctly before returning loops to automatic control.

For facilities with strict change management requirements, the module swap should be documented as a Management of Change (MOC) event, with pre- and post-installation functional test records retained for audit purposes. The 12-month warranty on the KJ2005X1-MQ1 12P6381X032 provides additional assurance that any latent hardware defects identified during the post-installation period will be addressed without additional cost to the facility.

Retrofit Support FAQ

Q1: Is the KJ2005X1-MQ1 12P6381X032 a direct replacement for the original Emerson part?
Yes. The KJ2005X1-MQ1 12P6381X032 is supplied as a functionally equivalent replacement for the original Emerson DeltaV module of the same part number. It is compatible with the same carrier slots, backplane interfaces, and DeltaV software versions as the original unit. Each module undergoes pre-shipment functional testing to verify performance before dispatch.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, the module should be recognized automatically by DeltaV Explorer. Engineers should verify the module’s node address, confirm that all I/O channel assignments match the original configuration, and perform a loop check against field instruments. Where HART or Fieldbus devices are connected, device communication should be re-validated through AMS Device Manager or the DeltaV HART interface.

Q3: How is terminal wiring handled during the module swap?
Field wiring connected to the original module’s marshalling terminals should be documented before removal. In most DeltaV installations, field cables terminate at a separate marshalling panel or CHARM carrier rather than directly on the module, simplifying the swap process. Engineers should confirm terminal block compatibility and re-verify signal polarity and shielding continuity after reconnection.

Q4: What does the 12-month warranty cover, and what is the stock availability?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units are held in inventory and are available for immediate dispatch. For urgent replacement requirements, please contact our sales team to confirm lead time and shipping options. Warranty claims are processed directly through our support channel with no requirement to return to the original manufacturer.
