Emerson A6500-UM Safety-Reliable Vibration Module for Critical Sites

Emerson A6500-UM Safety-Reliable Vibration Module for Critical Control Sites

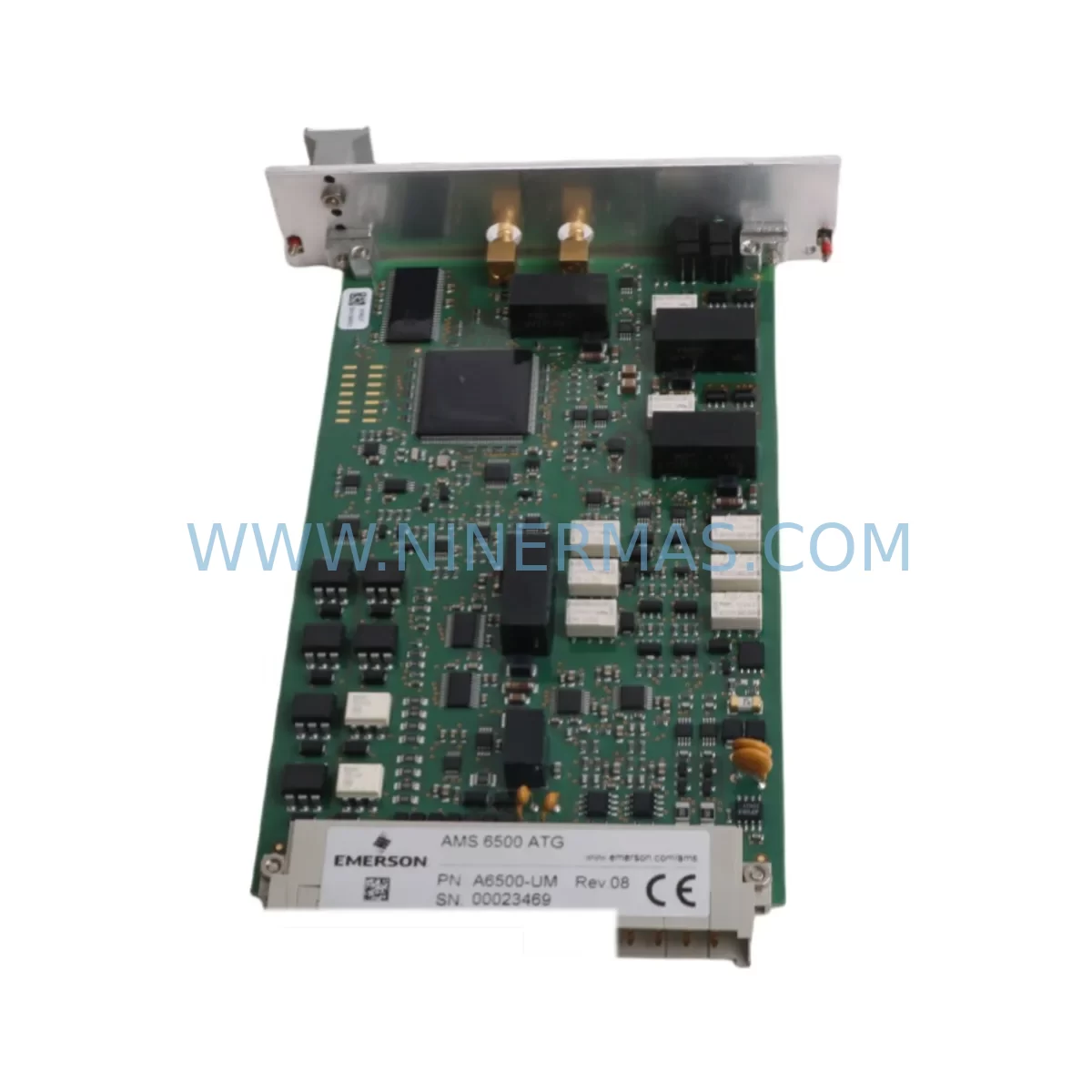

The Emerson AMS 6500 ATG (A6500-UM) is a ruggedized vibration measurement module engineered for the most demanding industrial environments. Designed as a core component of the Emerson AMS 6500 Machinery Health Monitor platform, this module delivers continuous, high-integrity vibration data acquisition for critical rotating equipment — including compressors, turbines, pumps, fans, and gearboxes — where unplanned downtime carries severe operational and safety consequences.

In continuous production facilities such as petrochemical plants, power generation stations, mining operations, and metallurgical complexes, vibration anomalies are among the leading precursors to catastrophic mechanical failure. The A6500-UM addresses this risk head-on by providing real-time, high-resolution vibration signal processing with robust immunity to electrical noise, ground loops, and electromagnetic interference (EMI) — conditions that routinely compromise lesser measurement systems in heavy industrial environments.

Built to operate reliably in high-temperature, high-humidity, dusty, and vibration-prone enclosures, the A6500-UM integrates seamlessly into safety-critical control architectures. Its ruggedized hardware design ensures stable signal acquisition even when installed adjacent to high-power variable frequency drives (VFDs), large motor control centers (MCCs), or high-current bus systems that generate significant electromagnetic disturbance. This makes it an ideal choice for control cabinet installations where signal integrity cannot be compromised.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection and predictive maintenance architecture, the Emerson AMS 6500 ATG (A6500-UM) does not operate in isolation. Its value is amplified when deployed as part of a coordinated system of protective, power, and communication components within the same control cabinet or safety loop.

At the power supply level, a reliable 24VDC regulated power supply — such as the Emerson KJ3221X1-BA1 or equivalent DeltaV-series power module — ensures that the A6500-UM and its associated transducer circuits receive clean, stable power free from voltage sags and transient spikes. Upstream surge protection devices (SPDs) installed on the incoming AC supply further reduce the risk of surge-induced measurement errors or module damage in facilities exposed to lightning or grid switching events.

For transducer signal conditioning, the A6500-UM works in conjunction with Emerson CSI 2130 Machinery Health Analyzer portable units during commissioning and route-based data collection, while the fixed online system provides continuous protection. Eddy-current proximity probe systems — including driver/extension cable assemblies compatible with the Bently Nevada 3300 XL series or Emerson’s own proximity transducer systems — feed shaft displacement signals directly into the A6500-UM’s dynamic input channels, enabling full API 670 machinery protection compliance.

Within the same AMS 6500 ATG chassis, companion modules such as the A6500-TM temperature measurement module and A6500-RM relay output module extend the system’s protective capability to cover bearing temperature exceedances and automatic trip relay actuation. This integrated approach ensures that a single chassis can simultaneously monitor vibration, temperature, and process variables while driving safety interlock outputs — dramatically reducing the number of discrete instruments, wiring complexity, and potential failure points in the control cabinet.

For communication and data integration, the AMS 6500 ATG system connects to plant-level DCS platforms — including Emerson DeltaV distributed control systems — via Modbus TCP/IP or OPC-DA/UA interfaces. This allows vibration alarm states and trend data to be surfaced directly in the operator console, enabling rapid response to developing machinery faults before they escalate to unplanned shutdowns. In facilities running Emerson AMS Suite Machinery Health Manager software, the A6500-UM’s data feeds directly into the predictive maintenance database, supporting long-term trend analysis, bearing fault detection, and maintenance scheduling.

Grounding and shielding discipline is equally critical in high-EMI environments. Proper single-point grounding of transducer cable shields, combined with the use of shielded twisted-pair (STP) signal cables and ferrite core suppressors on VFD output cables, ensures that the A6500-UM’s measurement channels remain free from common-mode noise and ground loop interference — a frequent cause of false alarms and nuisance trips in poorly designed control cabinets.

Critical Industrial Safety Applications

The Emerson AMS 6500 ATG (A6500-UM) is deployed across a wide range of critical industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refining facilities, the A6500-UM protects high-speed centrifugal compressors, reactor feed pumps, and cooling tower fans operating continuously under API 670 machinery protection requirements. Vibration exceedances detected by the module trigger automatic shutdown interlocks before bearing failure can cause seal damage, process fluid release, or fire hazard.

In power generation plants — including coal-fired, gas turbine, and hydroelectric stations — the module monitors turbine-generator shaft vibration, providing early warning of rotor imbalance, misalignment, and bearing wear. This is particularly critical during startup and load-change transients when machinery is most vulnerable to vibration-induced damage.

In mining and mineral processing operations, the A6500-UM is installed on ball mills, SAG mills, conveyor drive gearboxes, and slurry pumps operating in high-dust, high-vibration environments. Its ruggedized design ensures reliable operation even when the control room is located close to blasting zones or heavy crushing equipment.

In water and wastewater treatment facilities, the module monitors large vertical turbine pumps, blower trains, and centrifuge drives — equipment where unexpected failure can disrupt municipal water supply or environmental compliance obligations.

In port and marine applications, including ship-to-shore crane drives and vessel propulsion systems, the A6500-UM’s EMI immunity and wide operating temperature range make it suitable for harsh coastal and offshore environments where salt air, humidity, and diesel generator interference are constant challenges.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Emerson AMS 6500 ATG (A6500-UM)?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified vibration measurement functions within this period due to a manufacturing fault, NINERMAS will arrange replacement or repair at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond specified limits, or unauthorized modification.

Q2: What pre-shipment testing is performed on the A6500-UM before dispatch?
Every A6500-UM unit undergoes a full functional test prior to shipment, including verification of all input channel signal conditioning, output communication integrity, and power consumption within specification. Units that do not pass functional testing are not dispatched. A test report is available upon request for customers with quality assurance requirements.

Q3: Is the A6500-UM compatible with existing AMS 6500 ATG chassis and Emerson DeltaV systems?
Yes. The A6500-UM is designed as a plug-in module for the AMS 6500 ATG chassis and is fully compatible with the AMS 6500 system backplane, power distribution, and communication architecture. It integrates with Emerson DeltaV DCS platforms and AMS Suite Machinery Health Manager software via standard Modbus TCP/IP and OPC interfaces. Compatibility with specific firmware versions should be confirmed against the installed system revision.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the A6500-UM?
NINERMAS maintains dedicated inventory of Emerson AMS 6500 series modules, including the A6500-UM, to support both new project installations and ongoing spare parts programs. We understand that critical infrastructure operators require assured supply continuity — our stock management and supplier relationships are structured to support rapid replacement in the event of module failure, minimizing control system downtime and production risk.
