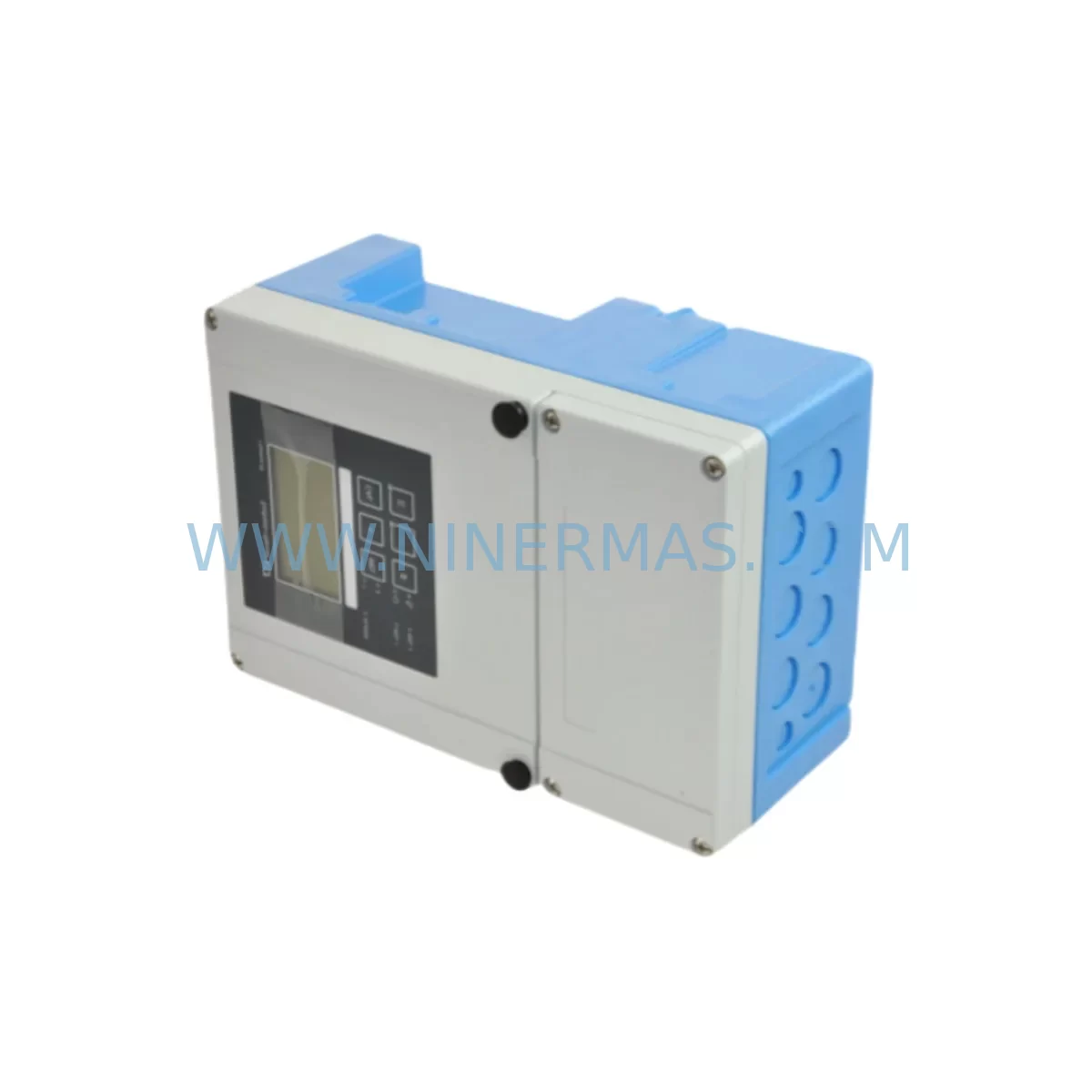

The Endress+Hauser CPM253-MR8010 is a field-proven, retrofit-compatible pH/ORP transmitter from the Liquiline platform, engineered to serve as a direct or near-direct replacement for aging and discontinued analyzer units in water treatment, chemical processing, pharmaceutical manufacturing, and industrial wastewater applications. As legacy Endress+Hauser Mycom and earlier Liquisys series transmitters reach end-of-life, the CPM253-MR8010 provides a reliable upgrade path that preserves existing sensor wiring infrastructure, minimizes panel rework, and reduces overall system downtime during migration.

At NINERMAS, we maintain ready inventory of the CPM253-MR8010 to support urgent retrofit projects, emergency spare part sourcing, and planned system modernization programs. Every unit ships with a 12-month warranty and undergoes pre-shipment functional verification to ensure compatibility with your existing process loop before it arrives on site.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the CPM253-MR8010 into an existing control architecture, engineers must evaluate several interdependent system elements to ensure a smooth transition. The transmitter’s dual-input capability — supporting both legacy analog glass electrodes and modern Memosens CPS11D or CPS71D digital sensors — means that in many cases the existing sensor cable and junction box can be retained, significantly reducing field labor costs.

For sites running a Siemens S7-300 or S7-400 PLC with analog input modules such as the SM 331, the CPM253-MR8010’s 4–20 mA output integrates without any PLC program modification — only the engineering unit scaling in the HMI tag database may require updating. Where the control system has been upgraded to PROFIBUS DP communication, the transmitter’s onboard PROFIBUS interface eliminates the need for a separate signal converter or isolator, reducing panel space requirements and simplifying the I/O count on the PLC rack.

In facilities using Yokogawa CENTUM VP or Honeywell Experion PKS DCS platforms, the HART communication capability of the CPM253-MR8010 allows full device parameterization and diagnostics through the existing HART multiplexer infrastructure, without requiring additional field wiring. Engineers should verify that the DCS HART card — such as a Yokogawa AAI141 or equivalent — is configured for the correct HART polling address before commissioning.

Panel builders and system integrators replacing multiple legacy transmitters in a single control cabinet should also account for the power supply budget. The CPM253-MR8010 draws a maximum of 10 VA at 230 V AC; if the existing Phoenix Contact QUINT or Siemens SITOP 24 V DC power supply is already near capacity due to added I/O modules or communication gateways, a supplementary power rail may be required. Terminal block layouts should be reviewed against the new wiring diagram, and any Weidmüller or Phoenix Contact terminal markers should be updated to reflect the new device designation.

For sites where the HMI is running on Wonderware InTouch or WinCC, the process variable tag linked to the pH loop will need to be verified against the new transmitter’s output range and fault codes. The CPM253-MR8010 uses NAMUR NE 107 diagnostic conventions, which may differ from the alarm codes generated by the legacy Mycom unit — HMI alarm pages should be updated accordingly to avoid nuisance alarms during the initial post-commissioning period.

Downtime Control During System Migration

Minimizing production interruption is the primary concern for any retrofit project involving a critical process measurement point. For pH control loops in continuous processes — such as effluent neutralization, CIP monitoring, or fermentation pH control — even a brief loss of measurement can trigger a process hold or batch rejection.

The recommended approach when replacing a legacy transmitter with the CPM253-MR8010 is to pre-configure the new unit on the bench before the scheduled maintenance window. Using the Endress+Hauser FieldCare or DeviceCare software connected via a Commubox FXA195 HART interface or a Fieldgate FXA42, the technician can pre-load all calibration data, output scaling, alarm setpoints, and HART tag assignments before the unit is installed in the panel. This reduces the live commissioning time to less than 30 minutes in most cases.

Where the process cannot be interrupted, a temporary bypass using a portable pH meter with a flow-through cell can maintain measurement continuity while the panel work is completed. Once the CPM253-MR8010 is wired and powered, a two-point buffer calibration using pH 4.01 and pH 7.00 standard solutions should be performed in-situ before the loop is returned to automatic control. The transmitter’s hold function freezes the 4–20 mA output at the last valid value during calibration, preventing spurious control actions at the PLC or DCS level.

All pre-shipment units from NINERMAS are tested for correct output linearity, alarm relay function, and communication response before dispatch, ensuring that the unit arriving on site is ready for immediate installation without additional bench testing.

Retrofit Support FAQ

Q1: Is the CPM253-MR8010 a direct replacement for the Endress+Hauser CPM153 or Liquisys M CPM223?
The CPM253-MR8010 is functionally compatible with the measurement and output functions of the CPM153 and CPM223 series. The panel cutout dimensions are similar (138×138 mm), but the terminal layout differs. A wiring adapter or terminal relabeling will be required. Sensor compatibility depends on whether the existing sensor is analog or Memosens — both types are supported by the CPM253-MR8010.

Q2: Can the CPM253-MR8010 communicate over Modbus RS485 with my existing SCADA system?
Yes. The CPM253-MR8010 supports Modbus RTU over RS485 as a standard communication option. You will need to configure the device address, baud rate, and parity settings to match your SCADA polling configuration. NINERMAS can provide the Modbus register map upon request to assist with integration.

Q3: What is included with each unit shipped by NINERMAS?
Each CPM253-MR8010 supplied by NINERMAS includes the transmitter unit, terminal cover, mounting hardware, and a copy of the operating manual. All units are covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing is performed on every unit. Calibration certificates and factory test reports are available upon request.

Q4: How quickly can NINERMAS ship the CPM253-MR8010 for an emergency breakdown situation?
NINERMAS maintains stock inventory of the CPM253-MR8010 and can arrange same-day or next-business-day dispatch for urgent orders. Contact our sales team at sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock availability and arrange expedited shipping to your site.
