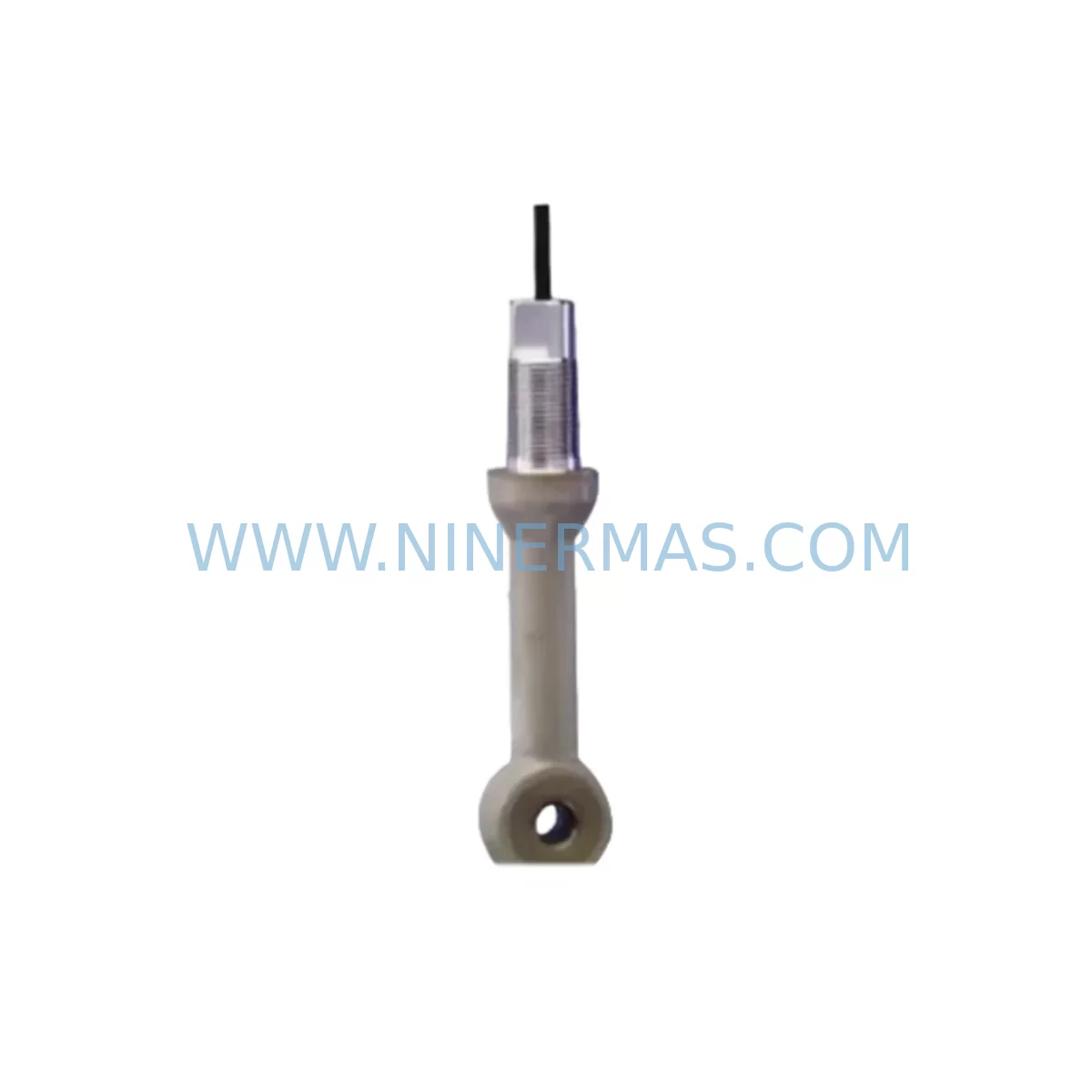

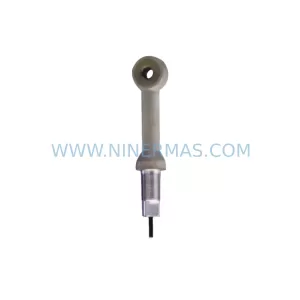

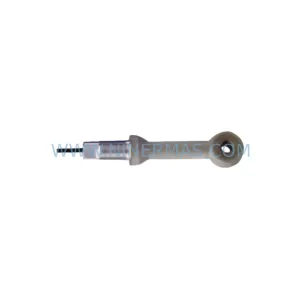

Endress+Hauser CLS50-A1B6 Service-Ready Spare Part

Endress+Hauser CLS50-A1B6 Service-Ready Spare Part for Industrial Maintenance

The Endress+Hauser CLS50-A1B6 is a ruggedized safety optical analyzer designed for demanding industrial liquid detection and phase separation applications. As a critical component in process automation and safety instrumentation systems, the CLS50-A1B6 plays an essential role in continuous monitoring of liquid presence, interface detection, and overfill protection across chemical, pharmaceutical, food & beverage, and water treatment industries. When this unit reaches end-of-life or fails unexpectedly, rapid replacement with a verified service-ready spare is the most effective strategy to minimize unplanned downtime and restore production continuity.

At NINERMAS, we supply the CLS50-A1B6 as a fully tested, original-specification spare part, backed by a 12-month warranty and pre-shipment functional verification. Whether you are managing a scheduled annual overhaul, responding to an emergency shutdown, or building a strategic spare parts inventory for your control room, the CLS50-A1B6 is stocked and ready for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CLS50-A1B6 in the field is rarely an isolated task. Maintenance engineers and procurement teams working on CLS50-series installations should treat this replacement as an opportunity to audit the entire measurement loop and associated safety circuit. A thorough inspection at the time of sensor replacement significantly reduces the risk of repeat failures and secondary shutdowns.

Begin by verifying the condition of the CLS50 transmitter head or associated safety relay — units such as the Endress+Hauser FTL325N or FTL33 safety relay module are commonly paired with CLS50 sensors and should be checked for contact wear, relay response time, and terminal integrity. If the installation uses a Liquiline CM442 or CM444 multichannel transmitter, confirm that the sensor input channel firmware is current and that the sensor recognition handshake completes correctly after replacement.

Inspect all field wiring and cable glands connecting the CLS50-A1B6 to the control cabinet. NAMUR-compliant shielded cables should be checked for insulation damage, moisture ingress, and correct shield grounding at the cabinet end only. Corroded or loose terminals on the DIN rail terminal blocks (such as Phoenix Contact or Weidmüller series) are a frequent source of intermittent faults that mimic sensor failure.

Within the control cabinet, examine the 24 V DC power supply module feeding the NAMUR loop — units from the Endress+Hauser RN series or equivalent SITOP / Puls power supplies should deliver stable voltage within ±1% under load. A degraded power supply can cause false NAMUR fault signals that are misdiagnosed as sensor failure. Alongside the power supply, check the signal isolator or NAMUR input module (e.g., Pepperl+Fuchs KFD2-SR2 or equivalent) for correct threshold settings and output relay status.

For installations integrated into a Siemens S7-300/400 or S7-1500 PLC safety system, verify that the digital input module (SM321 or F-DI equivalent) correctly reads the NAMUR signal state after sensor replacement and that the safety program does not require a manual reset or proof-test acknowledgment before returning to normal operation. Similarly, if the system uses a DCS such as Honeywell Experion or ABB 800xA, confirm that the field device tag is re-commissioned in the asset management layer.

Do not overlook the process connection and sealing elements: replace the O-ring or gasket at the G¾ or NPT¾ fitting during every sensor swap to prevent process fluid ingress. If the installation is in a hygienic or pharmaceutical environment, confirm that the replacement gasket material (EPDM, PTFE, or FKM) meets the process fluid compatibility requirements.

Finally, update your spare parts inventory record to reflect the consumed unit and reorder a buffer stock of at least one CLS50-A1B6 per critical measurement point. For plants with multiple CLS50 installations, a consolidated annual procurement order reduces per-unit cost and ensures long-term supply continuity — particularly important as the CLS50 series approaches mature lifecycle status.

Site Replacement Workflow

Step 1 — Isolation & Safety: Isolate the process connection and de-energize the NAMUR loop at the field junction box or cabinet terminal. Confirm zero-energy state with a calibrated loop tester before disconnecting the sensor.

Step 2 — Removal: Unscrew the CLS50-A1B6 from the process fitting. Inspect the optical window for fouling, cracking, or chemical attack. Document the condition for maintenance records.

Step 3 — Installation: Install the replacement CLS50-A1B6 with a new process seal. Torque the process connection to the manufacturer’s specification. Reconnect field wiring, observing correct polarity for NAMUR output.

Step 4 — Loop Verification: Re-energize the NAMUR loop and confirm the signal state at the safety relay or PLC input module. Perform a wet/dry functional test by exposing the optical window to the process medium and confirming correct output switching.

Step 5 — System Reset & Documentation: Reset any latched alarms in the DCS/PLC safety program. Update the maintenance log with the replacement date, new serial number, and test results. Schedule the next inspection interval based on the process fluid’s fouling tendency.

This workflow is compatible with IEC 61511 functional safety management requirements and supports SIL-rated proof-test documentation for safety instrumented systems.

Spare Parts Support FAQ

Q1: Is the CLS50-A1B6 still available as a new original spare, or only as a refurbished unit?
NINERMAS supplies the CLS50-A1B6 as a new, original-specification spare part sourced through authorized industrial distribution channels. Each unit undergoes pre-shipment functional testing and is shipped with a 12-month warranty covering manufacturing defects and performance deviations from the published datasheet.

Q2: How do I confirm compatibility between the CLS50-A1B6 and my existing transmitter or safety relay?
The CLS50-A1B6 is compatible with all standard CLS50-series transmitter heads and NAMUR-input safety relays. If your installation uses a Liquiline CM442/CM444 multichannel transmitter or an FTL-series safety relay, compatibility is confirmed by the NAMUR NE 43 output standard. For non-standard configurations, share your existing wiring diagram or transmitter model with our technical team at sale@ninermas.com for pre-purchase verification.

Q3: What is the recommended spare parts holding strategy for CLS50-A1B6 in a multi-point installation?
For plants with 3 or more CLS50-A1B6 measurement points, we recommend maintaining a minimum buffer of 1–2 units on-site. For critical safety loops (SIL-rated applications), a dedicated on-site spare is strongly advised to meet proof-test and emergency replacement requirements without relying on lead time. NINERMAS offers volume pricing for consolidated annual procurement orders to support long-term inventory planning.

Q4: What pre-shipment checks does NINERMAS perform on the CLS50-A1B6 before dispatch?
Every CLS50-A1B6 unit is inspected for physical integrity (optical window, process connection, cable entry), energized to verify NAMUR output switching in both wet and dry simulation states, and checked against the original Endress+Hauser datasheet parameters before packaging. Units that do not pass functional verification are not shipped. A test report is available upon request for quality-critical procurement processes.
