Bently Nevada 330878-51-05 Service-Ready Spare Part

Bently Nevada 330878-51-05 Service-Ready Spare Part for Industrial Maintenance

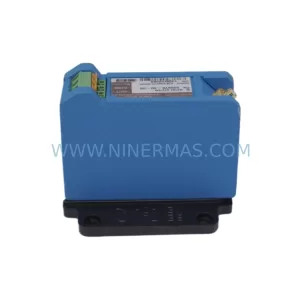

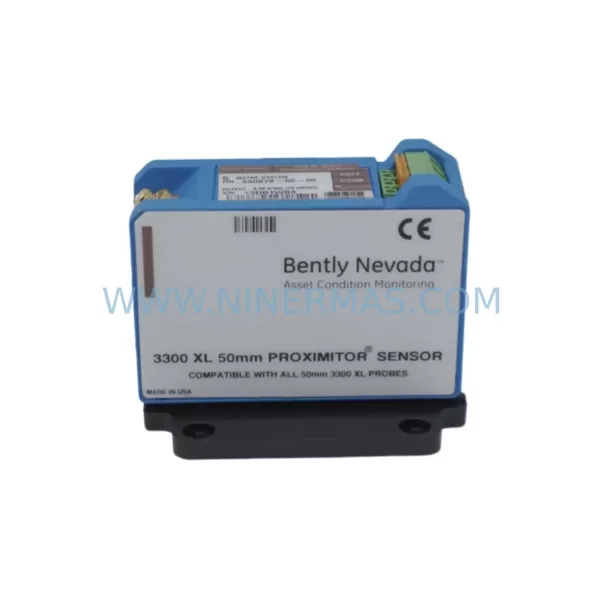

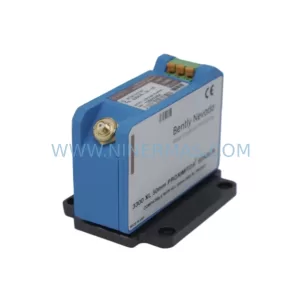

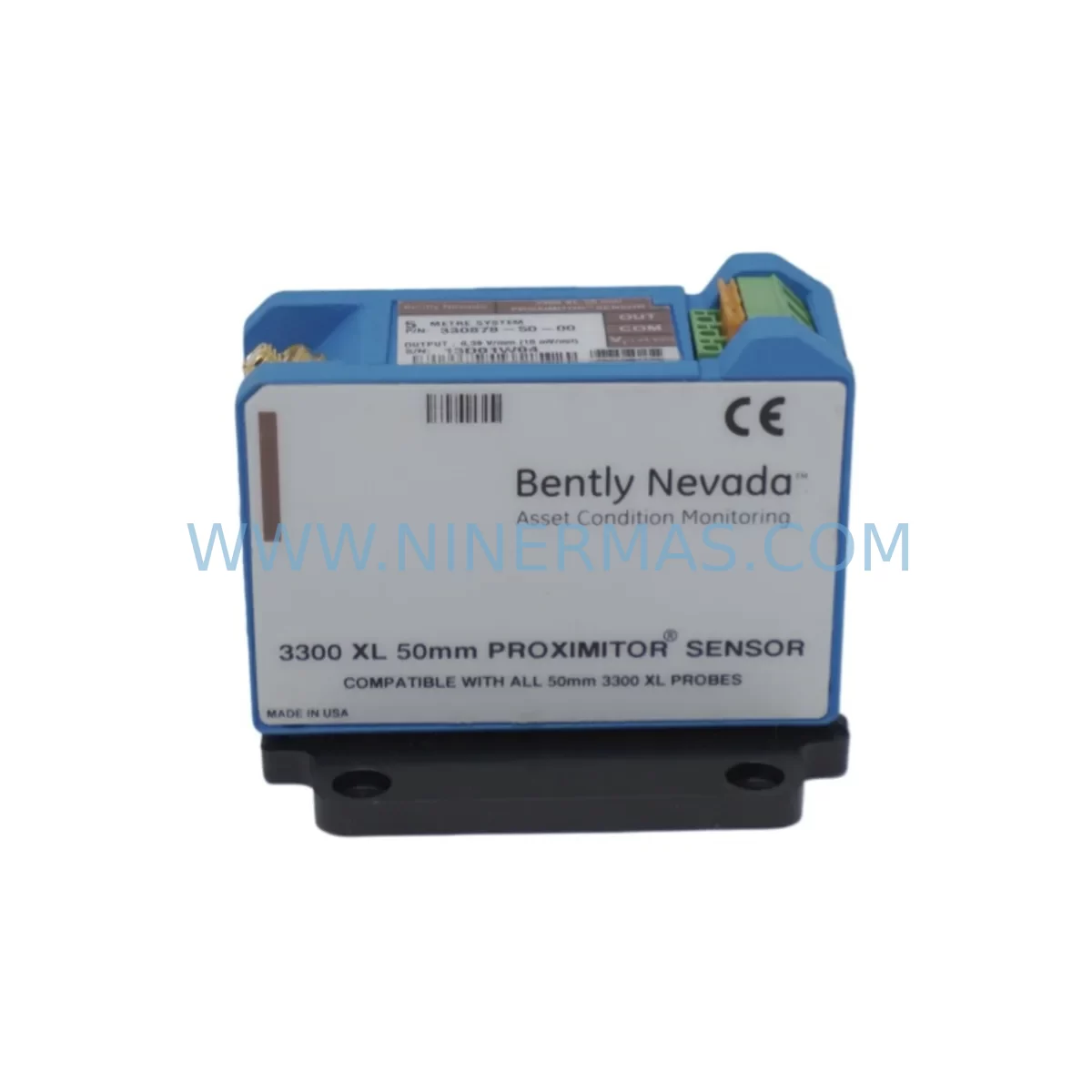

The Bently Nevada 330878-51-05 is a precision Proximitor Sensor engineered for the 3300 NSv Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment environments worldwide. For maintenance engineers managing turbines, compressors, pumps, and motors in continuous-process industries, this sensor is a critical front-line component in any predictive maintenance or condition monitoring program. Sourced as an original service-ready spare, the 330878-51-05 is tested, inspected, and shipped with a 12-month warranty to support your uptime objectives and spare parts inventory strategy.

When a Proximitor Sensor fails or degrades, the consequences extend well beyond a single instrument. Vibration data loss can trigger protective shutdowns, mask developing faults, or leave rotating machinery running unprotected — all of which carry significant operational and safety risk. Stocking the 330878-51-05 as a ready-to-install spare eliminates the lead time risk associated with emergency procurement and allows maintenance teams to execute planned replacements during scheduled outages rather than reactive repairs during unplanned downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330878-51-05 Proximitor Sensor is rarely an isolated task. In a well-structured maintenance plan, sensor replacement is the trigger for a broader inspection of the surrounding measurement chain and control cabinet. Maintenance engineers should simultaneously verify the condition of the 330130-080-01-00 extension cable connecting the sensor to the proximitor, as cable degradation is a common source of signal noise and false trips that are often misattributed to the sensor itself.

The proximitor output feeds directly into the 3500/40M Proximitor/Seismic Monitor or equivalent 3500 Series I/O module. During any sensor replacement, it is best practice to inspect the monitor card for signs of moisture ingress, connector corrosion, or firmware version mismatches that could affect alarm setpoint calibration. If the system uses a 3500/20 Rack Interface Module, confirm that the rack backplane connections are secure and that the communication bus is operating without fault flags.

For installations integrated into a DCS or safety instrumented system, the 4–20 mA retransmission output from the monitor should be verified at the marshalling cabinet terminal blocks and traced through any signal isolators or galvanic isolators in the loop. Signal isolators are frequently overlooked during sensor replacements but are a common point of loop resistance drift that can shift the effective measurement range.

Where the 3300 NSv system interfaces with a Bently Nevada 3500 System 1 Evolution software platform or a third-party historian, confirm that the channel tag mapping and engineering unit scaling remain intact after the replacement. Any change in sensor sensitivity or gap distance will require recalibration of the software alarm thresholds.

Procurement engineers building annual spare parts lists for rotating equipment protection systems should consider stocking complementary components alongside the 330878-51-05, including 3300 XL 8mm proximity probes, 330130 series extension cables, 3500/42M Velocity/Acceleration Monitor modules, and 3500/22M Transient Data Interface cards. For facilities operating older 3300 Series racks, 3300/16 power supply modules and 3300/55 keyphasor modules are high-priority spares given their age and the risk of obsolescence-driven lead time extension.

Control cabinet inspections conducted during sensor replacement should also include a check of 24 VDC power supply output stability, terminal block torque values, and the condition of any surge protection devices on the sensor input circuits. Transient voltage events in industrial environments are a leading cause of premature sensor failure and are preventable with properly rated protection components.

Site Replacement Workflow

The 330878-51-05 is a direct service replacement for the standard 3300 NSv Proximitor Sensor configuration. Before beginning the replacement, confirm the existing sensor’s gap voltage reading and record the baseline vibration amplitude and DC gap values from the monitor display or DCS historian. This baseline is essential for post-installation verification and for confirming that the new sensor is installed at the correct mechanical gap distance.

Disconnect the extension cable from the existing sensor and remove the sensor from the mounting bracket. Inspect the probe tip and the target surface for wear, scoring, or contamination. Install the 330878-51-05 and set the mechanical gap according to the system documentation — typically 1.0 mm (40 mil) for standard 8mm probe configurations, verified by achieving the nominal -10 VDC to -12 VDC gap voltage output.

Reconnect the extension cable and power the proximitor. Verify the gap voltage at the monitor input, confirm the vibration channel is reading within expected baseline range, and clear any latched alarms in the 3500 rack before returning the machine to service. Document the replacement in the maintenance management system with the new sensor serial number, installation date, and post-installation gap voltage reading.

For facilities managing legacy 3300 Series installations where original replacement parts are increasingly difficult to source, the 330878-51-05 provides a compatible, tested alternative that maintains system integrity without requiring rack modifications or software reconfiguration. This makes it a cost-effective strategy for extending the operational life of existing machinery protection infrastructure while a longer-term migration to a newer platform is planned.

Spare Parts Support FAQ

Q: Is the 330878-51-05 compatible with both 3300 and 3500 Series monitoring systems?
A: The 330878-51-05 is designed for the 3300 NSv Series. Compatibility with 3500 Series monitor inputs depends on the specific I/O module configuration. We recommend confirming the monitor card part number and input channel specification before installation. Our technical team can assist with compatibility verification prior to shipment.

Q: How is the unit tested before shipment?
A: Each 330878-51-05 unit undergoes functional testing to verify output signal linearity, supply current draw, and connector integrity before dispatch. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q: What is your lead time and long-term supply capability for this part?
A: Stock units are typically dispatched within 1–3 business days. For procurement engineers requiring scheduled deliveries or blanket purchase orders to support annual maintenance plans, we offer long-term supply agreements. Contact our sales team to discuss volume pricing and reserved stock arrangements.

Q: Can this part replace an older or discontinued Bently Nevada sensor model?
A: In many cases, yes. The 330878-51-05 can serve as a functional replacement for earlier 3300 Series sensor variants where the mechanical mounting, cable connector, and output signal specifications are compatible. We recommend providing your existing part number and system documentation so our engineers can confirm interchangeability before you commit to a purchase.
