ProvibTech TM0182-A50-B01-C00 Service-Ready Spare Part

ProvibTech TM0182-A50-B01-C00 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

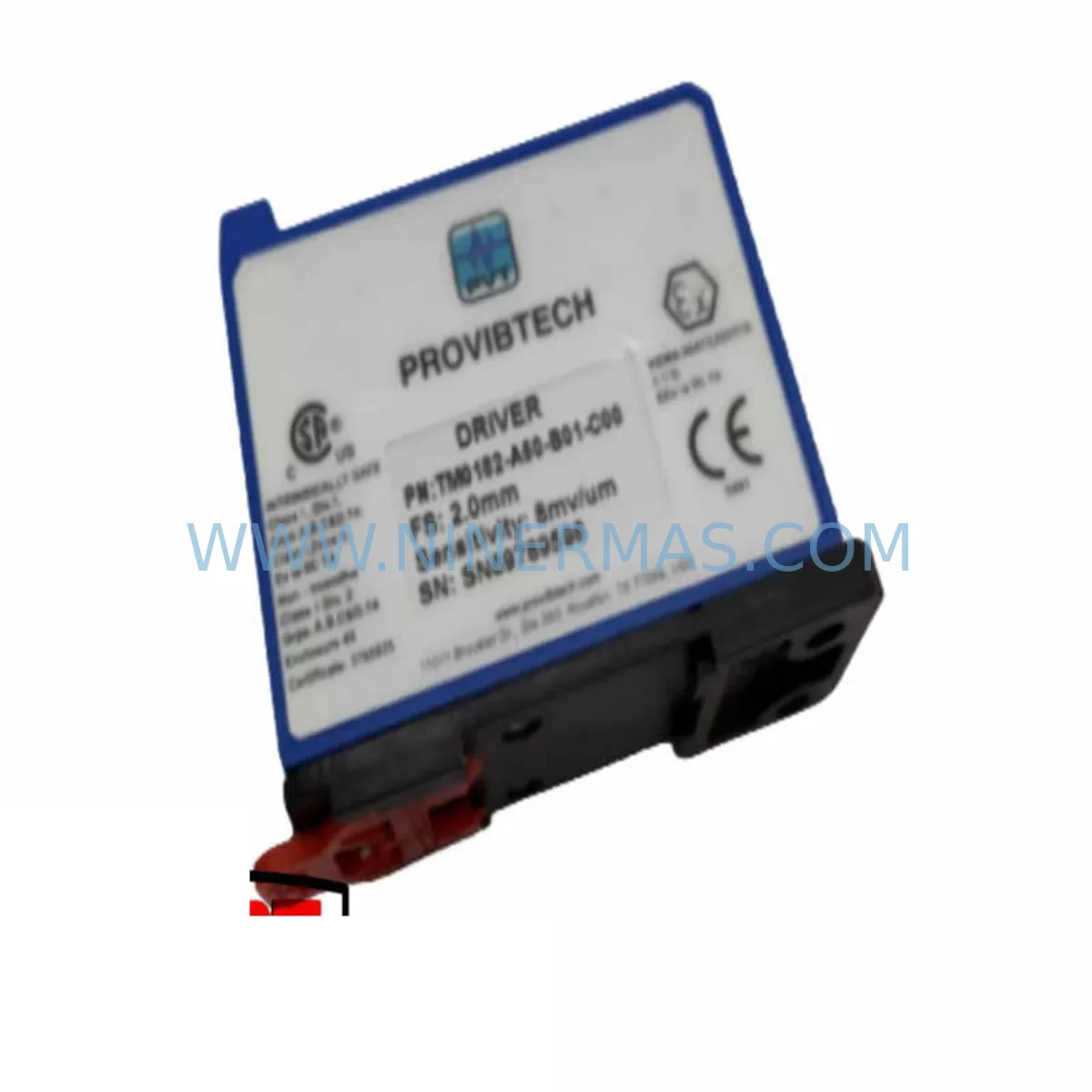

The ProvibTech TM0182-A50-B01-C00 is a ruggedized transducer driver module engineered for continuous-duty vibration monitoring and machinery protection applications in industrial environments. As a critical interface between field-mounted accelerometers or proximity probes and the signal conditioning chain, the TM0182-A50-B01-C00 plays a central role in maintaining real-time machinery health data across rotating equipment, turbines, compressors, pumps, and motor-driven production lines.

At NINERMAS, we supply the TM0182-A50-B01-C00 as a service-ready spare part — tested, verified, and dispatched with a 12-month warranty to support emergency replacement, planned maintenance, and long-term spare parts inventory programs for maintenance engineers and procurement teams worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing rotating equipment reliability programs, the TM0182-A50-B01-C00 is rarely a standalone replacement. In practice, a fault or degradation in the transducer driver module is often accompanied by — or can trigger — related failures across the signal chain and control cabinet. A structured replacement workflow should include inspection and, where appropriate, proactive replacement of the following associated components:

Power Supply & Distribution: The TM0182-A50-B01-C00 operates on a 24 VDC rail shared with other ProvibTech TM series modules. During a replacement event, inspect the ProvibTech PS series 24 VDC DIN rail power supply for output ripple and voltage stability. A degraded power supply is a common root cause of intermittent transducer driver faults. Inline fuse holders and miniature circuit breakers on the 24 V rail should also be checked and replaced if showing signs of thermal stress.

Sensor Interface & Field Wiring: The transducer driver interfaces directly with field-mounted sensors. Inspect eddy-current proximity probe extension cables (TM series compatible) and armored accelerometer cables for insulation breakdown, connector corrosion, or mechanical damage — particularly in high-vibration zones near bearing housings. Faulty cabling is frequently misdiagnosed as a module failure.

Signal Conditioning & Isolation: Downstream of the TM0182-A50-B01-C00, verify the integrity of any signal isolators or galvanic isolation barriers in the monitoring loop. In mixed-voltage control cabinets, DIN rail signal conditioners protecting the analog input cards of the DCS or PLC should be tested for drift and replaced on a scheduled basis alongside the transducer driver.

I/O Modules & Monitoring Rack: The conditioned output from the TM0182-A50-B01-C00 feeds into the machinery protection rack or PLC analog input module. During a planned outage, inspect the ProvibTech TM series monitoring rack backplane and associated analog input I/O cards for contact oxidation and firmware currency. Rack-level terminal blocks and DIN rail connectors should be torque-checked and cleaned.

Communication & HMI Layer: If the machinery protection system integrates with a plant DCS or SCADA via Modbus RTU, PROFIBUS, or 4–20 mA analog loops, verify that the communication module and HMI display are receiving valid engineering-unit data after the TM0182-A50-B01-C00 replacement. A ProvibTech TM series communication gateway or relay output module in the same rack should be functionally tested before returning the machine to service.

Relay & Trip Output Circuits: The machinery protection system driven by the TM0182-A50-B01-C00 typically feeds vibration trip relays and alarm relays. Inspect relay contacts for wear and verify trip setpoints have not drifted. Replace any relay showing contact resistance above specification to prevent nuisance trips or missed alarms after the module swap.

Maintaining a minimum of two spare TM0182-A50-B01-C00 units per critical machine train — alongside spares for the associated power supply, sensor cables, and relay output modules — is recommended practice for facilities operating under continuous production schedules with limited planned downtime windows.

Site Replacement Workflow

The TM0182-A50-B01-C00 is designed as a field-replaceable module, enabling maintenance teams to restore machinery protection functionality with minimal downtime. The following workflow is recommended for site replacement:

1. Pre-Replacement Verification: Confirm the replacement TM0182-A50-B01-C00 part number and hardware revision against the installed unit. Cross-reference with the ProvibTech TM series system documentation to verify compatibility with the existing sensor type (proximity probe vs. accelerometer), cable length, and monitoring rack slot assignment. NINERMAS supplies units with pre-shipment functional testing documentation to support this step.

2. Safe Isolation: De-energize the 24 VDC supply rail feeding the module. Follow site LOTO (Lockout/Tagout) procedures. Do not rely solely on software inhibit — physically isolate the power circuit at the miniature circuit breaker or fuse holder on the DIN rail.

3. Module Removal & Inspection: Remove the faulty TM0182-A50-B01-C00 and inspect the mounting slot, terminal block connections, and backplane connector for corrosion, arc marks, or mechanical damage. Clean the slot before installing the replacement unit. Retain the faulty module for failure analysis if required by your maintenance management system.

4. Installation & Wiring: Install the replacement module, reconnect field wiring per the original termination schedule, and verify cable shield grounding continuity. Torque all terminal screws to specification.

5. Functional Test & Return to Service: Re-energize the 24 VDC rail and verify the module powers up correctly. Apply a known reference signal or use the ProvibTech calibration tool to confirm output signal accuracy. Check alarm and trip relay outputs before releasing the machine to production. Document the replacement in your CMMS with the new module serial number and NINERMAS warranty reference.

This structured approach eliminates the most common causes of repeat failures after module replacement and ensures the machinery protection system is fully operational before the machine is returned to load.

Spare Parts Support FAQ

Q1: Is the TM0182-A50-B01-C00 compatible with all ProvibTech TM series monitoring racks?
The TM0182-A50-B01-C00 is designed for the ProvibTech TM series platform. Compatibility depends on the specific rack model, slot type, and sensor input configuration (proximity probe vs. accelerometer). NINERMAS recommends providing your existing rack model number and system documentation when ordering to allow our technical team to confirm compatibility before dispatch. We supply units with pre-shipment functional testing to reduce on-site verification time.

Q2: What is the lead time and how is the unit tested before shipment?
NINERMAS maintains stock of the TM0182-A50-B01-C00 for fast dispatch to support emergency replacement and planned maintenance schedules. Each unit undergoes functional testing prior to shipment. A test report is available upon request. For critical applications, we recommend ordering a minimum of two units to maintain an on-site spare inventory and avoid repeat procurement delays during future maintenance events.

Q3: Can the TM0182-A50-B01-C00 replace older or discontinued ProvibTech transducer driver variants?
In many cases, the TM0182-A50-B01-C00 can serve as a direct or compatible replacement for earlier ProvibTech TM series transducer driver modules, subject to hardware revision and firmware compatibility verification. NINERMAS technical support can assist with cross-reference validation. For legacy systems where the original part number is no longer available, we can advise on compatible alternatives within the ProvibTech TM series range.

Q4: What does the 12-month warranty cover and how is it supported?
All TM0182-A50-B01-C00 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported directly by NINERMAS. In the event of a warranty claim, contact our technical team with the unit serial number, purchase reference, and a description of the failure. We prioritize rapid replacement dispatch to minimize production impact for warranty cases.
