Bently Nevada 330851-02-000-030-50-01-00 Spare Part

Bently Nevada 330851-02-000-030-50-01-00 Service-Ready Spare Part for Industrial Maintenance

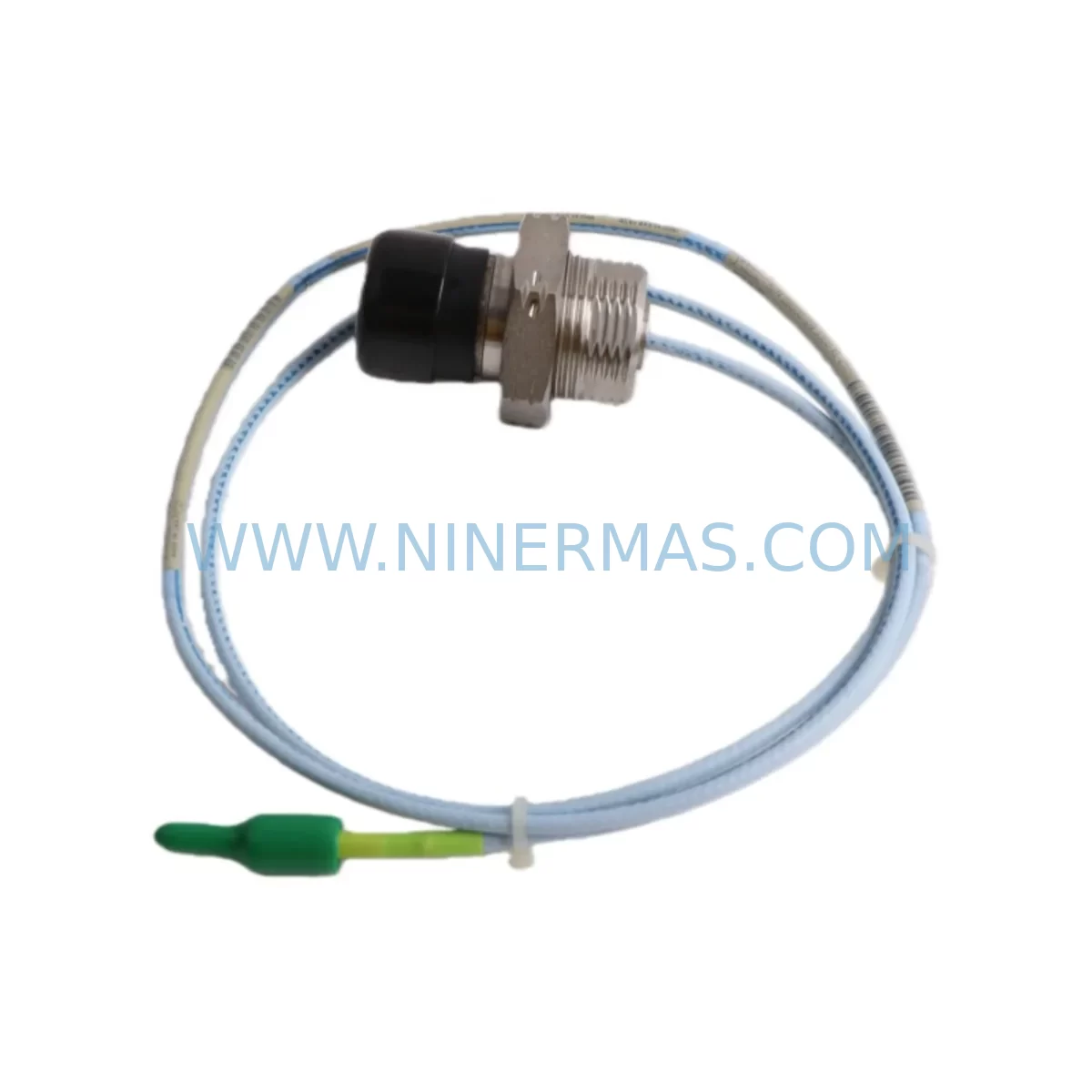

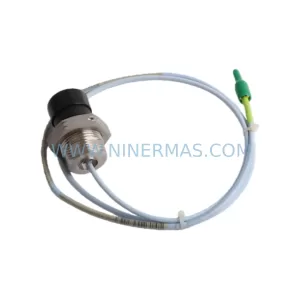

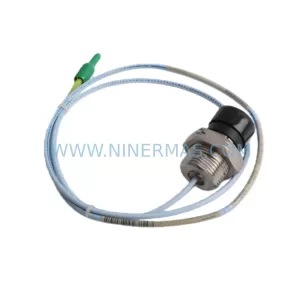

When a rotating machinery monitoring system goes offline, every minute of unplanned downtime translates directly into production loss and safety risk. The Bently Nevada 330851-02-000-030-50-01-00 is a precision-engineered extension cable designed for the 3300 XL Series proximity probe system — one of the most widely deployed vibration and position monitoring platforms in continuous process industries worldwide. Sourced, inspected, and dispatched by NINERMAS, this spare part is held in ready stock to support maintenance engineers who cannot afford to wait weeks for OEM lead times.

The 330851-02-000-030-50-01-00 serves as the critical signal transmission link between the proximity probe tip and the Bently Nevada 3300 XL proximitor/driver module. Its role in the measurement chain is deceptively simple but operationally vital: any degradation in cable integrity — whether from insulation breakdown, connector corrosion, mechanical fatigue, or EMI ingress — will directly corrupt the gap voltage signal, triggering false alarms, masking real vibration events, or causing the monitoring system to drop channels entirely. Replacing this cable with a verified OEM-specification spare is the fastest and most reliable path to restoring system integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance engineers know that replacing the 330851-02-000-030-50-01-00 extension cable in isolation is rarely sufficient for a thorough corrective maintenance event. The 3300 XL proximity probe measurement chain is a tightly coupled system, and any one degraded component can mask or mimic faults in adjacent components. A disciplined maintenance approach requires inspecting the entire signal path and associated infrastructure simultaneously.

Begin at the probe tip itself. The Bently Nevada 330730-50-00-05-02-00 or equivalent 3300 XL 8mm proximity probe should be checked for tip damage, thread condition, and gap setting. If the probe has been in service for more than three years in a high-temperature or chemically aggressive environment, proactive replacement alongside the extension cable is strongly recommended. Moving along the signal chain, the 3300 XL Proximitor Sensor (driver module, typically mounted in the junction box or monitor rack) should be verified for correct output voltage range — typically -18 VDC gap voltage at calibrated gap — and inspected for moisture ingress or terminal corrosion.

Within the control cabinet or monitor rack, the Bently Nevada 3500/42M or 3500/40M proximity monitor card should be confirmed as seated correctly in the 3500 Series rack backplane, with no bent pins or oxidized edge connectors. The 3500 Series rack power supply module — commonly the 3500/15 or 3500/05 — should be load-tested to confirm stable output, as power supply ripple is a known source of false gap voltage drift that is frequently misdiagnosed as a cable fault. Terminal blocks and field wiring within the junction box, including any Bently Nevada 330130 series interconnect cables, should be torque-checked and inspected for insulation damage.

For sites operating in high electromagnetic interference environments — common in variable frequency drive (VFD) installations, large motor control centers, or near high-voltage switchgear — additional signal isolation may be warranted. Industrial signal isolators or galvanic isolators installed between the proximitor output and the monitor card input can significantly reduce common-mode noise pickup. Similarly, surge protection devices on field cable entries protect the sensitive proximitor electronics from transient overvoltage events caused by nearby switching operations or lightning.

Maintenance planners should also review the condition of the 3500 Series communication gateway module (such as the 3500/92 or 3500/93) if the monitoring system is integrated into a plant DCS or historian via Modbus or Ethernet/IP. Communication faults at the gateway level can cause the control room to lose visibility of vibration data even when the field measurement chain is fully functional — a scenario that creates dangerous blind spots during startup and load changes.

Finally, ensure that the replacement 330851-02-000-030-50-01-00 cable is routed away from high-voltage power cables and secured with appropriate cable clamps to prevent mechanical fatigue at the connectors. All NINERMAS-supplied Bently Nevada spare parts are individually inspected and function-tested prior to dispatch, and each unit ships with a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions.

Site Replacement Workflow

Replacing the 330851-02-000-030-50-01-00 on a live rotating machinery train requires coordination between the maintenance team and the control room to ensure that monitor bypass or inhibit functions are correctly applied before the measurement channel is broken. Failure to inhibit the channel prior to disconnecting the extension cable will generate a false not-OK alarm and may trigger an automatic shutdown interlock if the monitoring system is wired into the plant safety logic.

The recommended replacement sequence is as follows: First, confirm with the control room that the relevant channel on the 3500 monitor card is inhibited or bypassed. Second, document the existing gap voltage reading and probe gap measurement before disconnection — this baseline is essential for verifying correct reinstallation. Third, disconnect the old 330851-02-000-030-50-01-00 at both the probe end and the proximitor end, inspecting both connectors for corrosion, thread damage, or contamination. Fourth, install the new NINERMAS-supplied cable, ensuring connectors are fully seated and hand-tightened to the correct torque. Fifth, restore power to the proximitor and verify gap voltage is within the acceptable range. Sixth, confirm the monitor card is reading correctly and remove the channel inhibit. Finally, document the completed replacement in the site CMMS with the new part serial number and installation date.

This structured approach minimizes the risk of introducing new faults during the replacement process and ensures that the restored measurement channel is fully verified before the machinery is returned to service. NINERMAS maintains ongoing stock of the 330851-02-000-030-50-01-00 and related 3300 XL Series components to support both planned annual shutdowns and emergency corrective maintenance events.

Spare Parts Support FAQ

Q1: What warranty does NINERMAS provide for the 330851-02-000-030-50-01-00?
All NINERMAS-supplied Bently Nevada spare parts, including the 330851-02-000-030-50-01-00, are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and premature failure under normal operating and installation conditions. Warranty claims are supported directly by NINERMAS with replacement dispatch or credit, subject to failure analysis confirmation.

Q2: How is the 330851-02-000-030-50-01-00 tested before shipment?
Each unit undergoes visual inspection for connector integrity, cable jacket condition, and labeling accuracy before dispatch. Electrical continuity and insulation resistance checks are performed to confirm the cable meets OEM specification. NINERMAS does not ship untested or uninspected spare parts.

Q3: Is the 330851-02-000-030-50-01-00 compatible with all 3300 XL proximity probe systems?
The 330851-02-000-030-50-01-00 is designed for use within the Bently Nevada 3300 XL proximity probe measurement chain. Compatibility depends on the specific probe model, proximitor type, and cable length requirements at your installation. NINERMAS technical support can assist with cross-referencing your existing system configuration to confirm suitability before purchase.

Q4: Can NINERMAS support long-term or blanket purchase agreements for this part?
Yes. NINERMAS supports long-term supply agreements for maintenance-critical spare parts including the 330851-02-000-030-50-01-00. For sites with multiple monitoring trains or annual shutdown schedules, we can arrange reserved stock, scheduled delivery, and consolidated invoicing to simplify procurement and reduce the risk of stockout during critical maintenance windows. Contact our team to discuss your site requirements.
