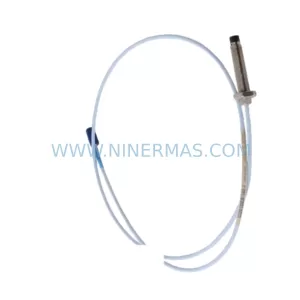

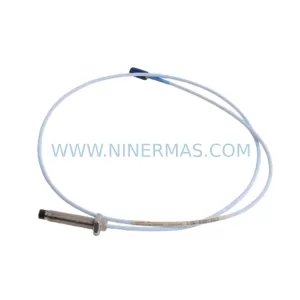

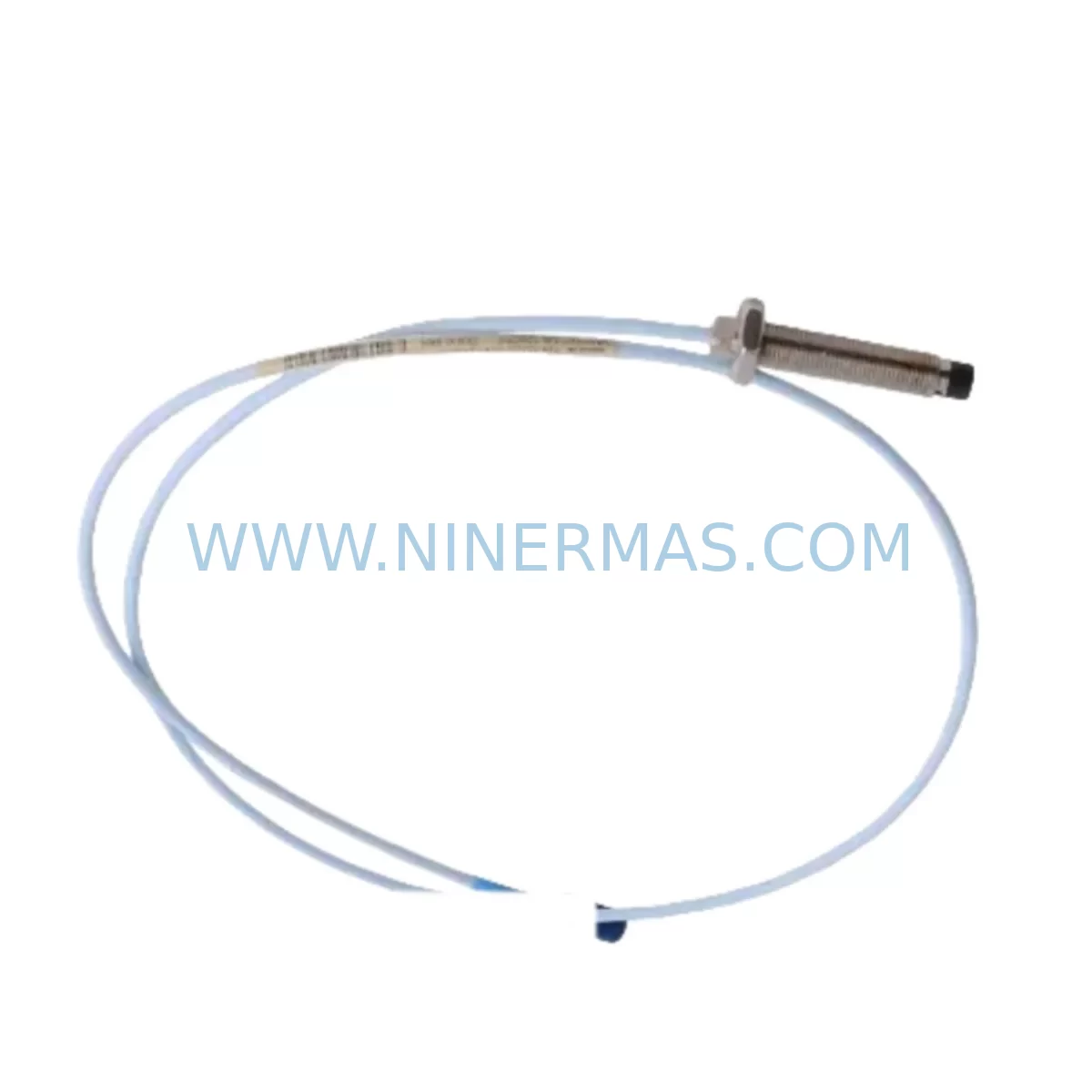

The Bently Nevada 330102-04-56-10-02-00 is a service-ready spare part designed for the 3300 XL 5mm Proximity Probe Series — one of the most widely deployed non-contact vibration measurement systems in rotating machinery protection and condition monitoring applications. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process industries, keeping a verified replacement of this probe on the shelf is a fundamental risk-reduction strategy. Unplanned downtime caused by a failed proximity probe can cascade into hours of lost production; having a pre-tested, original-specification spare eliminates that exposure entirely.

At NINERMAS, every unit of the 330102-04-56-10-02-00 is sourced from authorized supply channels, inspected against Bently Nevada’s original electrical and mechanical specifications, and dispatched with full test documentation. Our 12-month warranty covers the complete assembly, giving procurement engineers the confidence to stock this part without concern over shelf-life risk or quality degradation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330102-04-56-10-02-00 in the field is rarely an isolated task. Experienced maintenance engineers know that a proximity probe failure is often a symptom of broader issues within the vibration monitoring loop, and a disciplined replacement workflow demands a systematic check of every connected component before the machine is returned to service.

Begin with the 3300 XL Extension Cable (typically from the 330130 series). The integral cable on the probe connects to the extension cable at the field junction, and this connector is a common ingress point for moisture, vibration fatigue, and corrosion — particularly in outdoor or wash-down environments. Inspect the connector body, the cable jacket, and the strain relief before reinstalling. A degraded extension cable will corrupt the gap voltage output even with a brand-new probe installed.

Next, verify the 3300 XL Proximitor Sensor (330180 series or equivalent). The Proximitor converts the probe’s oscillator signal into a DC voltage proportional to gap distance. If the Proximitor has been exposed to supply voltage transients or reverse polarity events — common during panel maintenance — its internal circuitry may be damaged in ways that are not immediately visible. A static gap voltage check with a calibrated target at the nominal gap is the fastest way to confirm Proximitor health before closing the loop.

Check the –24 VDC power supply feeding the Proximitor. Bently Nevada 3300 series systems are sensitive to supply ripple and voltage sag; a power supply operating near its rated load or with aging filter capacitors can introduce noise that mimics real vibration signals. If the plant uses a dedicated 3300 rack power supply module, this is the right time to verify its output voltage and ripple under load.

Inspect the signal wiring and terminal blocks between the Proximitor output and the 3300 rack I/O module. Loose terminations, oxidized contacts, or incorrect shielding grounding are frequent sources of spurious alarms after a probe replacement. Tighten all terminals, verify shield continuity, and confirm that the shield is grounded at one end only — typically at the rack end.

If the machine is monitored by a 3300/16 or 3500 series rack, pull the relevant I/O module and inspect the backplane connector for fretting corrosion, especially in high-vibration environments. A corroded backplane connection can introduce intermittent signal loss that is difficult to distinguish from a genuine probe fault. While the rack is open, check the 3500/22M Transient Data Interface or equivalent communication module for firmware currency and alarm setpoint integrity.

For plants running System 1 condition monitoring software, confirm that the new probe’s gap voltage and sensitivity constants are correctly entered in the channel configuration. An incorrect sensitivity factor will cause the system to report inaccurate vibration amplitudes, potentially masking real machinery faults or generating nuisance trips.

Finally, review the relay output module associated with the vibration channel. Relay contacts that have been cycling through repeated alarm events may show increased contact resistance; a simple continuity check with the relay energized and de-energized will confirm serviceability. If the plant uses signal isolators or barriers between the 3300 rack and the DCS or safety system, verify that their input impedance is within the Proximitor’s specified load range — an out-of-range load will shift the gap voltage calibration and affect alarm accuracy.

Site Replacement Workflow

The 330102-04-56-10-02-00 is a direct replacement for earlier Bently Nevada 5mm proximity probes used in the 3300 XL system, including legacy part numbers that may appear on older maintenance records or OEM documentation. Before installation, confirm the replacement probe’s integral cable length matches the routing distance to the field junction box — the SKU suffix encodes this dimension, and selecting the wrong cable length forces field splicing that compromises signal integrity.

Follow this sequence to minimize downtime. First, de-energize the Proximitor supply and confirm zero voltage at the probe connector before disconnecting. Remove the old probe by unscrewing the locknut and withdrawing the probe body from the bracket; note the gap setting (typically 1.0–1.5 mm for most rotating machinery applications) using a feeler gauge or the recorded gap voltage from the last calibration record. Install the new 330102-04-56-10-02-00, set the gap to the recorded value, and tighten the locknut to the specified torque. Reconnect the extension cable, restore Proximitor power, and verify the gap voltage output against the expected value (approximately –10.5 VDC at 1.27 mm gap for a –200 mV/mil system). Confirm the reading in the rack display or System 1 before releasing the machine to operations.

This workflow is compatible with both hot-standby and single-channel monitoring configurations. For dual-probe installations (X–Y vibration measurement), replace both probes simultaneously if one has failed — probe-to-probe sensitivity matching is critical for accurate orbit plots, and a mismatched pair will degrade diagnostic quality even if both channels are within individual alarm limits.

Spare Parts Support FAQ

Q1: Is the 330102-04-56-10-02-00 compatible with both the 3300 and 3500 series monitoring racks?
Yes. The 3300 XL 5mm Proximity Probe is electrically compatible with any Bently Nevada rack that accepts a –200 mV/mil, –24 VDC eddy-current probe input, including the 3300/16 and 3500 series. Always verify the channel configuration in the rack software to ensure sensitivity and gap voltage setpoints match the probe specification.

Q2: What is your recommended inventory strategy for this part?
For critical rotating machinery (turbines, compressors, main pumps), we recommend holding a minimum of two units per monitored machine in your on-site spare parts store. For facilities with multiple identical machines, a pooled inventory of four to six units typically provides adequate coverage for both planned annual overhauls and unplanned emergency replacements without excessive carrying cost.

Q3: How do you verify the part before shipment, and what does the 12-month warranty cover?
Every 330102-04-56-10-02-00 unit is electrically tested against Bently Nevada’s original specification — including gap voltage linearity, sensitivity, and cable continuity — before dispatch. The 12-month warranty covers manufacturing defects and out-of-specification performance under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports long-term supply agreements, blanket POs, and scheduled delivery programs for the 330102-04-56-10-02-00 and related 3300 XL series components. Contact our technical sales team to discuss pricing, lead times, and consignment stocking options tailored to your maintenance cycle.
