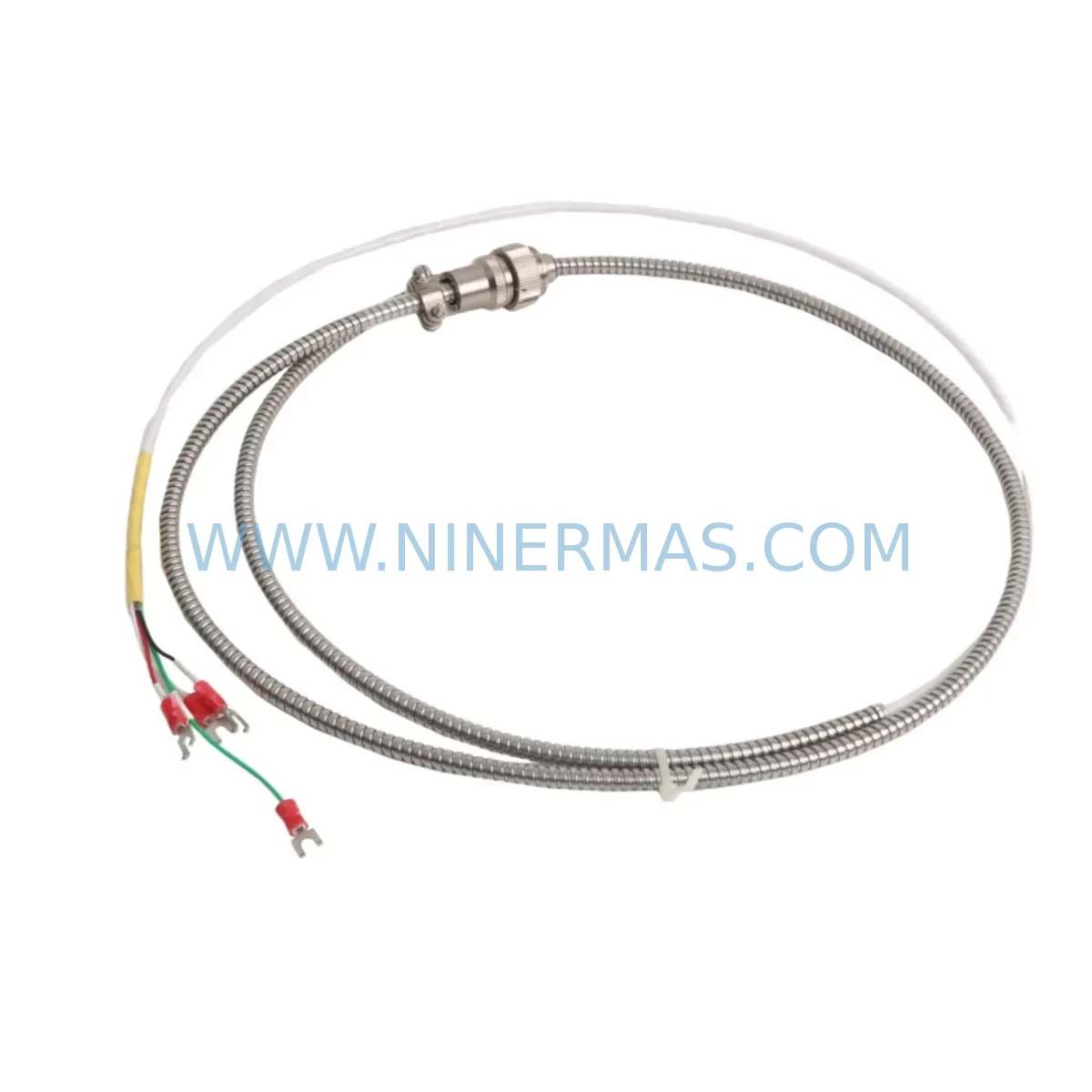

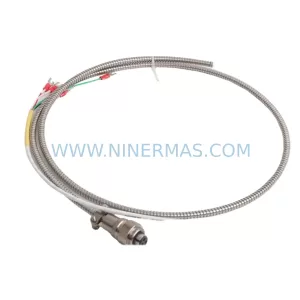

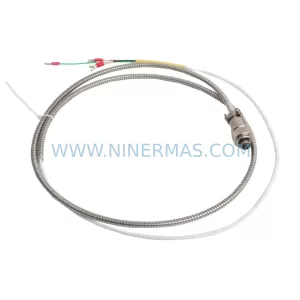

The Bently Nevada 16710-07 is a proximity probe extension cable engineered for the 3300 Series vibration monitoring platform — one of the most widely deployed condition monitoring systems in rotating machinery applications across power generation, petrochemical, and heavy industrial environments. As the 3300 Series approaches end-of-life and spare parts become increasingly difficult to source through OEM channels, the 16710-07 remains a critical component for facilities committed to extending the operational life of their existing monitoring infrastructure without undertaking a full system replacement.

This cable serves as the signal conduit between the 3300 XL 8mm proximity probe and its paired proximitor/driver, transmitting the raw oscillator signal that the proximitor converts into a usable DC voltage proportional to the gap between the probe tip and the observed rotating shaft. Maintaining signal integrity across this cable is essential: any impedance mismatch, connector degradation, or cable damage directly affects the accuracy of gap voltage, direct vibration (Direct), and 1X/2X vector readings fed into the Bently Nevada 3300 rack system and, ultimately, into the plant DCS or safety instrumented system.

When planning a retrofit or cable replacement on a legacy 3300 Series installation, engineers must verify several parameters before swapping the 16710-07. The cable length must match the original system design — the combined probe, extension cable, and proximitor cable length determines the total system scale factor (typically 200 mV/mil or 7.87 V/mm). Substituting a cable of a different length without recalibrating the proximitor, such as the 3300 XL proximitor or a compatible 3300/16 proximitor driver, will introduce a systematic measurement error that may not trigger an immediate alarm but will corrupt trend data and potentially mask developing machinery faults.

Connector compatibility is equally important. The 16710-07 uses standard Bently Nevada armored coaxial connectors. Before installation, technicians should inspect the mating connectors on the proximitor housing and the probe body for corrosion, thread damage, or contamination — particularly in installations where the cable routes through high-humidity areas, seal oil environments, or locations subject to vibration-induced fretting. In many legacy installations, the cable armor and conduit fittings may also require replacement, and sourcing compatible conduit hardware alongside the 16710-07 avoids a second maintenance window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 16710-07 cable replacement is rarely a standalone task — it is typically part of a broader effort to restore or extend the reliability of a 3300 Series monitoring loop. In practice, maintenance teams often discover that a cable failure is symptomatic of wider degradation across the measurement chain. A thorough retrofit plan should therefore assess the condition of the entire signal path, beginning at the probe tip and ending at the rack output terminals.

Starting at the field end, the 3300 XL 8mm proximity probe itself should be inspected for tip damage, thread wear, and housing corrosion. If the probe has been in service for more than five years in a high-temperature or chemically aggressive environment, replacement alongside the 16710-07 cable is advisable to avoid a repeat outage. Moving toward the rack, the 3300 XL proximitor (driver) should be tested for correct OK status and output voltage linearity across the expected gap range. A proximitor that is marginal at the time of cable replacement may fail within months, requiring another planned or unplanned outage.

Inside the control cabinet, the 3300 Series rack and its installed monitor cards — including the 3300/20 dual-channel monitor or the 3300/46 position monitor, depending on the measurement type — should be inspected for backplane connector integrity. Backplane pins that have experienced repeated card insertions or thermal cycling may exhibit increased contact resistance, which can introduce noise into the measurement channel. If the facility is also upgrading from a 3300 Series rack to a newer System 1 or 3500 Series platform, the 16710-07 cable may still be reused in the interim, but the proximitor and monitor cards will require replacement with 3500/42 or equivalent modules, and the rack wiring, terminal block assignments, and I/O mapping in the DCS will all need to be updated.

For facilities integrating vibration data into a broader control architecture — for example, feeding 3300 Series outputs into a Rockwell Automation ControlLogix or Siemens S7-300 PLC via analog input modules — the retrofit is also an opportunity to review the signal conditioning between the proximitor output and the analog input card. Signal isolators or barriers may be required if the installation involves intrinsically safe areas, and the 4–20 mA or 0–10V DC signal range should be verified against the analog input module’s configured range to avoid scaling errors in the PLC program.

Where the plant uses a Bently Nevada System 1 software platform for online machinery diagnostics, the channel configuration database should be updated to reflect any changes in cable length, scale factor, or transducer serial number. Failure to update the System 1 configuration after a cable replacement can result in incorrect alarm setpoints or erroneous vector reference angles in the polar plots used for balancing and alignment diagnostics.

Downtime Control During System Migration

Minimizing downtime during a 16710-07 cable replacement requires careful pre-outage preparation. The most effective approach is to pre-stage all replacement components — including the cable, any replacement probe, connector hardware, and conduit fittings — and to perform a full bench test of the new cable with a known-good proximitor before the maintenance window begins. This confirms cable continuity, shield integrity, and connector seating before the machine is taken offline.

During the outage, the existing cable routing should be documented photographically before removal, particularly in installations where the cable shares conduit with other signal cables or power wiring. Maintaining the original routing avoids introducing new sources of electromagnetic interference from adjacent variable frequency drives, motor starters, or high-current power cables. If the conduit must be rerouted, the new path should maintain a minimum separation distance from power conductors as specified in the Bently Nevada installation guidelines.

After the new 16710-07 cable is installed and connectors are torqued to specification, the commissioning sequence should follow the standard Bently Nevada procedure: apply the -18V DC proximitor supply, verify the OK LED illuminates, measure the gap voltage at the expected mechanical gap, and confirm the output is within the expected range for the scale factor in use. If the gap voltage is outside the acceptable window, the probe gap should be adjusted mechanically before the machine is returned to service — do not attempt to compensate for an incorrect gap by adjusting the proximitor calibration, as this will corrupt the measurement linearity.

For critical machines where continuous monitoring is required, a temporary bypass or hot-standby monitoring arrangement using a portable vibration analyzer connected to the probe output may allow the machine to remain in service during a brief cable replacement, subject to the plant’s safety and operating procedures. This approach is particularly valuable in facilities where the monitored machine is on a critical path and an unplanned trip would have significant production consequences.

All retrofit work should be documented in the plant’s maintenance management system, including the replaced component serial numbers, the as-found and as-left gap voltages, and the name of the technician who performed the commissioning verification. This documentation supports future troubleshooting and provides an audit trail for reliability engineers reviewing machinery health trends.

Retrofit Support FAQ

Q: Is the 16710-07 a direct drop-in replacement for the original Bently Nevada cable in a 3300 Series system?
A: Yes, provided the cable length matches the original. The 16710-07 uses the same armored coaxial construction and Bently Nevada connectors as the OEM cable. If the replacement cable is a different length from the original, the total system cable length will change, which affects the scale factor and requires recalibration of the proximitor. Always confirm the required cable length before ordering.

Q: What commissioning checks are required after installing the 16710-07?
A: After installation, apply the -18V DC supply to the proximitor and verify the OK LED status. Measure the gap voltage at the known mechanical gap and confirm it falls within the expected range for the system’s scale factor (typically 200 mV/mil). Check the monitor card’s OK relay output and confirm that the System 1 or DCS display reflects the correct channel status. Document all as-left readings before returning the machine to service.

Q: Can the 16710-07 be used with a 3500 Series monitor if we are migrating from a 3300 Series rack?
A: The 16710-07 extension cable is compatible with the 3300 XL probe and proximitor system. If migrating to a 3500 Series rack with 3500/42 or 3500/40M monitor modules, the proximitor must also be replaced with a 3500-compatible driver, and the cable length and scale factor must be re-verified for the new system. The cable itself may be reused if it is in good condition and the length is appropriate for the new installation.

Q: What warranty and supply assurance does NINERMAS provide for the 16710-07?
A: NINERMAS provides a 12-month warranty on the 16710-07 from the date of shipment, covering manufacturing defects in materials and workmanship. Each unit undergoes pre-shipment functional testing. We maintain stock inventory to support urgent maintenance requirements and can provide documentation packages including test reports and certificates of conformance on request. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.
