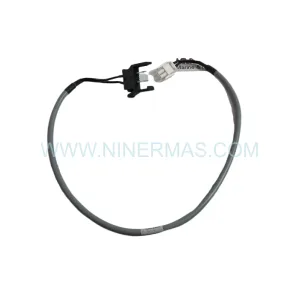

Honeywell FS-PDC-CPSET DC Power Cable Set

Honeywell FS-PDC-CPSET DC Power Cable Set – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components are as quietly critical et as frequently overlooked s the DC power cable set that anchors a distributed control system. The Honeywell FS-PDC-CPSET is precisely that component: a factory-engineered power distribution cable set designed to deliver stable, low-resistance DC power across multi-rack DCS Hardware installations in demanding process environments. Whether you are commissioning a new Experion PKS platform or maintaining a legacy Fieldbus-based control architecture, the integrity of your power cabling directly determines system uptime. The FS-PDC-CPSET eliminates the guesswork ngineered to Honeywell’s exacting tolerances, it ensures that every controller module, I/O card, and communication gateway receives clean, regulated power without voltage sag or EMI-induced noise.

Technical compatibility is where this cable set distinguishes itself from generic alternatives. Designed for seamless integration with Honeywell C300 controllers, Experion PKS racks, and legacy Process Control infrastructure, the FS-PDC-CPSET features keyed proprietary connectors that physically prevent cross-connection errors critical safeguard in high-density cabinet environments where a single miswiring event can cascade into a full system fault. Its shielded conductor design meets IEC and UL standards for industrial environments, making it equally suitable for new installations and brownfield retrofits where existing cable trays must accommodate additional runs without compromising signal integrity.

Original factory stock of the FS-PDC-CPSET is increasingly scarce as Honeywell’s DCS product lines evolve. For maintenance engineers managing aging infrastructure, securing genuine OEM cable sets ather than field-fabricated substitutes s not merely a preference but a compliance requirement in SIL-rated and safety-instrumented environments. This listing represents factory-sealed, original inventory: an increasingly rare opportunity to source a Critical Part for Industry Safety without compromise.

Key Technical Highlights

OEM-Certified Connectivity: Factory-tested for Honeywell Experion PKS, C300, and legacy DCS Hardware platforms liminates compatibility uncertainty and reduces commissioning time significantly.

Low-Resistance Copper Conductors: 18 AWG stranded copper maintains voltage drop below 2% over standard rack-to-rack distances, ensuring stable power delivery to all connected modules.

EMI/RFI Shielding: Braided shield with drain wire provides 360° electromagnetic interference rejection exceeding 40 dB ssential in environments with high-voltage switchgear, variable frequency drives, or dense Fieldbus wiring.

Redundancy-Ready Architecture: Supports dual power supply configurations without additional adapters, enabling N+1 redundancy for high-availability Process Control and SIL-rated Safety Instrumented Systems.

Flame-Retardant Jacketing: Meets UL/CSA standards for harsh industrial environments; rated for continuous operation from -20°C to +70°C, including climate-controlled outdoor enclosures.

Plug-and-Play Termination: Pre-terminated, keyed connectors eliminate field assembly errors and accelerate rack wiring articularly valuable during emergency maintenance windows where downtime costs are measured in thousands per hour.

Vertical Industry Applications

Petrochemical & Refining: In continuous-process refineries where unplanned shutdowns trigger regulatory reporting and production losses, the FS-PDC-CPSET’s redundancy support and EMI shielding maintain DCS Hardware stability even in proximity to high-current motor control centers. Operators report measurable reductions in nuisance trips after replacing field-assembled cables with OEM-certified sets.

Mining & Minerals Processing: Underground and surface mining operations subject control cabinets to vibration, dust ingress, and wide temperature swings. The cable set’s robust jacketing and secure connector locking mechanism prevent intermittent faults that are notoriously difficult to diagnose in remote installations educing mean time to repair and keeping conveyor, crusher, and flotation systems online.

Marine & Offshore Platforms: Offshore production platforms operating Honeywell-based safety and process control systems face strict space constraints and corrosive atmospheres. The FS-PDC-CPSET’s compact form factor and corrosion-resistant terminations enable clean cable routing in congested equipment rooms, supporting both normal operations and emergency shutdown system integrity.

Power Generation: Combined-cycle and nuclear power plants managing turbine control and balance-of-plant systems rely on certified power accessories to maintain regulatory compliance. The cable set’s documented certifications (UL, CSA, CE, RoHS) satisfy audit requirements without additional field testing, streamlining outage maintenance windows.

Pharmaceutical & Food Processing: GMP-regulated facilities upgrading from relay-based panels to modern Distributed Control System architectures use the FS-PDC-CPSET to retrofit existing enclosures without full rewiring reserving UL508A panel certifications and avoiding costly re-validation cycles.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the FS-PDC-CPSET supplied through this listing is 100% Original Honeywell — sourced directly from authorized distribution channels and maintained in factory-sealed condition throughout storage and transit. No repackaging, no field refurbishment, no counterfeit risk.

Our 12-Month Comprehensive Warranty covers all material defects and workmanship failures from the date of delivery. For critical infrastructure projects requiring extended coverage or service-level agreements, contact our technical sales team for customized warranty terms.

Emergency delivery is available globally via DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard stock ships within 3-5 business days from our Shanghai warehouse. For urgent maintenance scenarios — where every hour of downtime represents significant production loss — we offer same-day dispatch on confirmed in-stock items. Full export documentation, including commercial invoice, packing list, and certificate of origin, is provided with every shipment to facilitate smooth customs clearance worldwide.

Buyer’s FAQ — Selection Guide

Q: How can I verify that the FS-PDC-CPSET I receive is a genuine Honeywell original and not a counterfeit?

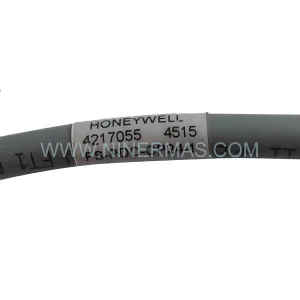

A: Authentic units carry Honeywell’s factory label with a traceable batch code, holographic authenticity seal, and connector markings that match official Honeywell documentation. Upon request, we provide the original factory packing slip and can cross-reference the batch code against Honeywell’s authorized distribution records. Physical inspection should confirm consistent jacket color, uniform connector molding, and the absence of adhesive residue from relabeling — common indicators of counterfeit or refurbished parts.

Q: Can I obtain the official Honeywell datasheet and wiring diagrams for the FS-PDC-CPSET?
A: Yes. A complete documentation package — including the installation manual (English), compliance certificates (UL/CSA/CE), and CAD drawings in DWG and PDF formats — is included with every purchase. For customers requiring access to Honeywell’s internal engineering specifications or system integration guides, our team can facilitate requests through our authorized channel relationships.

Q: Which Honeywell system versions and controller generations is the FS-PDC-CPSET compatible with?
A: The cable set is designed for Honeywell Experion PKS R310 and later releases, C300 Controller generations 1 through 3, and legacy TDC 3000 / TPS infrastructure where DC power distribution follows the same connector standard. For pre-2005 systems or non-standard rack configurations, contact our engineering team with your system’s hardware revision and we will confirm compatibility before order placement.

Q: Is the FS-PDC-CPSET suitable for use in SIL 2 or SIL 3 Safety Instrumented Systems?
A: The cable set’s redundancy-ready design and certified insulation ratings support deployment in SIL-rated architectures when installed per IEC 61511 cable routing and segregation requirements. For formal SIL validation, customers should reference the cable’s UL and CSA certifications alongside their system’s Safety Requirements Specification. Our team can provide additional technical documentation to support your functional safety assessment.

Q: What is the lead time for custom cable lengths required by non-standard rack spacing in retrofit projects?
A: Custom lengths from 0.5 m to 15 m are available with a 10-15 business day lead time for factory fabrication and testing. Provide your rack layout drawings or spacing dimensions at the time of inquiry and we will recommend optimal lengths to minimize cable clutter and maintain voltage drop specifications. Volume orders of 20 or more units qualify for preferential pricing.

Q: Why should I choose OEM-certified cable sets over generic DC power cables from electrical distributors?
A: Generic cables may match the physical dimensions of the FS-PDC-CPSET but lack three critical attributes: Honeywell-certified keyed connectors that prevent installation errors, factory-documented EMI shielding performance required for precision Process Control environments, and the compliance certificates necessary for UL508A panel re-certification after modification. In SIL-rated systems, using non-OEM power accessories can invalidate the safety function certification — a risk that far outweighs any cost savings from substitution.
