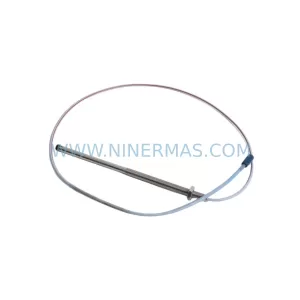

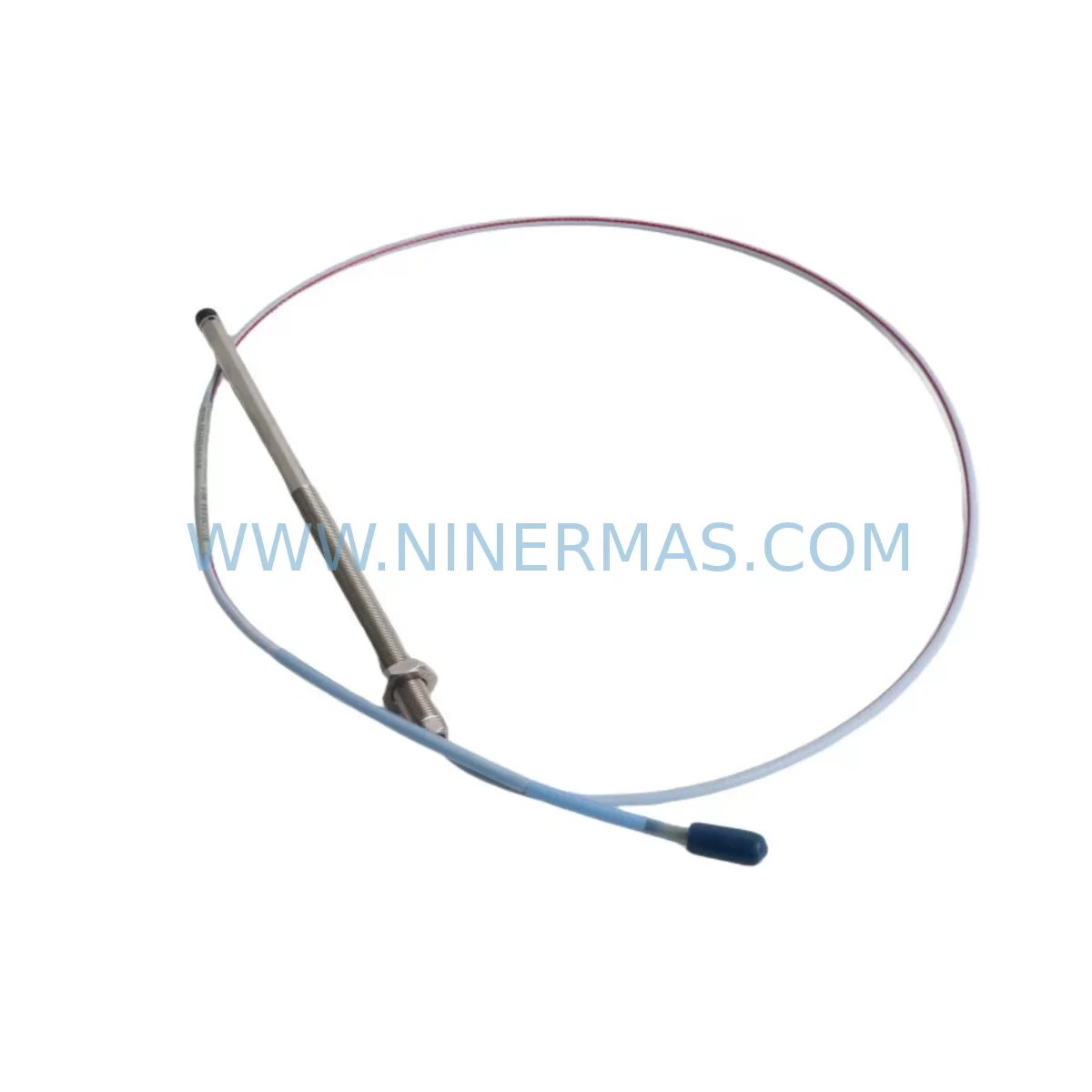

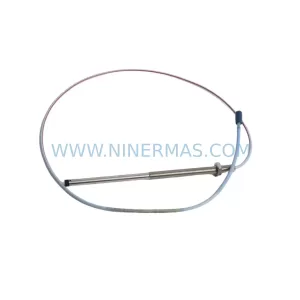

Bently Nevada 330193-00-08-10-00 Retrofit-Compatible Proximity Transducer

Bently Nevada 330193-00-08-10-00 Retrofit-Compatible Proximity Transducer for Legacy 3300 XL Systems

The Bently Nevada 330193-00-08-10-00 is a high-precision proximity transducer engineered for the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada systems age and original components reach end-of-life, plant engineers and reliability teams increasingly rely on verified retrofit-compatible replacements to sustain continuous monitoring without committing to full system overhauls. This unit delivers the same eddy-current sensing performance as the original, making it a trusted drop-in solution for rotor dynamics measurement, shaft displacement monitoring, and machinery protection in turbines, compressors, pumps, and gearboxes.

Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased modernization of your control infrastructure, the 330193-00-08-10-00 is stocked and ready to ship with full functional verification and a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330193-00-08-10-00 into an existing 3300 XL installation requires a structured approach that accounts for both mechanical and electrical compatibility. Before removing the failed or end-of-life transducer, maintenance teams should document the current gap voltage reading at the 3300 XL proximitor/driver — typically a 330180-X0-05 or 330180-X0-08 extension cable assembly paired with a 3300 XL 8-mm driver — to establish a baseline for post-installation verification.

On the mechanical side, confirm that the existing probe holder and bracket are undamaged and that the thread pitch matches the 8 mm specification of the 330193-00-08-10-00. In many retrofit scenarios, the original bracket remains serviceable even when the transducer itself has failed, which significantly reduces installation time and eliminates the need to modify the machine casing or bearing housing.

Electrically, the 330193-00-08-10-00 connects to the same three-conductor shielded cable used throughout the 3300 XL architecture. If the extension cable shows signs of insulation degradation or connector corrosion — common in high-temperature or high-humidity environments — it is advisable to replace it simultaneously with a 330130-080-00-00 or equivalent extension cable to avoid introducing a new failure point immediately after the transducer swap.

For plants running System 1 Condition Monitoring Software, the transducer replacement does not require software reconfiguration provided the scale factor (–7.87 V/mm or –200 mV/mil) remains consistent with the existing driver calibration. However, if the site has migrated from an older 3300 NSv or 7200 Series monitor to the 3300 XL platform as part of a broader modernization, the I/O mapping and channel address assignments within System 1 should be reviewed to ensure the new transducer signal is correctly associated with the corresponding machine train and measurement point.

In control cabinets where space is constrained, the compact form factor of the 330193-00-08-10-00 simplifies installation alongside adjacent 3300 XL 16-channel monitor cards, 3500/42M proximitor I/O modules, or TDI Modbus gateway units used for protocol migration from proprietary Bently Nevada communication to standard plant DCS or SCADA networks. Where the plant is transitioning to a 3500 Series rack-based architecture, the 330193-00-08-10-00 can serve as an interim transducer solution while the new rack, power supply module, and I/O cards are staged and configured — allowing the machine to remain in monitored operation throughout the migration window.

Signal isolation requirements should also be evaluated during retrofit planning. In mixed-signal environments where the proximity transducer output shares a cable tray with high-voltage power conductors or variable frequency drive (VFD) cabling, the addition of a signal isolator or conditioner between the driver output and the monitor input can prevent common-mode noise from corrupting the vibration measurement. This is particularly relevant in older facilities where cable routing was not originally designed with signal integrity in mind.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a transducer replacement on a running production line. The 330193-00-08-10-00 is designed to support rapid swap-out procedures that can be completed within a single planned maintenance window, typically two to four hours depending on machine accessibility and cabinet layout.

The recommended sequence begins with a controlled shutdown of the monitored machine — not the entire monitoring system. The 3300 XL monitor should remain powered throughout the transducer exchange so that the maintenance technician can observe the gap voltage transition in real time as the new probe is installed and adjusted. This approach preserves the existing alarm and trip setpoints in the monitor’s non-volatile memory and eliminates the risk of inadvertently resetting protection logic during a full system power cycle.

Once the new 330193-00-08-10-00 is installed and gapped, the technician should verify the static gap voltage at the driver output before restarting the machine. A reading of –10.0 to –10.4 VDC at 50 mil gap confirms correct installation. If the reading falls outside this range, the gap should be adjusted incrementally — typically in 5 mil steps — until the target voltage is achieved. This verification step takes less than ten minutes and provides high confidence that the transducer will perform correctly under dynamic conditions.

For sites where the original program logic in the associated PLC or DCS includes interlock conditions tied to vibration monitor outputs, the control engineer should confirm that the monitor’s OK relay output remains energized throughout the transducer swap. If the OK relay drops during the gap adjustment process, the interlock logic may prevent machine restart until the condition is manually acknowledged. Documenting this behavior in the site’s maintenance procedure prevents unexpected delays during commissioning.

All units supplied by NINERMAS undergo pre-shipment functional testing, including gap voltage verification and output linearity checks, to ensure that the transducer arrives ready for installation without requiring bench calibration. This reduces the total time from receipt to machine restart and supports the goal of keeping planned outage windows as short as possible.

Retrofit Support FAQ

Q1: Is the 330193-00-08-10-00 a direct replacement for the original Bently Nevada part?
Yes. The 330193-00-08-10-00 is a verified retrofit-compatible replacement for the original Bently Nevada 330193 series proximity transducer. It maintains the same 8 mm probe diameter, –200 mV/mil scale factor, and three-conductor cable interface, making it a drop-in substitute for the discontinued original in 3300 XL monitoring applications. No modifications to the existing extension cable, driver, or monitor are required provided the original installation was within specification.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to 50 mil (1.27 mm) and verify the static gap voltage at the driver output. The target reading is –10.0 to –10.4 VDC. Confirm that the monitor’s OK relay is energized and that the vibration reading is within the expected baseline range for the machine at rest. If the site uses System 1 software, verify that the measurement point is active and that the signal is being logged correctly before returning the machine to service.

Q3: Can this transducer be used during a migration from a 3300 NSv system to a 3300 XL platform?
Yes. The 330193-00-08-10-00 is compatible with both the 3300 NSv and 3300 XL driver and monitor architectures, making it suitable for use during phased migration projects where some measurement points have been upgraded while others remain on the legacy platform. This flexibility allows maintenance teams to standardize on a single transducer model across the transition period, simplifying spare parts inventory management.

Q4: What warranty and supply terms apply to this unit?
All 330193-00-08-10-00 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Units are stocked and available for immediate shipment. Pre-shipment testing is performed on every unit, and a test report is available upon request. For volume orders or long-term supply agreements, contact our sales team directly.
