Bently Nevada 3300/50 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 3300/50 Service-Ready Spare Part for Industrial Maintenance

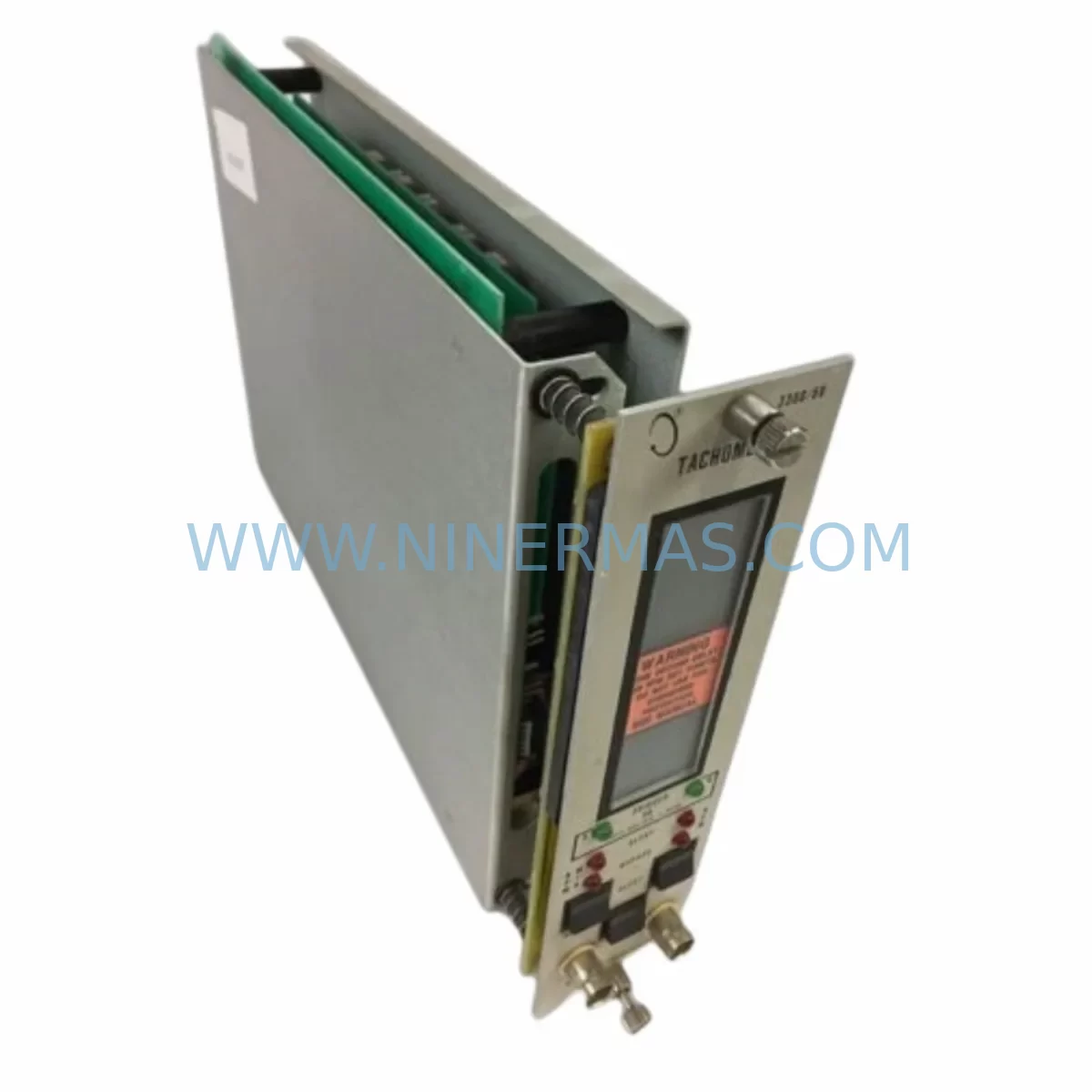

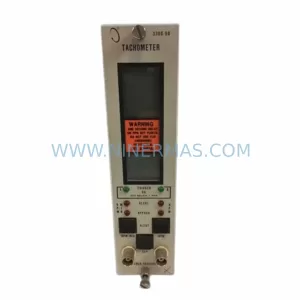

The Bently Nevada 3300/50 is an original tachometer module engineered for the 3300 Series vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy manufacturing industries. When a tachometer module fails or degrades, the consequences extend far beyond a single measurement point: the entire vibration monitoring loop loses its phase reference, rendering Keyphasor-based analysis inoperable and potentially triggering unplanned shutdowns. Sourcing a verified, service-ready 3300/50 replacement is therefore a critical priority for any maintenance or reliability engineering team managing turbines, compressors, pumps, or motors instrumented with Bently Nevada 3300 Series hardware.

At NINERMAS, every 3300/50 unit is sourced from authorized supply channels, inspected upon receipt, and dispatched with full functional verification documentation. Our inventory is maintained specifically to support emergency breakdown recovery, planned annual overhauls, and long-term spare parts stocking programs. Whether you are replacing a failed module during a forced outage or pre-positioning stock ahead of a scheduled turnaround, the Bently Nevada 3300/50 available through NINERMAS is tested, traceable, and backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The Bently Nevada 3300/50 tachometer module does not operate in isolation. It is the phase reference backbone of the entire 3300 Series monitoring rack, and its health directly affects the reliability of every vibration channel in the system. When planning a replacement or conducting a control cabinet inspection, maintenance engineers should treat the 3300/50 as the starting point of a broader system audit rather than a standalone swap.

Begin by verifying the 3300 Series rack power supply module — typically the 3300/15 or equivalent power conditioner — since an unstable DC rail is one of the leading causes of premature tachometer module failure. A degraded power supply delivering voltage outside the ±5% tolerance band will stress signal conditioning circuits and produce erratic speed readings long before the module fully fails. Alongside the power supply, inspect the 3300/16 proximitor I/O module and any associated 3300/20 or 3300/25 vibration monitor modules in the same rack, as these share the Keyphasor reference signal generated by the 3300/50.

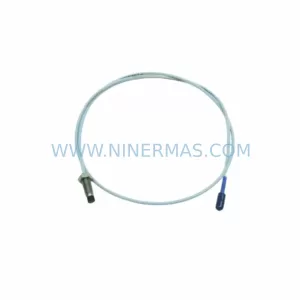

At the field wiring level, check the proximity probe extension cables and Bently Nevada 3300 XL 8mm or 5mm proximity transducers connected to the tachometer input. Cable insulation breakdown, connector corrosion, or shield grounding faults are common root causes of noisy or missing Keyphasor signals that are frequently misdiagnosed as module failures. Replacing the 3300/50 without inspecting the field transducer and cable assembly risks repeat failures within weeks.

For facilities running integrated turbine control systems, the 3300/50 Keyphasor output feeds directly into overspeed detection logic. This makes it essential to verify the 3300/46 overspeed detection module and its associated relay output wiring during any tachometer replacement. Similarly, if the 3300 rack communicates with a DCS or safety system via a 3300/55 communication gateway module, confirm that the gateway firmware and configuration remain intact after the module swap to avoid false alarms or data dropouts on the supervisory layer.

Maintenance planners building annual spare parts kits for 3300 Series installations should consider stocking the 3300/50 alongside the 3300/16, 3300/20, and the rack’s terminal block assemblies and I/O barrier strips. Signal isolators positioned between the 3300 rack and the DCS analog input cards are also worth including in the kit, as these components absorb ground loop currents and protect both the monitoring system and the control system from electrical noise — a particularly important consideration in older plants where cable routing may not meet modern EMC standards.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the existing 3300/50, document the current Keyphasor signal amplitude and frequency using the 3300 Series rack display or a connected condition monitoring workstation. This baseline confirms whether the fault is in the module itself or in the upstream transducer and cable assembly.

Step 2 — Safe isolation: Notify the control room and follow your site’s Management of Change (MOC) and Permit to Work (PTW) procedures. The 3300 Series rack is typically hot-swappable at the module level, but confirm this with your site’s safety documentation before proceeding. If the rack does not support hot-swap for the tachometer slot, plan for a brief monitoring system bypass in coordination with the operations team.

Step 3 — Module extraction and inspection: Remove the faulty 3300/50 and inspect the rack slot connector for bent pins, corrosion, or debris. Clean the connector with appropriate contact cleaner before inserting the replacement unit. Retain the failed module for failure analysis if required by your reliability program.

Step 4 — Replacement installation and configuration: Insert the new Bently Nevada 3300/50 into the rack slot. The module is configured via DIP switches or jumpers on the PCB — verify that the replacement unit’s configuration matches the original settings (input type, full-scale speed range, Keyphasor output level) before restoring power. Refer to the Bently Nevada 3300/50 installation manual or contact NINERMAS for configuration support.

Step 5 — Functional verification: Restore power and confirm that the Keyphasor signal is present and within specification on the rack display. Verify that all dependent vibration channels are receiving valid phase reference data and that the DCS or historian is logging correct speed values. Document the replacement in your CMMS with the new module’s serial number and the date of installation.

This workflow minimizes downtime, ensures system compatibility, and creates a traceable maintenance record — all critical requirements for facilities operating under ISO 55000 asset management or API 670 machinery protection standards.

Spare Parts Support FAQ

Q1: Is the Bently Nevada 3300/50 available from stock, and what is the typical lead time?
Yes. NINERMAS maintains inventory of the 3300/50 to support both emergency breakdown orders and planned procurement. In-stock units are dispatched within 1–3 business days via DHL or FedEx international express. For large-quantity orders or long-term supply agreements, contact our sales team to discuss dedicated stock allocation and priority dispatch arrangements.

Q2: How is the 3300/50 tested before shipment, and what documentation is provided?
Every 3300/50 unit undergoes functional testing prior to dispatch. Testing confirms signal conditioning performance, output signal integrity, and power consumption within OEM specification. A test report is available on request. Units are packed in anti-static ESD-safe packaging with appropriate shock protection for international air freight.

Q3: What warranty coverage applies to the Bently Nevada 3300/50 supplied by NINERMAS?
All 3300/50 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, NINERMAS will arrange replacement dispatch or repair at no additional cost to the customer.

Q4: Can the 3300/50 replace older or discontinued Bently Nevada tachometer modules in legacy systems?
The 3300/50 is the current-generation tachometer module for the 3300 Series platform and is backward-compatible with earlier 3300 Series rack configurations. For facilities running legacy Bently Nevada systems where the original tachometer module part number has been superseded, NINERMAS can advise on compatibility and provide cross-reference documentation to confirm fit before dispatch. Contact our technical team with your rack model and existing module part number for a compatibility assessment.
