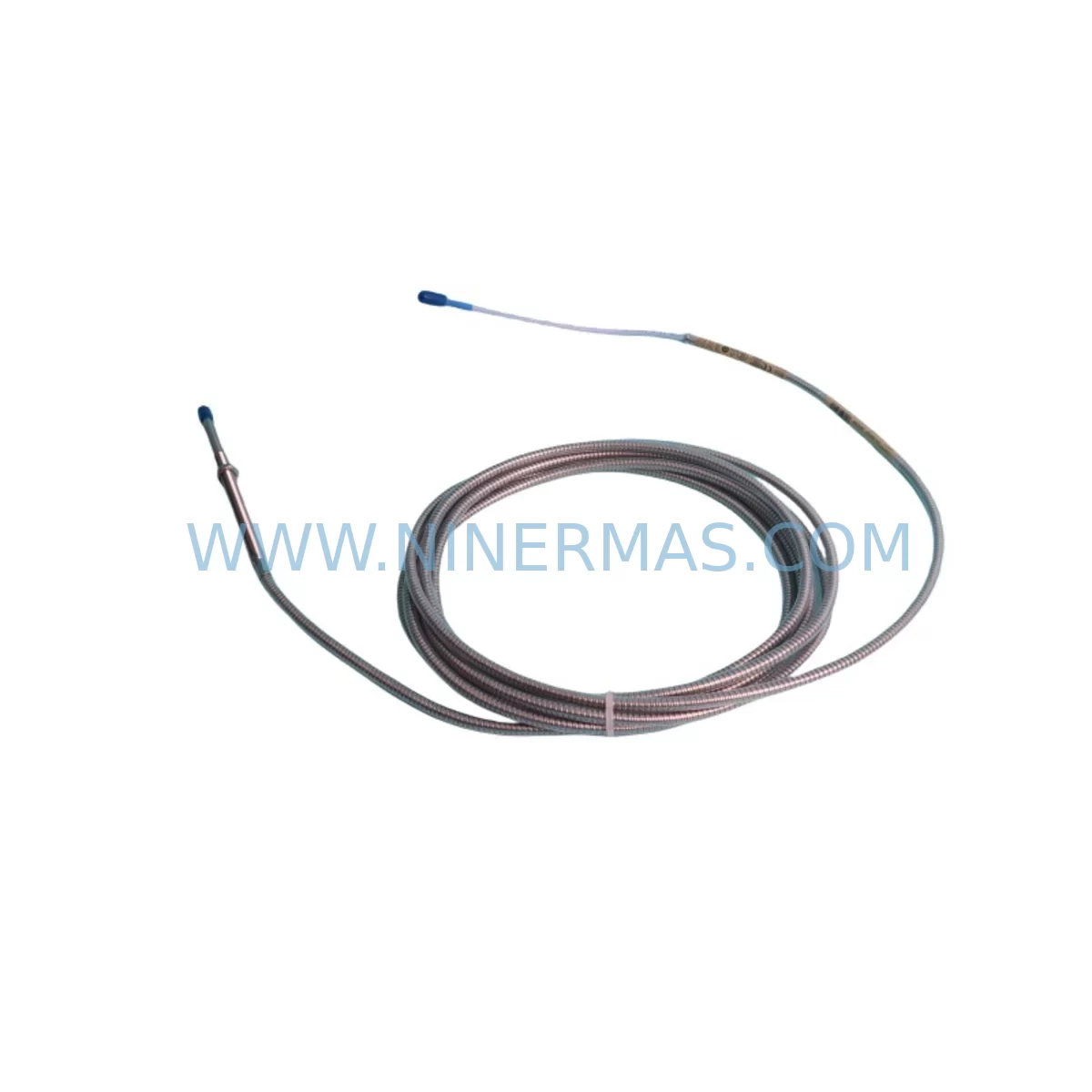

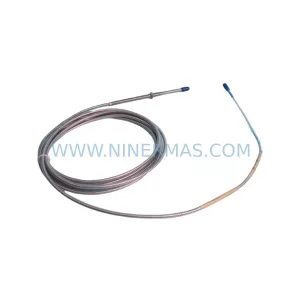

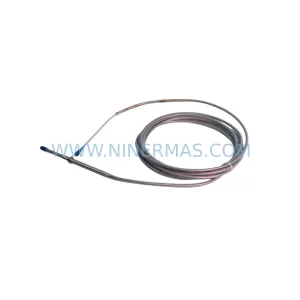

Bently Nevada 330104-00-14-05-01-00 Retrofit-Compatible Vibration Monitor

Bently Nevada 330104-00-14-05-01-00 Retrofit-Compatible Vibration Monitor for Legacy Systems

The Bently Nevada 330104-00-14-05-01-00 is a precision vibration monitoring module from the 3300 XL Series, widely deployed in rotating machinery protection systems across oil & gas, power generation, petrochemical, and heavy industrial facilities. As original equipment reaches end-of-life or becomes discontinued, plant engineers and maintenance teams increasingly rely on verified retrofit-compatible replacements to sustain system integrity without committing to full platform overhauls. NINERMAS supplies this module with full functional verification, 12-month warranty coverage, and documented compatibility support for legacy rack-based monitoring architectures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330104-00-14-05-01-00 within an operating machinery protection system requires careful pre-migration planning to avoid unplanned shutdowns and signal integrity issues. Before removing the existing module, engineers should document all channel configurations, alert and danger setpoints, OK relay assignments, and transducer gap voltage readings stored in the current system. These parameters must be replicated precisely in the replacement module to maintain protection continuity.

The 3300 XL rack backplane distributes both power and communication signals to installed modules. Before insertion of the 330104-00-14-05-01-00 replacement, confirm that the rack power supply module — such as the Bently Nevada 3300/15 Power Supply — has sufficient capacity to support the full complement of installed cards. Overloaded backplanes are a common cause of intermittent faults following module swaps. If the rack is near capacity, consider redistributing modules or upgrading the power supply before proceeding.

Transducer wiring at the terminal block must be verified against the original channel assignment. The 3300 XL series uses a defined terminal layout for proximity probe inputs, and any deviation in wiring polarity or shield grounding can introduce noise or false OK status. Cross-reference the existing wiring diagram with the module’s terminal map before energizing. Where original documentation is unavailable, use a Bently Nevada 3300 XL wiring reference or contact NINERMAS technical support for guidance.

For facilities running Bently Nevada System 1 condition monitoring software, the replacement module must be recognized and mapped correctly within the software’s device configuration. This typically involves verifying the module address within the rack, confirming channel-to-measurement point assignments, and validating that historical trend data paths remain intact. In some installations, a Bently Nevada 3500/92 communication gateway or a dedicated Modbus/TCP interface module handles data routing to the plant DCS or historian — these upstream links should be tested after module replacement to confirm uninterrupted data flow.

Where the existing installation includes adjacent modules such as the Bently Nevada 330130 Keyphasor module or a 3300 XL tachometer input card, confirm that phase reference signals and speed inputs are correctly shared across the rack after the swap. Keyphasor signal integrity directly affects vibration vector calculations and should be validated using a portable oscilloscope or the System 1 diagnostic interface before returning the machine to service.

In control cabinets where space is constrained, verify that the replacement 330104-00-14-05-01-00 module can be fully seated without interference from adjacent cable bundles or DIN rail accessories. The 3300 XL module form factor is standardized, but cable management in older cabinets may require minor rerouting to allow proper backplane engagement and front-panel access to status LEDs and test points.

For plants managing a broader migration from the 3300 XL platform toward the Bently Nevada 3500 Series, the 330104-00-14-05-01-00 serves as a cost-effective interim solution that preserves existing transducer infrastructure, rack hardware, and System 1 software investments while longer-term upgrade budgets are secured. This approach is particularly valuable in facilities where simultaneous replacement of all monitoring channels is not operationally feasible.

Downtime Control During System Migration

Minimizing downtime during a vibration monitor replacement begins with pre-staging the verified replacement module and confirming all configuration parameters before the maintenance window opens. NINERMAS ships the 330104-00-14-05-01-00 with functional test documentation, allowing site engineers to review output behavior and relay logic before installation. This pre-verification step eliminates the most common cause of extended downtime: discovering a configuration mismatch only after the machine has been taken offline.

During the swap, the original module’s setpoint configuration should be captured using System 1 export tools or manual documentation. If the plant operates a redundant monitoring channel — for example, using a parallel 3300 XL rack for critical machinery — the redundant channel can maintain protection coverage while the primary module is replaced, reducing the risk window to minutes rather than hours.

After installation, a structured commissioning sequence should confirm transducer OK status, gap voltage within specification, vibration amplitude readings consistent with pre-outage baseline, and correct relay output behavior under simulated alert conditions. Where a Bently Nevada 3300/55 or similar relay output module is installed downstream, verify that trip logic remains correctly mapped to the replacement channel. Completing this sequence before returning the machine to full load ensures that protection coverage is fully restored and documented before the maintenance record is closed.

Retrofit Support FAQ

Q: Is the 330104-00-14-05-01-00 a direct drop-in replacement for other 3300 XL vibration monitor variants?
A: The 330104-00-14-05-01-00 is designed for the 3300 XL rack platform and shares the standard backplane interface. Compatibility with specific adjacent variants depends on channel configuration and transducer type. NINERMAS recommends confirming the full part number suffix against your existing rack layout before ordering.

Q: Does NINERMAS perform functional testing before shipment?
A: Yes. Every 330104-00-14-05-01-00 unit supplied by NINERMAS undergoes functional verification prior to dispatch. Test records are available upon request and accompany the module as part of the standard shipment package.

Q: What is the warranty coverage for this module?
A: NINERMAS provides a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical assistance for installation and commissioning queries.

Q: Can NINERMAS confirm stock availability before I place an order?
A: Yes. NINERMAS maintains inventory of the 330104-00-14-05-01-00 and can confirm availability, lead time, and shipping options prior to order confirmation. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for a prompt response.
