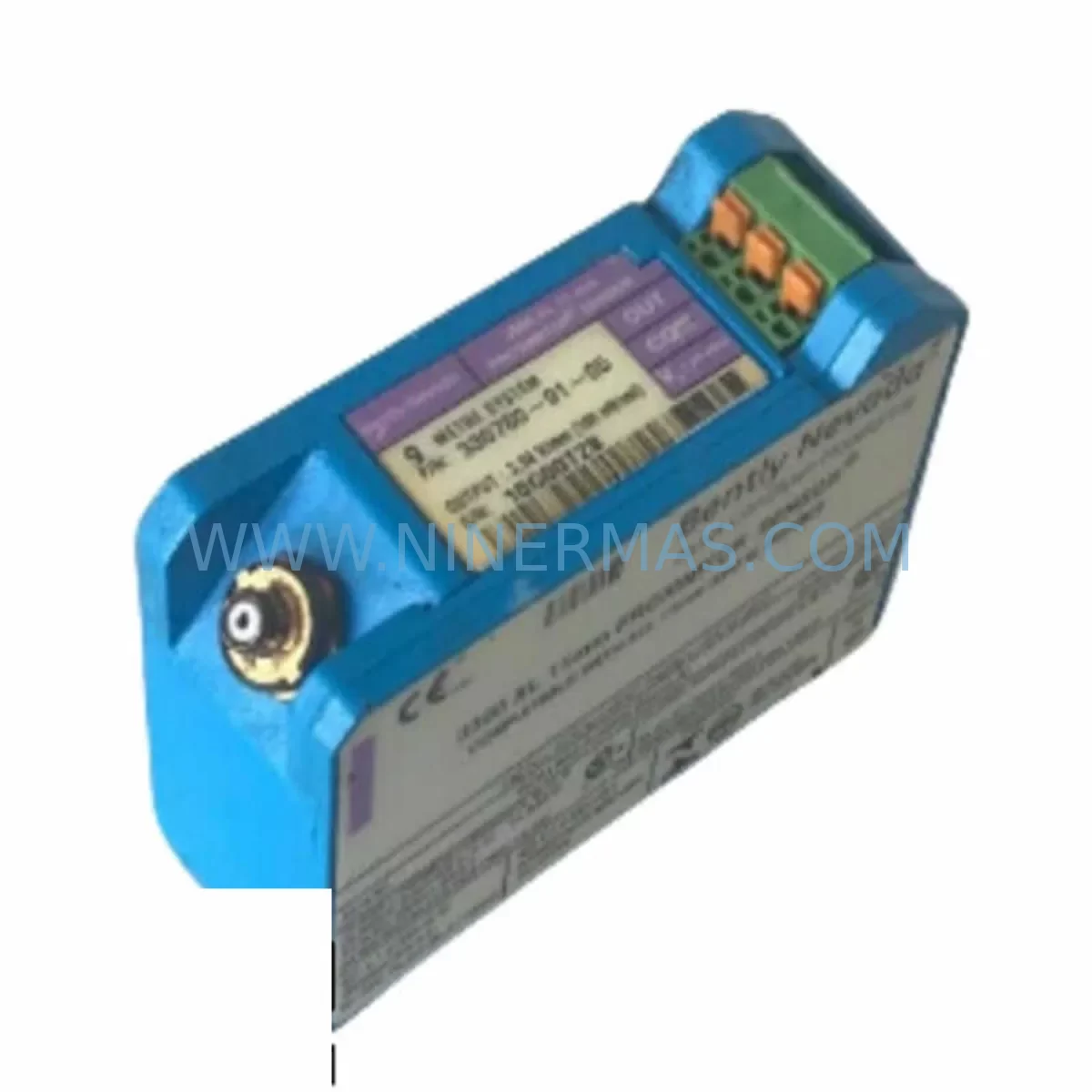

Bently Nevada 330780-91-05 Retrofit Vibration Monitor

Bently Nevada 330780-91-05 Retrofit Vibration Monitor: Legacy-Compatible Upgrade for 3300 XL Series Systems

The Bently Nevada 330780-91-05 is a retrofit-compatible vibration monitor module designed for the 3300 XL Series condition monitoring platform. As aging distributed control systems and machinery protection systems reach end-of-life, facilities operating rotating equipment — including turbines, compressors, pumps, and gearboxes — face increasing pressure to source reliable replacement modules that maintain signal integrity, rack compatibility, and software continuity without triggering a full system overhaul.

This module serves as a direct retrofit solution for plants running legacy Bently Nevada 3300 Series architectures, where the original 330780-91-05 or equivalent proximity probe interface cards have been discontinued or are no longer available through standard OEM channels. NINERMAS maintains verified inventory of this module with full pre-shipment functional testing and a 12-month warranty, supporting critical maintenance windows across oil & gas, petrochemical, power generation, and heavy manufacturing sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330780-91-05 within an operational 3300 XL machinery protection system requires a structured approach that accounts for the interdependencies between the vibration monitor module and the surrounding system architecture. Before initiating a swap, maintenance engineers should audit the full rack configuration — including the 3300 XL rack and backplane, the installed 3300 XL power supply module, and any adjacent 3300 XL keyphasor module that provides phase reference signals to the vibration channel being replaced.

Field wiring from the 3300 XL proximity transducer system (typically an 8mm or 5mm eddy-current probe paired with an extension cable and proximitor) must be verified against the terminal block pinout of the replacement module. Probe gap voltage, driver sensitivity, and cable length all affect the calibrated output of the new module, and these parameters should be re-verified during commissioning using a calibrated oscilloscope or the built-in System 1 diagnostic tools.

Where the 3300 XL system communicates with a plant DCS or safety instrumented system via a 3500/92 communication gateway or a TDXnet interface module, engineers must confirm that the module address and channel mapping remain consistent after the swap. Any change in slot position within the rack will require a corresponding update to the System 1 configuration database and may affect alarm routing to the connected DCS I/O card or historian tag.

For facilities that have already partially migrated to the newer Bently Nevada 3500 Series platform, the 330780-91-05 replacement supports a phased migration strategy — allowing the 3300 XL rack to remain operational while adjacent control cabinets are upgraded. This approach is particularly effective in compressor trains and steam turbine applications where a full cutover during a single maintenance window is not feasible. In these scenarios, the 3500/42M proximitor I/O module or 3500/40M proximitor monitor may be installed in parallel racks while the 3300 XL system continues to provide primary protection.

Cabinet space and thermal management should also be reviewed. The 3300 XL module occupies a standard single slot, but if the surrounding rack has been partially populated with newer modules or third-party signal conditioners, slot clearance and airflow paths must be confirmed. Where signal isolators or intrinsic safety barriers are installed between the field device and the rack, their input impedance and loop power characteristics must be compatible with the 330780-91-05 input stage.

Programming cable access for System 1 configuration uploads — typically via a Bently Nevada System 1 workstation connected through a dedicated Ethernet segment — should be arranged in advance of the maintenance window to avoid delays during the commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime during a 330780-91-05 module replacement begins with pre-staging. NINERMAS recommends that the replacement module be received, inspected, and bench-tested against a known-good transducer before the scheduled maintenance window opens. This eliminates the risk of discovering a configuration mismatch or wiring discrepancy during a live outage.

Where the plant’s safety procedures permit, a cold-swap approach — with the rack powered down and the field transducer loop isolated — provides the safest installation path. The existing module’s configuration should be exported from System 1 prior to removal and re-imported immediately after the new module is seated and powered. This preserves all alarm setpoints, danger thresholds, time-delay settings, and output relay assignments without requiring manual re-entry.

For facilities where continuous monitoring is required up to the moment of swap, a temporary portable vibration monitoring system can be connected to the transducer loop to maintain protection coverage during the module exchange. Once the 330780-91-05 replacement is installed and the System 1 configuration is confirmed active, the portable system is removed and the permanent protection channel is re-enabled.

Post-installation verification should include a full channel check: probe gap voltage within specification, OK relay energized, vibration reading within expected baseline range, and alarm relay outputs confirmed at the DCS or SIS interface. This structured commissioning sequence — combined with NINERMAS’s pre-shipment functional test and 12-month warranty — ensures that the replacement module enters service with the same reliability standard as the original factory unit.

Retrofit Support FAQ

Q1: Is the 330780-91-05 a direct drop-in replacement for the original Bently Nevada module?
Yes. The 330780-91-05 supplied by NINERMAS is a verified retrofit-compatible replacement for the original Bently Nevada part of the same number. It is designed to seat in the same 3300 XL rack slot, use the same terminal wiring, and operate with the same System 1 configuration file. No hardware modifications to the rack or field wiring are required in a standard like-for-like swap.

Q2: What pre-shipment testing is performed before dispatch?
Every 330780-91-05 unit shipped by NINERMAS undergoes full functional testing prior to dispatch. This includes power-on verification, input channel response testing, and output signal validation. A test report is available upon request. All units are covered by a 12-month warranty from the date of delivery.

Q3: How do I confirm compatibility with my existing 3300 XL rack and System 1 version?
Provide NINERMAS with your rack serial number, current System 1 software version, and the slot position of the module to be replaced. Our technical team will confirm compatibility before shipment. For sites running older System 1 versions, we can advise on any configuration file adjustments required to ensure the replacement module is recognized correctly.

Q4: What is the typical lead time and do you hold stock?
NINERMAS maintains standing inventory of the 330780-91-05 to support urgent maintenance requirements. Standard lead time for in-stock units is subject to current inventory levels — contact our sales team for a real-time availability confirmation. For planned maintenance programs, we recommend reserving units in advance to guarantee availability during your scheduled outage window.
