Bently Nevada 330903-00-16-05-02-00 Safety-Reliable Proximity Probe

Bently Nevada 330903-00-16-05-02-00 Safety-Reliable Proximity Probe for Critical Control Sites

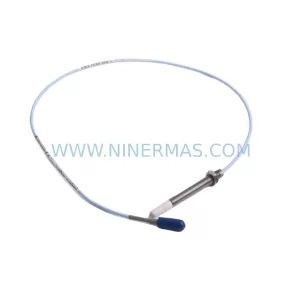

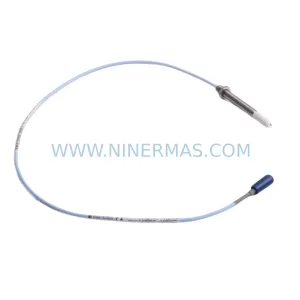

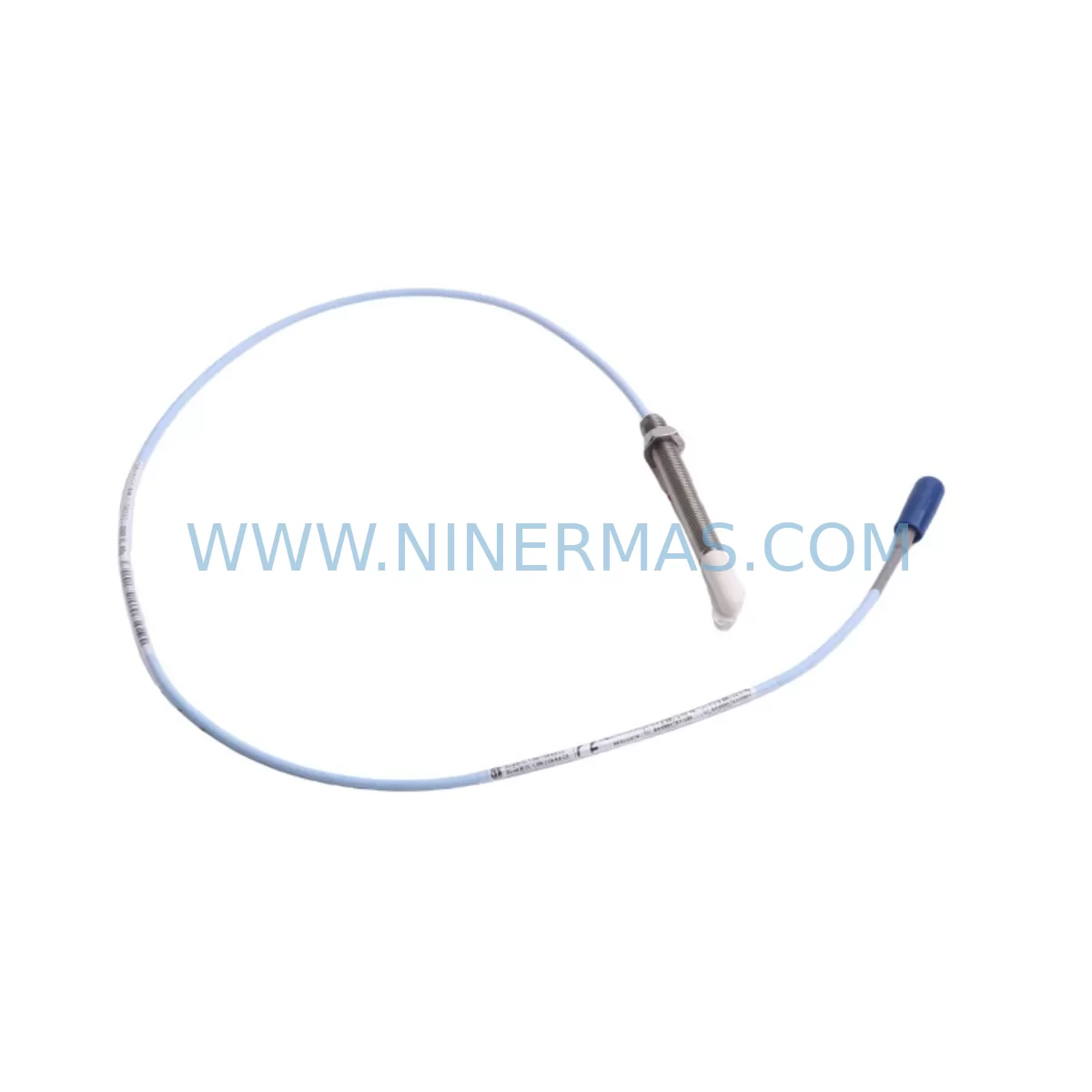

The Bently Nevada 330903-00-16-05-02-00 is a ruggedized proximity probe engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed as a core component of Bently Nevada’s 3300 Series vibration monitoring system, this probe delivers precise, non-contact shaft displacement and vibration measurement — a critical function in protecting rotating machinery across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port cranes, marine vessels, and continuous manufacturing sites.

In safety-critical control architectures, signal integrity is non-negotiable. The 330903-00-16-05-02-00 proximity probe is built to resist signal drift, electromagnetic interference, and mechanical shock — three of the most common causes of false trips, missed alarms, and unplanned shutdowns in rotating equipment protection systems. Its ruggedized housing and precision-wound coil assembly ensure stable eddy-current sensing performance even under high-vibration, high-temperature, and high-humidity field conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered rotating machinery protection cabinet, the 330903-00-16-05-02-00 proximity probe is never deployed in isolation. It operates as the sensing front-end of a complete vibration monitoring chain. The probe connects to a Bently Nevada 3300 XL 8mm Extension Cable (such as the 330130-045-00-00) to bridge the distance between the machine casing and the monitor rack, maintaining signal fidelity over the full cable run. The conditioned signal is then fed into a Bently Nevada 3300/16 Proximitor Sensor, which converts the raw eddy-current signal into a calibrated DC voltage proportional to shaft gap — the foundation of all vibration and position alarms.

Within the control cabinet, the Proximitor output is wired to a Bently Nevada 3500/42M Proximitor Seismic Monitor or a 3500/40M Proximitor Monitor, which processes the signal against user-configured alarm setpoints for radial vibration, axial position, and differential expansion. These monitors communicate over Modbus RTU or Ethernet/IP to the plant DCS or safety PLC, ensuring that any abnormal vibration event triggers a controlled shutdown sequence rather than a catastrophic failure.

To protect the entire monitoring loop from power-related disturbances — including voltage sags, surges, and conducted EMI from variable frequency drives — a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply with active buffer module is recommended as the 24 VDC source for the Proximitor rack. Upstream, a Bently Nevada 3500/15 Power Supply Module provides the regulated internal bus voltage for the 3500 Series rack, with redundant input capability to eliminate single-point power failure risk.

For installations in Zone 1 or Zone 2 hazardous areas — common in petrochemical and offshore environments — the probe circuit must be routed through a Bently Nevada 3300/55 Zener Barrier or an equivalent galvanic isolator to maintain intrinsic safety compliance. In high-EMI environments such as arc furnace control rooms or large motor drive panels, additional ferrite core suppressors on the coaxial cable and shielded conduit runs further reduce the risk of signal noise corrupting vibration readings.

When the 330903-00-16-05-02-00 is used in a dual-probe redundant configuration — standard practice for API 670-compliant machinery protection — a Bently Nevada 3500/22M Transient Data Interface can be added to the rack to capture high-resolution waveform data during transient events such as startup, coastdown, and load changes. This data is invaluable for root-cause analysis after a trip event and for predictive maintenance scheduling, reducing unplanned downtime across the entire production line.

Critical Industrial Safety Applications

The 330903-00-16-05-02-00 proximity probe is deployed across a wide range of safety-critical industrial applications where rotating machinery protection is directly linked to process continuity and personnel safety.

In petrochemical and refinery plants, this probe monitors the radial vibration of centrifugal compressors, boiler feed pumps, and reactor agitators — machines whose undetected bearing failure can trigger fire, explosion, or toxic release. In power generation facilities, it is installed on steam turbine shafts and generator rotors, where API 670 compliance mandates continuous vibration monitoring as part of the turbine protection system. A single missed alarm in this environment can result in catastrophic rotor damage and weeks of lost generation capacity.

In mining and mineral processing operations, the probe monitors ball mill pinion shafts, slurry pump impellers, and conveyor drive gearboxes — all subject to extreme shock loading, abrasive dust ingress, and wide temperature swings. The ruggedized construction of the 330903-00-16-05-02-00 makes it particularly well-suited to these conditions, where standard industrial sensors frequently fail prematurely.

In water and wastewater treatment plants, the probe protects large vertical turbine pumps and blower units that must operate continuously to maintain regulatory compliance. In metallurgical and steel production facilities, it monitors rolling mill drive shafts and continuous caster pinch rolls in environments characterized by intense heat radiation, electromagnetic noise from induction furnaces, and heavy mechanical vibration. In port and marine applications, it is used on propulsion shaft lines and cargo pump turbines aboard LNG carriers and bulk carriers, where saltwater corrosion resistance and vibration immunity are essential for safe operation at sea.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 330903-00-16-05-02-00 carry?
All units supplied by NINERMAS carry a 12-month quality warranty from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we provide replacement or full technical support at no additional cost. Our warranty covers manufacturing defects and functional failure under specified operating parameters.

Q2: How is each unit tested before shipment?
Every 330903-00-16-05-02-00 proximity probe undergoes pre-shipment functional verification, including coil impedance measurement, cable continuity and insulation resistance testing, and dimensional inspection of the probe tip and thread. Units sourced from authorized channels are cross-checked against Bently Nevada factory calibration documentation where available. Only units that pass full inspection are released for shipment.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330903-00-16-05-02-00 is designed for direct compatibility with the Bently Nevada 3300 XL Proximitor Sensor family and the 3500 Series monitoring rack. It follows the standard Bently Nevada eddy-current probe system interface, making it a drop-in replacement for worn or damaged probes in existing installations without requiring recalibration of the monitor or driver — provided the gap voltage is verified after installation per standard commissioning procedures.

Q4: Can NINERMAS support long-term and emergency spare parts supply for this probe?
Yes. NINERMAS maintains stock of the 330903-00-16-05-02-00 and related 3300 Series components to support both planned maintenance schedules and emergency breakdown situations. We understand that unplanned downtime in critical process industries carries significant financial and safety consequences. Our team can respond to urgent spare part requests with fast quotation and expedited shipping to minimize machine downtime and restore safe operation as quickly as possible.
