Bently Nevada 21000-16-10-35-098-03-02 Retrofit-Compatible Proximity Transducer

Bently Nevada 21000-16-10-35-098-03-02 Retrofit-Compatible Proximity Transducer for Legacy 3300 Systems

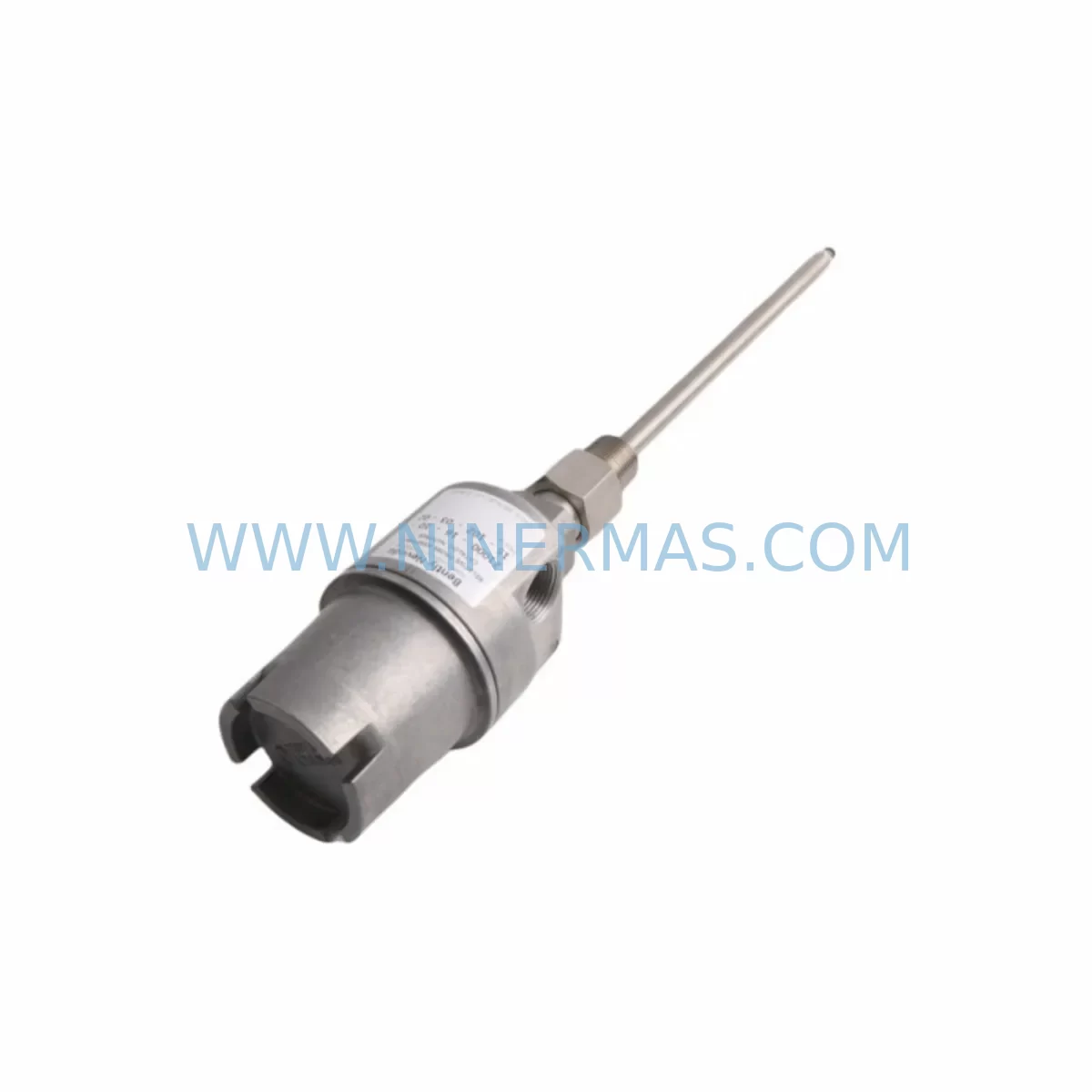

The Bently Nevada 21000-16-10-35-098-03-02 is a proximity transducer engineered for seamless integration into existing 3300 Series vibration monitoring installations. As legacy machinery protection systems age and original components reach end-of-life, plant engineers and reliability teams face increasing pressure to source verified replacement parts that maintain signal integrity, dimensional compatibility, and system certification without triggering full-scale control architecture overhauls. This unit addresses that challenge directly — offering a retrofit-ready solution that preserves your existing wiring infrastructure, monitor rack configuration, and PLC interface logic while restoring full measurement performance to your rotating machinery protection loop.

Whether you are managing a turbine protection panel, compressor monitoring rack, or pump vibration surveillance system, the 21000-16-10-35-098-03-02 is designed to slot into your existing 3300 proximity system framework with minimal engineering intervention. The transducer maintains the standard Bently Nevada eddy-current sensing principle, delivering reliable gap voltage output compatible with 3300/05 Proximitor® sensor signal conditioners and associated monitor modules such as the 3300/16 and 3300/20 series.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 21000-16-10-35-098-03-02 into a legacy control environment requires a structured pre-installation review. Begin by auditing the existing 3300 Proximitor® sensor — typically a 3300/05 or equivalent — to confirm that the extension cable length and driver cable assembly match the replacement transducer’s calibrated range. Bently Nevada proximity systems are calibrated as a matched set: transducer, extension cable, and Proximitor must share the same part number series to maintain accurate gap-to-voltage conversion.

Next, inspect the monitor rack. In many legacy installations, the 3300/16 Dual Vibration Monitor or 3300/20 Dual Vibration Monitor handles signal conditioning and alarm relay output. Confirm that the monitor’s input channel is configured for the correct transducer sensitivity (typically –7.87 V/mm or –200 mV/mil) before energizing the replacement unit. If the rack also houses a 3300/46 Tachometer Module for speed reference or a 3300/55 Keyphasor® Module for phase measurement, verify that these modules remain undisturbed during the transducer swap to avoid disrupting the overall vibration vector calculation.

For plants running a System 1® condition monitoring platform or interfacing the 3300 rack with a DCS via a 3500/92 Communication Gateway, confirm that the data acquisition mapping remains intact after the transducer replacement. No firmware changes are typically required for a like-for-like swap, but it is good practice to perform a live channel comparison against an adjacent healthy channel before returning the machine to service.

In control cabinets where space is constrained, also verify that the replacement transducer’s body length and probe tip geometry are compatible with the existing mounting bracket and target material. Stainless steel and Inconel targets behave differently under eddy-current excitation, and the calibration curve must reflect the actual target material in service. If the original installation used a 3300 XL 8mm or 3300 XL 11mm transducer variant, confirm the probe diameter before ordering to avoid a dimensional mismatch at the bearing housing.

All units supplied by NINERMAS are function-tested prior to shipment, with gap voltage output verified against Bently Nevada factory calibration standards. Each unit ships with a test report and is covered by a 12-month warranty from the date of delivery.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement is a primary concern for any maintenance team operating rotating equipment in continuous-process industries. The 21000-16-10-35-098-03-02 is designed to support a rapid swap procedure that can be completed within a planned maintenance window without requiring reprogramming of the host monitor or reconfiguration of the DCS interface.

Before initiating the replacement, export the current alarm and trip setpoints from the 3300 monitor using the System 1® software or a direct RS-232 connection to the monitor’s front-panel port. This preserves the existing protection logic and allows you to restore setpoints immediately after the new transducer is installed and gapped. If the machine cannot be taken offline, consider using a bypass relay or inhibit function built into the 3300 monitor to suppress spurious trips during the brief period when the transducer is disconnected.

Once the new transducer is installed and the gap is set to the specified value (confirm against the original installation drawing), reconnect the extension cable and Proximitor, then verify the DC gap voltage at the monitor input terminal. Compare the reading against the expected value for the target material and gap distance. If the reading falls within the calibrated linear range, re-enable the channel and confirm that vibration amplitude and phase readings are consistent with baseline data before releasing the machine to operations.

Keeping a verified spare of the 21000-16-10-35-098-03-02 on the shelf — along with the matched extension cable and a spare 3300/05 Proximitor — is the most effective strategy for reducing mean time to repair on critical machinery protection loops. NINERMAS maintains ready stock of this and related 3300 series components to support emergency dispatch requirements.

Retrofit Support FAQ

Q1: Is the 21000-16-10-35-098-03-02 a direct drop-in replacement for other 3300 series proximity transducers?
A: In most cases, yes — provided the replacement transducer shares the same probe diameter, cable length, and Proximitor model as the original. Always verify the full part number of the existing transducer, extension cable, and Proximitor before ordering to ensure the matched-set calibration is maintained.

Q2: What commissioning steps are required after installation?
A: After mechanical installation, set the air gap to the value specified on the original installation drawing (typically 1.0–2.5 mm for standard 3300 series probes). Measure the DC gap voltage at the Proximitor output and confirm it falls within the linear range. Re-enter alarm and trip setpoints in the 3300 monitor, then perform a channel-to-channel comparison before returning the machine to service.

Q3: Has this unit been tested before shipment?
A: Yes. All units supplied by NINERMAS are individually tested for gap voltage output and signal linearity prior to dispatch. A test report is included with each shipment. Units are covered by a 12-month warranty from the date of delivery.

Q4: Can NINERMAS supply the matching extension cable and Proximitor for this transducer?
A: Yes. NINERMAS stocks a range of Bently Nevada 3300 series components including extension cables, 3300/05 Proximitor® sensors, and associated monitor modules. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and lead time for a complete matched set.
