Bently Nevada 330103-11-19-10-02-00 3300 Series Retrofit

Bently Nevada 330103-11-19-10-02-00 3300 Series Retrofit: Legacy-Compatible Proximity Transducer Upgrade

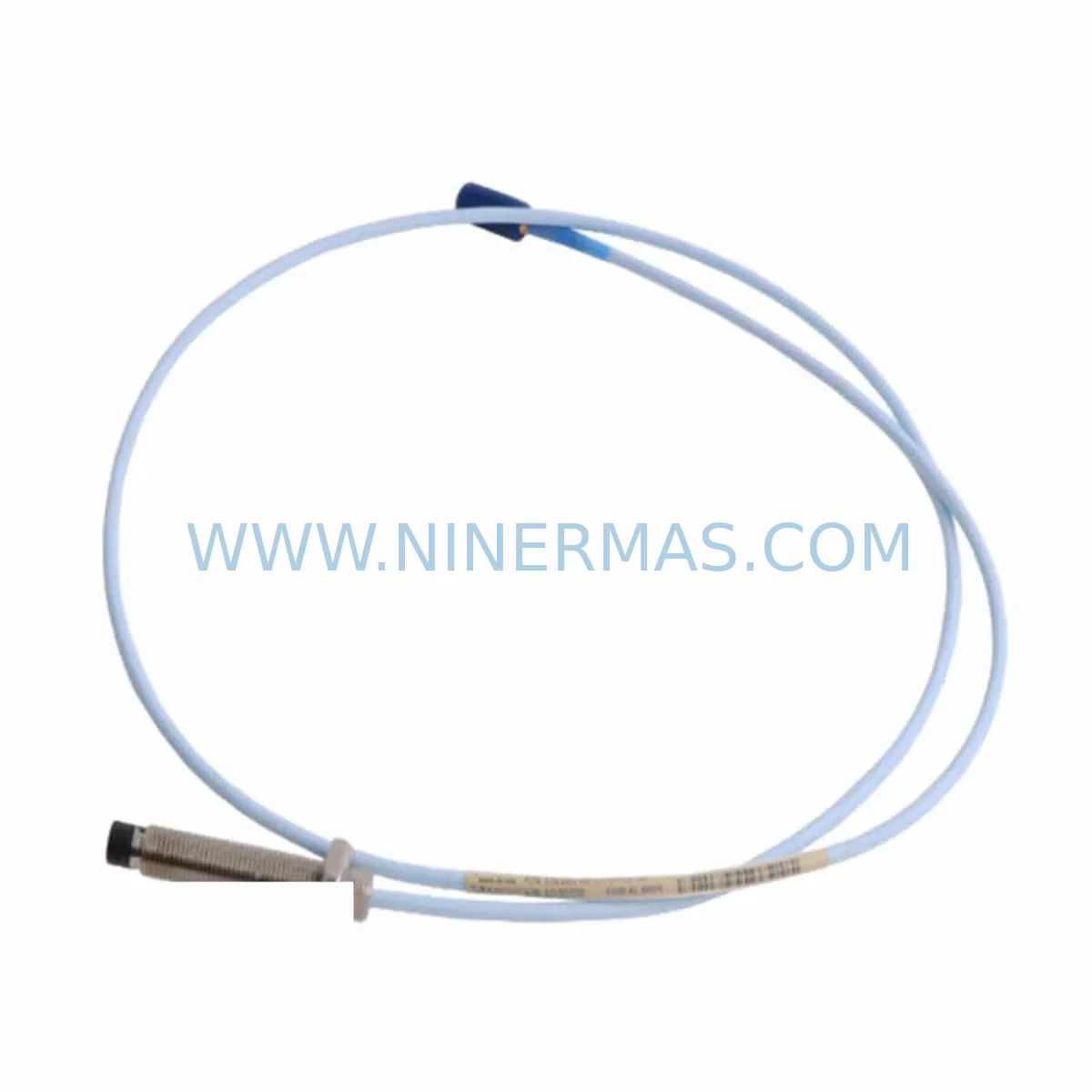

The Bently Nevada 330103-11-19-10-02-00 is a proximity transducer designed for use within the Bently Nevada 3300 Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industrial environments. As the 3300 Series approaches end-of-life and spare parts become increasingly scarce, plant engineers and reliability teams are actively seeking verified retrofit-compatible replacements that preserve existing wiring infrastructure, signal conditioning chains, and monitoring logic without requiring full system overhauls.

NINERMAS stocks the 330103-11-19-10-02-00 as a direct retrofit solution for facilities managing legacy Bently Nevada installations. Each unit is sourced from verified supply channels, pre-shipment tested against OEM electrical specifications, and backed by a 12-month warranty — giving procurement teams and maintenance engineers the confidence to plan long-term spare parts programs without exposure to counterfeit or non-conforming components.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330103-11-19-10-02-00 in an operating plant requires a structured approach that accounts for the full signal chain — from the probe tip through the extension cable, into the proximitor or driver module, and ultimately to the 3300 Series monitor card seated in the rack. Before scheduling a replacement outage, engineers should confirm that the existing Bently Nevada 3300/16 Monitor or 3300/20 Monitor card is still serviceable and that its input configuration matches the replacement transducer’s output characteristics. In many aging installations, the monitor card itself may have drifted or developed intermittent faults, making it prudent to inspect the 3300/16-02-01-00 or equivalent card alongside the transducer replacement.

The extension cable — typically a Bently Nevada 330130 Series cable matched to the transducer’s suffix-specified length — must be verified for continuity and insulation integrity. A degraded extension cable is a common source of false vibration alarms and can mask the true condition of the rotating machinery. When the full probe-cable-proximitor system is being replaced, teams often simultaneously address the Bently Nevada 330180 Series proximitor (driver) to ensure the entire signal conditioning chain is renewed as a matched set.

For facilities running integrated machinery protection across multiple trains, the 3300 Series rack — often a Bently Nevada 3300/05 or 3300/10 rack assembly — should be inspected for backplane connector wear, power supply rail stability, and card slot integrity. The Bently Nevada 3300/15 Power Supply Module is a frequent co-replacement item, particularly in installations where the rack has been in continuous service for more than a decade. Unstable rack power is a leading cause of spurious trips and should be resolved before commissioning new transducers.

Where the plant’s condition monitoring strategy has evolved to include integration with a DCS or safety instrumented system, the signal outputs from the 3300 Series monitor cards may feed into relay modules or analog output cards that interface with Modbus RTU or HART-enabled field devices. In these architectures, confirming that the replacement transducer’s gap voltage output remains within the monitor card’s calibrated range is essential to preserving the integrity of the downstream alarm and trip logic. Any deviation in gap voltage — even within tolerance — should be documented and communicated to the control room team before the unit is returned to service.

I/O mapping and channel address assignments within the machinery protection system should be reviewed against the plant’s current loop drawings. In older installations, as-built documentation may not reflect field modifications made during previous maintenance cycles. A physical walkdown of the terminal strip connections, junction box wiring, and cable routing is recommended before the replacement outage begins. Signal isolators or barriers installed between the 3300 Series output and the DCS analog input card should also be tested for correct scaling and output range.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement on a critical rotating machine requires pre-staging all replacement components — including the 330103-11-19-10-02-00 transducer, matched extension cable, and any associated proximitor — before the maintenance window opens. NINERMAS recommends confirming stock availability and lead time at least four to six weeks ahead of the planned outage, particularly for suffix-specific variants where cable length and connector configuration are encoded in the part number.

During the replacement window, the original program logic in the machinery protection system should not be modified unless a deliberate upgrade is being performed. The 3300 Series monitor card retains its alarm and trip setpoints in non-volatile memory, but these should be recorded as-found before any work begins and verified as-left before the machine is restarted. If the plant uses a Bently Nevada System 1 condition monitoring software platform, the historian data for the affected channel should be flagged for the maintenance period to prevent false trend analysis.

Where the machine cannot be taken fully offline, a temporary bypass or inhibit of the affected monitoring channel — in accordance with the plant’s management of change and safety procedures — allows the replacement to proceed without triggering a spurious trip. The bypass period should be minimized, and a qualified technician should be stationed at the machine to monitor bearing temperature and audible condition during the transducer swap. Once the replacement is installed and the gap is set to the correct voltage, the inhibit should be removed and the channel verified against adjacent channels before the bypass is formally closed out.

Post-installation, a short-duration trend review in the condition monitoring system will confirm that the new transducer is tracking correctly and that no wiring or connector issues were introduced during the replacement. This step is particularly important in high-speed machinery applications where even minor signal anomalies can indicate installation errors that, if left uncorrected, could lead to missed fault detection.

Retrofit Support FAQ

Q1: Is the 330103-11-19-10-02-00 a direct replacement for other 330103 suffix variants?
The 330103 base part number covers a family of proximity transducers differentiated by suffix codes that specify cable length, connector type, and temperature rating. The -11-19-10-02-00 suffix defines a specific configuration. Before substituting a different suffix variant, confirm that the cable length, connector, and temperature rating are compatible with your installation. NINERMAS technical support can assist with cross-reference verification prior to order placement.

Q2: What commissioning steps are required after installing the replacement transducer?
After mechanical installation, set the probe gap to achieve the nominal -18 VDC output as specified for your target material and monitor card. Verify the gap voltage at the monitor card input terminals, confirm that the channel is reading correctly in the machinery protection system, and check that alarm and trip setpoints are active. Document as-found and as-left gap readings in the maintenance record. If the installation includes a new extension cable or proximitor, perform a full system calibration check.

Q3: Does NINERMAS perform pre-shipment testing on the 330103-11-19-10-02-00?
Yes. Each unit undergoes electrical verification against OEM specifications before shipment, including output voltage check, insulation resistance, and connector integrity. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and electrical non-conformance under normal operating conditions.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains stock of the 330103-11-19-10-02-00 to support urgent maintenance and planned outage requirements. Standard orders ship within 3–5 business days. For large-quantity procurement or long-term spare parts program commitments, contact our sales team at sale@ninermas.com to discuss dedicated stock allocation and volume pricing. We recommend establishing a standing inventory agreement for critical spare parts to eliminate lead-time risk during unplanned outages.
