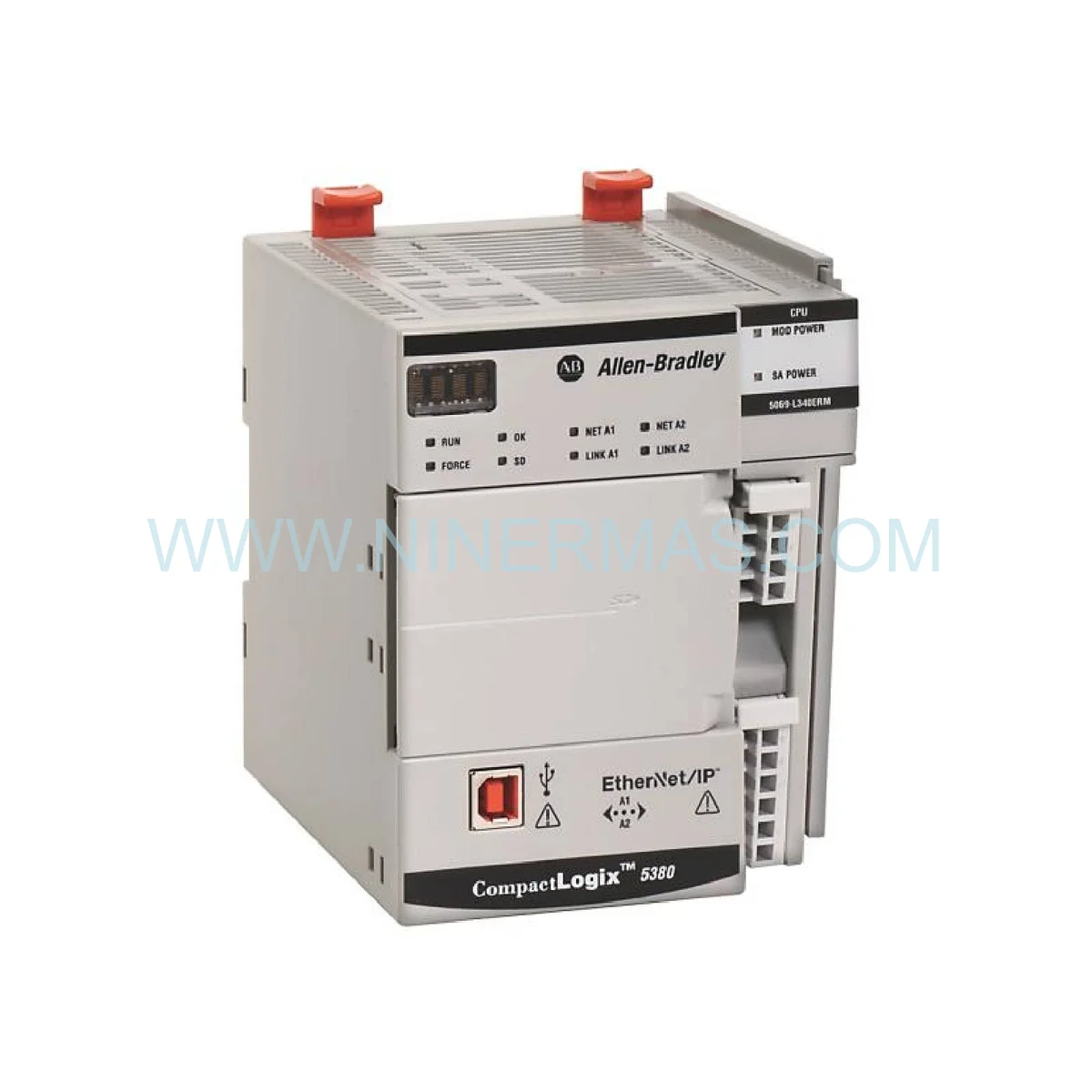

Allen-Bradley 5069-L340ERM – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Allen-Bradley 5069-L340ERM stands out as a cornerstone component in any serious modernization initiative. Whether you are migrating a legacy SLC 500, PLC-5, or aging CompactLogix 5370 platform, the Allen-Bradley 5069-L340ERM delivers the processing headroom, memory capacity, and communication architecture needed to future-proof your facility without a full greenfield rebuild. Its 3 MB user memory and high-speed execution engine directly address the performance bottlenecks that plague older controllers, extending the productive life of your existing infrastructure while laying the groundwork for Industry 4.0 integration.

From a backward-compatibility standpoint, the 5069-L340ERM operates within the Compact 5000 I/O ecosystem, enabling engineers to retain existing field wiring and I/O strategies while replacing only the controller backbone. This hybrid migration approach — preserving proven field devices while upgrading the intelligence layer — dramatically reduces commissioning time and minimizes production downtime during cutover. The dual EtherNet/IP ports further simplify network topology redesign, supporting Device Level Ring (DLR) configurations that eliminate single points of failure common in legacy star-wired architectures.

From a total cost of ownership perspective, deploying the 5069-L340ERM as the centerpiece of a phased retrofit strategy reduces migration risk by allowing incremental validation at each stage. Engineering teams can run parallel testing, validate logic conversion from RSLogix 5/500 to Studio 5000 Logix Designer, and confirm I/O integrity before final cutover — a structured approach that protects both capital investment and operational continuity.

Upgrade Highlights & Compatibility

✅ Drop-in Controller Replacement: Compatible with Compact 5000 I/O modules, enabling direct substitution in existing panel layouts without major mechanical rework.

Dual EtherNet/IP Ports: Supports DLR topology for network redundancy — a critical upgrade from single-port legacy controllers prone to network-induced downtime.

✅ Integrated Motion on EtherNet/IP: Controls up to 32 servo axes over standard Ethernet, eliminating dedicated motion networks and reducing wiring complexity in retrofit projects.

3 MB User Memory: Provides ample headroom for migrated legacy programs plus new diagnostic, data logging, and OEE monitoring routines added during modernization.

✅ Studio 5000 Logix Designer Compatibility: Leverages Rockwell’s unified programming environment, enabling seamless integration with existing Allen-Bradley HMI, SCADA, and MES layers.

Future-Proof Architecture: Supports Add-On Instructions (AOIs), User-Defined Data Types (UDTs), and Produced/Consumed Tags — building blocks for scalable, maintainable retrofit solutions.

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing Plants: Facilities operating aging Distributed Control Systems with proprietary fieldbus networks have successfully deployed the 5069-L340ERM as the primary controller in hybrid DCS-to-PLC migration projects. By leveraging EtherNet/IP as the unified communication backbone, engineers replaced isolated control islands with a cohesive, plant-wide network — achieving a 40% reduction in unplanned downtime within the first year of operation.

Turbine Supervisory Instrumentation (TSI) Modernization: Power generation facilities requiring precise turbine speed, vibration, and temperature monitoring have integrated the 5069-L340ERM into TSI upgrade projects. Its high-speed scan cycle and deterministic execution ensure that critical protection logic responds within milliseconds — meeting the stringent performance requirements of modern turbine control without replacing the entire monitoring infrastructure.

Automotive Assembly Line Retrofit: Tier-1 automotive suppliers have used the 5069-L340ERM to replace end-of-life SLC 500 controllers on body welding and paint shop conveyors. The integrated motion control capability allowed engineers to consolidate separate motion controllers and PLCs into a single platform, reducing panel footprint by 35% and simplifying spare parts inventory management.

Food & Beverage Packaging Modernization: High-speed packaging lines previously controlled by legacy fixed-architecture PLCs have been successfully migrated to the 5069-L340ERM platform. The controller’s modular I/O expansion and EtherNet/IP connectivity enabled seamless integration with new vision inspection systems and MES data collection layers — delivering measurable improvements in OEE and traceability compliance.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 5069-L340ERM unit supplied through our network is sourced from authorized distribution channels or directly from Rockwell Automation-certified warehouses. Each unit ships factory sealed with full traceability documentation, ensuring authenticity and eliminating counterfeit risk — a critical consideration for safety-critical retrofit deployments.

Expedited Global Logistics: We maintain strategic inventory positions across multiple fulfillment hubs to support urgent retrofit timelines. Whether your project requires same-week delivery to a North American facility or air freight to an Asia-Pacific manufacturing site, our logistics team coordinates customs documentation, export compliance, and last-mile delivery to minimize schedule risk.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in bridging the gap between legacy control architectures and modern platforms. From logic conversion assistance and I/O mapping reviews to network architecture consulting and commissioning support, we provide the technical depth that standard distributors cannot match — ensuring your retrofit project succeeds from first power-up to full production.

Retrofit FAQ (Upgrade Guide)

Q: Will the 5069-L340ERM physically fit in my existing control panel designed for a CompactLogix 5370 controller?
A: The Compact 5000 platform uses a different mounting rail and backplane than the 1769 Compact I/O system used with CompactLogix 5370. Panel modifications are typically required, including new DIN rail sections and updated I/O adapter modules. However, the compact form factor of the 5069-L340ERM often allows installation within the existing panel enclosure footprint, minimizing structural rework costs.

Q: How do legacy SLC 500 or PLC-5 programs get migrated to the 5069-L340ERM?
A: Rockwell Automation provides the Migration Conversion Tool within Studio 5000 Logix Designer, which automates the translation of ladder logic from RSLogix 5 and RSLogix 500 formats. While automated conversion handles the majority of standard instructions, engineers should plan for manual review of specialized function blocks, PID tuning parameters, and any custom communication routines that may require rewriting for EtherNet/IP compatibility.

Q: Can the 5069-L340ERM communicate with legacy third-party devices using Modbus RTU or PROFIBUS?
A: Yes. Communication gateway modules and EtherNet/IP-to-serial bridge devices are available to maintain connectivity with legacy Modbus RTU, PROFIBUS DP, and DeviceNet field devices during the transition period. This hybrid communication strategy allows a phased device replacement approach rather than requiring simultaneous replacement of all field instruments.

Q: What is the recommended spare parts strategy when deploying the 5069-L340ERM in a retrofit project?
A: For critical production environments, we recommend maintaining a minimum of one hot-spare 5069-L340ERM controller on-site, along with spare power supply modules and Ethernet switches. Given that the 5069-L340ERM is an Active product with full Rockwell support, spare parts availability is excellent — however, lead times for new orders can extend to 8-16 weeks during high-demand periods, making on-site inventory essential for minimizing unplanned downtime risk.

Q: Is the 5069-L340ERM suitable as a direct replacement for end-of-life CompactLogix 5370 controllers in existing systems?
A: The 5069-L340ERM is the recommended upgrade path from the CompactLogix 5370 family. While it is not a plug-and-play replacement due to I/O system differences, Rockwell Automation provides detailed migration guides and the Compact 5000 I/O system is designed to accommodate the transition with minimal field wiring changes. The performance gains — including faster scan times, larger memory, and integrated motion — justify the migration investment for most applications.

Q: What cybersecurity features does the 5069-L340ERM offer compared to legacy controllers?
A: The 5069-L340ERM incorporates modern industrial cybersecurity capabilities including role-based access control, encrypted communications support, and compatibility with Rockwell’s FactoryTalk Security framework. These features represent a significant security upgrade over legacy controllers that lack authentication mechanisms — an increasingly important consideration as industrial networks become more connected to enterprise IT systems.
