Allen-Bradley 5069-L3 100ERM Retrofit CompactLogix Controller

Allen-Bradley 5069-L3 100ERM Retrofit-Compatible CompactLogix Controller: Legacy System Modernization and Smooth Upgrade Path

The Allen-Bradley 5069-L3 100ERM is a high-performance CompactLogix 5380 series programmable logic controller designed for demanding industrial automation environments. With 3 MB of user memory, integrated EtherNet/IP motion control support for up to 100 axes, and a compact 5069 Compact I/O backplane architecture, this controller is a proven retrofit solution for aging control systems previously built around discontinued platforms such as the SLC 500, MicroLogix 1500, CompactLogix 1769-L3x series, and early ControlLogix 1756-L6x installations. NINERMAS maintains verified stock of the 5069-L3 100ERM with pre-shipment functional testing and a 12-month warranty, making it a reliable choice for maintenance engineers managing critical production lines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Migrating from a legacy CompactLogix 1769-L3x or SLC 500 platform to the 5069-L3 100ERM requires a structured approach to hardware, software, and field wiring. The first step is a full audit of the existing control cabinet: document every 1769 Compact I/O module installed on the backplane — including digital input modules such as the 1769-IQ16, digital output modules such as the 1769-OB16, and analog modules such as the 1769-IF4 — and identify their 5069-series equivalents. The 5069 Compact I/O family offers direct functional replacements for most 1769 module types, but the backplane connector and addressing scheme differ, so module slot assignments must be reconfigured in Studio 5000 Logix Designer.

Power supply selection is critical. The 5069-PA4 (120/240 VAC) or 5069-PB3 (24 VDC) must be sized to cover the total current draw of all 5069 I/O modules on the local chassis. Engineers should calculate the power budget carefully, particularly when the retrofit involves adding 5069-IB16 digital input modules, 5069-OB16 digital output modules, or 5069-IF8 analog input modules alongside the controller. Undersized power supplies are a common cause of intermittent faults during commissioning.

Communication architecture is another key consideration. The 5069-L3 100ERM uses dual-port EtherNet/IP as its primary network interface, replacing the DH+, RS-232, and DF1 serial links common on older SLC 500 and early CompactLogix installations. If the existing plant network includes legacy HMI terminals such as PanelView 550 or PanelView 600 units communicating over DH-485, a protocol bridge such as the 1761-NET-ENI or a managed switch with the 1783-ETAP module may be required to maintain HMI connectivity during the transition period. Long-term, the recommended path is to upgrade HMI hardware to PanelView Plus 7 or PanelView 5510 terminals, which communicate natively over EtherNet/IP and support the tag-based addressing model of the 5069 platform.

For motion control applications, the 5069-L3 100ERM supports up to 100 coordinated motion axes over EtherNet/IP, making it compatible with Kinetix 5500 and Kinetix 5700 servo drives. Engineers migrating from older Kinetix 6000 or Ultra3000 drive systems should verify drive firmware versions and axis configuration parameters in Studio 5000 before going live. The 2198-H003-ERS3 and similar Kinetix 5500 single-axis drives are commonly paired with the 5069-L3 100ERM in retrofit projects involving packaging, conveyor, and press control systems.

Signal isolation is often overlooked during retrofit planning. Where legacy wiring connects thermocouples, RTDs, or 4–20 mA transmitters directly to 1769 analog modules, the replacement 5069-IF8 or 5069-IY4 modules may have different input impedance characteristics. In high-noise industrial environments, adding a signal isolator or barrier between field instruments and the new I/O modules reduces the risk of measurement errors after cutover. Programming cable access during commissioning is also important: the 5069-L3 100ERM is programmed exclusively over EtherNet/IP using Studio 5000 Logix Designer, so a dedicated commissioning laptop with a direct Ethernet connection to the controller’s primary port is recommended.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any control system retrofit. For the 5069-L3 100ERM migration, the recommended approach is a parallel build strategy: assemble and pre-configure the new 5069 chassis — including the controller, 5069-PA4 power supply, and all replacement I/O modules — on a bench before the scheduled maintenance window. Load the converted Studio 5000 program, verify I/O module configuration, and perform a dry-run simulation using the controller’s offline emulation mode in Logix Designer.

During the cutover window, the original 1769 chassis should remain powered until the new 5069 chassis is fully wired and ready for energization. Field wiring can be transferred terminal block by terminal block using the original wiring diagrams as reference, with each circuit verified for continuity before the new module is enabled. This approach protects the original program logic — which should be exported from RSLogix 5000 or RSLogix 500 and archived before any hardware changes — and allows the team to roll back to the legacy system if a critical issue is discovered during commissioning.

HMI screen updates should be completed and tested in a staging environment before the cutover. Tag name changes between the legacy and new controller programs are the most common source of HMI communication faults after a retrofit. A tag cross-reference document, generated from both the old and new programs, helps the commissioning team identify and resolve mismatches before the system goes live. With proper pre-staging, most 5069-L3 100ERM retrofits can be completed within a single planned maintenance shift, keeping unplanned downtime to a minimum.

Retrofit Support FAQ

Q1: Is the 5069-L3 100ERM a direct drop-in replacement for the 1769-L3x CompactLogix controller?
No. The 5069-L3 100ERM uses the 5069 Compact I/O backplane, which is not physically or electrically compatible with the 1769 Compact I/O backplane. A full chassis replacement — including power supply and I/O modules — is required. However, the control program can be migrated from RSLogix 5000 to Studio 5000 Logix Designer with appropriate revision and tag updates.

Q2: What pre-shipment testing does NINERMAS perform on the 5069-L3 100ERM?

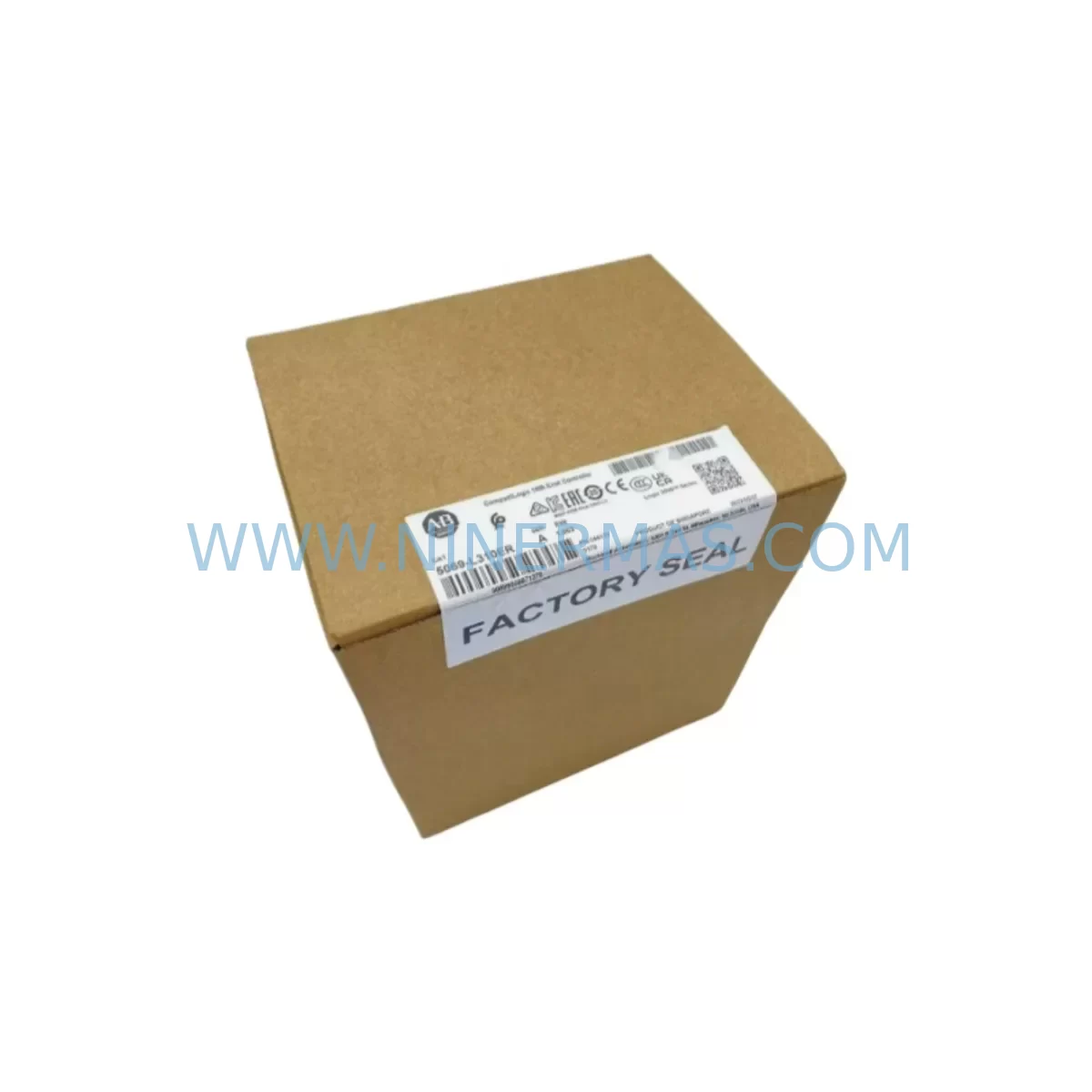

Each unit undergoes functional power-on testing, firmware version verification, and communication port validation before shipment. Units are shipped with original or equivalent packaging to prevent transit damage. A test report is available upon request for critical infrastructure applications.

Q3: Can the 5069-L3 100ERM communicate with legacy DH+ or DF1 devices on the existing plant network?
The 5069-L3 100ERM does not have native DH+ or DF1 ports. Communication with legacy DH+ devices requires a protocol gateway such as the 1761-NET-ENI or a third-party EtherNet/IP-to-DH+ bridge. For DF1 serial devices, a 1747-KE or equivalent serial gateway can be used to bridge the legacy network to the EtherNet/IP backbone.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?
The NINERMAS 12-month warranty covers functional failure of the 5069-L3 100ERM under normal operating conditions, including power supply faults, communication port failures, and processor faults not caused by external damage or improper installation. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference number and a description of the fault. Replacement or repair will be arranged within the warranty period at no additional cost.
