Allen-Bradley 2711P-B15C4A9 Retrofit-Compatible HMI for Legacy

Allen-Bradley 2711P-B15C4A9 Retrofit-Compatible HMI for Legacy System Modernization

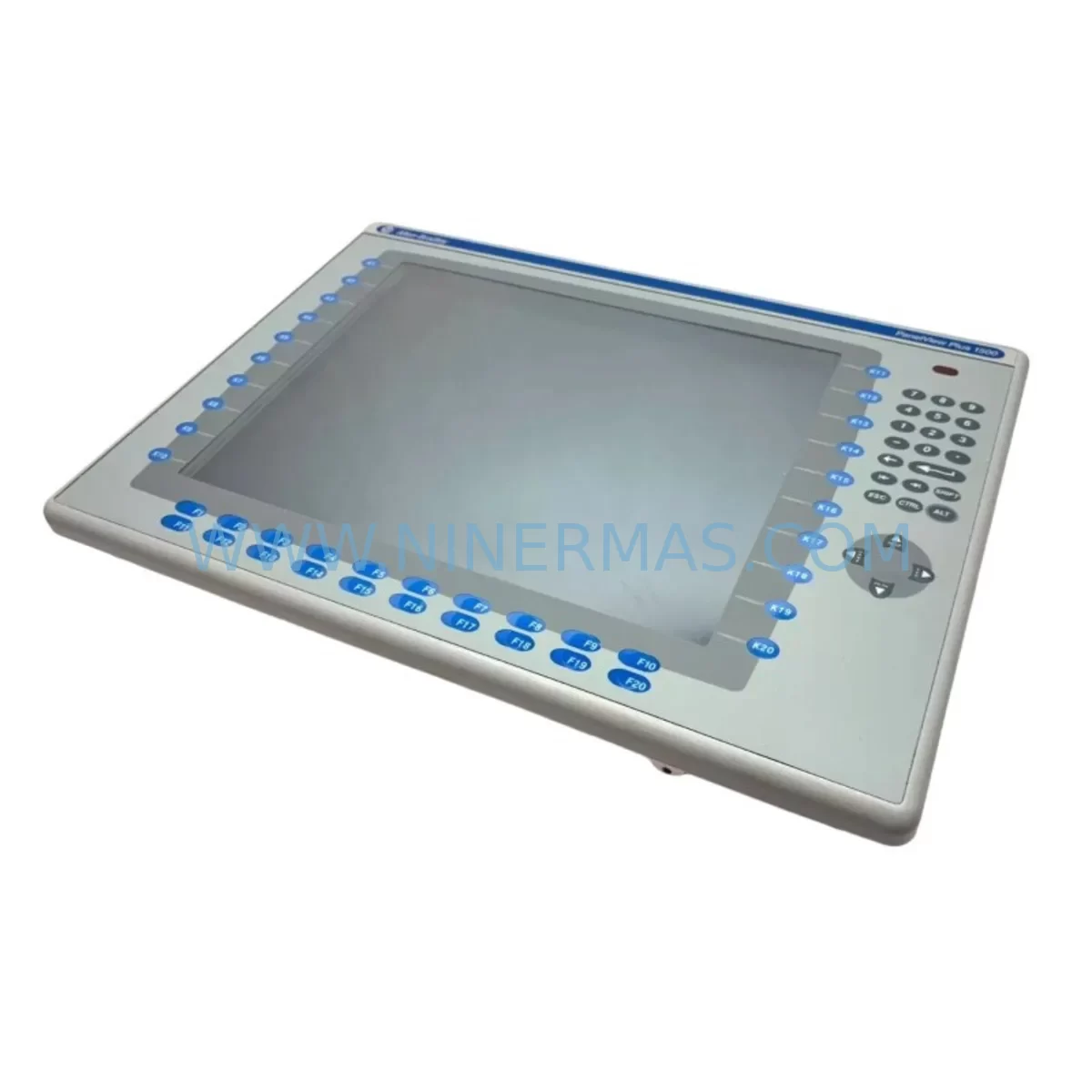

The Allen-Bradley 2711P-B15C4A9 is a 15-inch PanelView Plus 6 operator terminal engineered for demanding industrial environments. As legacy HMI platforms reach end-of-life and spare parts become increasingly scarce, the 2711P-B15C4A9 serves as a proven retrofit solution for facilities running aging PanelView 1000e, PanelView 1200e, or earlier PanelView Plus 700/1000 terminals. NINERMAS maintains verified in-stock inventory of this unit, fully tested and backed by a 12-month warranty, enabling maintenance teams to execute controlled panel upgrades without extended lead times or unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 2711P-B15C4A9 retrofit begins well before the unit arrives on site. Engineering teams should start by auditing the existing control cabinet layout to confirm available panel space, power distribution, and cable routing paths. The 2711P-B15C4A9 draws up to 60 W at 24 VDC; if the existing 24 VDC rail is shared with a 1769-PA2 or 1769-PB2 CompactLogix power supply, verify that the combined load remains within rated capacity before commissioning.

Communication architecture is the next critical checkpoint. Many legacy installations rely on a 2711P-RN6 Data Highway Plus network card or a 2711P-RN15S EtherNet/IP module seated in the rear communication slot of the PanelView Plus chassis. When replacing an older terminal, confirm which network card is installed and whether the replacement 2711P-B15C4A9 unit ships with the same card variant. If the plant network has already migrated to EtherNet/IP, this is an ideal moment to retire the DH+ segment and consolidate communications through a 1756-EN2T or 1756-ENBT ControlLogix Ethernet bridge, simplifying long-term network maintenance.

For facilities running a 1756-L71 or 1756-L75 ControlLogix controller, the FactoryTalk View ME application file (.mer) stored on the legacy terminal must be exported and validated against the new runtime environment before go-live. Pay particular attention to tag database mappings, UDT structures, and any controller-linked alarm triggers. If the original application was developed under FactoryTalk View ME version 6.x and the replacement unit ships with a newer runtime, a version upgrade through FactoryTalk View Studio is required. Retain a backup copy of the original .mer file on a dedicated USB drive and on the plant engineering server before making any changes.

I/O wiring at the terminal block level should be documented with photographs and a point-to-point wiring list before disconnecting the old unit. The 2711P-B15C4A9 does not include onboard I/O, so all discrete and analog signals remain on the PLC side — typically routed through 1769-IQ16 digital input modules, 1769-OB16 digital output modules, or 1769-IF4 analog input modules in a CompactLogix rack. Confirm that all terminal labels match the wiring diagram and that no field wiring has been modified since the original installation.

Where the control cabinet includes a 1783-US5T or 1783-US8T unmanaged Ethernet switch for device-level networking, verify that the switch port assigned to the HMI is configured for the correct VLAN and that IP address conflicts are resolved before powering the new terminal. Static IP assignment is recommended for HMI devices to prevent address changes during DHCP lease renewals. If a 2711P-T10C4D8 or similar compact PanelView Plus terminal is used as a secondary operator station in the same system, ensure both terminals share the same FactoryTalk Directory server path to maintain synchronized alarm and event logging.

Downtime Control During System Migration

Minimizing production interruption during an HMI swap requires a structured pre-outage preparation plan. At least one week before the scheduled maintenance window, the engineering team should complete the following: export and verify the existing .mer application, document all IP addresses and network settings, photograph all terminal block wiring, and confirm that the replacement 2711P-B15C4A9 unit has passed the NINERMAS pre-shipment functional test. Having a tested, ready-to-install unit on the shelf eliminates the most common source of extended downtime — waiting for a replacement to arrive after a failure.

During the outage window, follow a structured swap sequence: power down the panel in the correct sequence per the site lockout/tagout procedure, disconnect field wiring from the rear of the old terminal, remove the unit from the panel cutout, install the 2711P-B15C4A9, reconnect all field wiring per the documented wiring list, restore power, and load the validated .mer application from USB. The entire physical swap typically takes 30 to 90 minutes for an experienced technician. Application loading and initial screen navigation testing adds another 15 to 30 minutes. Plan for a total outage window of two to three hours to allow for unexpected wiring discrepancies or runtime version adjustments.

To protect the original program logic on the controller side, do not modify the PLC program during the HMI swap unless a specific tag or UDT change is required for runtime compatibility. The 1756-L71 or 1769-L33ER controller will continue executing its ladder or structured text program independently of the HMI terminal, so production interlocks and safety logic remain active throughout the swap. Once the new terminal is online and all HMI screens are verified, conduct a full alarm acknowledgment test and confirm that trend data logging has resumed before releasing the line back to production.

Retrofit Support FAQ

Q1: Is the 2711P-B15C4A9 a direct drop-in replacement for the 2711P-B15C4A8?
The 2711P-B15C4A9 is the current production revision of the 15-inch PanelView Plus 6 terminal and is functionally compatible with applications developed for the 2711P-B15C4A8. The panel cutout dimensions and communication slot configuration are identical. The primary difference is the firmware revision and runtime version shipped from the factory. Verify the FactoryTalk View ME runtime version on the replacement unit and upgrade if necessary before loading the existing .mer application.

Q2: What communication modules are compatible with this terminal?
The 2711P-B15C4A9 accepts communication cards in the rear expansion slot. Supported modules include the 2711P-RN15S for EtherNet/IP, the 2711P-RN6 for Data Highway Plus, and the 2711P-RN2 for ControlNet. Confirm which module is installed in the legacy terminal being replaced and source the same card variant to maintain network continuity without reconfiguring the plant network.

Q3: Does NINERMAS test units before shipment?
Yes. Every 2711P-B15C4A9 unit shipped by NINERMAS undergoes a pre-shipment functional test covering power-on verification, display calibration, communication port integrity, and runtime loading. A test certificate is included with each shipment. All units are covered by a 12-month warranty from the date of shipment, with direct technical support available for installation and commissioning questions.

Q4: How quickly can NINERMAS supply the 2711P-B15C4A9 for an emergency breakdown?
NINERMAS maintains warehouse inventory of the 2711P-B15C4A9 to support emergency breakdown and planned maintenance requirements. Standard lead time for in-stock units is 3 to 7 business days for international shipments. For urgent breakdown situations, contact the NINERMAS sales team directly to confirm current stock availability and expedited shipping options.
